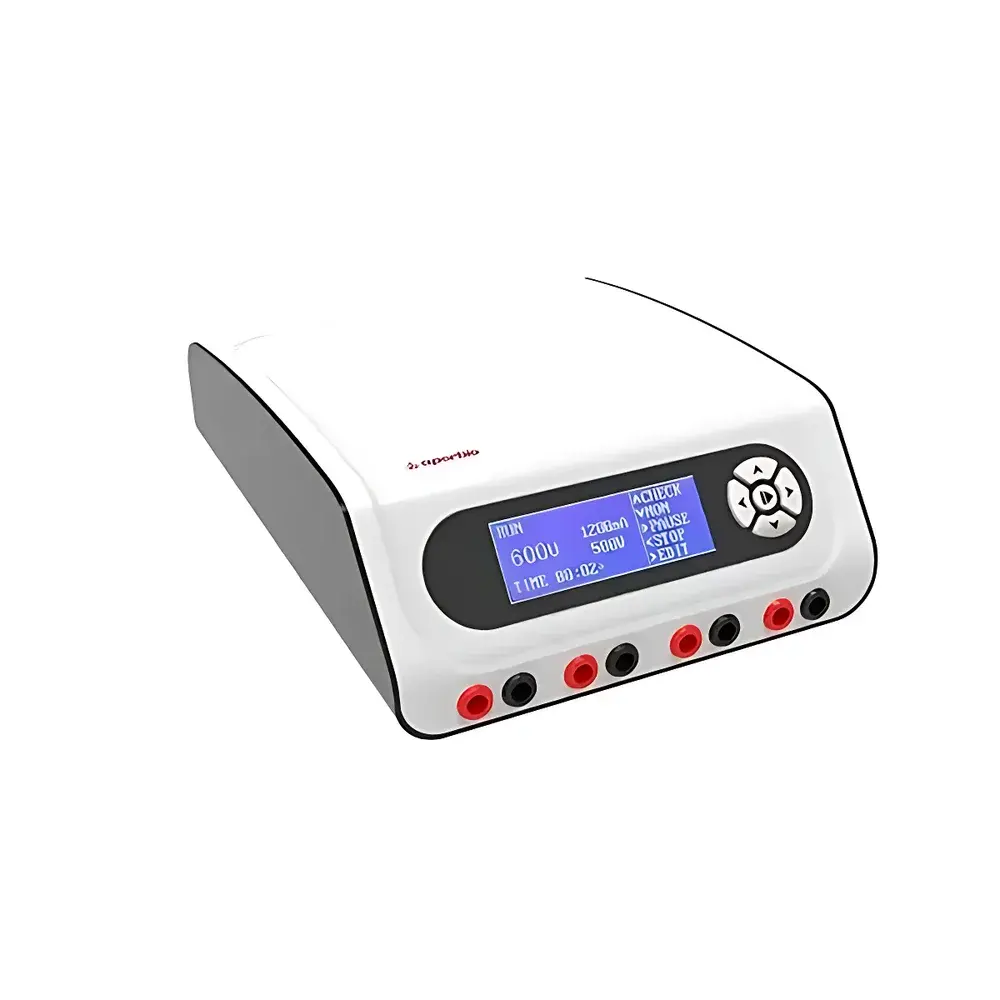

Aperbio PowerBasic 600 Universal Electrophoresis Power Supply

Overview

The Aperbio PowerBasic 600 Universal Electrophoresis Power Supply is an engineered solution for precise, reproducible, and safe operation of slab-gel and capillary electrophoresis systems. Designed in accordance with core principles of controlled DC power delivery, it delivers stable output across three independent regulation modes—constant voltage (CV), constant current (CC), and constant power (CP)—enabling optimal resolution for diverse nucleic acid and protein separation protocols. Its architecture supports standard horizontal and vertical electrophoresis tanks, including mini-gel, large-format SDS-PAGE, native PAGE, and agarose-based DNA/RNA analysis systems. The unit integrates real-time electrical parameter monitoring and adaptive response logic to maintain electrophoretic integrity under variable load conditions—critical for maintaining consistent migration front velocity and minimizing band distortion during extended runs.

Key Features

• Triple-Mode Regulation Logic: Select CV, CC, or CP operation via intuitive front-panel interface; system dynamically adjusts output to sustain user-defined setpoints without manual recalibration.
• Gel-Phase Transition Automation: Upon detection of stacking gel completion (via time or current threshold), the supply automatically shifts to preconfigured separation gel parameters—eliminating manual intervention and reducing protocol variability between users.
• Auto-Generated Parameter Synthesis: When one parameter (e.g., voltage) is fixed, the unit calculates and enforces physically consistent values for complementary parameters (current or power), preventing incompatible settings that could compromise gel integrity or cause thermal runaway.
• Microcurrent Hold Function: At run termination, output transitions to a sub-100 µA maintenance current to preserve band sharpness by counteracting diffusion while avoiding overmigration—a feature particularly critical for high-resolution protein analysis and low-percentage agarose gels.
• Comprehensive Electrical Safety Architecture: Real-time monitoring for open-circuit, arc discharge, rapid load transients, short-circuit, and ground-fault leakage; automatic shutdown with audible/visual alert and non-volatile fault logging. Includes seamless restart capability after brief power interruptions and full pause/resume functionality for interrupted protocols.

Sample Compatibility & Compliance

The PowerBasic 600 is compatible with standard electrophoresis chambers from major global suppliers (e.g., Bio-Rad, Thermo Fisher, C.B.S. Scientific) and supports both aqueous and denaturing buffer systems (Tris-Glycine, Tris-Acetate, MOPS, CAPS). It meets IEC 61010-1:2010 safety requirements for laboratory electrical equipment and incorporates design elements aligned with GLP-compliant workflows—including timestamped event logging (power-on, mode change, fault trigger, pause/resume) accessible via USB port. While not certified to FDA 21 CFR Part 11 out-of-the-box, its audit-trail-capable firmware supports validation documentation for regulated QC/QA laboratories performing identity, purity, or molecular weight verification per USP , ISO 13485, or ISO/IEC 17025 frameworks.

Software & Data Management

The device operates as a standalone instrument but includes a USB 2.0 interface for firmware updates and diagnostic data export. Logged events—including runtime, peak current/voltage, fault codes, and user-initiated pauses—are stored in CSV-compatible format for integration into LIMS or ELN platforms. No proprietary software installation is required; exported logs are human-readable and support automated parsing via Python or LabVIEW scripts. Remote control via RS-232 or TTL-level serial is available through optional adapter modules (sold separately), enabling integration into automated electrophoresis workcells.

Applications

• SDS-PAGE and native PAGE for protein molecular weight estimation and oligomeric state analysis
• Agarose and polyacrylamide gel electrophoresis for DNA fragment sizing, plasmid profiling, and RNA integrity assessment
• Two-dimensional electrophoresis (2-DE) first-dimension IEF power delivery with programmable voltage ramping
• Educational and core facility use where reliability, safety, and ease of protocol replication are prioritized over high-throughput automation
• QC release testing in biomanufacturing environments requiring documented power delivery consistency per batch records

FAQ

Does the PowerBasic 600 support gradient voltage or time-programmed runs?
No—it provides single-step, fixed-parameter output per run. For multi-step protocols, external timer-based relay control or third-party sequencers are recommended.
Is the microcurrent hold function adjustable in magnitude or duration?
The microcurrent level is factory-set at 50 µA ± 10 µA and remains active until manually disabled; duration is indefinite unless overridden by user command.
Can this unit be used with high-voltage applications such as electroblotting or pulse-field electrophoresis?
It is rated up to 600 V DC and suitable for standard wet-transfer blotting, but not designed for pulsed-field (PFGE) or high-voltage alternating waveforms.
What certifications does the unit carry for international shipment?
CE marking per EMC Directive 2014/30/EU and Low Voltage Directive 2014/35/EU; RoHS 2011/65/EU compliance confirmed; UL/cUL listing is not included.
How is calibration traceability maintained?
Calibration is performed at factory against NIST-traceable standards; a certificate of conformance is supplied with each unit. Field recalibration requires authorized service center intervention.
