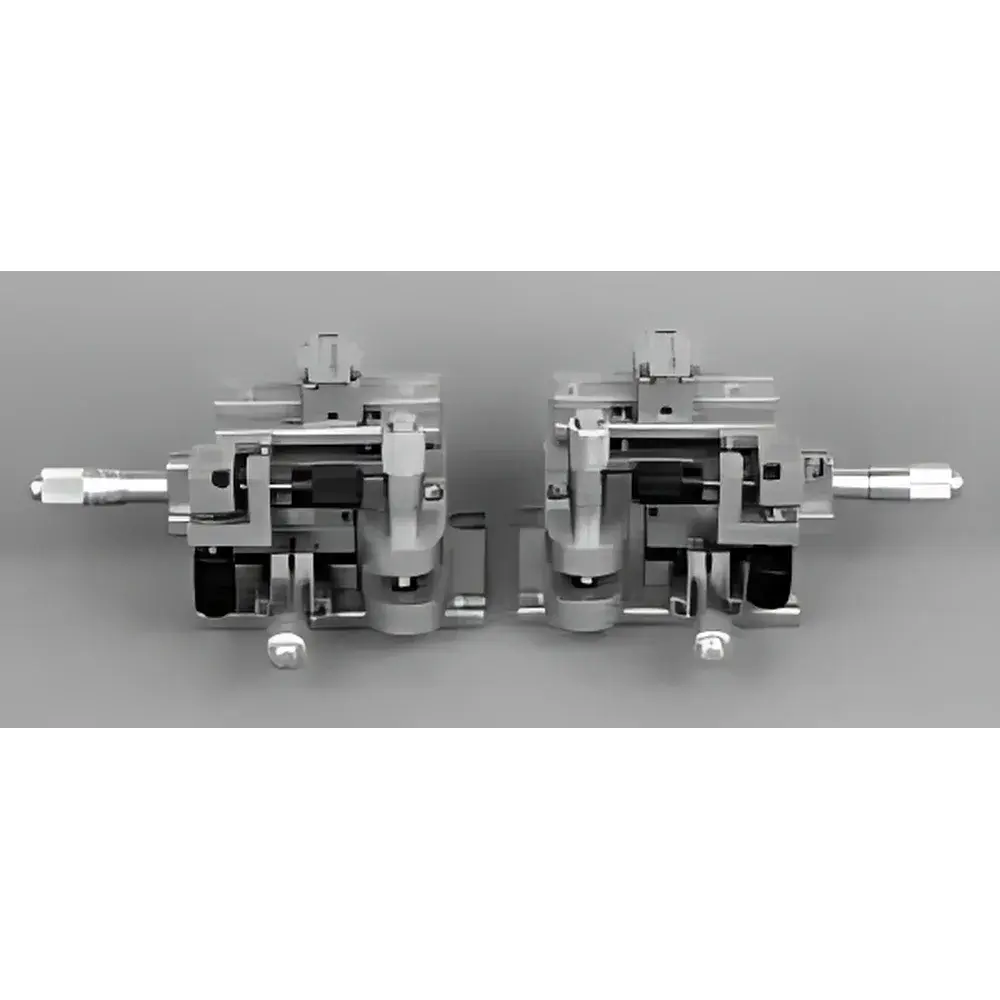

APFP-XYZT Five-Axis Precision Optical Mount

Overview

The APFP-XYZT Five-Axis Precision Optical Mount is an engineered mechanical positioning platform designed for high-stability, sub-microradian alignment tasks in free-space and fiber-coupled optical systems. Built on a monolithic stainless steel architecture, it integrates three orthogonal linear translations (Tx, Ty, Tz) with two independent rotational degrees of freedom (θy, θz) — enabling full five-dimensional spatial control of optical components without requiring stacked or cascaded stages. Its kinematic design minimizes parasitic motion, ensuring that angular adjustments do not induce unintended lateral shifts, and vice versa. The mount operates on precision-ground stainless steel leadscrews and low-hysteresis flexure-guided mechanisms, delivering repeatable positioning over extended operational lifetimes. It is specifically optimized for applications demanding minimal beam walk-off and high angular fidelity — particularly in single-mode fiber coupling, interferometric alignment, collimator adjustment, and photonic integrated circuit (PIC) packaging.

Key Features

• Monolithic stainless steel construction ensures long-term dimensional stability, thermal consistency, and resistance to environmental corrosion.
• Integrated five-axis motion: three linear axes (Tx: 12 mm, Ty: 12 mm, Tz: 6 mm) and two angular axes (θy: ±5°, θz: ±5°), all independently adjustable via knurled micrometer screws with 10 µm resolution graduations.
• Tip/tilt stability maintained below 100 µrad across full travel range — verified under load conditions typical of bare fiber and miniature lens assemblies.
• Ergonomic right-handed configuration with intuitive screw orientation and tactile feedback; dedicated left-handed variant (APFP-XYZTL) available for mirrored setups.
• Designed for direct compatibility with the APFP-FH fiber holder, enabling secure clamping of bare optical fibers (125 µm cladding) without slippage or stress-induced birefringence.
• No backlash or play in adjustment mechanisms; all motion axes utilize preloaded anti-backlash nuts and hardened steel threads for sustained repeatability (>5,000 cycles at rated load).

Sample Compatibility & Compliance

The APFP-XYZT accommodates standard Ø12.7 mm, Ø25.4 mm, and custom optical elements up to 80 g mass when centered. Its mounting interface conforms to industry-standard M4 and M6 tapped holes on base and top plates, allowing integration into both breadboard-based optical tables and vacuum-compatible enclosures (with optional non-outgassing hardware). While not certified to ISO 9001 or CE as a standalone instrument, the mount complies with mechanical safety limits defined in ISO 10110-7 for optical component handling and meets material traceability requirements per MIL-STD-130 for defense-related procurement. All surface finishes adhere to ASTM B633 SC3 specifications for electroless nickel plating where applicable.

Software & Data Management

As a manually operated mechanical stage, the APFP-XYZT does not incorporate embedded electronics, sensors, or digital interfaces. It is fully compatible with third-party motion control ecosystems including Thorlabs Kinesis, Newport APT, and LabVIEW-based automation platforms when paired with external motorized actuators (e.g., stepper-motorized versions of APFP series). Position logging and calibration data may be recorded using standard coordinate measurement protocols compliant with NIST-traceable metrology practices. For GLP/GMP environments, manual adjustment logs can be maintained in accordance with 21 CFR Part 11-compliant electronic lab notebooks (ELNs) when used in regulated photonics assembly workflows.

Applications

• Precision alignment of single-mode and polarization-maintaining fibers to laser diodes, photodetectors, and waveguide facets.
• Active and passive alignment during micro-optical assembly, including lens-to-fiber, fiber-to-waveguide, and free-space-to-PIC coupling.
• Beam steering and collimation fine-tuning in ultrafast laser systems and quantum optics experiments.
• Calibration reference stage for interferometric displacement sensors and autocollimators.
• Stabilized platform for cryogenic or UHV optical experiments where piezo-driven stages exhibit drift or hysteresis.

FAQ

Is the APFP-XYZT compatible with vacuum environments?
Yes — the stainless steel body and absence of lubricants or polymers make it suitable for high-vacuum use; however, users must specify non-outgassing fasteners and avoid standard grease-lubricated screws for UHV applications.
What is the maximum recommended load for optimal angular stability?
For tip/tilt stability ≤100 µrad, the recommended static load is ≤80 g centered at the platform’s geometric center; off-center loads require derating per moment-arm calculations.
Can this mount be motorized?
ZOLIX offers motorized variants upon request; the APFP-XYZT mechanical interface supports integration with Nanomotion piezo motors or Physik Instrumente (PI) stepper-driven actuators using custom adapter kits.
Does the left-handed version (APFP-XYZTL) have identical specifications?
Yes — APFP-XYZTL mirrors all travel ranges, angular limits, and mechanical tolerances; only the handedness of adjustment screws and orientation of the APFP-FH interface differ.
How is angular accuracy verified during manufacturing?
Each unit undergoes interferometric angular deviation testing using a Zygo Verifire™ interferometer and calibrated autocollimator traceable to NIST standards, with full test reports available upon request.
