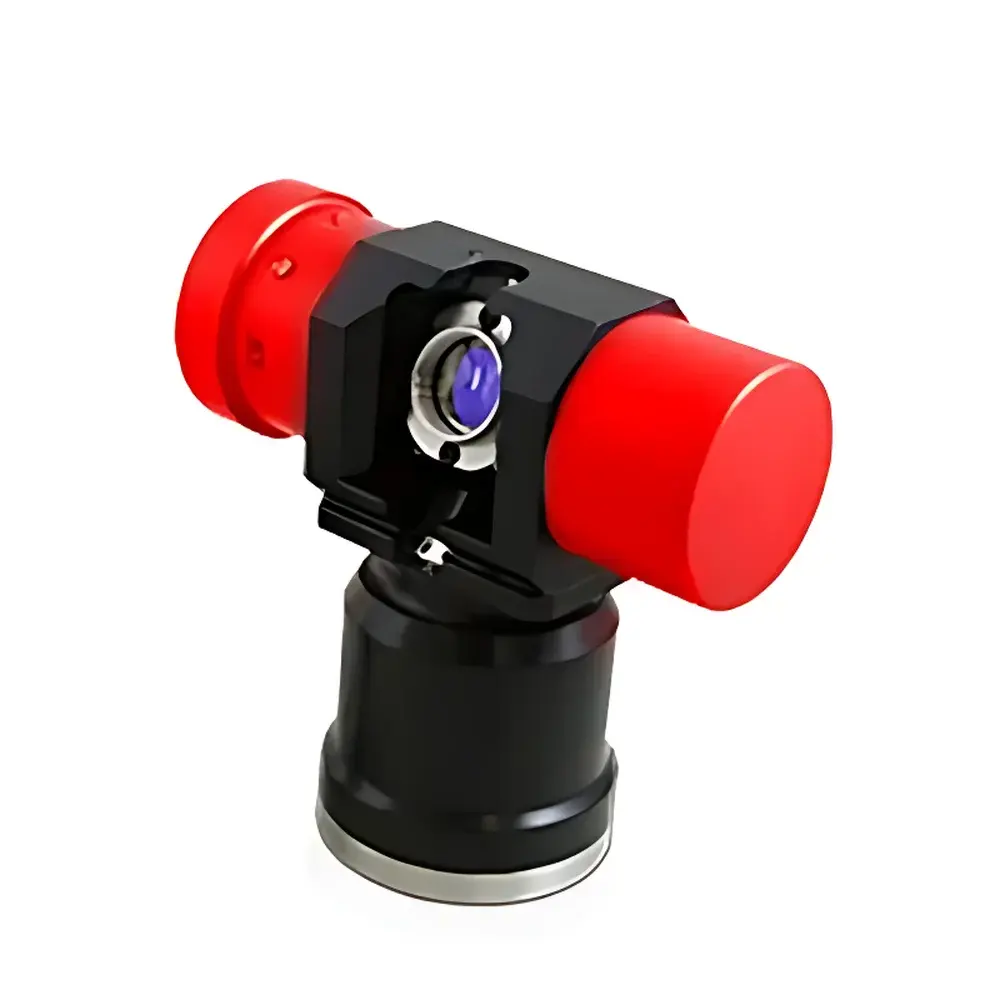

API ActiveTarget Spherically Mounted Retroreflector™ for Laser Trackers

Overview

The API ActiveTarget™ is a motorized, actively stabilized spherically mounted retroreflector (SMR) engineered exclusively for integration with API laser trackers—including the Radian, vProbe, and xStream series. Unlike passive SMRs, the ActiveTarget employs closed-loop electro-mechanical actuation to dynamically reorient its fused-silica corner-cube retroreflector in real time, maintaining continuous optical lock with the tracker’s laser beam during high-speed, multi-axis motion. This capability is grounded in angular position feedback from integrated high-resolution encoders and a low-inertia gimbal architecture optimized for sub-millisecond response. The system operates on the principle of homodyne interferometric distance measurement combined with absolute angular encoding—enabling six-degree-of-freedom (6DoF) spatial metrology of dynamic targets without line-of-sight interruption. It is deployed where conventional static or manually repositioned SMRs fail: large-scale coordinate measuring machines (CMMs), robotic arms undergoing path-dependent trajectories, gantry systems, rail-mounted vehicles, and precision assembly jigs subject to thermal drift or mechanical flexure.

Key Features

• Real-time beam-lock maintenance via dual-axis servo-controlled gimbal with <0.1° pointing repeatability
• Integrated high-stability fused-silica retroreflector with λ/20 surface flatness and broadband anti-reflective coating (633 nm–1064 nm)
• IP54-rated aluminum housing with thermal mass optimization for ambient stability (operating range: 10–40 °C)
• Low-latency Ethernet interface (TCP/IP) compatible with API Metrology Software Suite (v6.5+)
• Onboard diagnostics including encoder health monitoring, motor torque profiling, and beam alignment status telemetry
• Compliance with IEC 61000-6-2 (EMC immunity) and IEC 61000-6-4 (EMC emissions) for industrial environments

Sample Compatibility & Compliance

The ActiveTarget is mechanically and optically compatible with all API laser trackers utilizing HeNe or frequency-doubled Nd:YAG sources (632.8 nm or 532 nm). It supports both incremental and absolute distance measurement modes and interfaces natively with API’s SpatialAnalyzer® software for real-time 6DoF trajectory reconstruction. From a regulatory standpoint, the device conforms to ISO 10360-12 (acceptance testing of laser trackers), ASTM E2924-22 (standard guide for laser tracker performance verification), and supports audit-ready data capture per FDA 21 CFR Part 11 when used with validated software configurations. Its mechanical design meets ISO 230-2 (machine tool testing) requirements for dynamic artifact tracking under acceleration up to 2 g.

Software & Data Management

ActiveTarget operation is fully embedded within API’s Metrology Software Platform. SpatialAnalyzer® provides synchronized acquisition of position (X, Y, Z), orientation (pitch, yaw, roll), and time-stamped velocity vectors at up to 1,000 Hz sampling rate. All raw interferometric phase data, encoder counts, and diagnostic logs are stored in vendor-neutral HDF5 format with embedded metadata (timestamp, tracker ID, environmental sensor readings). Export options include ASCII CSV, STEP AP242, and industry-standard DMIS 4.0 for downstream integration with quality management systems (QMS) and digital twin platforms. Audit trails—including user login, parameter changes, and calibration event logging—are retained for GLP/GMP-aligned validation protocols.

Applications

• Automated volumetric error mapping of 5-axis CNC machining centers using kinematic chain compensation
• Dynamic pose tracking of collaborative robots (cobots) during ISO/TS 15066-compliant safety validation
• In-process verification of large-part assembly (e.g., aircraft fuselage sections, wind turbine blades) under thermal load
• Calibration of linear and rotary axes in coordinate measuring machines exceeding 10 m travel
• Validation of motion control algorithms in autonomous guided vehicles (AGVs) operating on extended guideways
• Thermal deformation studies of structural frames under controlled environmental chamber conditions

FAQ

What distinguishes ActiveTarget from a standard passive SMR?
Unlike passive SMRs requiring manual reorientation or fixed mounting, ActiveTarget uses closed-loop servo control to maintain continuous laser lock during arbitrary motion—eliminating beam dropouts and enabling uninterrupted 6DoF measurement.
Is ActiveTarget compatible with non-API laser trackers?
No. It is engineered exclusively for API laser trackers due to proprietary communication protocols, beam alignment algorithms, and firmware-level synchronization with interferometric hardware.
Can ActiveTarget be used in outdoor environments?
It is rated IP54 and suitable for controlled indoor industrial settings; extended outdoor use requires environmental enclosure and active temperature stabilization to preserve metrological integrity.
Does ActiveTarget require periodic recalibration?
The retroreflector geometry is factory-traceable to NIST standards; however, system-level calibration (including gimbal orthogonality and encoder-to-interferometer alignment) must be performed annually or after mechanical shock per ISO 10360-12 guidelines.
How is traceability maintained across measurement campaigns?
Each ActiveTarget unit carries a unique serial number linked to its NIST-traceable calibration certificate; all measurement sessions embed this identifier in HDF5 metadata, ensuring full chain-of-custody documentation.
