API AutoCollimator-Laser
| Brand | API |
|---|---|
| Origin | USA |
| Manufacturer Type | Authorized Distributor |
| Origin Category | Imported |
| Model | AutoCollimator-Laser |
| Pricing | Upon Request |
| Resolution | 0.1 arcsecond |
| Angular Range | ±400 arcseconds |
| Maximum Measurement Distance | 15 m (49.2 ft) |
| Accuracy | ±1 arcsecond (optional ±0.2 arcsecond) |
Overview

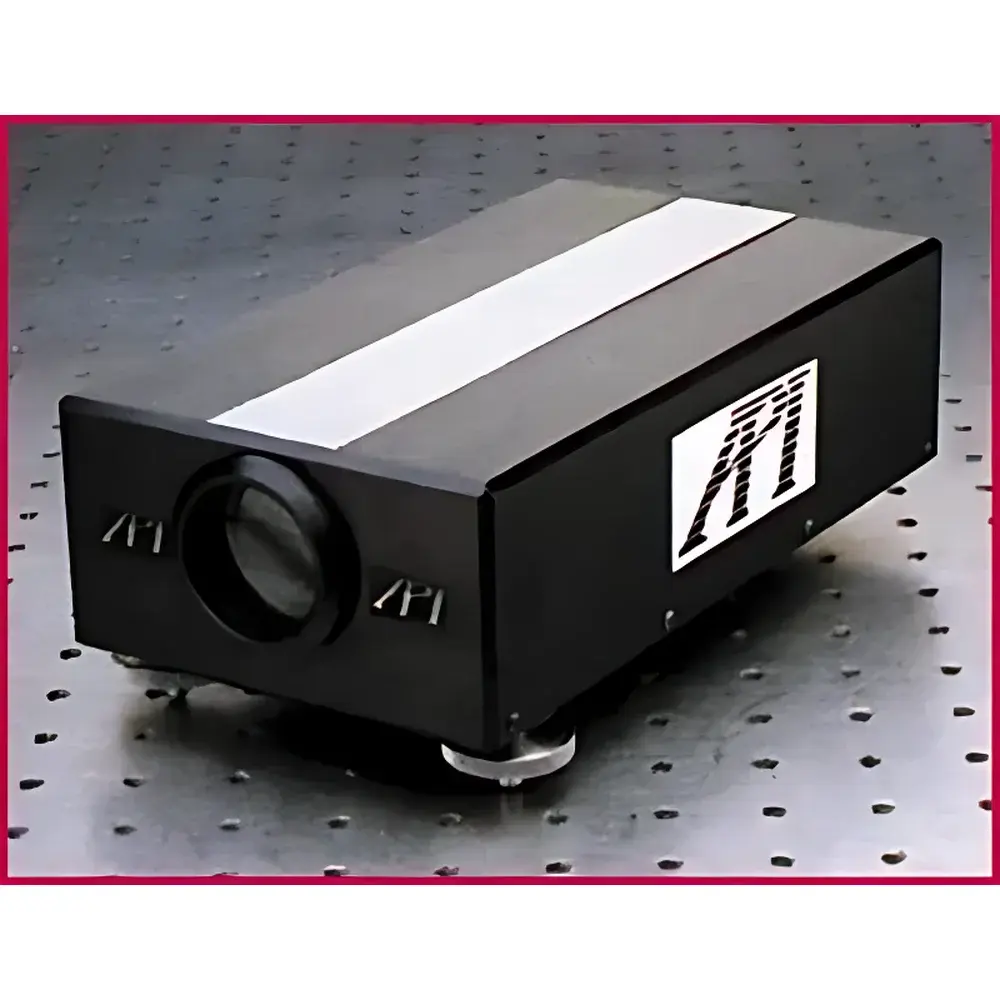

The API AutoCollimator-Laser is a dual-axis, high-precision electro-optical instrument engineered for quantitative measurement of minute angular deviations in industrial metrology and precision alignment applications. Based on the fundamental principle of autocollimation—where a collimated laser beam is reflected back from a retroreflective or flat mirror surface and its displacement is detected by a high-sensitivity position-sensing detector—the system delivers traceable, real-time angular data with sub-arcsecond resolution. Unlike traditional optical autocollimators requiring iterative manual alignment and extended setup time, the API AutoCollimator-Laser integrates a visible red laser alignment aid with intuitive software-guided workflow, enabling full system calibration and target acquisition within minutes. It serves as a core tool in machine tool verification (e.g., ISO 230-1/2), coordinate measuring machine (CMM) calibration, optical bench alignment, and structural deformation monitoring where angular stability and repeatability are critical to process capability.
Key Features
- Dual-axis angular measurement capability (X and Y) for simultaneous evaluation of pitch and yaw deviations
- Visible red laser beam (635 nm) for rapid visual targeting and coarse alignment prior to fine measurement
- Real-time angular readout displayed in arcseconds, degrees, or milliradians with configurable units and averaging modes
- Sub-arcsecond resolution of 0.1 arcsecond, supporting high-fidelity characterization of motion stages and rotary tables
- Extended working distance up to 15 meters without loss of signal integrity or resolution degradation
- Optional high-accuracy mode delivering ±0.2 arcsecond absolute accuracy, certified against NIST-traceable angular standards
- Robust mechanical housing with thermal stabilization design for consistent performance across ambient temperature fluctuations (15–30 °C)
Sample Compatibility & Compliance
The AutoCollimator-Laser is compatible with standard optical flats (λ/10 or better), cube corner retroreflectors, and precision-machined mirror targets mounted on linear slides, rotary axes, or structural frames. It supports measurement of both static and quasi-static angular drift over time intervals ranging from seconds to hours. The system complies with ISO 10360-8 (geometrical product specifications — acceptance and reverification tests for coordinate measuring systems — Part 8: CMMs with optical distance sensors), and its angular uncertainty budget is fully documented per ISO/IEC 17025 requirements. When deployed in regulated environments—including aerospace component inspection or semiconductor equipment qualification—the instrument’s audit trail, user access control, and data export logs support compliance with FDA 21 CFR Part 11 and GLP/GMP documentation protocols.
Software & Data Management
The bundled AutoAlign™ software provides guided step-by-step operation, including automatic zeroing, reference plane definition, multi-point scanning, and dynamic tracking. All measurements are timestamped and stored in an encrypted SQLite database with built-in versioning. Export options include CSV (for statistical process control analysis), PNG/SVG (for inclusion in calibration reports), and XML (for integration into enterprise MES or QMS platforms). Software features include real-time trend plotting, deviation overlays against nominal profiles, and automated pass/fail evaluation against user-defined tolerances aligned with ASME B89.3.7 or ISO 230-6. Audit logs record operator ID, session start/end time, parameter changes, and data export events—ensuring full traceability during internal or third-party quality audits.
Applications
- Linear axis straightness verification on CNC machining centers and grinding machines per ISO 230-2
- Rotary table indexing accuracy and repeatability assessment for five-axis machine tools
- Orthogonality measurement between orthogonal axes using auxiliary pentaprisms or right-angle mirrors
- Thermal drift monitoring of optical benches and interferometer baseplates
- Alignment of synchrotron beamline components and laser cavity optics
- Calibration of inclinometers, tilt sensors, and MEMS-based angular transducers
FAQ
What is the minimum measurable angle increment?
The system resolves angular changes down to 0.1 arcsecond under standard operating conditions.
Can the AutoCollimator-Laser be used beyond 15 meters?
While optimized for up to 15 m, extended-range configurations with higher-power laser modules and enhanced detectors are available upon request for specialized applications.
Is the ±0.2 arcsecond accuracy option factory-calibrated?
Yes—it includes a full NIST-traceable calibration certificate with uncertainty budget and is validated at three independent angular points across the full range.
Does the software support automated report generation compliant with ISO standards?
Yes—AutoAlign™ includes customizable report templates aligned with ISO 230-1, ISO 10360-8, and ASME B89.3.7, including metadata, uncertainty statements, and signature fields.
How is thermal drift compensated during long-duration measurements?
Internal temperature sensors feed real-time corrections to the angular calculation algorithm; optional external thermal reference probes can be integrated for enhanced environmental compensation.
