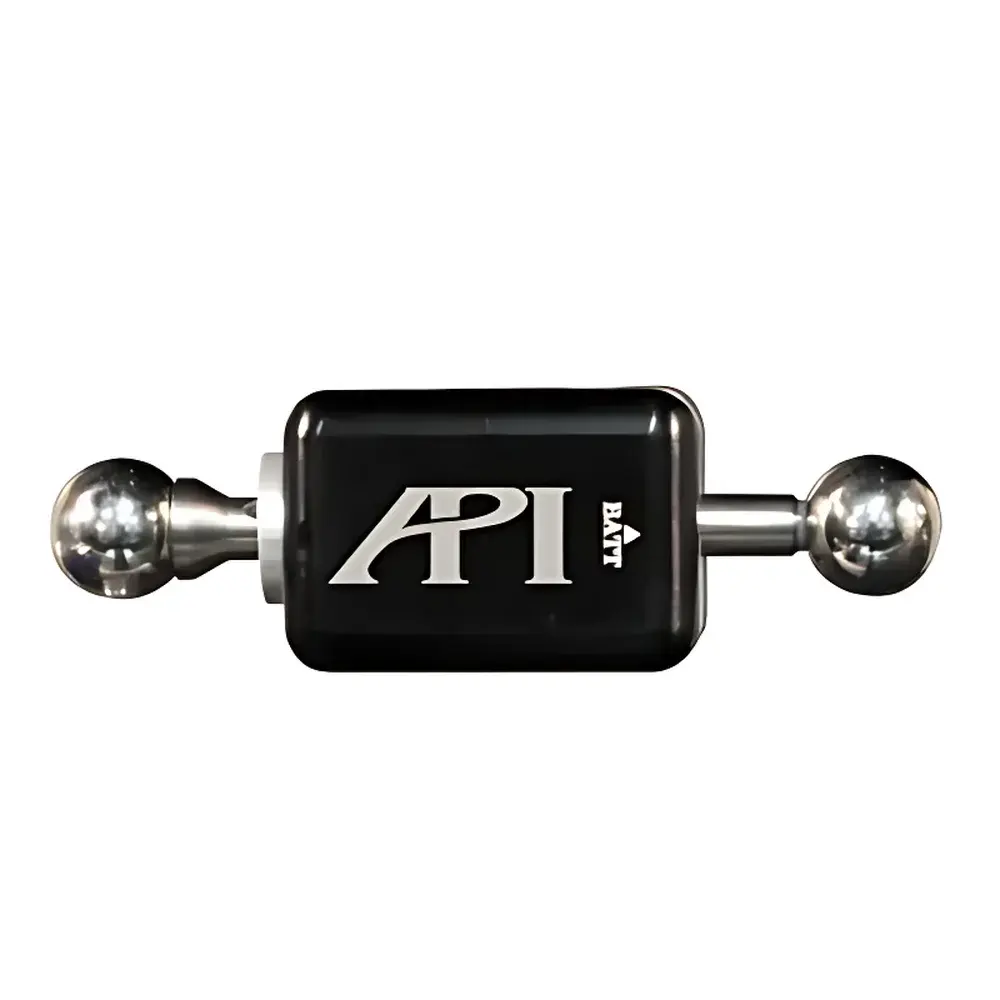

API Ballbar System for CNC Machine Dynamic Accuracy Verification
| Origin | USA |
|---|---|
| Manufacturer Type | Authorized Distributor |
| Origin Category | Imported |
| Model | Ballbar |
| Price Range | USD 7,000 – 14,000 |
Overview
The API Ballbar System is a precision metrology instrument engineered for rapid, in-situ dynamic accuracy verification of CNC machine tools, robotic cells, and multi-axis servo-driven systems. It operates on the principle of constrained circular interpolation: one end of the calibrated ballbar is rigidly mounted to the machine spindle (or tool carrier), while the other end is affixed to the worktable (or turret), forming a fixed-length kinematic link. As the machine executes a programmed circular path—typically in the XY, XZ, or YZ plane—the system continuously records radial deviations between the actual trajectory and the ideal circle defined by the ballbar’s nominal length. These deviations are decomposed into orthogonal error components using Fourier-based analysis, enabling quantitative identification of geometric, dynamic, and servo-related errors—including squareness deviation, backlash, reversal spikes, axis coupling, servo mismatch, and cyclic position-dependent errors.
Key Features
- High-resolution inductive displacement sensor with sub-micron repeatability and thermal stability optimized for workshop environments
- Modular, lightweight mechanical design enabling rapid setup on vertical/horizontal machining centers, turning centers, gantry mills, and 5-axis machines without disassembly
- Real-time data acquisition at up to 100 Hz sampling rate, synchronized with machine motion commands via standard RS-232 or USB interface
- Integrated temperature compensation algorithm referencing ambient and structural thermal drift during measurement cycles
- Compliance with ISO 230-4:2020 (Test Code for Circular Tests on Numerical Control Machines) and ANSI B5.54 standards for circular contouring performance evaluation
- Ruggedized aluminum housing rated IP54 for resistance to coolant mist, metal particulates, and shop-floor vibration
Sample Compatibility & Compliance
The API Ballbar supports universal mounting configurations across all major CNC platforms—including Fanuc, Siemens, Heidenhain, Mitsubishi, and Haas controllers—via standardized magnetic or mechanical fixtures. It accommodates stroke lengths from 100 mm to 300 mm (standard configurations), with optional extended-length variants for large-format machines. All measurement protocols align with internationally recognized traceability frameworks: calibration certificates are issued per ISO/IEC 17025:2017 requirements, and raw data files retain full audit trail metadata required for GLP/GMP-regulated environments. The system does not require external laser interferometers or environmental enclosures, making it suitable for production-floor deployment under typical factory conditions (15–35°C, relative humidity <80%, non-condensing).
Software & Data Management
The bundled Ballbar Analysis Software (v6.x) provides automated error decomposition, graphical overlay of measured vs. ideal contours, and generation of ISO 230-4-compliant reports—including RMS circular deviation, harmonic amplitude spectra (up to 12th order), and component-specific error budgets. Data export supports CSV, XML, and PDF formats; all measurement sessions include timestamped operator ID, machine model, controller firmware version, and environmental sensor readings. Audit logging complies with FDA 21 CFR Part 11 requirements, featuring electronic signatures, user access controls, and immutable record retention. Integration with enterprise MES/QMS platforms is supported via OPC UA and RESTful API interfaces.
Applications
- Routine preventive maintenance verification of machine tool volumetric accuracy between scheduled laser interferometer calibrations
- Root-cause diagnosis of surface finish anomalies, chatter, or dimensional inconsistency linked to dynamic axis interactions
- Validation of post-repair or post-rebuild performance prior to return-to-service qualification
- Baseline characterization of new machine installations prior to acceptance testing (SAT)
- Quantitative assessment of motion control upgrades—including servo tuning, drive replacement, or CNC retrofit projects
- Training and competency assessment for CNC maintenance technicians through standardized error recognition exercises
FAQ
What standards does the API Ballbar comply with?
ISO 230-4:2020, ANSI B5.54, and VDI/VDE 2617 Part 6 for circular test methodology and uncertainty reporting.
Can the Ballbar detect thermal drift effects during extended operation?
Yes—integrated ambient temperature monitoring and material-specific thermal expansion correction algorithms are applied in real time during data processing.
Is operator training required to interpret results accurately?
Basic operation requires under 30 minutes of instruction; however, advanced error decomposition and corrective action planning benefit from API-certified Ballbar Analyst training (available online and onsite).
Does the system support automated report generation for quality audits?
Yes—customizable templates generate ISO-compliant PDF reports with embedded digital signatures, revision history, and full traceability metadata per 21 CFR Part 11.
How frequently should Ballbar verification be performed in a high-utilization production environment?
Industry best practice recommends quarterly verification for critical machining cells, with additional checks following major maintenance events or environmental shifts exceeding ±5°C.
