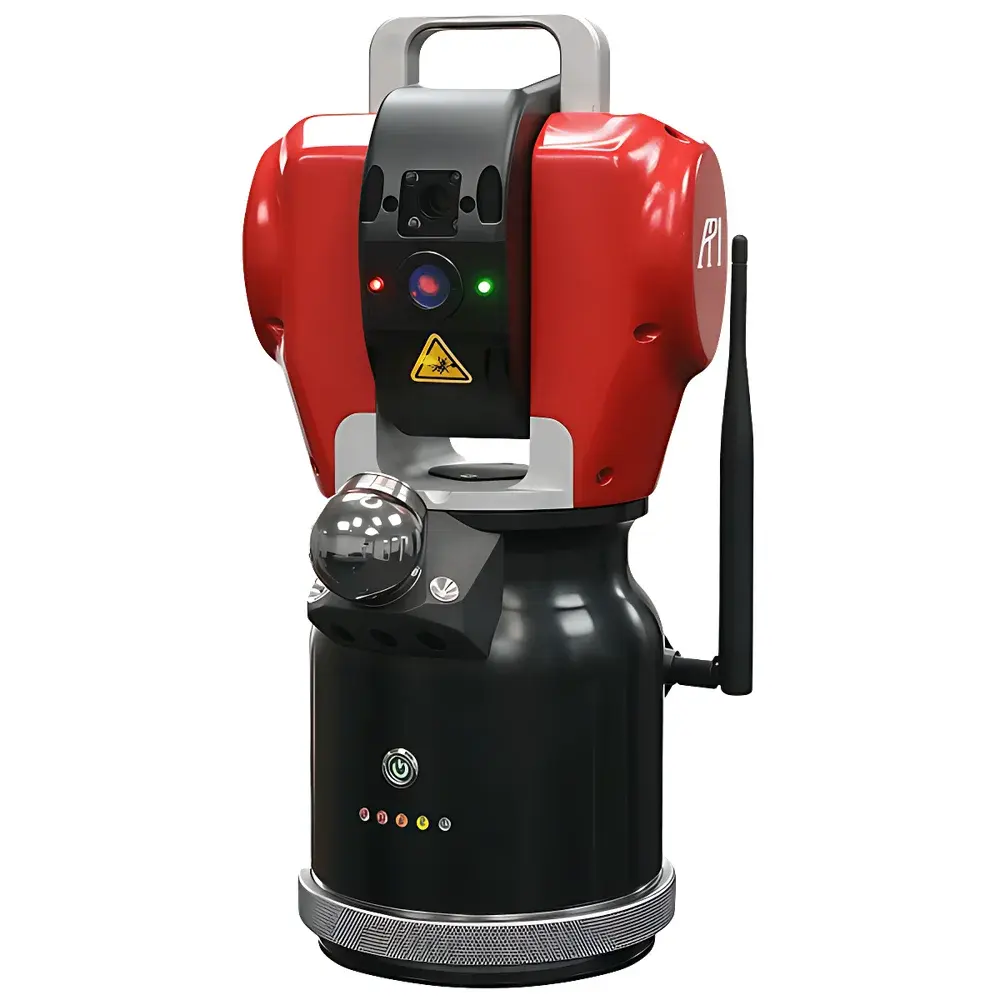

API iLT High-Integration Intelligent Laser Tracker

Overview

The API iLT High-Integration Intelligent Laser Tracker represents the sixth-generation evolution of laser tracker technology developed and manufactured by Automated Precision, Inc. (API), a U.S.-based leader in precision metrology systems since 1987. Engineered for high-reproducibility 3D/6D coordinate measurement, the iLT operates on the principle of absolute distance measurement (ADM) combined with high-speed angular encoders and intelligent optical targeting. Unlike interferometric (IFM) trackers, the iLT employs a stabilized HeNe laser source with proprietary ADM architecture, delivering traceable absolute distance data without requiring homing or reference initialization—critical for dynamic, multi-station, or automated measurement workflows. Its compact monolithic design integrates the laser head, motion control system, environmental sensor suite, and embedded computing unit into a single structural housing—eliminating inter-unit cabling and enabling true plug-and-play deployment in constrained or mobile environments.

Key Features

• Monolithic All-in-One Architecture: Eliminates external controller boxes and signal cables; reduces setup time and mechanical coupling errors.
• 8-Megapixel iVision Smart Camera: Enables autonomous target acquisition, real-time spherical retroreflector (SMR) tracking, and visual verification of measurement geometry—supporting both manual and robotic guidance applications.
• 1 kHz ADM Sampling Rate: Sustained high-frequency point capture suitable for vibration analysis, motion path validation, and dense point-cloud generation (e.g., for digital twin alignment or as-built verification).
• Unlimited Tilt Capability via Active Gimbal Stabilization: Maintains optical axis stability during rapid pitch/roll maneuvers—enabling consistent performance on non-level surfaces or moving platforms.
• Onboard Meteorological Station: Continuously monitors ambient temperature, barometric pressure, and relative humidity to apply real-time atmospheric compensation per ISO 10360-12 Annex B and NIST SP 958 guidelines.
• Hot-Swappable Battery System: Dual-battery support ensures uninterrupted operation during extended field deployments; each module delivers ≥4 hours at nominal ADM+camera+Wi-Fi load.
• IEEE 802.11ac Wireless Interface: Secure, low-latency data streaming to host PCs or industrial edge devices—fully compliant with IEEE 802.1X authentication and WPA3 encryption standards.

Sample Compatibility & Compliance

The iLT is compatible with standard 0.5″, 1.0″, and 1.5″ spherically mounted retroreflectors (SMRs), as well as active targets (e.g., API’s T-Mac series) and photogrammetric markers. It supports multi-target simultaneous tracking when paired with optional synchronization modules. The system complies with international metrological standards including ISO 10360-12 (performance verification of laser trackers), VDI/VDE 2617 Part 19 (dynamic measurement uncertainty assessment), and EN ISO 9001:2015 requirements for calibration traceability. For regulated industries, the iLT platform supports audit-ready data logging—including timestamped raw ADM readings, encoder positions, environmental parameters, and camera metadata—with optional FDA 21 CFR Part 11-compliant software packages available through API-certified partners.

Software & Data Management

The iLT operates natively with API’s Metrology Software Suite (MSS), which provides full GUI-based control, real-time trajectory visualization, GD&T evaluation (per ASME Y14.5–2018 and ISO 1101), and export to industry-standard formats (IGES, STEP AP242, ASCII XYZ, CSV). MSS includes built-in GLP/GMP-compliant reporting templates, electronic signature capability, and configurable audit trails. Raw ADM and angular data are stored in binary HDF5 format with embedded metadata tags—ensuring long-term archival integrity and interoperability with MATLAB, Python (h5py), and metrology-specific analytics platforms. Optional API Automation Toolkit enables integration with PLCs, ROS 2 nodes, and MES/SCADA systems via TCP/IP, OPC UA, or RESTful APIs.

Applications

The iLT serves mission-critical dimensional verification across advanced manufacturing and R&D domains: large-part assembly alignment in aerospace (wing spar jigs, fuselage sections); robot calibration and path validation in automotive body shops; turbine blade inspection in wind and nuclear energy; CNC machine tool volumetric error mapping; coordinate measuring machine (CMM) verification; and portable 3D scanning support for reverse engineering. Its <4.9 kg mass and backpack-portable form factor make it uniquely suited for field service, mobile calibration labs, educational laboratories, and collaborative robot (cobot) cell commissioning—where traditional trackers face logistical or spatial constraints.

FAQ

What standards govern the iLT’s accuracy verification?
The iLT undergoes factory verification per ISO 10360-12 Annex D and VDI/VDE 2617 Part 19; users may perform in-situ checks using API’s certified ball bar or step gauge artifacts.
Can the iLT operate without external power sources?
Yes—its integrated hot-swappable battery system enables fully cordless operation for up to 4 hours per module, with seamless transition between batteries during measurement.
Is the iLT compatible with third-party robotic arms or automation platforms?
Yes—via MSS Automation Toolkit and native TCP/IP/OPC UA interfaces, the iLT supports synchronized motion control and real-time feedback loops with UR, KUKA, ABB, and Fanuc robotic systems.
Does the onboard meteorological station meet ISO 10360 environmental compensation requirements?
Yes—the integrated sensor suite meets the resolution and sampling frequency thresholds defined in ISO 10360-12:2021 Section 6.3.2 for automatic atmospheric correction.
How is firmware updated and system calibration maintained?
Firmware updates are delivered via secure HTTPS download through MSS; geometric calibration (encoder linearity, laser beam collimation, camera-laser alignment) is performed annually by API-certified service engineers using NIST-traceable artifact sets.
