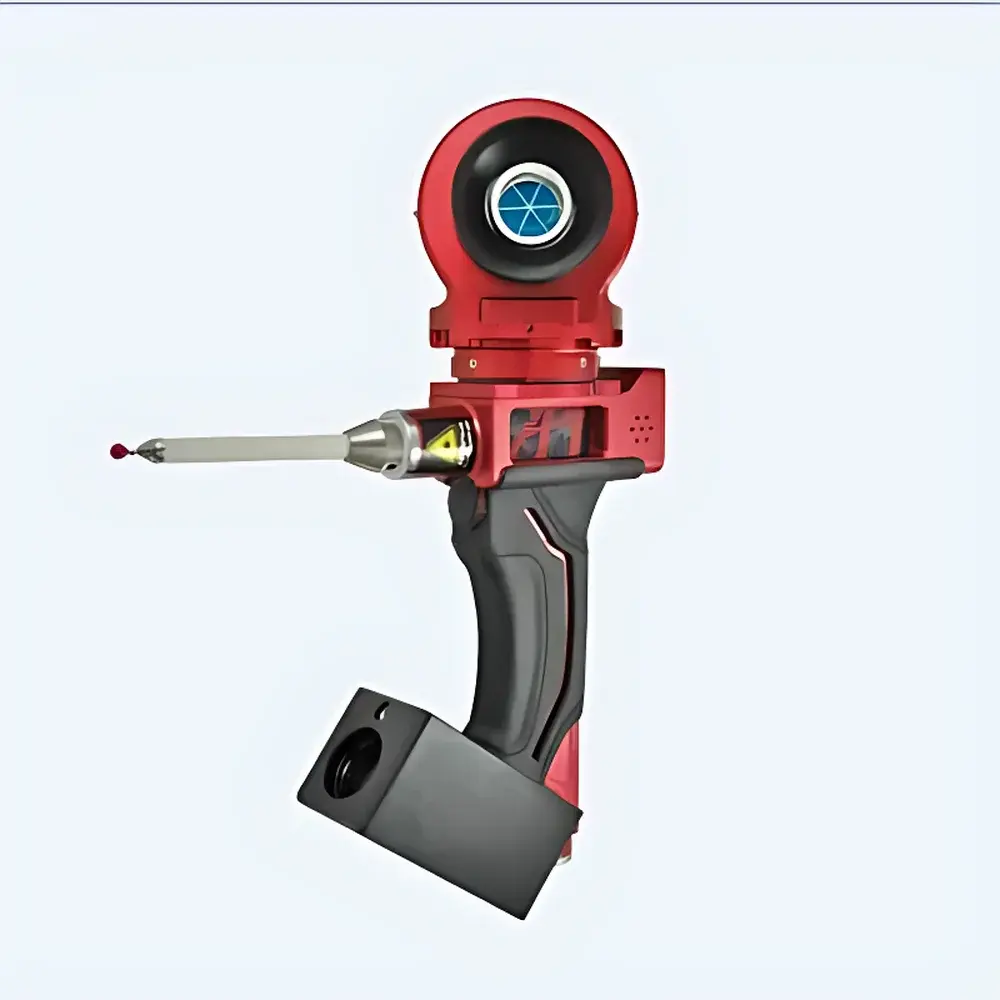

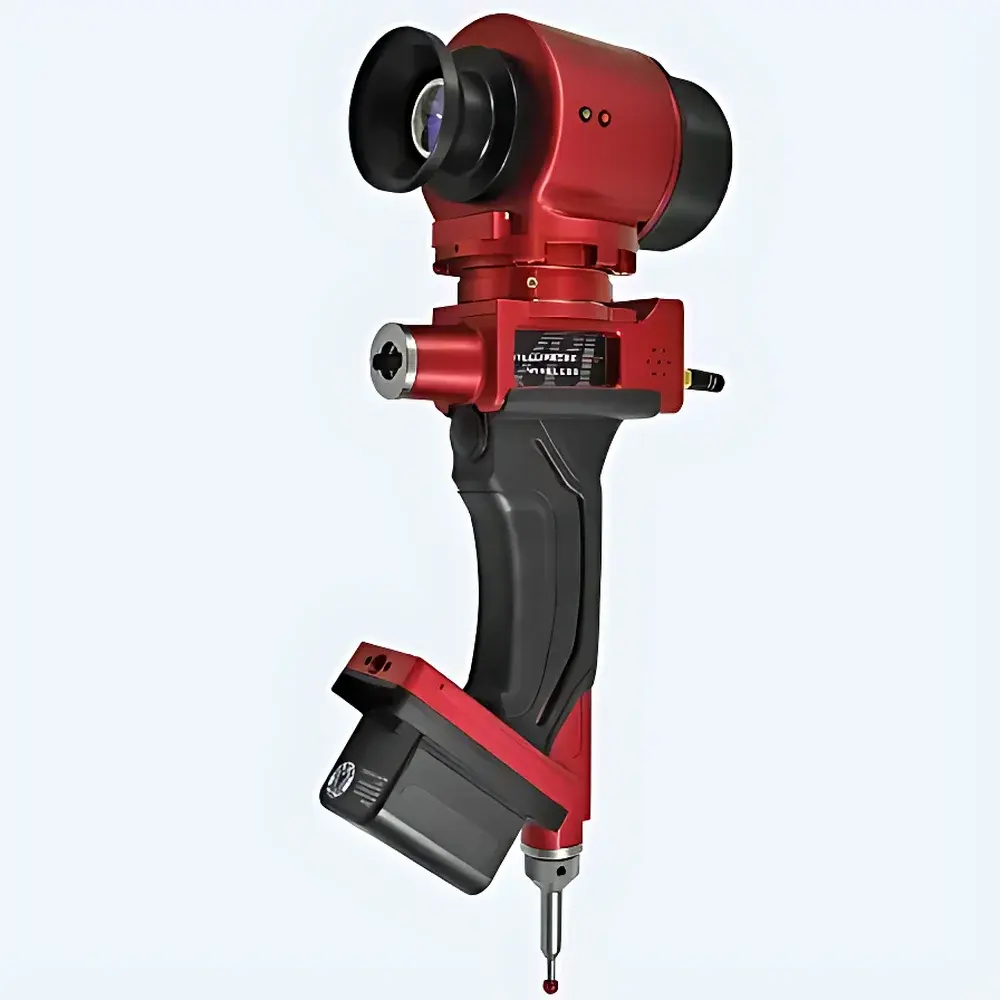

API IP-360 Wireless Intelligent Probe for Coordinate Measuring Machines
| Origin | USA |
|---|---|
| Manufacturer Type | Authorized Distributor |
| Origin Category | Imported |
| Model | IP-360 Wireless |
| Price Range | USD 70,000–100,000 (FOB) |
| Configuration Type | Hybrid CMM Probe |
| Operation Mode | Manual Handheld |
| Instrument Form Factor | Portable |
| Measurement Range | Not Applicable (Probe-Specific, Requires Host CMM) |
| Measurement Uncertainty | Compliant with ISO 10360-2 & ASME B89.4.10 |
| Standard Ambient Temperature | 20 °C ± 1 °C |
Overview
The API IP-360 Wireless Intelligent Probe is a high-fidelity, battery-powered tactile sensing module engineered for integration with coordinate measuring machines (CMMs), portable articulating arms, and laser tracker-based metrology systems. Unlike conventional wired probes that rely on physical signal cables and external control electronics, the IP-360 Wireless employs a proprietary low-latency 2.4 GHz RF telemetry architecture to transmit real-time kinematic data—including probe deflection vector, trigger status, and stylus identification—to the host controller without intermediary hardware. Its measurement principle is based on precision strain-gauge transduction within a kinematic ruby ball stylus assembly, delivering sub-micron repeatability in point-cloud acquisition under ISO 10360-2 compliant environmental conditions (20 °C ± 1 °C, 40–60% RH). Designed explicitly for hard-to-reach features—such as deep bores, internal threads, recessed datum surfaces, and sheet-metal flanges—the probe eliminates cable drag-induced measurement error and enables unrestricted rotational freedom across all six degrees of freedom.
Key Features
- True wireless operation: No data cable, no power cord, no external control box—only a compact, self-contained probe head with integrated rechargeable Li-ion battery (typical runtime: 12 hours per charge)
- Real-time bidirectional communication: Synchronized timestamping and error-checking protocol ensures traceable data integrity per ISO/IEC 17025 requirements
- Modular stylus compatibility: Supports API’s full range of interchangeable ruby, ceramic, and carbide stylus configurations (M3 thread, up to 50 mm length)
- IP54-rated enclosure: Dust- and splash-resistant housing suitable for shop-floor deployment alongside production-grade CMMs
- Zero-latency trigger response: < 100 µs mechanical-to-digital latency, certified per ASME B89.4.10 Annex D for tactile probing systems
- Onboard diagnostics: LED status indicators and firmware-accessible self-test routines support GLP-compliant instrument verification
Sample Compatibility & Compliance
The IP-360 Wireless is validated for use with metallic, composite, and polymer workpieces exhibiting surface roughness Ra ≤ 3.2 µm. It complies with electromagnetic compatibility standards EN 61326-1 and safety standard IEC 61010-1. Metrological validation adheres to ISO 10360-2 (CMM probing performance) and ISO 15530-3 (calibration using calibrated artifacts). When deployed in regulated environments—including aerospace Tier-1 supplier QA labs or medical device manufacturing facilities—the probe supports audit-ready documentation packages aligned with FDA 21 CFR Part 11 (electronic records/signatures) when paired with API’s Metrology Software Suite v5.2+.
Software & Data Management
Native integration is provided via API’s Metrology Software Suite (MSS), which ingests raw probe data streams into standardized DMIS-compliant measurement routines. The software enforces role-based user access control, automatic calibration log generation, and cryptographic hash-based data immutability for GMP/GLP workflows. All measurement sessions are time-stamped, digitally signed, and archived in vendor-neutral XML-based formats compatible with enterprise PLM systems (e.g., Teamcenter, Windchill). Optional add-ons include automated GD&T reporting per ASME Y14.5–2018 and statistical process control (SPC) charting with Cp/Cpk calculation.
Applications
- Precision inspection of turbine blade root profiles and cooling hole geometry in aerospace castings
- In-process verification of weld seam alignment and flange flatness in heavy fabrication
- Reverse engineering of legacy tooling with inaccessible datum features
- First-article inspection of injection-molded medical housings requiring zero-contact stylus approach angles
- Calibration artifact verification for CMM volumetric error mapping (ISO 10360-1)
FAQ
Does the IP-360 Wireless require periodic recalibration?
Yes—annual calibration against NIST-traceable sphere artifacts is recommended; full calibration certificates include uncertainty budgets per ISO/IEC 17025.
Can it be used with non-API CMM controllers?
Only with controllers supporting API’s open DMIS driver interface; OEM-specific integration requires formal API partnership and firmware co-validation.
What is the maximum operating distance from the host receiver?
Up to 15 meters line-of-sight in industrial environments; multipath mitigation algorithms maintain synchronization at ≤ 3 dB SNR degradation.
Is battery replacement user-serviceable?
No—battery modules are sealed and replaced only by API-certified service centers to preserve IP rating and metrological chain-of-custody.
How is firmware updated?
Via secure USB-C connection to MSS workstation; updates undergo SHA-256 signature verification prior to installation.
