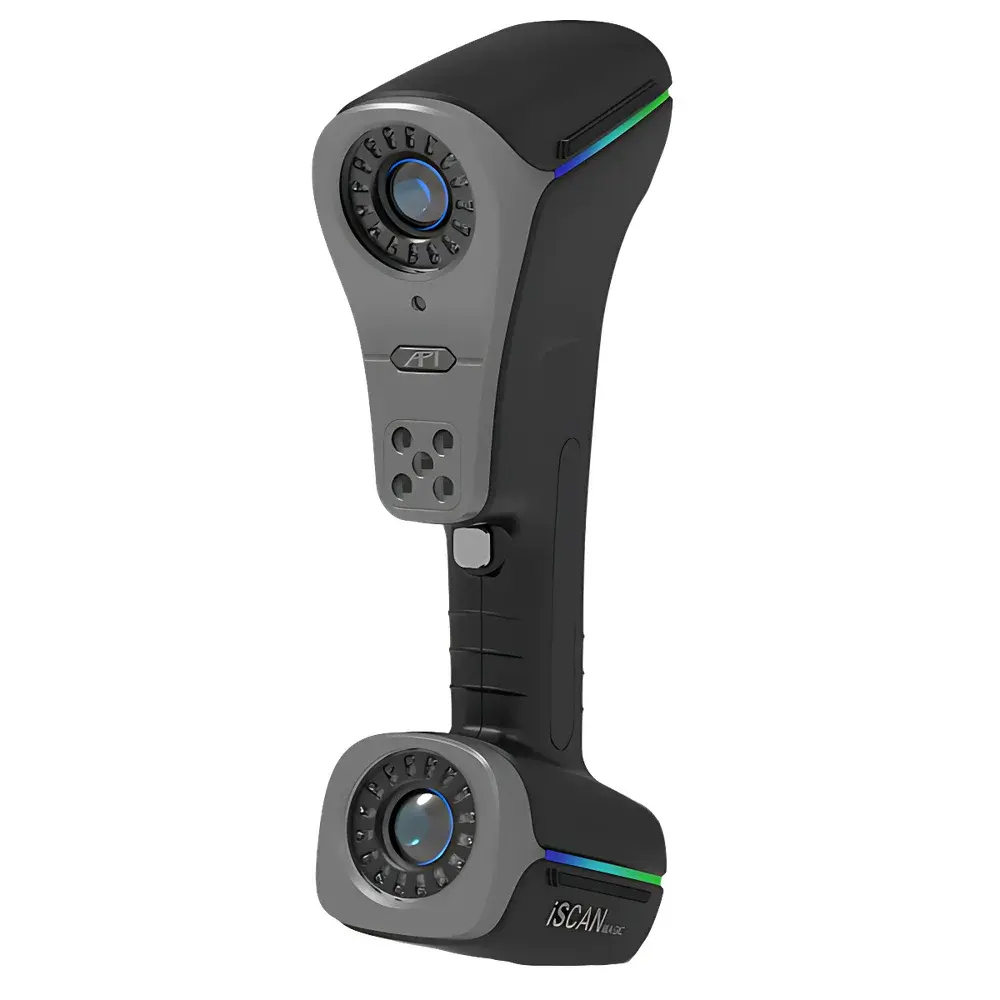

API iScan Magic Handheld Hybrid Laser Scanner

Overview

The API iScan Magic is a metrology-grade, handheld hybrid laser scanner engineered for high-precision, non-contact 3D coordinate measurement in industrial metrology environments. It integrates dual-wavelength laser technology—simultaneous infrared (IR) and blue laser emission—to enable adaptive scanning across diverse surface reflectivities, geometries, and ambient lighting conditions. Unlike conventional single-mode scanners, the iScan Magic operates on a multi-band scanning principle grounded in triangulation and phase-shift analysis, delivering traceable dimensional data compliant with ISO 10360-8 (coordinate measuring machines with optical distance sensors) and VDI/VDE 2634 Part 3 (optical 3D measuring systems). Its core architecture is designed for integration within large-volume metrology networks, particularly when paired with API’s L15 global photogrammetry system, enabling volumetric accuracy enhancement through geometric constraint calibration.

Key Features

• Dual-laser optical engine (850 nm IR + 450 nm blue) for robust performance on low-reflectivity, dark, or glossy surfaces without spray coating
• Five configurable scanning modes: wide-area mode (optimized for coverage >1.5 m² per scan), high-speed mode (≥4.15 million points/second), fine-detail mode (sub-0.1 mm feature resolution), deep-cavity mode (up to 925 mm depth of field), and embedded photogrammetric mode (real-time marker-based pose estimation)
• Unrestricted rotational freedom (360° pan, ±180° tilt, ±90° pitch) enabled by inertial measurement unit (IMU)-assisted motion compensation and real-time six-degree-of-freedom (6DoF) tracking
• Native compatibility with API’s LaserTrack series and Tracker3/Tracker4 laser trackers, supporting dynamic referencing via active target tracking (e.g., SMR or spherically mounted retroreflector)
• Ruggedized aluminum-magnesium alloy housing rated IP53 for shop-floor durability; ergonomic hand grip with integrated trigger and status LEDs
• Real-time point cloud streaming over Gigabit Ethernet or USB 3.2 Gen 2; onboard FPGA acceleration for on-device noise filtering and outlier rejection

Sample Compatibility & Compliance

The iScan Magic supports direct measurement of metallic, composite, painted, anodized, and thermoplastic components without surface preparation under controlled ambient light (≤10,000 lux). It complies with IEC 61000-6-2 (immunity) and IEC 61000-6-4 (emissions), and meets FDA 21 CFR Part 11 requirements for audit-trail-enabled data acquisition when used with API Metrology Suite v7.2+. Calibration certificates are traceable to NIST standards (SP 250-96, SP 250-102), and system validation protocols align with ASME B89.4.22–2020 for laser radar and optical CMMs. The device is certified for use in GLP/GMP-regulated environments where raw point cloud integrity, timestamped acquisition logs, and user-access controls are required.

Software & Data Management

Data acquisition and post-processing are managed through API Metrology Suite, a modular platform supporting ISO 15530-3-compliant uncertainty evaluation, GD&T analysis per ASME Y14.5–2018, and automated report generation (PDF/HTML/XML). Raw scan data is stored in native .iscn binary format with embedded metadata (sensor pose, exposure time, laser power, temperature drift compensation values). The software includes built-in photogrammetric solver for L15-integrated workflows, enabling bundle adjustment and scale correction across multi-station setups. All user actions—including scan initiation, parameter changes, and report exports—are logged with digital signatures and time-stamped entries satisfying FDA 21 CFR Part 11 electronic record requirements.

Applications

The iScan Magic is deployed across aerospace (wing spar alignment, tooling verification), automotive (body-in-white gap/flush analysis, die inspection), energy (turbine blade profile digitization, pipe flange conformity), and heavy machinery (large gear tooth geometry, casting dimensional validation). Its ability to maintain ≤0.020 mm single-point accuracy at standoff distances up to 4 m—and ≤0.015 mm + 0.012 mm/m volumetric accuracy when fused with L15 photogrammetry—makes it suitable for first-article inspection, production line in-process verification, and reverse engineering of legacy parts where CMM access is impractical.

FAQ

Does the iScan Magic require external tracking hardware to operate?
No—it functions as a standalone scanner using its internal IMU and laser triangulation; however, optimal volumetric accuracy (≤0.015 mm + 0.012 mm/m) requires synchronization with an API laser tracker or L15 photogrammetry system.
Is the device compatible with third-party metrology software such as PolyWorks or GOM Inspect?
Yes—point cloud export formats include ASCII XYZ, PTS, E57, and ASTM E2807-compliant PTX; mesh outputs support STL, PLY, and OBJ with vertex normals and color mapping.
What environmental conditions affect measurement stability?
Ambient temperature gradients exceeding 1°C/minute or relative humidity above 90% may induce thermal lensing in the optical path; operation is validated between 10–40°C and 20–80% RH non-condensing.
Can the iScan Magic perform real-time GD&T evaluation during scanning?
Yes—Metrology Suite v7.2+ supports live tolerance checking against CAD models with ANSI/ASME Y14.5 callouts, including position, profile, and runout, with pass/fail visualization overlaid on the point cloud.
How is system calibration maintained in field use?
Field recalibration is performed using API’s certified calibration artifacts (e.g., sphere bar, step gauge); full factory recalibration is recommended annually or after 2,000 operational hours, with certificate of conformance issued per ISO/IEC 17025.
