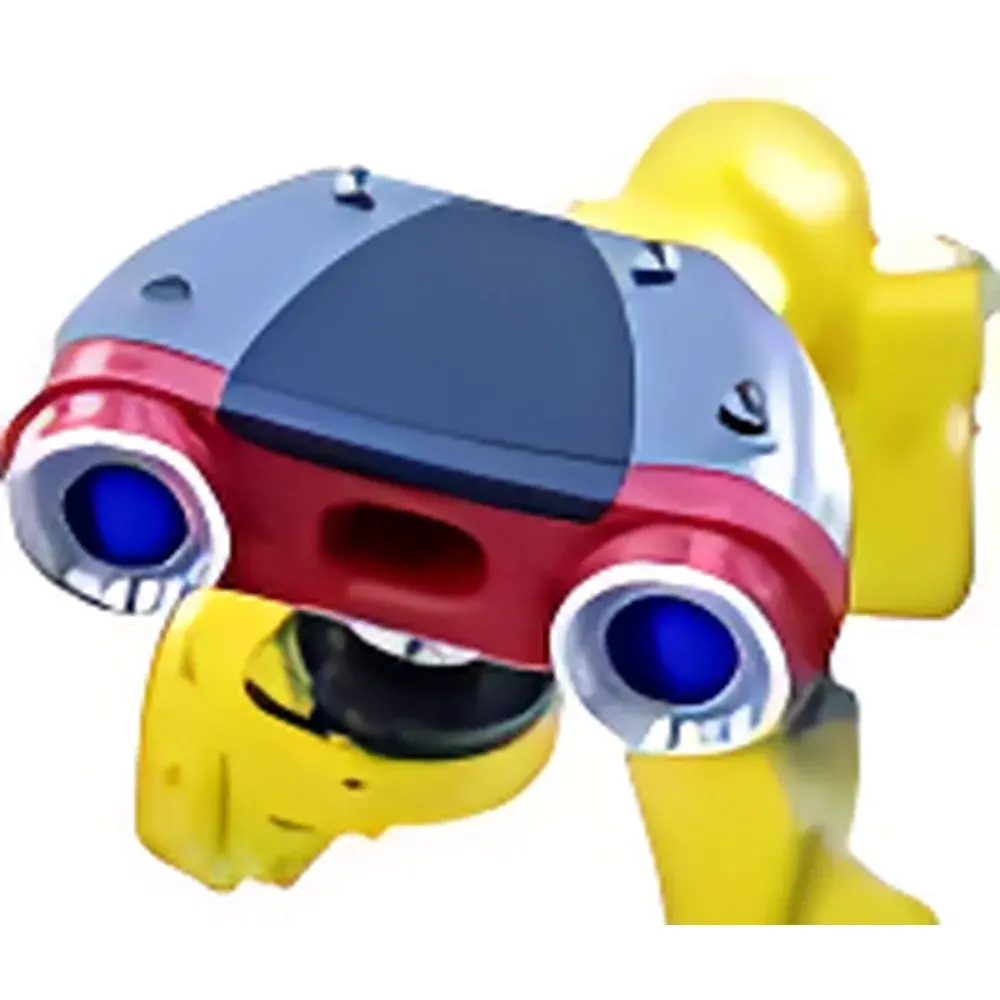

API Rapidscan Smart Probe
| Origin | USA |
|---|---|
| Manufacturer Type | Authorized Distributor |
| Origin Category | Imported |
| Model | Rapidscan |
| Price Range | USD 70,000 – 140,000 |
| Max Measurement Range | 160 m |
| Measurement Resolution | 0.08 µm |
| Measurement Accuracy | ±(10 µm + 5 µm/m) |
| Horizontal Rotation | 360° |
| Vertical Pitch | Unlimited |
| Tilt Angle | Unlimited |
Overview
The API Rapidscan Smart Probe is a high-precision, non-contact optical scanning sensor engineered for integration with laser tracker systems in large-volume metrology applications. Operating on the principle of structured light triangulation combined with high-speed digital imaging, the Rapidscan captures dense point clouds from complex freeform surfaces, edges, holes, and geometric features at sub-micron resolution. Unlike traditional tactile probing or single-point laser scanning, the Rapidscan employs a synchronized photogrammetric acquisition method—capturing surface topology via calibrated camera arrays while referencing real-time spatial coordinates from an API laser tracker (e.g., Radian or vProbe series). This hybrid metrology architecture eliminates cumulative registration errors during multi-station scanning, enabling traceable, NIST-traceable measurement uncertainty down to ±(10 µm + 5 µm/m) across its full 160-meter working envelope. Designed for industrial-grade robustness, the probe features a thermally stable aluminum-magnesium housing, IP54-rated environmental protection, and EMI-hardened electronics compliant with IEC 61326-1 for operation in factory-floor environments.
Key Features
- Sub-micron resolution imaging: 0.08 µm lateral resolution supported by 5 MP global-shutter CMOS sensors and precision diffraction-limited optics.
- Full-sphere articulation: 360° continuous horizontal rotation with unlimited pitch and tilt axes—enabling unobstructed access to undercuts, deep cavities, and complex aerospace or automotive components.
- Real-time tracker synchronization: Native API TrackerLink™ protocol ensures microsecond-level timestamp alignment between tracker position data and image capture frames.
- Modular deployment: Configurable as either a robot-mounted end-effector (compatible with UR, KUKA, Fanuc, and ABB robotic arms via EtherCAT or analog I/O interfaces) or tripod-mounted standalone unit with optional motorized pan-tilt base.
- Thermal drift compensation: Onboard temperature sensors feed real-time thermal expansion corrections into the metrology software pipeline, maintaining accuracy across ambient fluctuations from 10°C to 40°C.
Sample Compatibility & Compliance
The Rapidscan Smart Probe accommodates reflective, matte, anodized, painted, and machined metallic surfaces without mandatory target application—leveraging adaptive surface contrast normalization algorithms. For highly specular or transparent materials, optional diffuse spray or coded target augmentation is supported per ISO 10360-8:2020 Annex B guidelines. The system complies with ISO/IEC 17025:2017 requirements for calibration laboratories and supports audit-ready documentation per FDA 21 CFR Part 11 (electronic records/signatures) when used with API Metrology Suite v6.2+. All mechanical and optical assemblies are CE-marked and conform to EN 61000-6-2 (immunity) and EN 61000-6-4 (emissions).
Software & Data Management
Controlled exclusively through API Metrology Suite (AMS), the Rapidscan integrates seamlessly with industry-standard CAD comparison workflows (GD&T analysis per ASME Y14.5–2018 and ISO 1101:2017). AMS provides automated scan path planning, real-time deviation color mapping, statistical process control (SPC) charting, and export to common formats including .STL, .IGES, .STEP AP214, and metrology-specific .PCD and .CSV. Audit trails—including operator ID, timestamp, environmental logs, and calibration certificate references—are retained for GLP/GMP compliance. Data encryption at rest (AES-256) and TLS 1.2+ secure remote diagnostics ensure ITAR-controlled data integrity.
Applications
The Rapidscan Smart Probe serves critical dimensional verification roles in Tier-1 automotive body-in-white (BIW) assembly line validation, aerospace fuselage panel contour inspection, wind turbine blade geometry certification, and large-scale additive manufacturing part qualification. Its ability to generate >1 million points/sec enables full-field strain mapping when paired with digital image correlation (DIC) modules. In machine tool verification, it replaces conventional ball bar tests for volumetric error mapping per ISO 230-6:2012, delivering comprehensive 3D volumetric accuracy reports within 90 minutes for CNC gantry mills up to 30 m in length.
FAQ
Is the Rapidscan Smart Probe compatible with third-party laser trackers?
No. It requires native API Radian or vProbe-series laser trackers for hardware-level synchronization and firmware-level coordinate transformation.
What is the recommended calibration interval?
Annual calibration is advised per ISO 10360-2:2022; however, on-site verification using API’s certified artifact kit (Part No. CAL-RS-01) is recommended before each high-accuracy production run.
Can the system perform in-process measurements on moving parts?
Yes—when integrated with motion-triggered I/O signals and API’s Real-Time Sync Module (RTSM), it supports dynamic scanning of parts moving at ≤0.5 m/s on conveyor or robotic platforms.
Does Rapidscan support GD&T evaluation directly within the software?
Yes. AMS includes fully compliant ASME Y14.5–2018 and ISO 1101:2017 feature-based tolerancing engines, including profile, position, concentricity, and composite tolerance stack-up analysis.
Is training and technical support available globally?
API provides ISO/IEC 17024-certified metrology training programs and 24/7 remote support with <4-hour SLA for critical production downtime incidents in North America, EMEA, and APAC regions.
