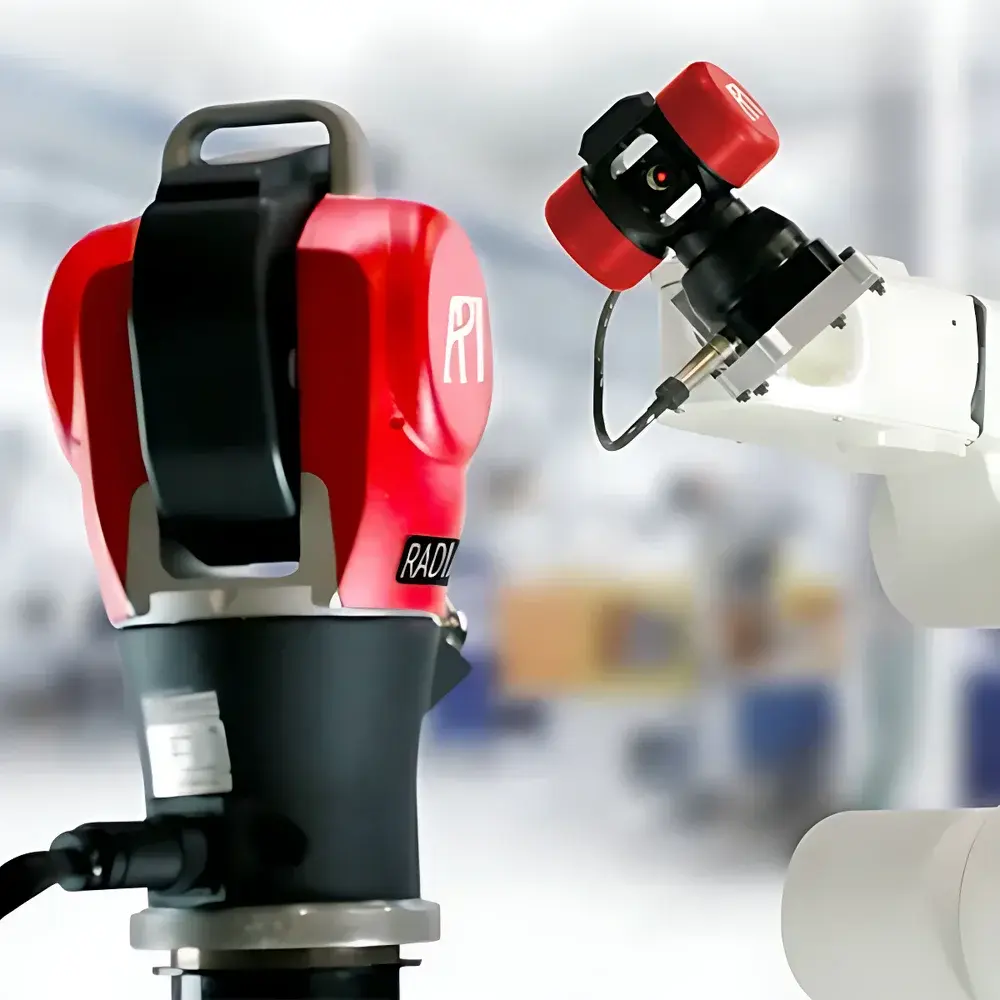

API Robot Calibration Laser Tracker
| Origin | USA |
|---|---|
| Manufacturer Type | Authorized Distributor |
| Origin Category | Imported |
| Model | API Robot Calibration |
| Price Range | USD $14,000 – $72,000 (FOB) |
| Max Measurement Range | 160 m |
| Measurement Resolution | 0.08 µm |
| Spatial Accuracy | 10 µm + 5 µm/m |
| Horizontal Rotation | ±320° |
| Vertical Pitch | −59° to +79° |
| Roll Tilt | Unlimited |
Overview
The API Robot Calibration Laser Tracker is a high-precision, portable coordinate measuring system engineered for dynamic, large-volume metrology in industrial automation environments. Based on interferometric and absolute distance measurement (ADM) principles combined with high-speed angular encoders, the system delivers traceable 3D spatial coordinates with sub-micron resolution and proven volumetric accuracy compliant with ISO 10360-12 and VDI/VDE 2617 Part 11 standards. Designed specifically for robotic cell validation, kinematic calibration, and end-effector pose verification, it enables full six-degree-of-freedom (6DoF) characterization of industrial robots—including articulated arms, SCARA, delta, and collaborative platforms—under real-world operational conditions. Its modular architecture supports both static point-cloud acquisition and real-time trajectory tracking at up to 1,000 Hz, making it suitable for ISO/IEC 17025-accredited calibration laboratories as well as production-floor quality assurance workflows.
Key Features
- Interferometric + ADM hybrid ranging system ensures robust performance across varying surface reflectivity, ambient light, and thermal gradients
- Integrated active target tracking (T-Mac or sTarget) with automatic reacquisition after temporary line-of-sight interruption
- Real-time 6DoF pose estimation with simultaneous position and orientation output (X, Y, Z, yaw, pitch, roll)
- Modular software-defined measurement modes: single-point, continuous path, volumetric grid, and robot teach pendant synchronization
- Ruggedized carbon-fiber tripod mount and IP54-rated tracker head for shop-floor deployment without environmental conditioning
- Compliant with NIST-traceable calibration protocols; factory-certified uncertainty budgets provided per ANSI/NCSL Z540-1
Sample Compatibility & Compliance
The API Robot Calibration Laser Tracker accommodates a broad range of reflective targets—including retroreflective spheres (1.5″–3″), SMR-based kinematic mounts, and passive fiducial markers—enabling compatibility with legacy robotic tooling interfaces and custom end-effectors. It meets ISO 9001:2015 requirements for measurement process control and supports GLP/GMP-aligned documentation workflows via audit-trail-enabled software logging. All measurement reports include full metadata: timestamp, operator ID, environmental readings (optional external sensor integration), and uncertainty propagation per GUM (JCGM 100:2008). The system is routinely deployed in aerospace (AS9100D), automotive (IATF 16949), and nuclear power (ASME NQA-1) certified facilities for robot repeatability validation and cell-level geometric error mapping.
Software & Data Management
Powered by API’s Metrology Software Suite (v8.2+), the tracker integrates natively with industry-standard platforms including KUKA KRL, Fanuc TP, ABB RAPID, and Universal Robots URScript via TCP/IP and OPC UA gateways. Raw data exports support ASCII, CSV, XML, and native .APK formats compatible with PolyWorks, Verisurf, SpatialAnalyzer, and MATLAB-based kinematic modeling tools. All software modules comply with FDA 21 CFR Part 11 for electronic records and signatures when configured with role-based access control, digital certificate authentication, and immutable audit logs. Version-controlled firmware updates are delivered through secure HTTPS channels with SHA-256 integrity verification.
Applications
- Industrial robot kinematic parameter identification and error compensation model generation
- End-of-arm tool (EOAT) calibration for welding, dispensing, and assembly cells
- Volumetric accuracy verification of robotic workcells per ISO 9283 and ISO/TS 15066
- Dynamic trajectory validation under load and thermal drift conditions
- Reverse engineering of robotic fixtures and custom gripper geometries
- Periodic verification of CNC machine tools, CMMs, and laser scanning systems
- Digital twin alignment: registration of CAD nominal models with as-built robot workspace data
FAQ
Is this system capable of calibrating collaborative robots (cobots)?
Yes—the tracker supports low-speed, human-in-the-loop calibration sequences and complies with ISO/TS 15066 safety requirements for cobot workspace mapping.
Can measurement data be integrated directly into robot controller firmware?
Via optional API RobotLink module, nominal path corrections can be exported as JSON or CSV and imported into major OEM controllers for real-time compensation.
What environmental conditions affect measurement stability?
Temperature gradients exceeding 1°C/m and air turbulence from HVAC or machinery exhaust require compensation; built-in environmental sensors (optional) feed real-time refractive index correction to ADM algorithms.
Does the service include on-site engineer support?
Yes—certified API Metrology Engineers provide turnkey calibration services, including uncertainty analysis, ISO 17025-compliant reporting, and operator training.
Is rental available without personnel?
Yes—trackers are available for short-term lease (minimum 7 days) with remote technical support and pre-loaded configuration templates.
