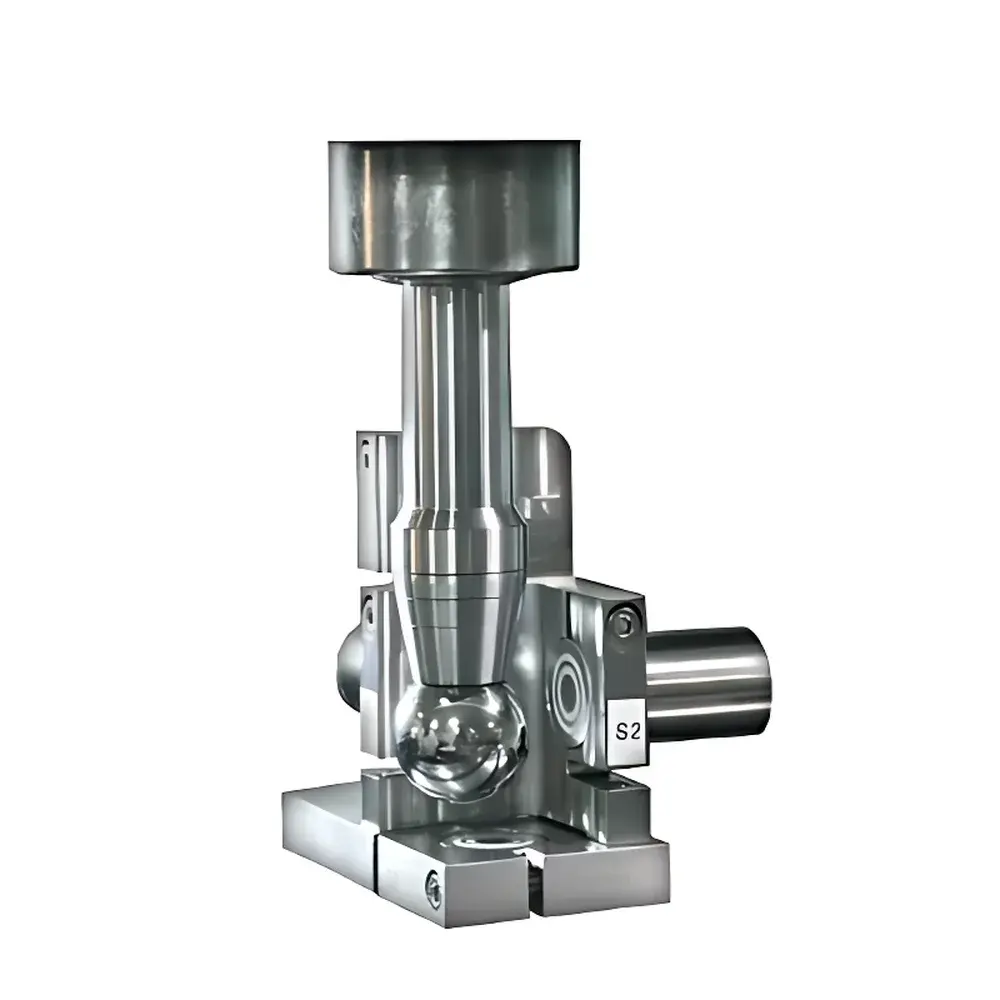

API Spindlecheck In-Machine Spindle Dynamic & Thermal Error Analyzer
| Origin | USA |
|---|---|
| Manufacturer Type | Authorized Distributor |
| Origin Category | Imported |
| Model | Spindlecheck |
| Price Range | USD $14,000 – $72,000 |
Overview
The API Spindlecheck In-Machine Spindle Dynamic & Thermal Error Analyzer is a high-precision metrology system engineered for real-time, non-intrusive measurement and quantitative analysis of spindle motion errors in CNC machine tools. Based on the ASME B5.54 standard for machine tool performance evaluation, the Spindlecheck employs a patented multi-degree-of-freedom (5-DOF) capacitive displacement sensing architecture to capture radial, axial, angular (pitch and yaw), and thermal drift components simultaneously during active machining or idle thermal soak conditions. Unlike conventional laser interferometers or ball-bar systems, the Spindlecheck is designed for in-machine deployment—mounting directly to the machine tool structure without requiring disassembly or fixture reconfiguration. This enables measurement under actual operational loads, coolant flow, and ambient thermal gradients, delivering data that reflects true in-situ spindle behavior rather than idealized bench-top conditions.
Key Features
- 5-axis synchronized error acquisition: measures radial runout (X/Y), axial displacement (Z), angular pitch/yaw deviations, and thermal-induced positional drift with sub-micron resolution
- ASME B5.54-compliant test protocols preloaded—including static positioning accuracy, dynamic tracking error, thermal growth mapping, and repeatability assessment
- In-machine installation capability: compact sensor head and rigid kinematic mounting interface minimize setup time and eliminate alignment-induced uncertainty
- Real-time thermal compensation readiness: outputs calibrated error vectors compatible with Siemens SINUMERIK, Heidenhain TNC, and FANUC CNC platforms for closed-loop thermal error compensation (TEC)
- High-stability capacitive transducers with temperature-compensated electronics ensure long-term measurement integrity across 15–40 °C ambient ranges
- Modular data acquisition unit supports continuous logging from 1 minute to 48 hours, enabling both transient thermal response analysis and steady-state drift characterization
Sample Compatibility & Compliance
The Spindlecheck is compatible with all major CNC machine tool architectures including vertical/horizontal machining centers, turning centers, multi-tasking machines (MTMs), and precision grinders. It supports spindles with speeds up to 25,000 rpm and taper interfaces ISO 40, ISO 50, CAT 40, CAT 50, HSK-A63, and HSK-A100. All measurement procedures adhere strictly to ASME B5.54-2020 Annex A (Spindle Motion Error Measurement) and ISO 230-3:2022 (Test Code for Machine Tools — Part 3: Determination of Thermal Effects). The system’s traceable calibration certificate is issued against NIST-traceable standards and includes uncertainty budgets per ISO/IEC 17025 requirements. Data export formats comply with ISO 10303-21 (STEP AP242) for integration into digital twin workflows and quality management systems.
Software & Data Management
The Spindlecheck Control & Analysis Suite (v4.2+) provides a deterministic Windows-based environment for test planning, acquisition control, and metrological post-processing. The software implements automated pass/fail evaluation against user-defined tolerance bands aligned with ISO 230-2 or internal OEM specifications. All raw sensor data, metadata (ambient temperature, coolant status, spindle load torque), and processing parameters are stored in an audit-ready SQLite database with immutable timestamps. Full 21 CFR Part 11 compliance is supported via optional electronic signature modules, role-based access control, and tamper-evident audit trails. Export options include CSV (for statistical process control), PDF test reports (with embedded calibration certificates), and XML-based error map files for direct import into CNC controller compensation tables.
Applications
- Pre-shipment validation of spindle thermal stability and dynamic repeatability for OEM machine builders
- Root-cause analysis of geometric inaccuracies in high-value aerospace or medical component machining
- Establishment of empirical thermal error models for feed-forward compensation in adaptive control systems
- Periodic preventive maintenance verification of spindle bearing preload, lubrication condition, and housing distortion
- Quantitative benchmarking of spindle upgrades (e.g., hybrid ceramic bearings, active cooling jackets) against baseline performance
- Supporting ISO 9001:2015 Clause 7.1.5 (Monitoring and Measuring Resources) and IATF 16949:2016 requirements for measurement system analysis (MSA)
FAQ
Does the Spindlecheck require machine downtime for installation?
No—sensor mounting is performed while the machine remains operational; full system setup typically completes within 90 minutes without disrupting production schedules.
Can Spindlecheck data be integrated into our existing MES or QMS platform?
Yes—via OPC UA or RESTful API interfaces, raw and processed datasets can be streamed to enterprise systems including Siemens Opcenter, PTC ThingWorx, or custom SQL-based quality databases.
Is calibration traceable to national standards?
Yes—each unit ships with a NIST-traceable calibration certificate issued by API’s A2LA-accredited metrology lab (Certificate No. 2312.01), valid for 12 months under normal use conditions.
What environmental conditions affect measurement validity?
Measurements remain valid within ambient temperature fluctuations of ±2 °C/hour and relative humidity below 80% non-condensing; built-in thermal drift compensation corrects for sensor self-heating effects.
How does Spindlecheck differ from laser Doppler vibrometers or accelerometer-based modal analysis tools?
Unlike vibration-only tools, Spindlecheck quantifies absolute positional error—not just dynamic response—and correlates it directly with thermal and mechanical loading states required for CNC compensation, not just diagnostic insight.
