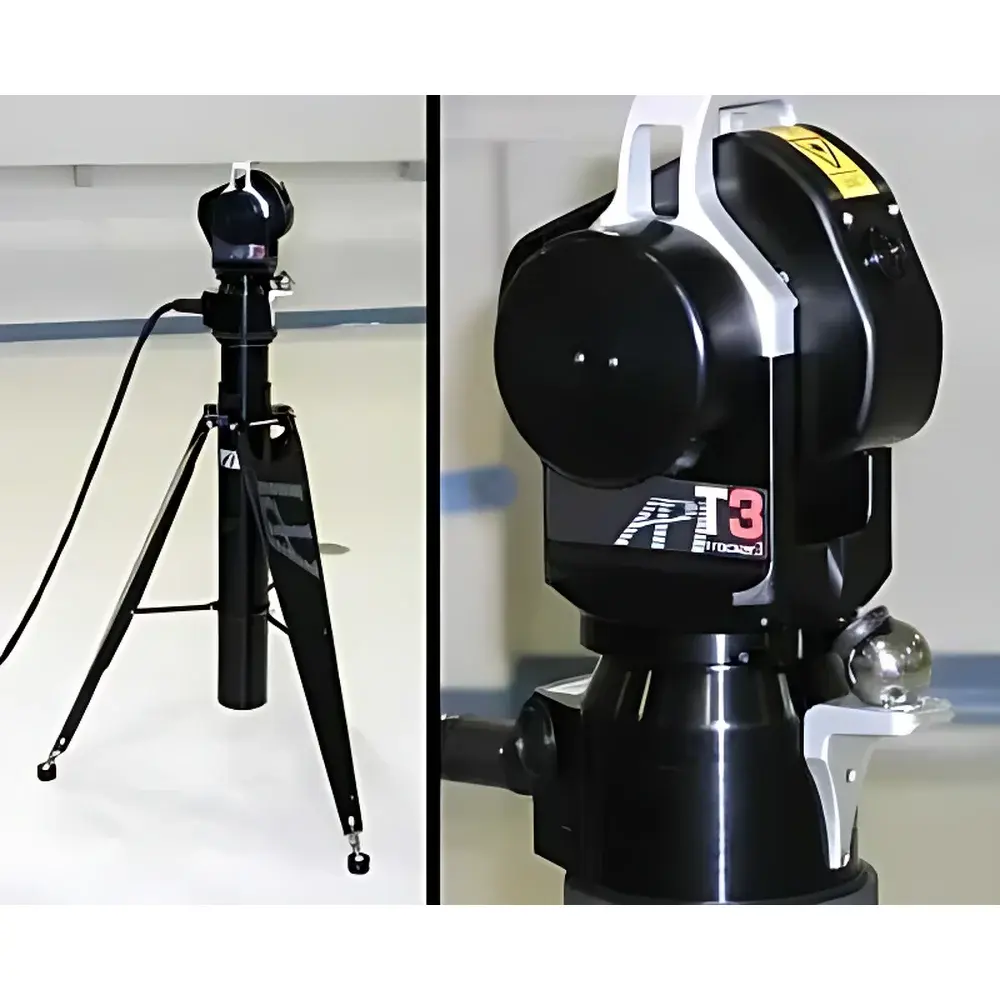

API T3 Third-Generation Laser Tracker

Overview

The API T3 Third-Generation Laser Tracker is an ultra-precision, portable coordinate measuring instrument engineered for high-accuracy 3D spatial metrology in large-volume industrial environments. Based on interferometric and absolute distance measurement (ADM) principles—combined with high-speed angular encoders and real-time kinematic feedback—the T3 delivers traceable, NIST-traceable dimensional data across volumes exceeding 120 meters in diameter. Unlike conventional theodolite-based or photogrammetric systems, the T3 employs a coaxial laser path architecture with direct-diode laser output (no intermediate mirrors), minimizing optical path drift and enabling sub-micron length resolution (0.1 µm) and arcsecond-level angular resolution (0.05 arcsec). Its dual-mode operation—supporting both static high-accuracy mapping and dynamic real-time tracking at speeds up to 4.0 m/s—makes it suitable for applications ranging from aerospace assembly verification to robotic cell calibration under ISO 10360-12 and VDI/VDE 2617 Part 9 compliance frameworks.

Key Features

• Ultra-lightweight modular design: total system mass of 23 kg (including transit case and accessories), representing a >65% reduction versus first-generation trackers.
• Hermetically sealed, maintenance-free tracker head with symmetric mechanical architecture and integrated adaptive laser thermal stabilization—achieving operational readiness in just 13 minutes.
• Self-calibrating geometry engine: full volumetric accuracy validation completed in under 2 minutes using built-in reference artifacts and onboard algorithms compliant with ASME B89.4.19 Annex B.
• Coaxial laser architecture eliminating beam deviation caused by mirror misalignment—enhancing long-term stability and reducing sensitivity to environmental thermal gradients.
• Integrated 2-arcsecond electronic level and fully digital meteorological station (temperature, pressure, humidity) for real-time atmospheric correction per ISO 10360-10.
• Multi-target compatibility: supports passive retroreflective targets (“bird’s nest” mounts accepting 0.5″, 0.875″, and 1.5″ spherically mounted retroreflectors) as well as active smart probes and optical scanners.
• Wireless RF remote control and voice-command interface (up to 50 m range) for hands-free operation in constrained or hazardous workspaces.
• Dual-sensor ADM/IFM hybrid ranging system delivering 10 m accuracy of ±15 µm and long-range performance of 1.5 ppm beyond 10 m—validated per ISO 10360-11.

Sample Compatibility & Compliance

The T3 accommodates a broad spectrum of physical artifacts and fixtures common in precision manufacturing and aerospace integration: large-scale jigs, composite tooling, gantry-mounted machine tools, robotic end-effectors, and aircraft fuselage sections. It supports both passive target-based measurements and active probe-assisted scanning via API’s patented SmartTrack™ probe interface. All hardware and firmware comply with IEC 61000-6-2 (immunity) and IEC 61000-6-3 (emissions), while software workflows support audit-ready documentation aligned with FDA 21 CFR Part 11 requirements—including electronic signatures, change logs, and secure user access tiers. Calibration certificates are issued per ISO/IEC 17025-accredited procedures through API’s global metrology centers.

Software & Data Management

The T3 operates natively with Metrology Software Suite (MSS), a Windows-based platform supporting GD&T evaluation per ASME Y14.5–2018 and ISO 1101. MSS provides full integration with industry-standard CAD formats (STEP AP242, IGES, Parasolid), automated report generation (PDF, XML, CSV), and bidirectional communication with PLM systems such as Teamcenter and Windchill. Raw point cloud data is timestamped and georeferenced, with optional encryption and metadata tagging for GLP/GMP traceability. Optional modules include Real-Time Kinematic (RTK) synchronization for multi-station networked metrology and API’s proprietary 6DOF analysis toolkit for orientation-sensitive tasks like robotic TCP calibration and turbine blade alignment.

Applications

• Aerospace: wing spar alignment, fuselage section mating verification, and tooling certification per NAS410 and EN 9100.
• Automotive: body-in-white dimensional validation, battery module positioning, and automated guided vehicle (AGV) navigation system calibration.
• Energy: wind turbine blade geometry inspection, nuclear containment vessel deformation monitoring, and offshore platform structural integrity assessment.
• Machine Tool: volumetric error mapping of 5-axis CNC machines per ISO 230-6, including thermal drift compensation and dynamic path verification.
• Research & Development: motion capture of large-scale mechanisms, validation of digital twin geometries, and metrology-grade reverse engineering of legacy components.

FAQ

What standards does the T3 conform to for volumetric accuracy verification?
The T3 complies with ISO 10360-12 for laser trackers, ASME B89.4.19 for performance evaluation, and VDI/VDE 2617 Part 9 for dynamic measurement uncertainty estimation.
Can the T3 operate without a tripod?
Yes—the T3 features a universal mounting interface compatible with magnetic bases, vacuum chucks, and custom kinematic fixtures, enabling stable operation on ferrous surfaces, composite panels, or overhead gantries.
Is six-degree-of-freedom (6DOF) measurement available as a standard configuration?
6DOF functionality is enabled via optional STS (Six-Dimensional Target Sensor) integration, which adds real-time pitch, yaw, and roll measurement to the base 3D coordinate output.
How is atmospheric compensation handled during long-distance measurements?
The integrated digital meteorological station continuously monitors ambient temperature, barometric pressure, and relative humidity, feeding real-time corrections into the ADM/IFM ranging algorithms per Edlén equation implementation.
Does the system support automated calibration routines?
Yes—MSS includes guided self-calibration sequences that validate angular encoder linearity, laser collimation, and ADM zero-offset using certified reference spheres and artifact arrays, generating ISO 17025-compliant calibration records.
