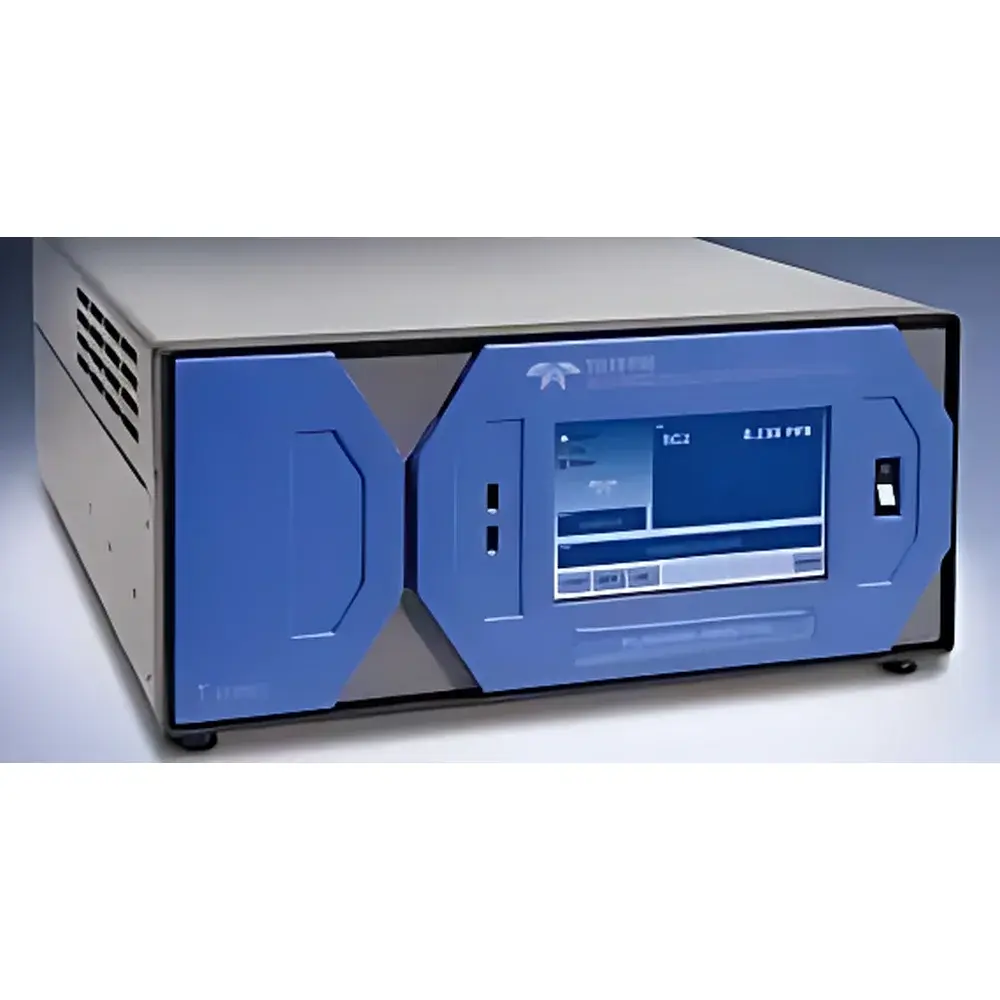

API T300 Carbon Monoxide (CO) Analyzer

Overview

The API T300 Carbon Monoxide (CO) Analyzer is a high-stability, online gas monitoring instrument engineered for continuous, trace-level CO measurement in ambient air, stack emissions, and indoor air quality applications. It employs Gas Filter Correlation Infrared (GFC-IR) absorption spectroscopy — a highly selective variant of non-dispersive infrared (NDIR) technology — to isolate CO-specific absorption bands at 4.6 µm while rejecting spectral interference from water vapor, carbon dioxide, methane, and other common atmospheric gases. This method leverages the Beer-Lambert law and utilizes a mechanically rotating gas filter wheel containing pure CO and inert reference gas cells, enabling differential detection with exceptional specificity and long-term baseline stability. With a 14-meter folded optical path, the T300 achieves sub-ppb zero noise (<0.02 ppm RMS) and a demonstrated limit of detection below 0.04 ppm, making it suitable for regulatory-grade compliance monitoring where low-concentration accuracy and drift resistance are critical.

Key Features

• Gas Filter Correlation (GFC) optical architecture ensures CO-specific selectivity without cross-sensitivity to CO₂, H₂O, or hydrocarbons
• Dual selectable measurement ranges: 0–1 ppm (for ambient air monitoring) and 0–1000 ppm (for industrial process or combustion exhaust)
• Integrated temperature and barometric pressure compensation algorithms correct for environmental variations in real time
• High-resolution color touchscreen interface with intuitive menu navigation and on-device data review
• Dual bidirectional RS-232 ports support remote configuration, firmware updates, and integration into SCADA or DCS systems
• Front-panel USB port and internal SD card slot enable local data logging with user-defined intervals (1 minute to 365 days)
• Onboard microprocessor executes continuous self-diagnostics, including lamp intensity monitoring, detector signal validation, and optical alignment verification
• Programmable alarm thresholds with relay outputs for fault conditions (e.g., flow loss, zero drift exceedance, calibration overdue)
• Robust 19-inch rack-mountable chassis (178 × 432 × 597 mm) rated for continuous operation in laboratory, field shelter, or industrial control room environments

Sample Compatibility & Compliance

The T300 is designed for clean, dry, particle-free sample streams. For wet or particulate-laden gas matrices, optional heated sampling lines, Nafion dryers, and particulate filters are recommended upstream. The analyzer meets U.S. Environmental Protection Agency (EPA) Performance Specification 4A (PS-4A) requirements for CO analyzers used in ambient air monitoring networks. It is also certified Eignungsgeprüft under German TA Luft guidelines and bears CE marking per Directive 2014/30/EU (EMC) and 2014/35/EU (LVD). Its analog and digital outputs comply with IEC 61000-6-2/6-3 immunity and emission standards. Data integrity features — including timestamped event logs, calibration history tracking, and write-protected audit trails — support adherence to GLP and ISO/IEC 17025 quality management frameworks.

Software & Data Management

The T300 includes embedded multi-tasking firmware that permits simultaneous real-time display, data logging, alarm handling, and remote communication. APIcom — the proprietary Windows-based remote operation software — provides full instrument control, graphical trend visualization, report generation (PDF/CSV), and secure firmware update capability. All stored measurements include metadata: date/time stamp, range mode, flow rate, temperature, pressure, and diagnostic flags. Data averaging options (1-min to 24-hr rolling windows) facilitate regulatory reporting aligned with EPA 40 CFR Part 58 and EU Directive 2008/50/EC. Optional OPC UA or Modbus TCP gateways enable seamless integration into enterprise-level environmental information systems (EIS) and cloud-based IoT platforms.

Applications

• Ambient air quality monitoring stations (urban, rural, roadside)
• Indoor air quality (IAQ) assessment in commercial buildings, hospitals, and transportation hubs
• Continuous emissions monitoring systems (CEMS) for incinerators, boilers, and industrial furnaces
• Occupational health and safety programs in parking garages, tunnels, and confined spaces
• Calibration laboratories requiring traceable CO reference standards
• Research studies involving combustion efficiency, catalytic converter performance, and atmospheric chemistry

FAQ

What measurement principle does the T300 use, and why is GFC-IR preferred over standard NDIR for CO?
The T300 uses Gas Filter Correlation Infrared (GFC-IR) absorption, which eliminates spectral overlap by dynamically modulating the IR beam through alternating CO-filled and inert reference cells. This yields superior selectivity and reduced drift compared to fixed-filter NDIR, especially in humid or CO₂-rich environments.
Can the T300 operate unattended for extended periods?
Yes — its low zero drift (<0.1 ppm/24 h), automatic diagnostics, and scheduled self-check routines enable reliable unattended operation for weeks between maintenance interventions.
Is the T300 compliant with U.S. EPA requirements for regulatory monitoring?
Yes — it is EPA-designated under PS-4A for ambient CO monitoring and supports data reporting formats required by AQS (Air Quality System) and AirNow.
How is calibration performed, and what traceability is provided?
Calibration uses certified NIST-traceable CO span gases and zero air; the instrument stores full calibration records including gas lot numbers, concentrations, dates, and operator IDs.
Does the T300 support 21 CFR Part 11-compliant data handling?
While the base firmware does not include electronic signatures or role-based access control, APIcom software with optional audit trail modules can be configured to meet FDA 21 CFR Part 11 requirements for regulated pharmaceutical or environmental testing labs.
