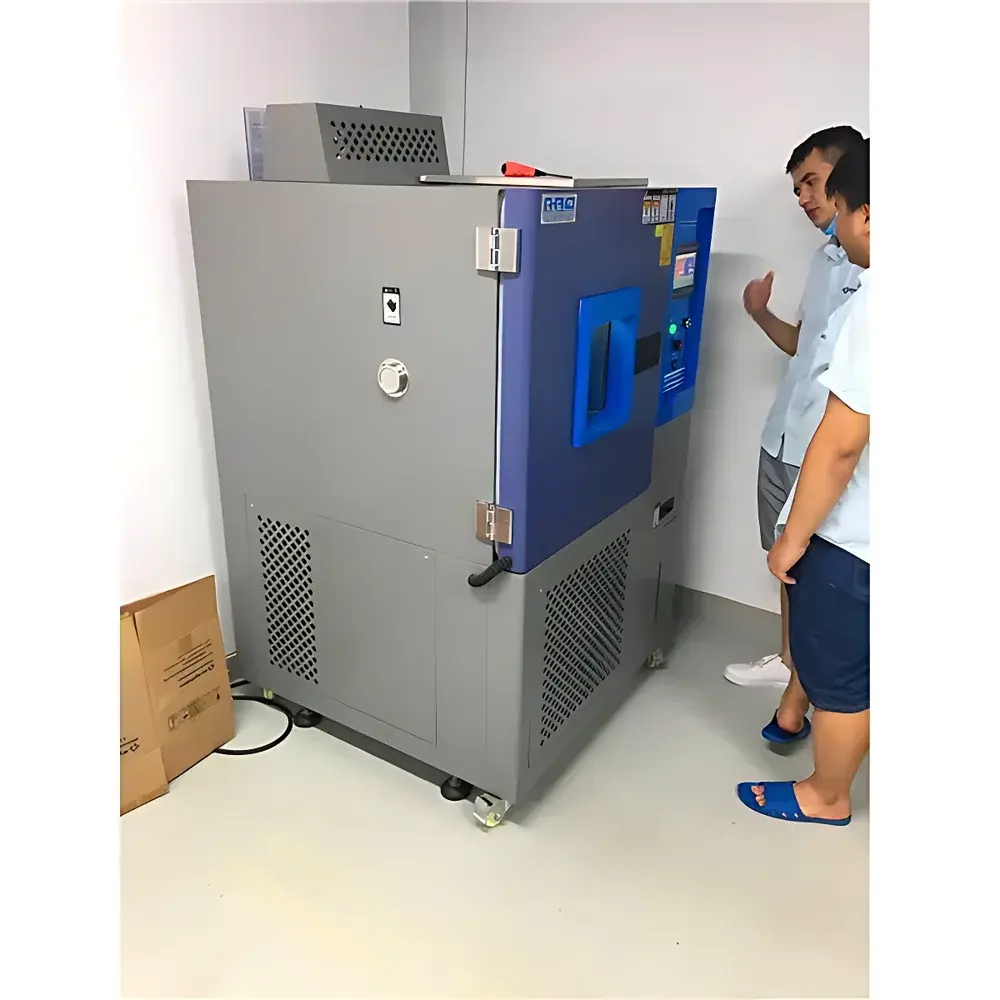

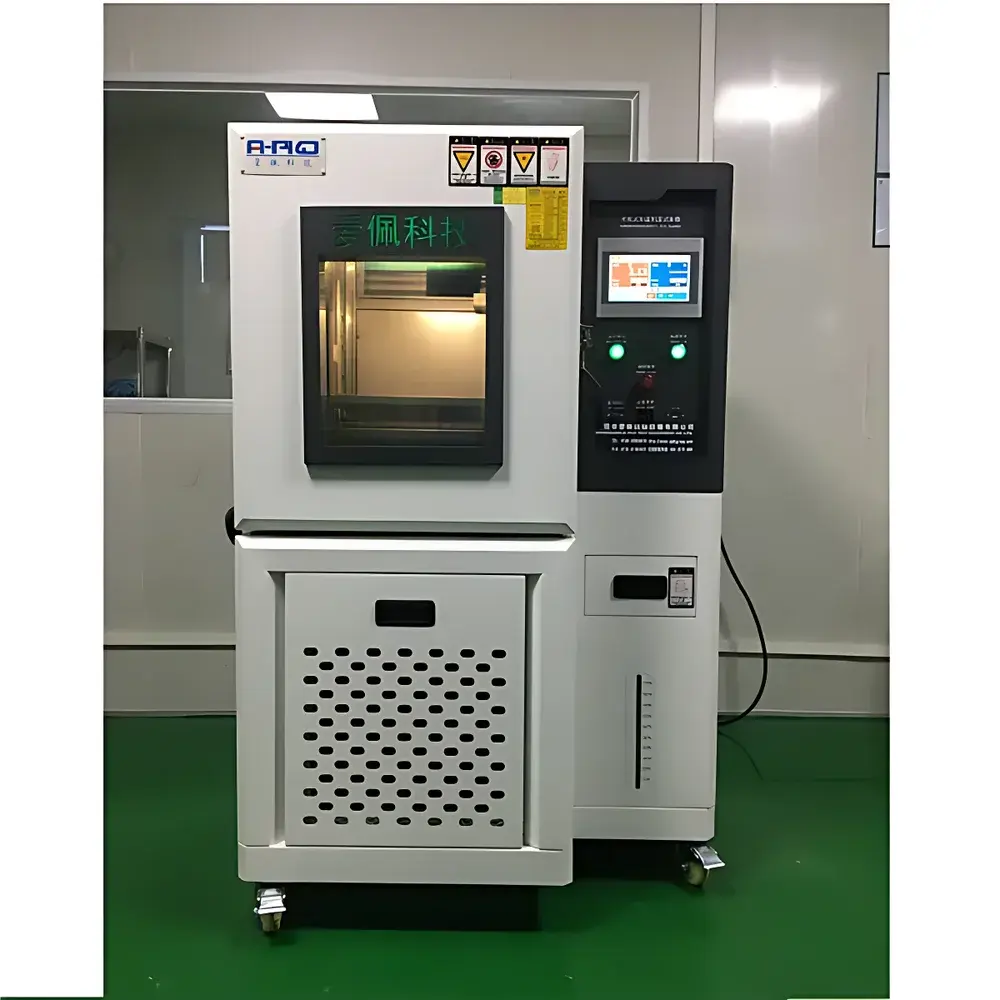

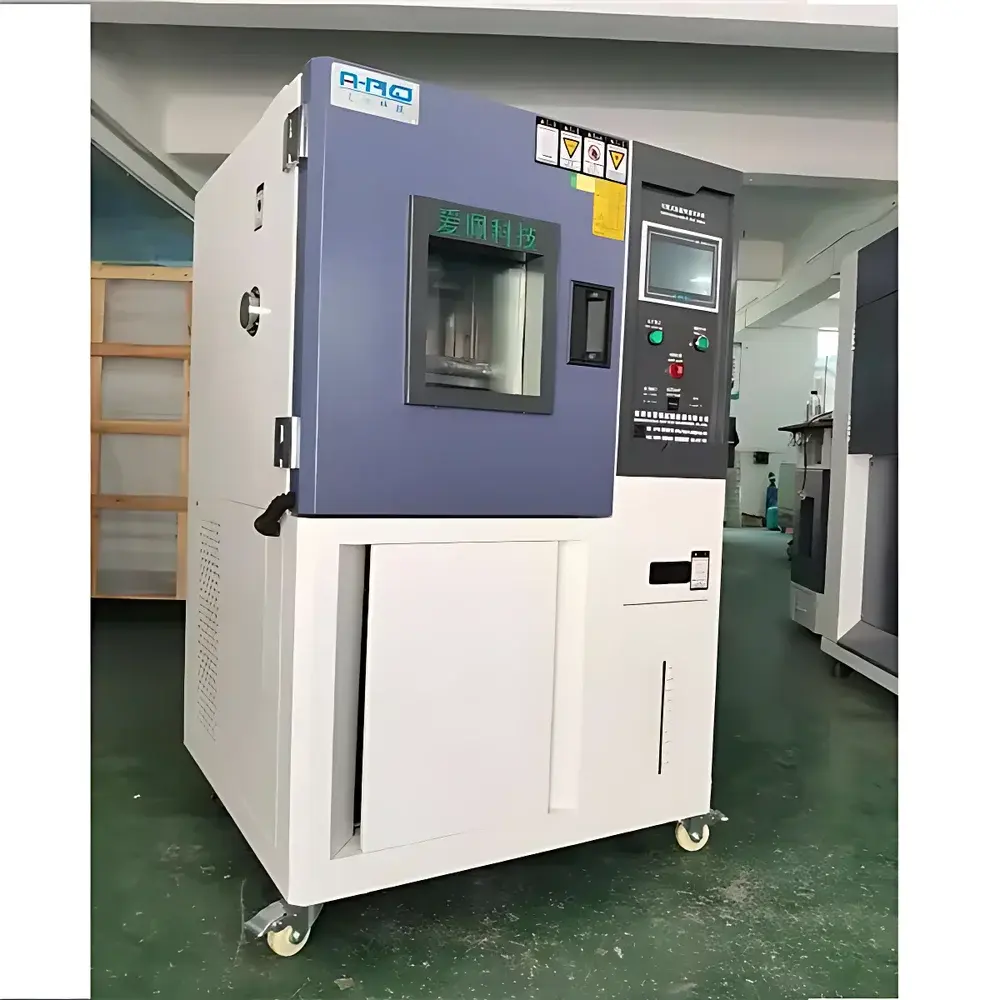

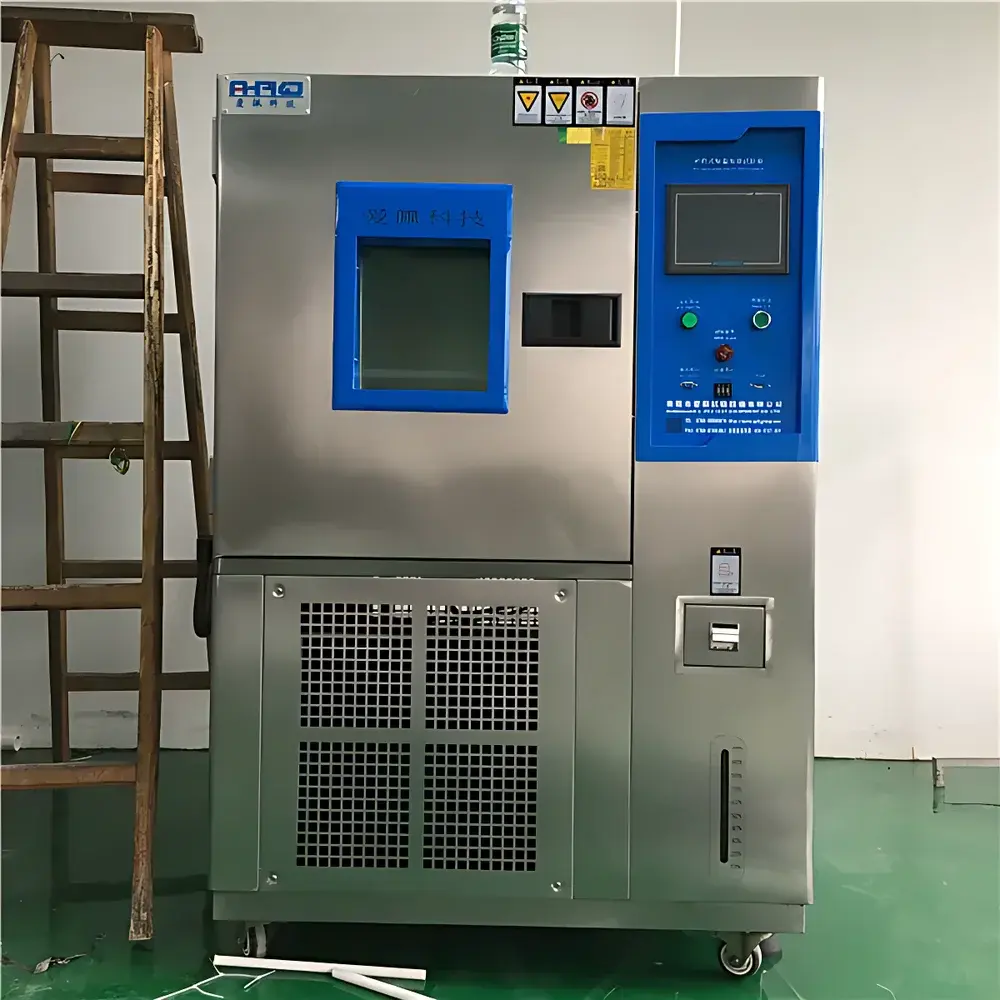

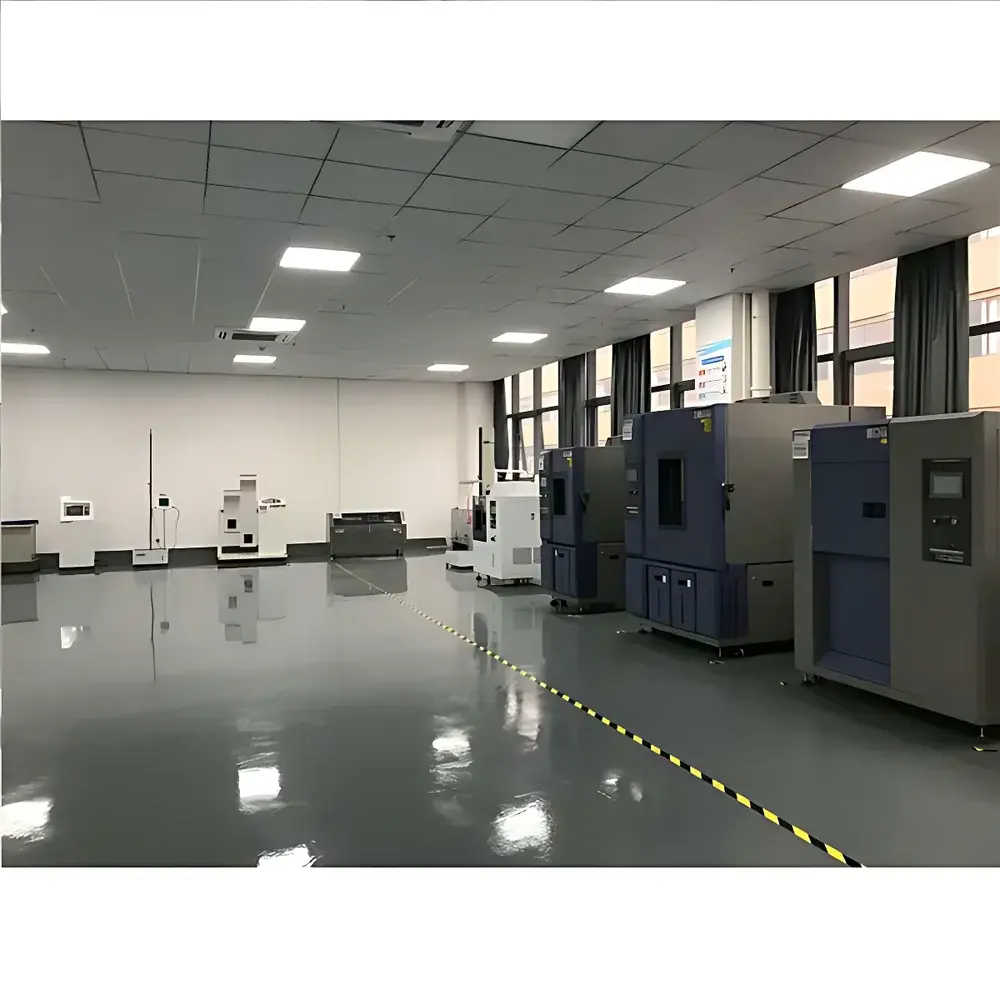

APKJ AP-DW-B Advanced Thermal Cycling Chamber for PCB Reliability Testing

Overview

The APKJ AP-DW-B Advanced Thermal Cycling Chamber is a purpose-engineered environmental test system designed specifically for accelerated reliability validation of printed circuit boards (PCBs), solder joints, conformal coatings, and assembled electronic modules under extreme thermal stress conditions. It operates on the principle of controlled, programmable thermal cycling—repeatedly exposing specimens to defined low-temperature (−40 °C) and high-temperature (+150 °C) extremes while maintaining traceable temperature uniformity and stability across the working chamber volume. This methodology directly supports industry-standard qualification protocols including IPC-9701, JEDEC JESD22-A104 (Temperature Cycling), MIL-STD-810H Method 503.5, and IEC 60068-2-14. The chamber’s architecture integrates a dual-stage refrigeration loop (optional cascade configuration), precision PID-driven heating/cooling actuation, and an optimized forced-air circulation system with top-down airflow distribution—ensuring minimal thermal gradients (<±0.5 °C) and rapid, reproducible ramp rates critical for detecting latent intermetallic fatigue or CTE-induced delamination.

Key Features

• High-resolution 7-inch capacitive touchscreen controller with bilingual (English/Chinese) interface and real-time graphical display of temperature vs. time profiles
• Advanced programmable logic: up to 100 independent test programs, each supporting 1000 segments and 999 cycles; maximum segment duration: 99 hours 59 minutes
• Program lock function prevents accidental interruption during unattended operation—essential for extended qualification runs exceeding 1,000 cycles
• SUS304 stainless steel interior and exterior construction with seamless welds and radius-cornered chamber walls to eliminate condensation traps and support ISO 14644-1 Class 8 cleanroom-compatible cleaning protocols
• Dual-sensor redundancy: primary platinum RTD (PT100) for control feedback and secondary thermistor for independent verification and alarm triggering
• Energy-efficient refrigeration system compliant with EU F-Gas Regulation (EC) No 517/2014, utilizing low-GWP HFC-404A and R23 blends; no ozone-depleting substances (ODP = 0)
• Integrated safety suite: over-temperature cut-off, compressor high-pressure shutdown, phase failure detection, emergency stop button with mechanical latch, and door interlock switch

Sample Compatibility & Compliance

The AP-DW-B accommodates standard PCB test carriers (up to 400 mm × 300 mm footprint) and supports simultaneous testing of multiple board variants using adjustable stainless steel shelves (2 included). A centrally located 50 mm diameter cable port (with silicone gasket) enables in-situ electrical monitoring during thermal stress. All thermal profiles are fully traceable and auditable per GLP/GMP requirements: controller firmware logs timestamped temperature readings at user-defined intervals (1 s to 60 min resolution), stores ≥10,000 data points internally, and exports CSV via USB 2.0. The system meets electromagnetic compatibility standards EN 61326-1 and safety requirements per IEC 61010-1. Optional humidity control (not included in base AP-DW-B model) adds compliance with IEC 60068-2-30 damp heat cycling when specified.

Software & Data Management

The embedded controller provides native data logging without external PC dependency. Raw thermal cycle data—including setpoint, actual chamber temperature, ramp rate, dwell time, and alarm status—is stored with ISO 8601 timestamps and exported to USB flash drives in comma-separated values (CSV) format compatible with MATLAB, Python pandas, or JMP statistical analysis environments. For enterprise integration, optional RS485 Modbus RTU or Ethernet TCP/IP communication enables remote supervision via SCADA platforms. Audit trail functionality records all user actions (program edits, start/stop commands, parameter changes) with operator ID and timestamp—supporting FDA 21 CFR Part 11 compliance when paired with electronic signature-enabled host software.

Applications

• Thermal cycling qualification of automotive-grade PCBAs per AEC-Q200 Rev D
• Evaluation of solder joint integrity in lead-free (SAC305, SAC405) assemblies under JEDEC JESD22-A104E
• Reliability screening of flex-rigid hybrid circuits exposed to aerospace thermal vacuum transition profiles
• Validation of conformal coating adhesion and cracking resistance across −40 °C/+85 °C excursions
• Accelerated life testing of embedded passives (MLCCs, resistors) and BGA package interconnects
• Pre-compliance thermal stress testing prior to formal HALT/HASS campaigns

FAQ

What is the standard calibration interval recommended for the AP-DW-B chamber?
Annual calibration against NIST-traceable reference standards is recommended; APKJ provides certified calibration reports with each unit shipment.
Can the AP-DW-B be configured for humidity-controlled thermal cycling?
Yes—models designated AP-DW-BH integrate capacitive humidity sensors and steam humidification systems, enabling combined temperature/humidity profiles per IEC 60068-2-30.
Is the controller firmware upgradeable in the field?
Yes—firmware updates are delivered via USB stick and installed through the maintenance menu without requiring service technician intervention.
What documentation is supplied with the system for regulatory submissions?
Each unit ships with Factory Acceptance Test (FAT) report, IQ/OQ protocol templates, material certificates for SUS304 components, refrigerant safety data sheets (SDS), and CE Declaration of Conformity.
Does APKJ offer extended warranty or preventive maintenance contracts?
Yes—3-year comprehensive warranty and annual PM contracts (including sensor recalibration, refrigerant leak check, and airflow verification) are available globally through authorized service partners.
