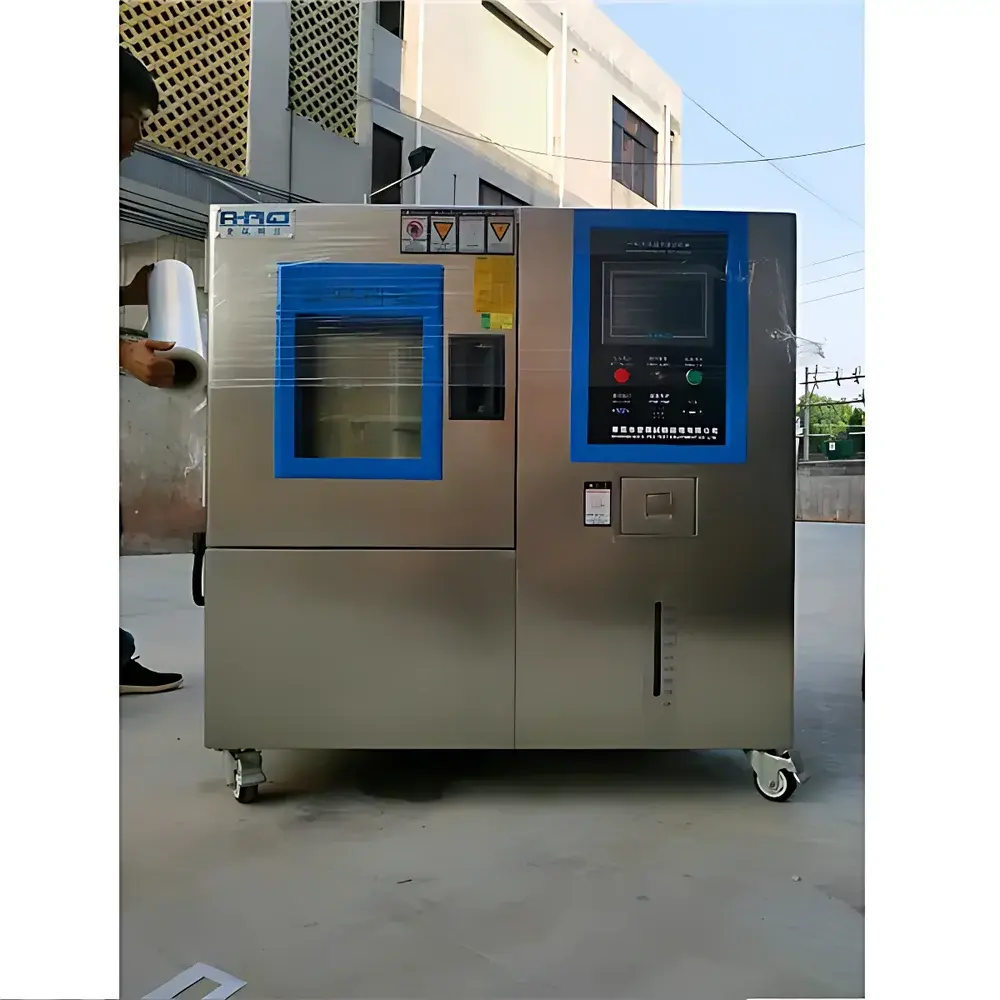

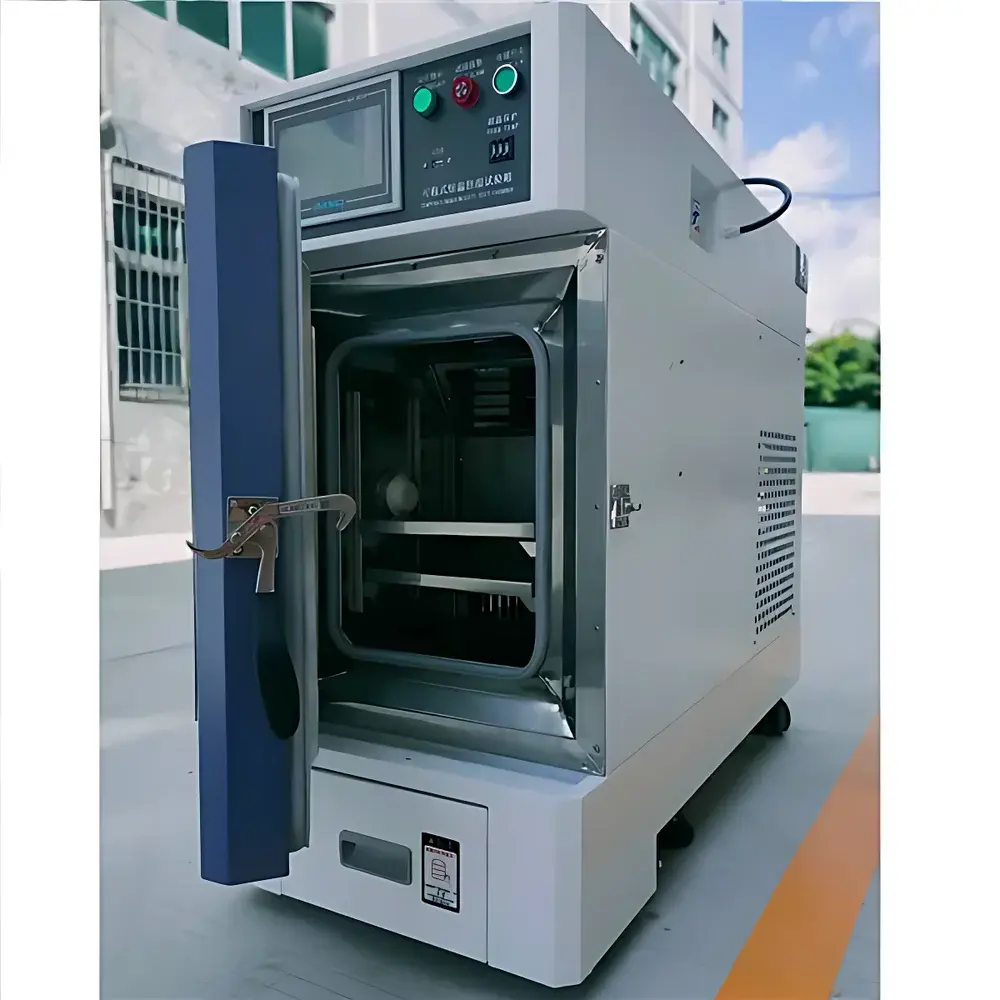

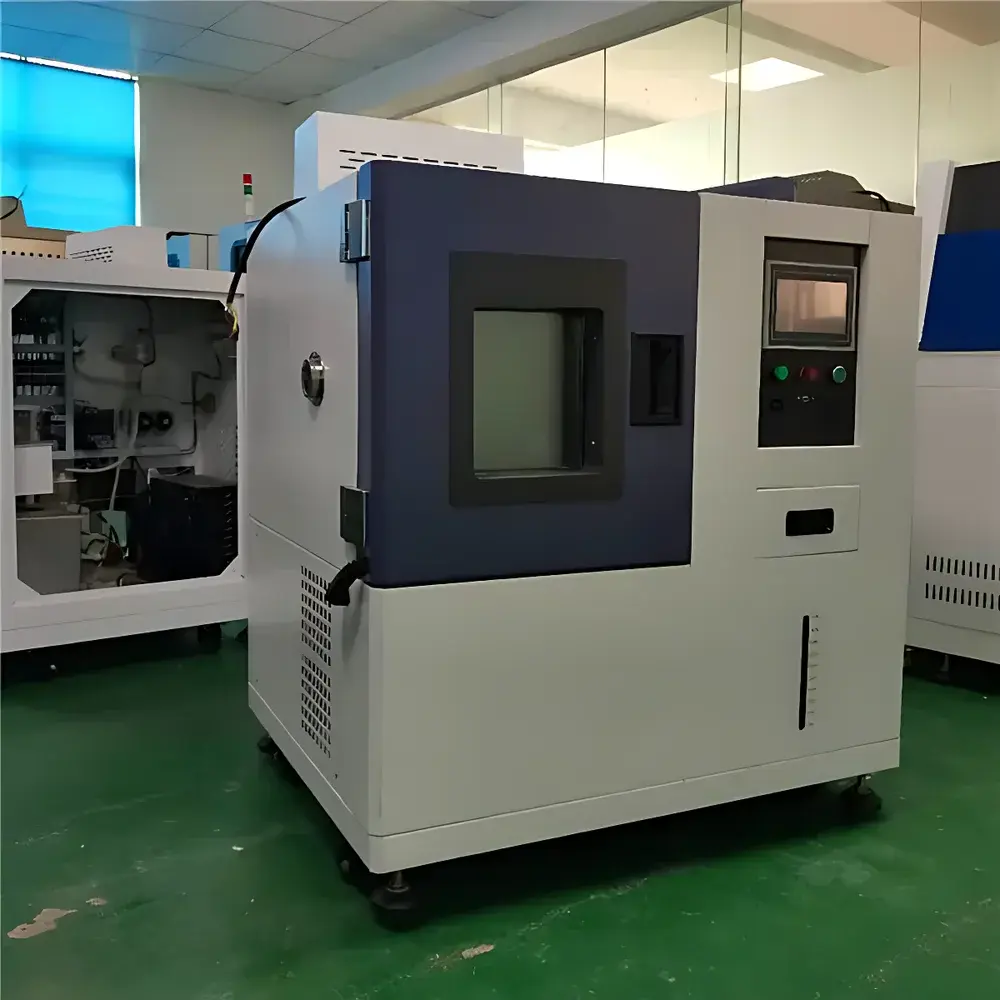

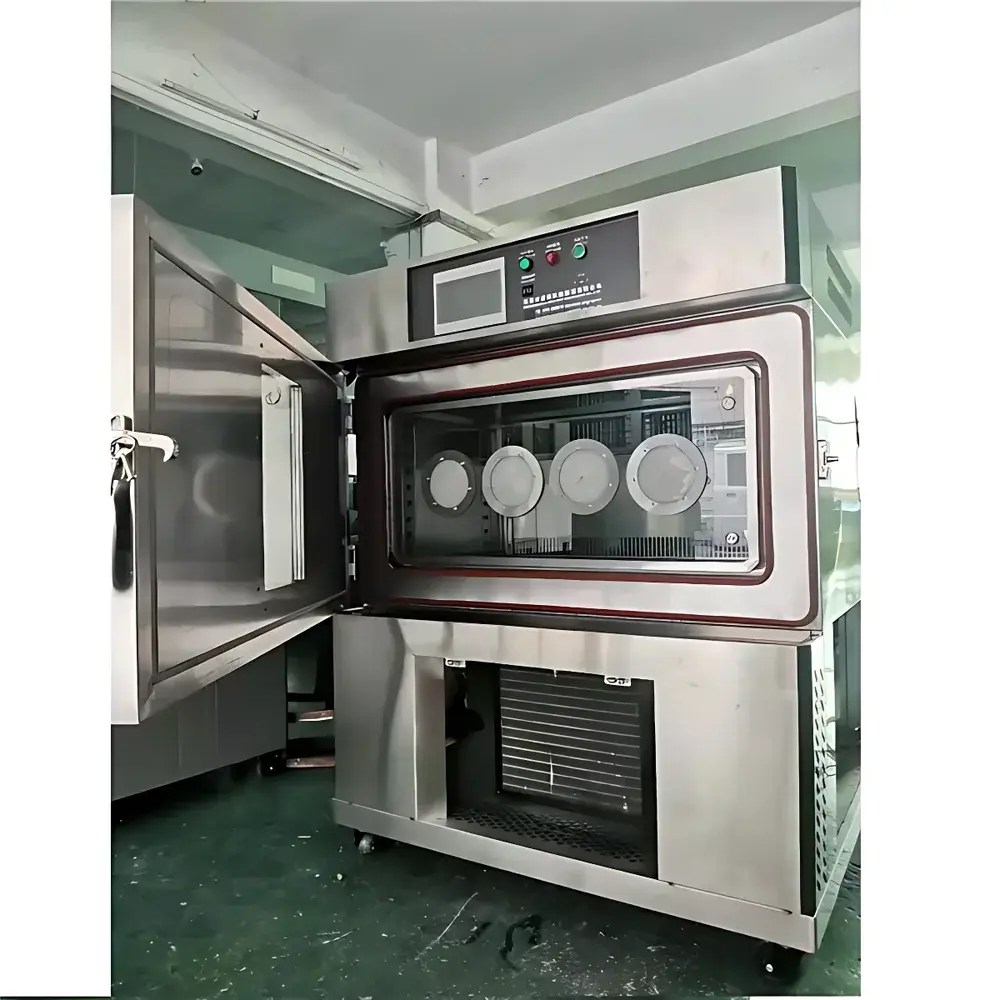

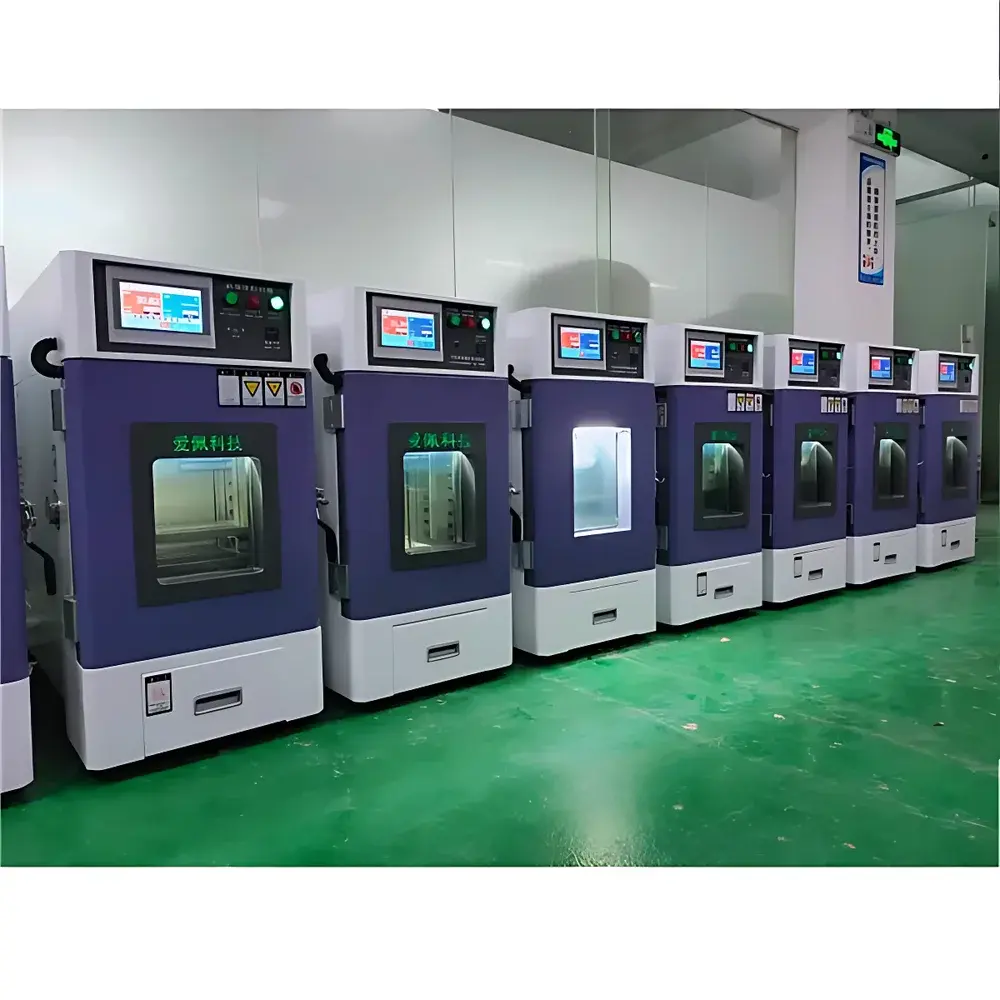

APKJ AP-HX Series Programmable Temperature & Humidity Environmental Test Chamber

Overview

The APKJ AP-HX Series Programmable Temperature & Humidity Environmental Test Chamber is an engineered precision system designed for accelerated environmental stress testing under tightly controlled thermal and hygrothermal conditions. Based on the fundamental principles of convective heat transfer, vapor-phase mass diffusion, and dual-stage refrigeration thermodynamics, the chamber replicates real-world climatic exposure profiles—including steady-state extremes, cyclic transitions, and combined temperature-humidity stressors—required for reliability validation across industrial product lifecycles. Its architecture supports compliance-driven test protocols per IEC 60068-2-1 (cold), IEC 60068-2-2 (dry heat), IEC 60068-2-30 (damp heat, cyclic), ISO 16750-4 (road vehicles), and MIL-STD-810H Method 502.7/507.6. The chamber is widely deployed in R&D labs, quality assurance departments, and third-party certification facilities for validating thermal stability, moisture ingress resistance, material aging behavior, and functional integrity of components subjected to long-term environmental exposure.

Key Features

• Programmable multi-segment test profiles with up to 999 cycles, supporting ramp-soak-hold sequences and complex humidity-temperature cross-coupling logic.
• Dual independent refrigeration circuit design (two-stage cascade system) enabling rapid cooling to −70 °C while maintaining stable humidity control down to 5 % RH at low temperatures.
• High-efficiency heating system featuring custom titanium-sheathed U-type finned heaters, fully isolated from refrigeration and control circuits to prevent thermal interference.
• Microprocessor-controlled humidification using SUS304 stainless steel steam generator with titanium heating elements and mechanical float-level water management—eliminating electronic sensor drift and ensuring long-term repeatability.
• Forced-air circulation via Japanese-made fan motors with extended copper shafts and multi-wing aluminum impellers, delivering uniform airflow distribution verified by ASTM E145-22 Class A temperature uniformity mapping.
• Double-layer high-tensile silicone door gasket and multi-point latching mechanism guarantee leak-tight sealing; integrated anti-sweat heating on observation window prevents condensation during sub-zero operation.
• Standard dual 50 mm test ports (left side and top) with removable brass bushings for external signal/power feedthrough; optional port expansion available per customer specification.
• Comprehensive safety architecture including overheat protection, refrigerant high-pressure cutoff, water overflow detection, dry-run prevention for humidifier, and automatic power-off on door open during active test.

Sample Compatibility & Compliance

The AP-HX accommodates a broad spectrum of physical samples—from small PCB assemblies and lithium-ion battery cells to automotive ECUs, polymer enclosures, optical sensors, and medical device housings—within its configurable internal volumes (60 L to 1000 L). Internal stainless steel shelves are height-adjustable and load-rated to 25 kg per shelf. All materials contacting the test environment meet RoHS Directive 2011/65/EU and REACH Annex XVII restrictions. The chamber’s thermal and humidity performance conforms to ISO/IEC 17025 accredited calibration traceability requirements when operated with certified reference sensors. Optional upgrade paths include data logging compliant with FDA 21 CFR Part 11 (audit trail, electronic signature, user role-based access), GLP/GMP audit-ready configuration, and integration with LIMS via Modbus TCP or RS-485.

Software & Data Management

The embedded TIME880 controller provides intuitive touch-based programming with graphical profile editing, real-time trend display, and on-screen alarm history. Test data—including chamber setpoints, actual temperature/humidity readings, ramp rates, and event timestamps—is logged internally at user-selectable intervals (1 s to 60 min) and exportable via USB flash drive in CSV format. Optional PC-based software (APKJ EnviroLog Pro) enables remote monitoring, automated report generation (PDF/Excel), statistical process control (SPC) charting, and deviation alerting via email/SNMP trap. All firmware updates are delivered via signed binary packages to ensure integrity; configuration backups support full system restore without manual parameter re-entry.

Applications

• Accelerated life testing of lithium-ion batteries under high-temperature/high-humidity storage conditions (per UN 38.3 Section 4.4 and IEC 62133).
• Thermal cycling validation of automotive electronics per ISO 16750-4 and AEC-Q200.
• Plastic and elastomer aging studies per ASTM D3045 and ISO 4892-2 (UV-free thermal oxidation).
• Moisture absorption/desorption characterization of packaging materials and conformal coatings.
• Pre-conditioning of test specimens prior to mechanical, electrical, or chemical analysis (e.g., tensile testing after humidity soak).
• Stability testing of pharmaceutical primary packaging per ICH Q1A(R2) guidelines (long-term/accelerated conditions).
• Qualification of aerospace-grade connectors and avionics housings under combined thermal-hygric stress (MIL-STD-810H Method 507.6).

FAQ

What is the standard temperature and humidity uniformity specification across the working volume?
Per IEC 60068-3-5, the AP-HX achieves ±2 °C temperature uniformity and ±3 % RH uniformity (at 25 °C/60 % RH steady state) when mapped at nine designated points per ASTM E145-22 Class A methodology.
Can the chamber operate continuously at −70 °C with 10 % RH?
Yes—when equipped with the optional low-RH module (5–98 % RH range) and configured with the two-stage cascade refrigeration system, continuous operation at −70 °C/10 % RH is supported for durations exceeding 1,000 hours.
Is the controller compatible with external SCADA or MES systems?
Yes—the TIME880 controller supports Modbus RTU (RS-485) and Modbus TCP/IP protocols; register maps and communication specifications are provided in the technical integration manual.
What maintenance intervals are recommended for optimal long-term performance?
Compressor oil and refrigerant filters should be replaced every 24 months; humidifier tank and steam generator require quarterly descaling with citric acid solution; door gaskets and air filter media should be inspected monthly and replaced annually.
Does APKJ provide IQ/OQ documentation packages for GxP-regulated environments?
Yes—validated installation qualification (IQ) and operational qualification (OQ) protocols, executed by APKJ-certified field engineers, are available as optional deliverables aligned with ASTM E2500 and EU Annex 15 requirements.
