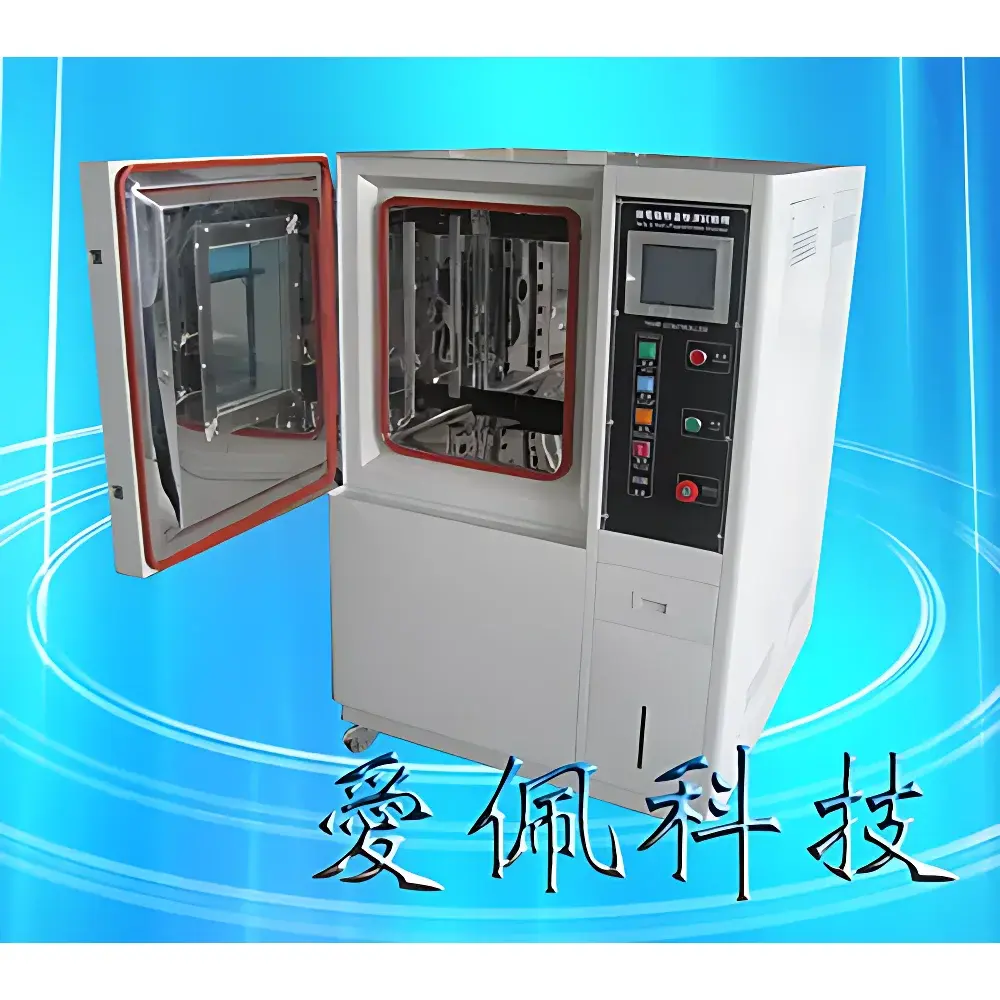

APKJ AP-HX1000 Advanced Thermal Cycling & Humidity Chamber

Overview

The APKJ AP-HX1000 Advanced Thermal Cycling & Humidity Chamber is an engineered environmental test system designed for precise, repeatable simulation of dynamic temperature and humidity profiles across industrial, automotive, electronics, and materials science applications. It operates on a dual-stage cascade refrigeration principle—employing R404A and R23 refrigerants in separate high- and low-temperature circuits—to achieve stable sub-zero cooling down to 0°C while maintaining rapid thermal response and long-term operational reliability. The chamber’s structural integrity is reinforced by fully independent heating and cooling subsystems, eliminating cross-interference during transition phases. Its internal chamber (500 × 600 × 500 mm) accommodates standard test specimens, PCB assemblies, polymer samples, or packaged consumer goods under controlled stress conditions aligned with IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-30, and GB/T 2423.1–2423.4 test standards.

Key Features

• Dual-stage cascade refrigeration architecture with hermetically sealed French Tecumseh compressors ensures consistent low-temperature performance and extended compressor life.
• Full-system refrigerant piping subjected to 48-hour pressurized air leak testing prior to shipment—meeting ISO 5171 and ASME B31.5 verification benchmarks.
• Optional 7-inch high-resolution touchscreen controller supports bilingual (English/Chinese) operation, real-time temperature/humidity curve visualization, and password-protected screen locking to prevent unintended parameter changes.
• Programmable capacity of up to 100 distinct test programs, each comprising 1000 segments and supporting up to 999 cycles—suitable for complex HALT/HASS protocols and accelerated aging validation.
• Independent heating and cooling circuits eliminate thermal lag and improve control fidelity during rapid ramp transitions (1.0–3.0°C/min heating; 0.7–1.0°C/min cooling).
• Internally mounted spiral copper refrigerant tubing, imported filter-driers, refrigerant sight glasses, service valves, oil separators, and solenoid valves ensure serviceability and long-term calibration stability.

Sample Compatibility & Compliance

The AP-HX1000 accommodates a broad range of sample types—including electronic components, lithium-ion battery cells, adhesive formulations, coated metal substrates, and medical device packaging—without compromising chamber uniformity or sensor accuracy. Its ±2°C temperature uniformity (unloaded) and ±0.5°C temperature fluctuation (unloaded), combined with ±2/−3% RH humidity deviation, satisfy requirements for ASTM D4332, ISO 4892-2, and IPC-TM-650 2.6.7 environmental conditioning. All electrical and refrigeration components comply with CE marking directives (2014/30/EU EMC, 2014/35/EU LVD), and the system design supports integration into GLP/GMP environments through optional data logging with time-stamped, user-identifiable event records.

Software & Data Management

The optional programmable controller logs all setpoints, actual chamber values, alarm events, and cycle completion timestamps in non-volatile memory. Export functionality supports CSV-formatted reports compatible with LabVIEW, MATLAB, and enterprise QMS platforms. While the base unit does not include FDA 21 CFR Part 11-compliant electronic signatures, audit trail configuration (user login history, parameter change logs, and firmware version tracking) can be enabled upon request for regulated pharmaceutical or medical device validation workflows. Remote monitoring via Ethernet or RS485 is available as an add-on module.

Applications

• Accelerated life testing of automotive ECUs under combined thermal-hygric stress per ISO 16750-4.
• Moisture absorption/desorption profiling of polymeric encapsulants used in semiconductor packaging.
• Pre-conditioning of lithium-ion pouch cells prior to electrochemical cycling per UN 38.3 Section 38.3.4.
• Stability assessment of sterile barrier systems (e.g., Tyvek®-based pouches) under cyclic humidity exposure.
• Validation of solder paste shelf-life under elevated temperature and humidity per IPC-J-STD-005.
• Corrosion resistance evaluation of zinc-plated fasteners per ASTM B117 (with optional salt spray integration).

FAQ

What is the maximum allowable sample load volume without compromising temperature/humidity uniformity?

For optimal performance, total sample volume should not exceed 1/3 of the internal chamber volume (≤60 L). Exceeding this threshold may affect airflow distribution and increase deviation beyond ±2°C/±3% RH specifications.
Does the system support automated data export to LIMS or MES platforms?

Yes—via optional RS485 or Ethernet communication modules with Modbus RTU/TCP protocol support. Custom API integration is available under NDA for enterprise-level deployment.
Is third-party calibration certification included with delivery?

Factory calibration certificates (traceable to NIM, China) are provided. UKAS or A2LA-accredited field calibration services can be arranged separately.
Can the chamber operate continuously at 150°C and 98% RH simultaneously?

No—maximum simultaneous operation is limited to 85°C at 98% RH due to condensation management constraints. Full-range extremes (150°C or 98% RH) must be operated independently.
What maintenance intervals are recommended for refrigeration system integrity?

Compressor oil analysis and refrigerant purity testing are advised every 24 months; filter-drier replacement every 36 months under continuous operation. Full system leak check recommended annually.
