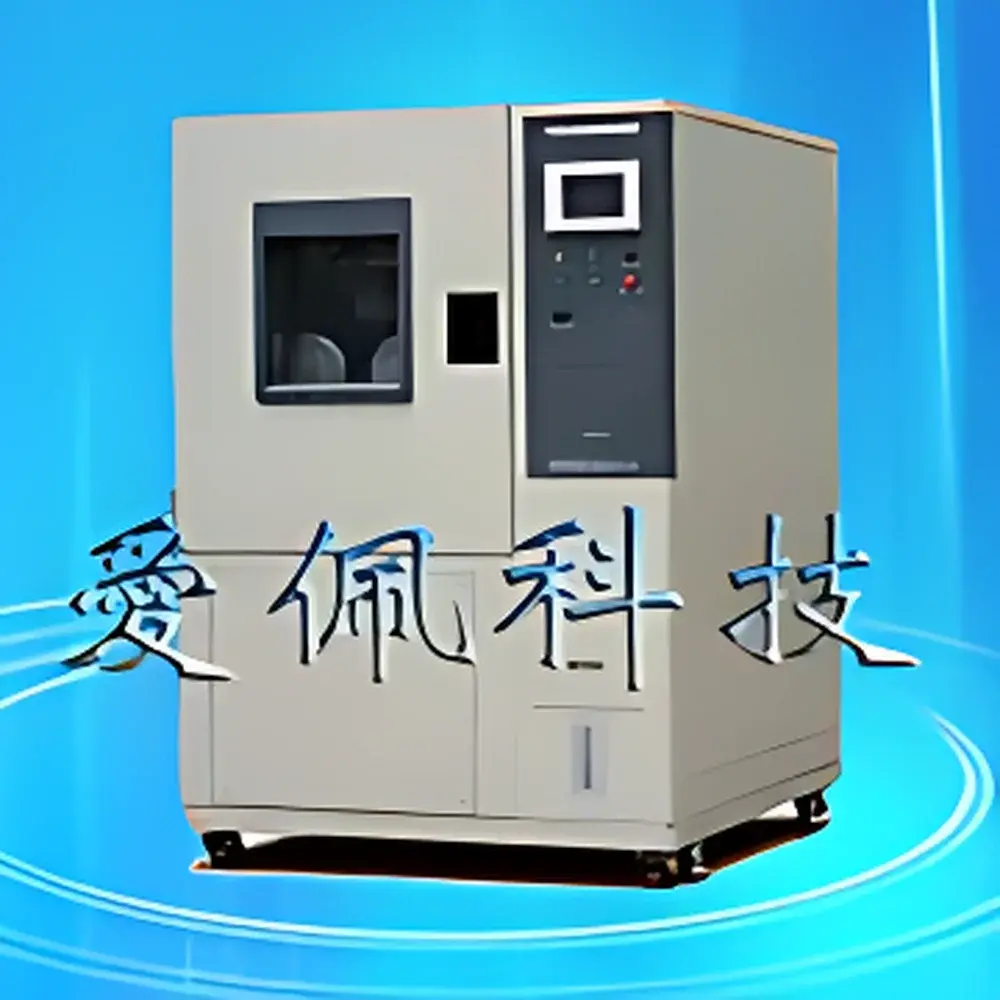

Apkji AP-GD-11 Advanced Programmable Thermal Cycling & Humidity Environmental Test Chamber

Overview

The Apkji AP-GD-11 is a fully programmable environmental test chamber engineered for precise, repeatable thermal cycling and combined temperature–humidity stress testing. It operates on the principle of forced-air convection with dual independent refrigeration and heating circuits, enabling rapid, stable transitions across wide climatic profiles—from deep cryogenic conditions (down to −120 °C with optional cascade refrigeration) to high-temperature exposure (+150 °C), while maintaining humidity control from 5% to 98% RH. Designed in accordance with IEC 60068-2-1 (cold), IEC 60068-2-2 (dry heat), IEC 60068-2-14 (thermal shock), and ISO 16750-4 (road vehicles—environmental conditions), the AP-GD-11 supports qualification testing under accelerated aging, HALT/HASS pre-screening, and long-term reliability validation protocols. Its modular architecture ensures compliance with GLP and GMP documentation requirements when integrated with audit-trail-enabled software packages.

Key Features

• Robust stainless-steel construction: Interior chamber fabricated from mirror-finished SUS304 stainless steel; exterior available in either corrosion-resistant SUS304 or electrostatically coated A3 steel for enhanced durability.
• High-efficiency refrigeration system: Dual-stage cascade cooling (optional) using environmentally compliant refrigerants (R23/R404A/R507); equipped with Tecumseh (France) compressors and oil-separation technology to prevent lubricant migration into capillary tubes.
• Intelligent control interface: TEMI880 color LCD touchscreen controller supporting up to 120 programmable segments, multi-step ramp/soak profiles, slope (SLOP) and quick (QUICK) mode transitions, real-time data logging, and password-protected parameter locking.
• Optimized observation and access: Large double-layer tempered glass viewport with anti-fogging electric heater and high-luminance PL fluorescent lighting; ergonomic flat-handle door with dual-gasket sealing for minimal thermal leakage.
• Mobility and installation readiness: Integrated heavy-duty casters with locking mechanism and adjustable leveling feet; standard delivery includes ground-floor placement, on-site commissioning, and operational training by certified field engineers.

Sample Compatibility & Compliance

The AP-GD-11 accommodates diverse sample geometries across industries including automotive electronics (ISO 16750-4), aerospace components (MIL-STD-810H), medical devices (IEC 60601-1), consumer electronics (JEDEC JESD22-A104), and polymer-based materials (ASTM D618, ISO 291). Chamber volumes range from 80 L to 1000 L (AP-HX series variants), with internal dimensions scalable to meet IPC-A-610, IPC-J-STD-001, and UL 746C specimen mounting requirements. All models conform to CE marking directives (2014/30/EU EMC, 2014/35/EU LVD), and support traceable calibration per ISO/IEC 17025–accredited laboratories. Optional accessories include RS-232/485, Ethernet, and USB data export interfaces compatible with FDA 21 CFR Part 11–compliant electronic record systems.

Software & Data Management

The TEMI880 controller provides native CSV export capability, time-stamped event logging (alarm triggers, setpoint changes, power interruptions), and configurable alarm thresholds with relay outputs for external monitoring systems. When paired with Apkji’s optional PC-based data acquisition suite, users gain access to real-time graphing, statistical process control (SPC) charts, deviation trend analysis, and automated report generation (PDF/Excel). Audit trail functionality records operator ID, timestamp, action type, and original vs. modified values—fully satisfying GLP/GMP traceability mandates and facilitating regulatory inspections.

Applications

• Electronics: Solder joint fatigue evaluation, PCB delamination screening, IC package moisture sensitivity level (MSL) testing per JEDEC J-STD-020.
• Automotive: ECUs, sensors, and infotainment modules subjected to thermal cycling per SAE J2223 and GMW14872.
• Polymers & Composites: Dimensional stability assessment, coefficient of thermal expansion (CTE) characterization, and hygroscopic swelling behavior under cyclic humidity exposure.
• Pharmaceutical Packaging: Accelerated stability studies per ICH Q1A(R2), evaluating container closure integrity under temperature–humidity stress.
• Aerospace: Environmental qualification of avionics enclosures per RTCA DO-160 Section 4 (temperature) and Section 5 (humidity).

FAQ

What temperature and humidity ranges are standard versus optional?

Standard operation covers −40 °C to +150 °C and 30–98% RH. Optional configurations extend the low-temperature limit to −120 °C (via cascade refrigeration) and the humidity lower bound to 5% RH.

Is the chamber suitable for thermal shock testing?

While the AP-GD-11 is optimized for programmable thermal/humidity cycling, it is not configured as a two- or three-zone thermal shock chamber. For true thermal shock applications (e.g., ASTM D5229, MIL-STD-883 Method 1010), Apkji recommends the dedicated AP-TS series with independent hot/cold zones and transfer mechanisms.

Does the system support remote monitoring and data export?

Yes—the TEMI880 controller supports RS-485 Modbus RTU communication, and optional Ethernet/WiFi modules enable integration with SCADA platforms, LIMS, or cloud-based dashboards. Raw data logs are exportable in CSV format with millisecond-level timestamps.

What maintenance intervals are recommended?

Scheduled preventive maintenance is advised every six months, including refrigerant pressure verification, condenser coil cleaning, sensor calibration verification, and gasket integrity inspection. Full service history tracking is supported via the controller’s built-in maintenance log.

Can the chamber be validated for ISO/IEC 17025-compliant calibration?

Yes—Apkji provides IQ/OQ documentation templates and collaborates with accredited third-party labs to perform temperature/humidity uniformity mapping, recovery time validation, and uncertainty budgeting per ISO/IEC 17025 requirements.
