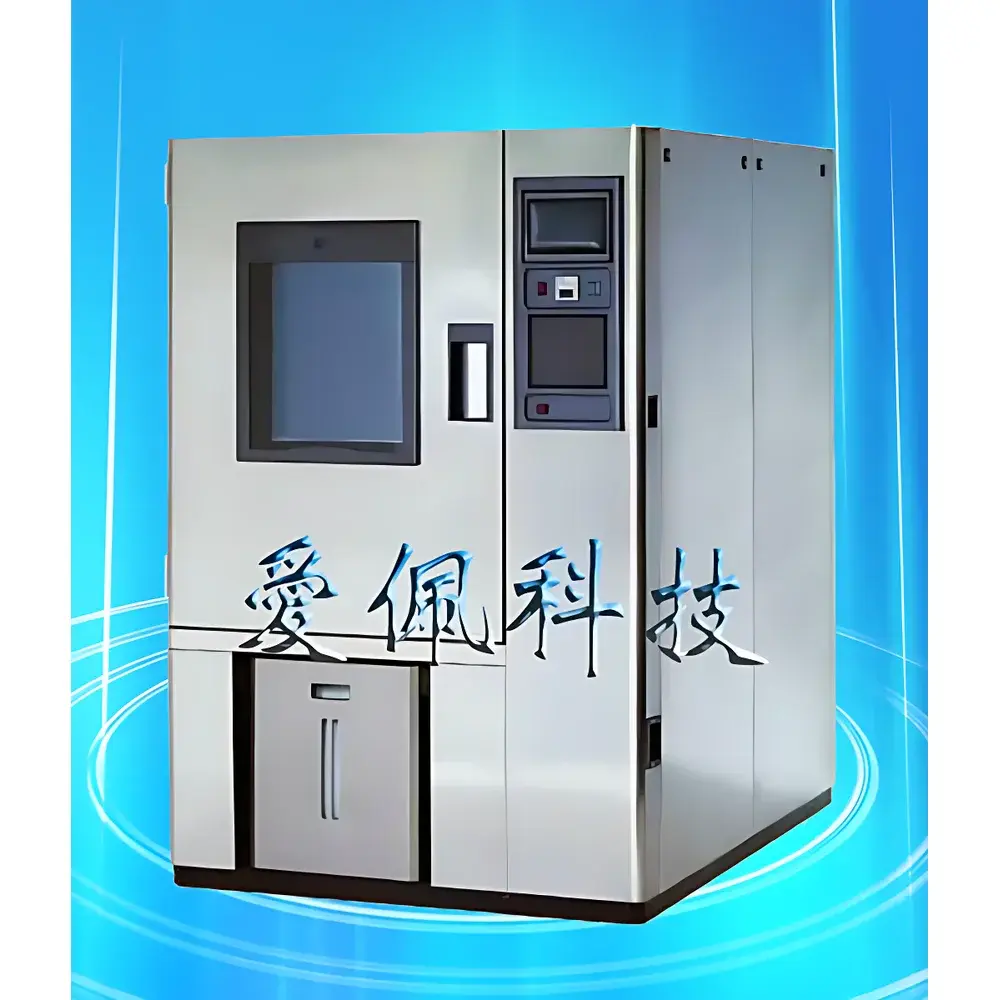

Apkji AP-GD-50 High-Low Temperature Alternating Environmental Test Chamber

Overview

The Apkji AP-GD-50 High-Low Temperature Alternating Environmental Test Chamber is an engineered solution for controlled thermal stress testing of small-to-medium-sized components and materials under precisely defined temperature cycling conditions. Designed in accordance with international environmental test chamber standards—including GB/T 10592–1989 and MIL-STD-810D—it employs a dual-stage refrigeration architecture to achieve stable operation across extended low-temperature ranges down to –70°C. Its compact internal volume (50 × 40 × 40 cm) enables efficient thermal response while minimizing energy consumption—making it especially suitable for laboratories, QC departments, and R&D facilities where space and operational cost are critical constraints. The chamber operates on the principle of forced-air convection combined with independent heating and cooling circuits, ensuring rapid transition between setpoints and high repeatability in thermal profile execution.

Key Features

• Compact footprint with optimized internal geometry for uniform airflow distribution and minimal thermal gradient (±2°C uniformity across working volume)
• Dual-stage refrigeration system using original Tecumseh hermetic compressors and environmentally compliant refrigerants (R404A/R23 or R507/R508B), certified for use beyond 2030 per U.S. EPA guidelines
• High-precision PT100 platinum resistance sensors calibrated to ±0.1°C resolution, integrated into a closed-loop feedback control architecture
• Independent heating and cooling subsystems—enhancing system longevity, reducing cross-interference, and improving fault isolation during maintenance
• Stainless steel multi-blade impeller driven by a long-shaft motor, engineered for continuous operation across –70°C to +150°C ambient extremes
• LAN-enabled controller supporting remote program design, real-time data logging, USB export, and machine-level remote start/stop functionality
• Comprehensive safety interlocks including over-temperature cutoff, compressor high-pressure shutdown, and automatic fault diagnostics with on-screen remediation guidance

Sample Compatibility & Compliance

The AP-GD-50 accommodates electronic subassemblies, polymer specimens, PCBs, automotive connectors, medical device components, and other samples up to 30 kg loading capacity. Its thermal performance meets the physical validation requirements of ISO/IEC 17025-accredited laboratories when operated within specified calibration intervals. Regulatory alignment includes GB/T 2423.1 (cold storage tests), GB/T 2423.4 (temperature cycling), and MIL-STD-810D Methods 502.2 (low-temperature operation) and 507.2 (temperature shock). While not inherently 21 CFR Part 11 compliant, the controller’s audit trail-capable data logging function supports GLP/GMP documentation workflows when paired with validated third-party software platforms.

Software & Data Management

The embedded controller features a 7-inch TFT LCD interface with intuitive touch navigation and programmable multi-step profiles (up to 99 segments per cycle). All test parameters—including ramp rates, dwell times, and setpoint transitions—are fully configurable and stored with timestamped metadata. Via optional LAN integration, users can deploy centralized monitoring using standard SCADA protocols (Modbus TCP). Raw temperature logs export in CSV format via USB; historical records retain full traceability for QA review. Firmware updates are delivered through secure authenticated channels, maintaining version control integrity throughout the instrument lifecycle.

Applications

This chamber serves as a core tool in reliability engineering for pre-production validation and accelerated life testing. Typical use cases include: thermal cycling qualification of solder joints per IPC-J-STD-020; cold-start verification of automotive ECUs; shelf-life stability assessment of pharmaceutical packaging materials; coefficient of thermal expansion (CTE) characterization of composite substrates; and accelerated aging of elastomeric seals used in aerospace applications. Its rapid thermal transition capability (e.g., 20°C → –40°C in ≤35 minutes) enables efficient execution of JEDEC JESD22-A104 and IEC 60068-2-14 test protocols.

FAQ

What is the standard warranty coverage for the AP-GD-50?

One year parts-and-labor warranty from date of shipment, excluding damage caused by improper installation, power anomalies, or unauthorized modification.

Can the chamber be calibrated to NIST-traceable standards?

Yes—Apkji provides optional factory calibration certificates traceable to national metrology institutes; field recalibration services are available upon request.

Is remote monitoring supported without additional hardware?

LAN connectivity is built-in; no external gateway or adapter is required for network-based supervision or data retrieval.

Does the system support custom thermal profiles beyond preset standards?

Yes—the controller allows user-defined multi-segment cycles with variable ramp rates, dwell durations, and conditional branching logic.

How often is preventive maintenance recommended?

Biannual on-site maintenance is included in the standard service package; filter replacement and refrigerant pressure verification are performed during each visit.
