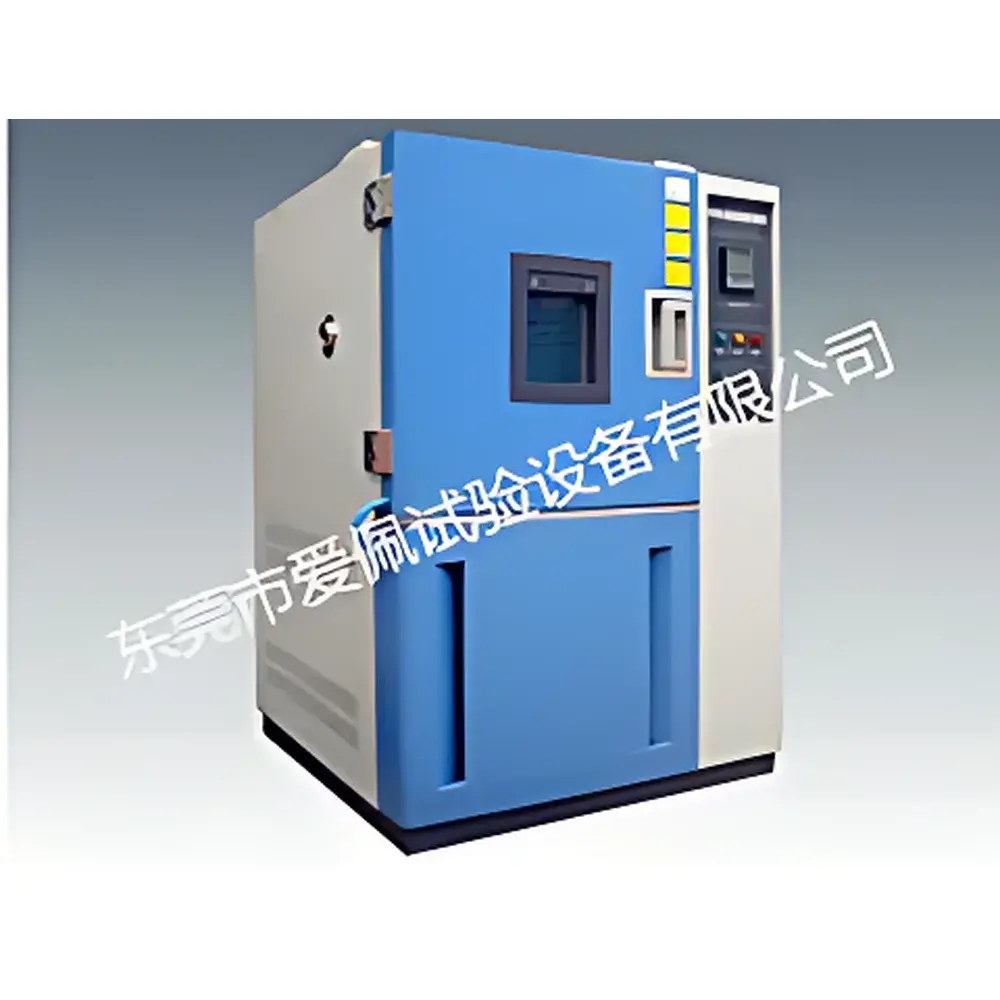

Apkji AP-GD1-80 High-Low Temperature Alternating Environmental Test Chamber

Overview

The Apkji AP-GD1-80 High-Low Temperature Alternating Environmental Test Chamber is an industrial-grade thermal stress simulation system engineered for precision-controlled cyclic exposure of materials and electronic components to extreme temperature transitions. Based on forced-air convection and dual-stage vapor-compression refrigeration, the chamber delivers reproducible thermal profiles across a wide operational envelope—from –70 °C to +150 °C—with high spatial uniformity (±2 °C) and temporal stability (±0.5 °C). Its architecture follows standardized environmental test chamber design principles defined in IEC 60068-2-1 (Cold), IEC 60068-2-2 (Dry Heat), and IEC 60068-2-14 (Change of Temperature), making it suitable for qualification testing under GLP, ISO/IEC 17025, and internal QC protocols requiring traceable thermal cycling performance.

Key Features

• Dual-stage refrigeration system utilizing a hermetically sealed compressor (original Tecumseh-design platform) with environmentally compliant refrigerant blend (R404A for high-stage, R23 for low-stage), certified for use through 2030 per U.S. EPA SNAP program guidelines.
• High-efficiency air circulation architecture featuring a long-shaft stainless-steel motor and multi-wing impeller, enabling rapid thermal recovery (<60 seconds post-door opening) and minimizing vertical/horizontal gradients across the working volume (50 × 40 × 40 cm).
• PT100 Class A platinum resistance thermometer integrated into the chamber core and wall-mounted reference points, delivering real-time temperature feedback with ±0.1 °C resolution and NIST-traceable calibration compatibility.
• Modular control system with Ethernet (LAN) interface supporting remote program upload/download, live data streaming, audit trail logging, and integration into centralized laboratory management platforms—fully compliant with FDA 21 CFR Part 11 requirements for electronic records and signatures when configured with user authentication and event logging.
• Redundant safety architecture including over-temperature cut-off, compressor high-pressure shutdown, phase failure detection, and door interlock circuitry—all logged and displayed via the controller’s LCD interface with actionable fault codes.

Sample Compatibility & Compliance

The AP-GD1-80 accommodates samples up to 15 kg in mass and dimensions ≤35 × 30 × 30 cm, supporting standard test fixtures, PCB carriers, battery modules, polymer specimens, and sealed electronic enclosures. It meets mandatory test condition specifications outlined in GB/T 2423.1–2021 (Cold), GB/T 2423.2–2021 (Dry Heat), GB/T 2423.4–2022 (Temperature Cycling), and MIL-STD-810H Method 502.7 (Low Temperature) and Method 507.7 (Temperature Shock). Optional humidity control integration (not included in base model) enables extended compliance with IEC 60068-2-30 (Damp Heat, Cycle) upon retrofit. All structural insulation uses non-halogenated polyurethane foam (ODP = 0, GWP < 10), satisfying RoHS Directive 2011/65/EU Annex II material restrictions.

Software & Data Management

The embedded programmable controller supports up to 100 user-defined test profiles, each with unlimited ramp-soak cycles, rate-limited transitions (0.5–10 °C/min), and conditional branching (e.g., trigger humidity step upon reaching target temperature). Data logging occurs at configurable intervals (1 s to 60 min), storing time-stamped temperature readings, setpoints, alarm events, and system status flags in CSV format via USB or network transfer. Audit trails include operator ID, timestamp, parameter changes, and firmware version—enabling full traceability for ISO 9001:2015 clause 8.5.1 and IATF 16949:2016 clause 8.5.1.2 compliance. Optional software add-ons provide automated report generation (PDF/Excel), SPC charting (X̄-R, Cp/Cpk), and cloud-based fleet monitoring for multi-chamber laboratories.

Applications

This chamber serves as a primary tool for accelerated life testing (ALT), thermal shock validation, solder joint reliability assessment (per IPC-9701), battery thermal runaway screening (UN 38.3 Section 5.1), automotive ECU cold-start verification (SAE J2380), and polymer crystallinity evaluation under thermal cycling. It is routinely deployed in R&D labs for component-level qualification (JEDEC JESD22-A104), manufacturing process validation (PPAP Stage 3), and incoming inspection of raw materials (e.g., elastomers, adhesives, conformal coatings). Universities utilize the system for graduate-level thermomechanical fatigue studies, while contract testing labs apply it for third-party certification against UL 60950-1, EN 60068-2-14, and AEC-Q200 stress test requirements.

FAQ

What is the standard warranty coverage for the AP-GD1-80?
Apkji provides a 12-month parts-and-labor warranty from shipment date, excluding damage caused by improper installation, voltage instability, unauthorized modification, or failure to perform scheduled maintenance.
Can the chamber be calibrated to ISO/IEC 17025 standards?
Yes—the system supports third-party calibration using accredited providers; Apkji supplies as-found/as-left calibration certificates and uncertainty budgets aligned with ILAC MRA requirements.
Is remote diagnostics supported?
The LAN-enabled controller allows secure remote access via VPN for firmware updates, log retrieval, and real-time parameter monitoring—subject to customer network security policies.
Does the unit comply with EU ErP Directive 2009/125/EC energy labeling requirements?
As a laboratory-scale test chamber not intended for consumer use, it falls outside ErP scope; however, its refrigeration efficiency (COP ≥ 2.1 at –40 °C) exceeds Tier 2 industrial equipment benchmarks per EN 14800.
Are spare parts and service manuals available internationally?
Full technical documentation, exploded diagrams, and genuine spare parts—including compressors, PT100 sensors, and control boards—are stocked in Apkji’s regional hubs (Shenzhen, Singapore, Rotterdam) with lead times ≤10 business days.
