APL MD20H KingKong High-Throughput Microwave Digestion System for Gelatin Analysis

Overview

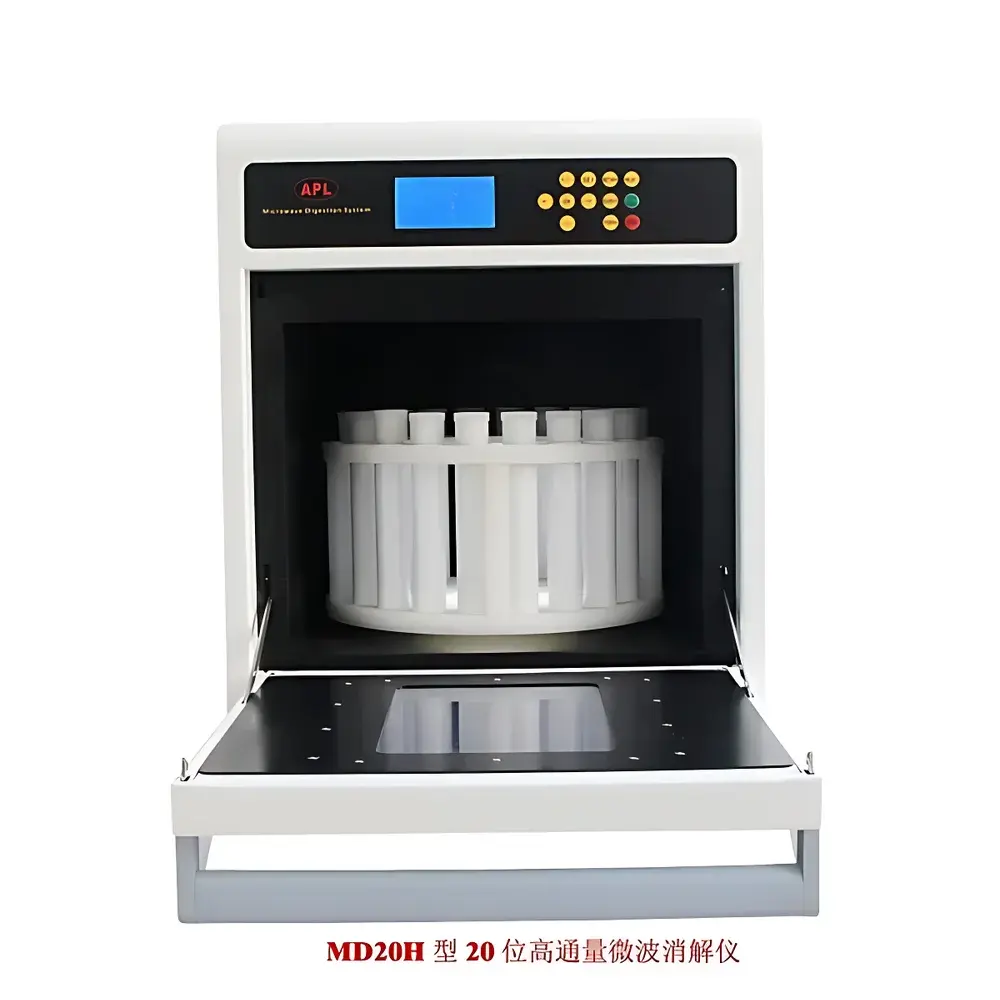

The APL MD20H KingKong is an industrial-grade, high-throughput microwave digestion system specifically engineered for the rigorous sample preparation requirements of gelatin and pharmaceutical excipient analysis. Designed in accordance with pharmacopeial protocols—including the Chinese Pharmacopoeia (ChP) 2010/2020 and USP —this system employs controlled microwave energy to achieve complete, reproducible acid digestion of challenging organic matrices such as collagen-derived gelatin, empty hard capsules, and softgel shells. Its core architecture implements Couette-mode cavity resonance with dual magnetron excitation, enabling uniform electromagnetic field distribution across all 20 positions. Unlike conventional pulsed-output systems, the MD20H delivers non-pulsed, continuously variable microwave power with high-frequency closed-loop feedback control—ensuring precise thermal ramping, pressure stabilization, and reaction endpoint fidelity essential for trace heavy metal quantification (e.g., Cr, Pb, Cd, As) by ICP-MS, GF-AAS, or HG-AFS.

Key Features

• Industrial-strength 66 L stainless steel resonant cavity, reinforced with thickened special-grade alloy and internally coated with five layers of PFA (perfluoroalkoxy alkane) for long-term resistance to concentrated HNO₃, HF, and aqua regia
• Dual magnetron configuration with offset harmonic alignment—optimized to minimize standing wave interference and maximize inter-sample temperature uniformity (±1.5 °C at 200 °C)
• Full-batch real-time monitoring: infrared optical pyrometry for non-contact temperature measurement of all 20 vessels + individual pressure transducers integrated into each rotor port
• Non-pulsed microwave delivery (0–1600 W range) with dynamic power modulation based on real-time thermal feedback—enabling accurate replication of multi-step ChP-compliant digestion programs
• Integrated 7-inch capacitive touchscreen interface with preloaded, validated methods for gelatin, capsule shells, and biological tissues; supports user-defined method storage with timestamped audit trails
• Compliance-ready architecture: hardware-level data logging (temperature, pressure, power, time), exportable CSV reports, and optional 21 CFR Part 11–compliant software add-on for GLP/GMP environments

Sample Compatibility & Compliance

The MD20H is validated for digestion of ≥0.5 g gelatin samples in ≥100 mL high-pressure PTFE-TFM or quartz-lined vessels rated to ≥10 MPa (1450 psi) burst pressure—directly addressing the ChP requirement for safe, non-venting decomposition of nitrogen-rich collagen matrices. It accommodates both standard 20-position rotors and custom-configured rotors for hybrid workflows (e.g., simultaneous digestion + extraction). All digestion protocols align with ISO 17025 method validation principles and support compliance with ICH Q5C (biological source materials), FDA Guidance for Industry on Elemental Impurities (Q3D), and EU Pharmacopoeia 2.4.20. The system’s pressure/temperature redundancy design meets ASTM D5685-21 criteria for microwave-assisted digestion safety certification.

Software & Data Management

The embedded operating system records all process parameters at 1 Hz resolution—including vessel-specific temperature curves, cumulative energy input (kJ), and pressure deviation metrics. Data are stored locally with automatic backup to USB or network drive. Export formats include .csv (for LIMS integration), .pdf method reports, and .xml metadata bundles compatible with Thermo Fisher, Agilent, and PerkinElmer instrument control suites. Optional APL Connect™ software provides remote monitoring via secure HTTPS, role-based access control, electronic signature capability, and automated report generation aligned with ALCOA+ (Attributable, Legible, Contemporaneous, Original, Accurate) data integrity standards.

Applications

• Routine QC testing of edible and pharmaceutical-grade gelatin for Cr, Pb, Cd, As, Hg, and Ni per ChP 2020 Section 4.2.1 and USP /
• High-throughput digestion of capsule shells (HPMC, gelatin, pullulan) prior to ICP-OES quantification
• Method development for EPA Method 3052–based trace metal analysis in biopolymer-based drug delivery systems
• Controlled microwave-assisted extraction (MAE) of residual catalysts from cross-linked hydrogels
• Organic synthesis under sealed-vessel conditions (e.g., Suzuki coupling in DMF, Heck reactions) requiring precise thermal ramping and inert atmosphere maintenance

FAQ

Is the MD20H compliant with Chinese Pharmacopoeia 2020 requirements for gelatin digestion?
Yes—the system is validated for the specified 0.5 g sample mass, 100 mL vessel volume, and two-stage temperature program (120 °C → 150 °C) outlined in ChP 2020 General Chapter 0401.
Can the MD20H be used for applications beyond gelatin analysis?
Absolutely—it supports a full spectrum of microwave-assisted sample prep workflows including EPA 3051A/3052 soil digestion, ASTM D7359 polymer ashing, and AOAC 999.10 food matrix digestion.
Does the system support audit trail and electronic signature functionality?
Standard firmware includes time-stamped parameter logging; APL Connect™ software (optional) adds 21 CFR Part 11 compliance, including user authentication, electronic signatures, and immutable record retention.
What safety certifications does the MD20H hold?
It carries CE marking per EN 61000-6-4 (EMC) and EN 61000-6-3 (immunity), plus IEC 61010-1:2010 third-party certification for laboratory equipment safety.
Are rotor and vessel components supplied with traceable calibration certificates?
All pressure sensors and IR temperature modules are factory-calibrated with NIST-traceable documentation; vessel sets include individual lot-specific chemical resistance verification reports.
