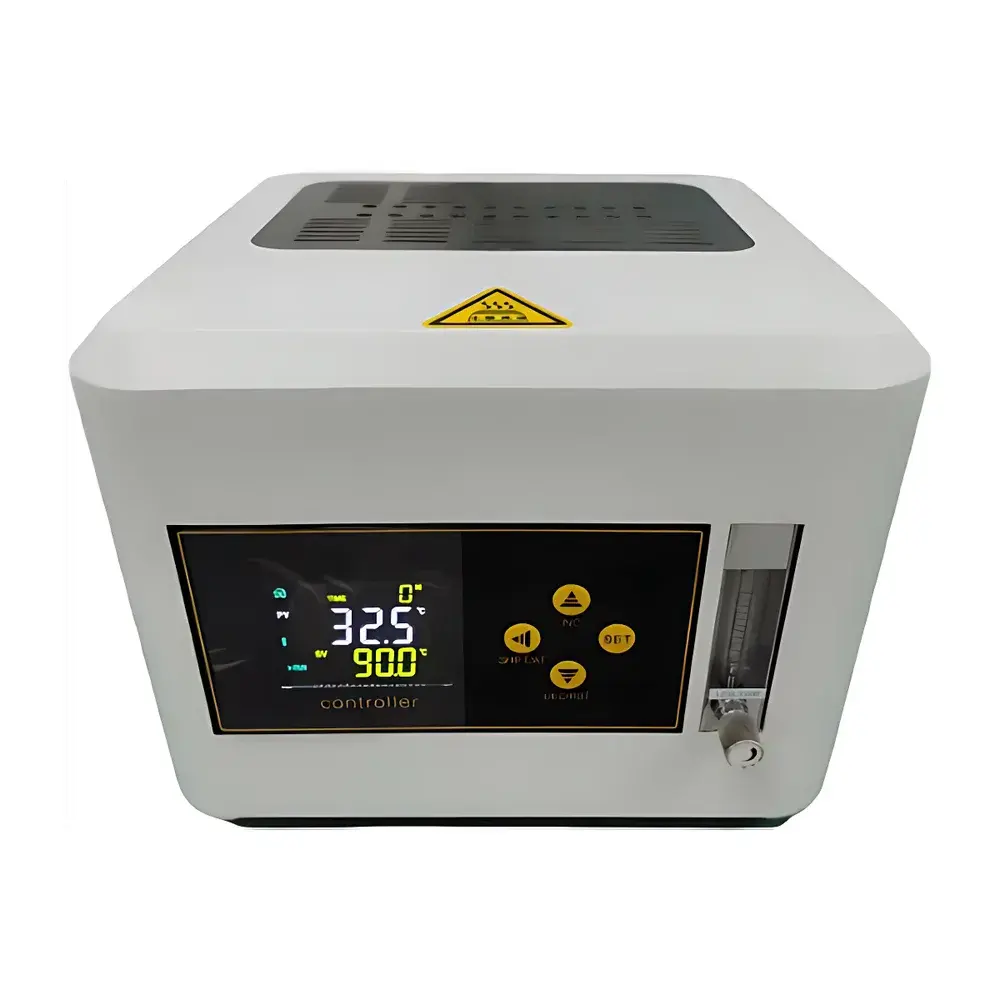

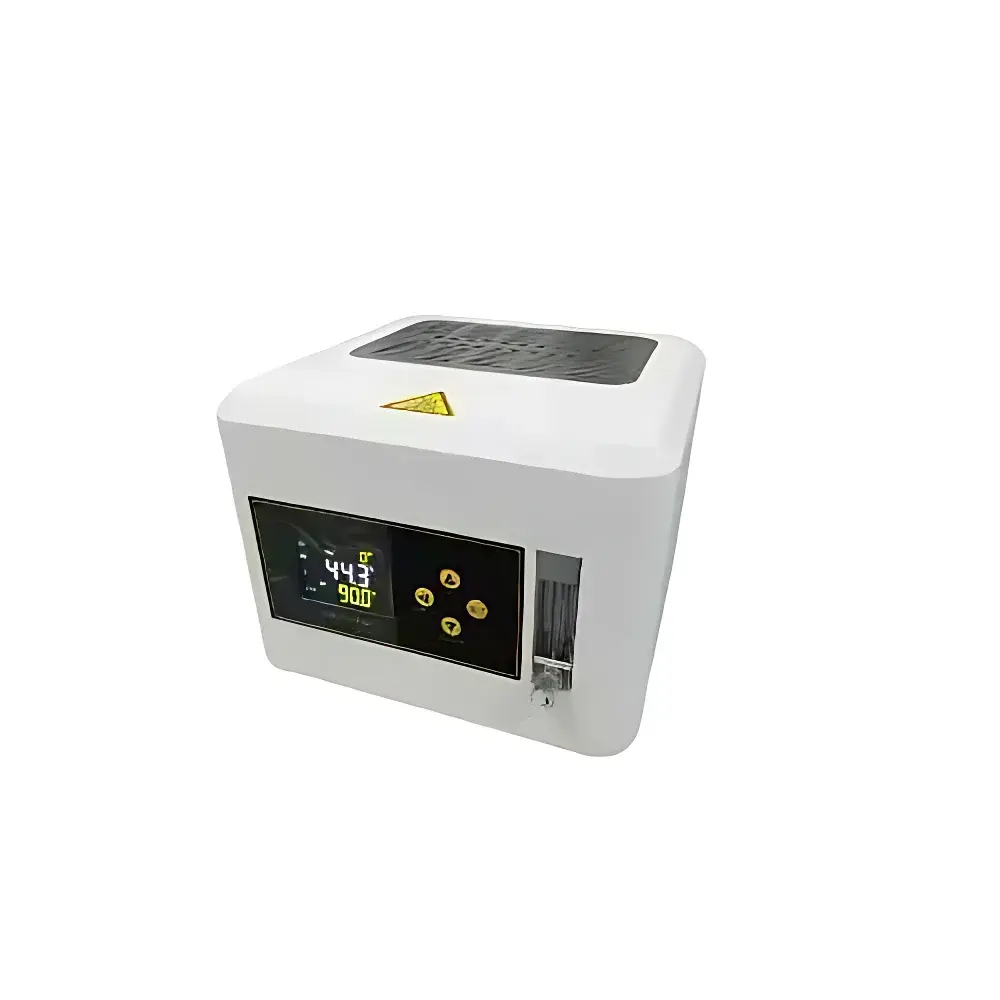

APL TC-20 Intelligent Adsorption Tube Aging Instrument

Overview

The APL TC-20 Intelligent Adsorption Tube Aging Instrument is an engineered thermal conditioning system designed specifically for the rigorous preconditioning of sorbent-packed sampling tubes used in thermal desorption–gas chromatography (TD–GC) workflows. It operates on the principle of controlled convective heating under regulated inert gas purge, enabling complete removal of residual volatiles, moisture, and manufacturing contaminants from adsorbent beds—critical for achieving low blank levels, high reproducibility, and compliance with trace-level VOC analysis standards. Unlike generic ovens or manual aging setups, the TC-20 integrates precise temperature ramping, real-time gas flow management, and programmable dwell cycles into a single dedicated platform, supporting method development and routine QA/QC protocols in environmental, occupational hygiene, and indoor air quality laboratories.

Key Features

• Simultaneous thermal aging of up to 20 standard 6 mm OD × 90 mm length adsorption tubes—including common configurations such as Tenax TA, Carbopack B/C, Carboxen, and multi-bed sorbent combinations.
• Programmable temperature control from ambient to 400 °C with stability maintained within ±1 °C across the full operating range, verified per internal calibration protocol traceable to NIST-certified reference standards.
• Independent mass-flow-controlled inert gas delivery (N₂ or He) with adjustable output from 0.3 to 3 L/min, ensuring uniform purging efficiency across all tube positions and minimizing channeling effects.
• High-resolution LCD interface with intuitive menu navigation, supporting multi-step aging programs: pre-heat ramp, isothermal hold (configurable duration), and controlled cooldown—each stage independently parameterized.
• Extended timer function covering 1 minute to 99 hours and 99 minutes, enabling unattended overnight or multi-day conditioning cycles essential for high-capacity lab throughput.
• Rugged stainless-steel chamber construction with optimized airflow distribution and thermal insulation, minimizing external heat radiation and ensuring operator safety during extended high-temperature operation.

Sample Compatibility & Compliance

The TC-20 accommodates industry-standard adsorption tubes compliant with ASTM D6196, ISO 16017-1, and US EPA Method TO-17 specifications. Its design supports both single-bed and multi-bed sorbent configurations, including fused-silica and stainless-steel tubing formats. The instrument’s thermal profile repeatability and gas flow consistency meet requirements for GLP-compliant laboratory environments. While the TC-20 itself does not generate analytical data, its operational parameters are fully documentable and auditable—supporting traceability in regulated settings where aging conditions must be recorded as part of sample preparation metadata (e.g., for FDA 21 CFR Part 11–aligned workflows when integrated with LIMS or electronic lab notebooks).

Software & Data Management

The TC-20 operates via embedded firmware without dependency on external PC software. All user-defined methods—including temperature setpoints, ramp rates, hold times, and flow values—are stored internally with timestamped execution logs accessible via the front-panel display. Each aging cycle generates a unique session ID and records start/end timestamps, peak temperature achieved, and average flow rate—data exportable via optional RS-232 or USB-to-serial interface (available as accessory module). These logs satisfy minimum documentation requirements for ISO/IEC 17025 accreditation and support root-cause analysis during method validation or out-of-specification investigations.

Applications

• Pre-conditioning of sorbent tubes prior to field sampling in ambient air, workplace, and industrial emission monitoring programs.
• Regeneration of reused tubes in high-throughput environmental labs performing EPA TO-17 or ISO 16017-1 compliant analyses.
• Method development for novel sorbent materials requiring customized aging profiles (e.g., metal-organic frameworks or polymer-based traps).
• Blank assessment and background reduction in ultra-trace VOC analysis, especially for compounds with high affinity for residual surface contaminants (e.g., C₂–C₆ aldehydes, chlorinated methanes).
• Supporting ISO 16000-6 and EN 16751 indoor air quality testing by ensuring consistent tube cleanliness across multi-laboratory studies.

FAQ

What types of adsorption tubes are compatible with the TC-20?
Standard 6 mm OD × 90 mm length stainless-steel or fused-silica tubes packed with Tenax TA, Carbopack B/C, Carboxen 1000/1016, or custom multi-bed sorbents. Custom fixtures available upon request for non-standard dimensions.
Does the TC-20 support automated method recall and repeat runs?
Yes—up to 10 user-programmed methods can be saved and recalled directly from the front panel, each with independent temperature, time, and flow parameters.
Is calibration certification included with purchase?
A factory calibration report documenting temperature accuracy (±1 °C at 100 °C, 200 °C, and 350 °C) and flow linearity is provided; optional annual recalibration service is available through APL’s authorized service centers.
Can the TC-20 be integrated into a LIMS or laboratory automation system?
Via optional serial communication module (RS-232 or USB-CDC), enabling command-driven operation and log file transfer for integration with middleware or custom scripting environments.
What safety features are built into the instrument?
Over-temperature cut-off, door-interlocked heating disable, real-time thermal sensor redundancy, and automatic gas shutoff upon abnormal pressure drop detection—all conforming to IEC 61010-1 safety standards for laboratory equipment.
