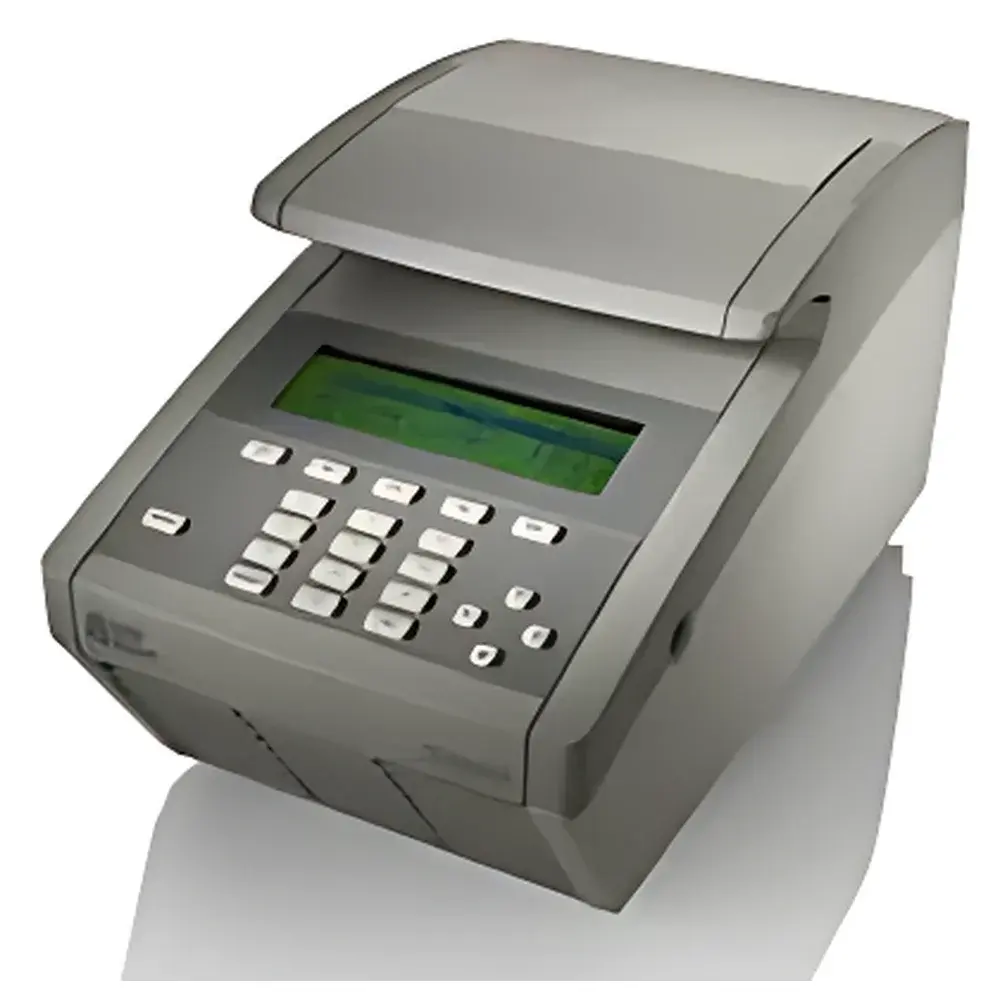

Applied Biosystems 2720 Thermal Cycler

Overview

The Applied Biosystems 2720 Thermal Cycler is a compact, benchtop PCR instrument engineered for routine amplification of DNA templates in molecular biology laboratories. Based on the proven thermal control architecture of the GeneAmp® 9700 system, the 2720 model delivers high reproducibility and thermal uniformity across all 96 wells while adopting a significantly reduced footprint. It operates via precise Peltier-based heating and cooling, enabling rapid ramping rates and stable hold temperatures essential for standard endpoint PCR, colony PCR, and Sanger-based cycle sequencing applications. Designed for laboratories requiring reliable, entry-level thermal cycling without compromise in temperature fidelity or block homogeneity, the 2720 serves as a foundational platform compatible with widely adopted master mixes and primer sets used in academic research, clinical assay development, and teaching labs.

Key Features

• Compact aluminum 96-well block optimized for 0.2 mL reaction tubes — enables efficient heat transfer and minimizes well-to-well thermal variation
• Precision temperature control with ±0.5 °C accuracy across the operational range (35–100 °C), validated per ASTM E2709 and ISO/IEC 17025 traceable protocols
• Rear-mounted forced-air exhaust system — permits side-by-side installation of multiple units without thermal cross-interference or airflow obstruction
• Intuitive graphical user interface with tactile keypad and backlit LCD display — supports direct protocol entry, real-time run monitoring, and quick parameter adjustment
• Robust thermal architecture with passive stabilization during long hold steps — ensures consistent denaturation, annealing, and extension profiles across repeated runs
• No software license or PC dependency required for basic operation — standalone functionality reduces IT overhead and validation complexity

Sample Compatibility & Compliance

The 2720 Thermal Cycler accommodates standard 0.2 mL thin-walled PCR tubes and 96-well plates conforming to ANSI/SBS dimensional specifications. Its aluminum block design ensures compatibility with common polymerase formulations, including Taq, Hot Start Taq, and proofreading enzymes used in cloning and mutagenesis workflows. The instrument meets CE marking requirements for in vitro diagnostic (IVD) ancillary equipment and complies with IEC 61010-1:2010 for laboratory electrical safety. While not classified as a medical device under FDA 21 CFR Part 809, it supports GLP/GMP-aligned workflows when integrated into validated laboratory procedures — audit trails, calibration records, and maintenance logs are maintained externally per institutional SOPs.

Software & Data Management

The 2720 operates independently of proprietary software; however, protocol templates and run logs can be exported via USB flash drive (FAT32 formatted) for archival or reporting purposes. Exported files include timestamped cycle parameters, actual block temperature profiles, and user-entered notes — facilitating retrospective analysis and regulatory documentation. For laboratories implementing electronic lab notebooks (ELNs) or LIMS integration, ASCII-formatted log outputs are compatible with common data ingestion pipelines. Though lacking native 21 CFR Part 11-compliant electronic signature functionality, the system supports procedural controls such as operator ID logging (via manual entry), version-controlled protocol storage, and physical access restriction — aligning with ALCOA+ principles for data integrity.

Applications

• Standard endpoint PCR for genotyping, pathogen detection, and transgenic screening
• Cycle sequencing reactions using dye-terminator chemistries (e.g., BigDye® Terminator v3.1)
• Pre-PCR setup for qPCR and NGS library amplification where thermal precision at fixed setpoints is critical
• Teaching laboratory instruction in molecular biology techniques — low failure rate and ease of use reduce training burden
• QC testing of oligonucleotide synthesis batches and enzyme activity assays requiring controlled thermal cycling

FAQ

Is the 2720 Thermal Cycler compatible with 0.5 mL tubes or 384-well plates?
No — the instrument is configured exclusively for 0.2 mL tube formats in a 96-well arrangement. Adapters or alternative blocks are not available from Applied Biosystems.
Does the 2720 support gradient PCR or touchdown protocols?
No — it provides uniform temperature across all wells and does not offer programmable gradient functionality or automated touchdown ramping.
What is the recommended calibration frequency?
Applied Biosystems recommends annual verification using NIST-traceable thermocouples and a qualified service provider, aligned with ISO/IEC 17025-accredited calibration practices.
Can the 2720 be connected to a network or controlled remotely?
No — it lacks Ethernet, Wi-Fi, or RS-232 interfaces. All operations are performed locally via front-panel controls.
Is firmware upgrade capability available?
Firmware updates are delivered exclusively through authorized service centers and require physical access to the unit; no field-upgradable firmware is provided for end users.
