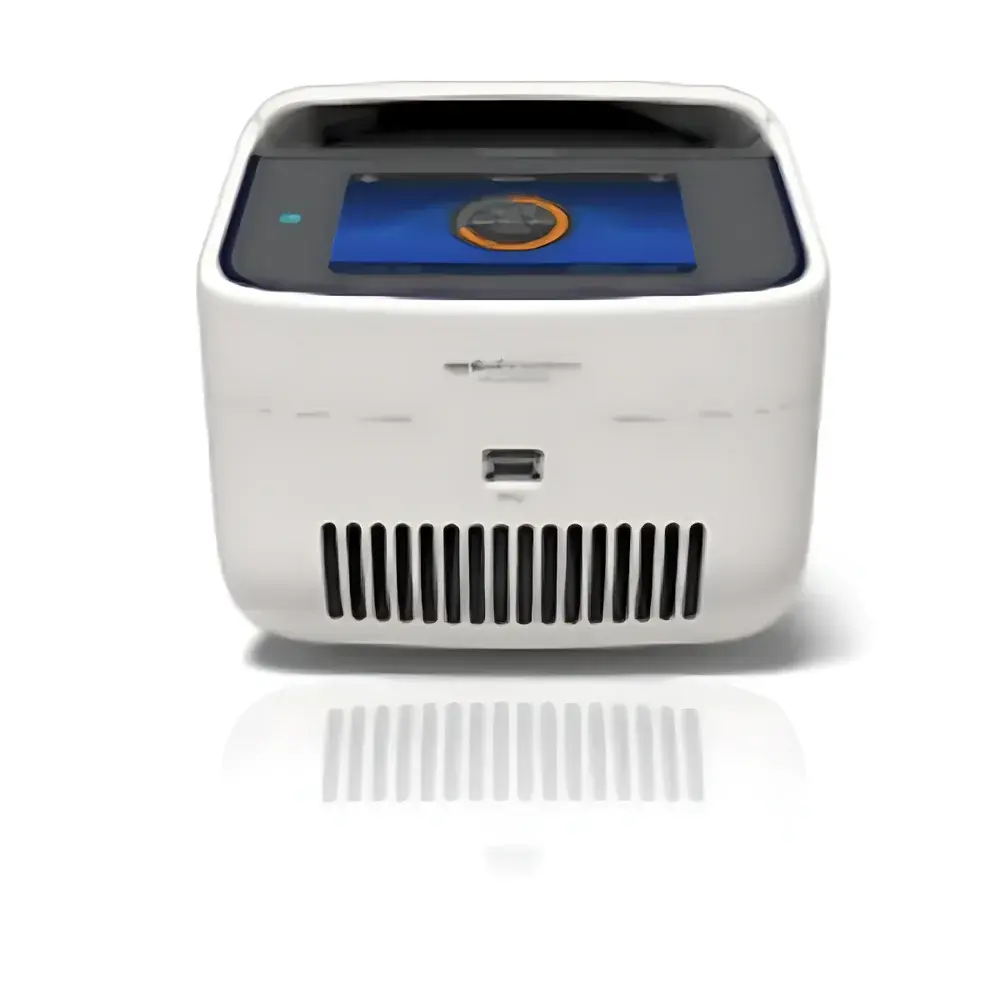

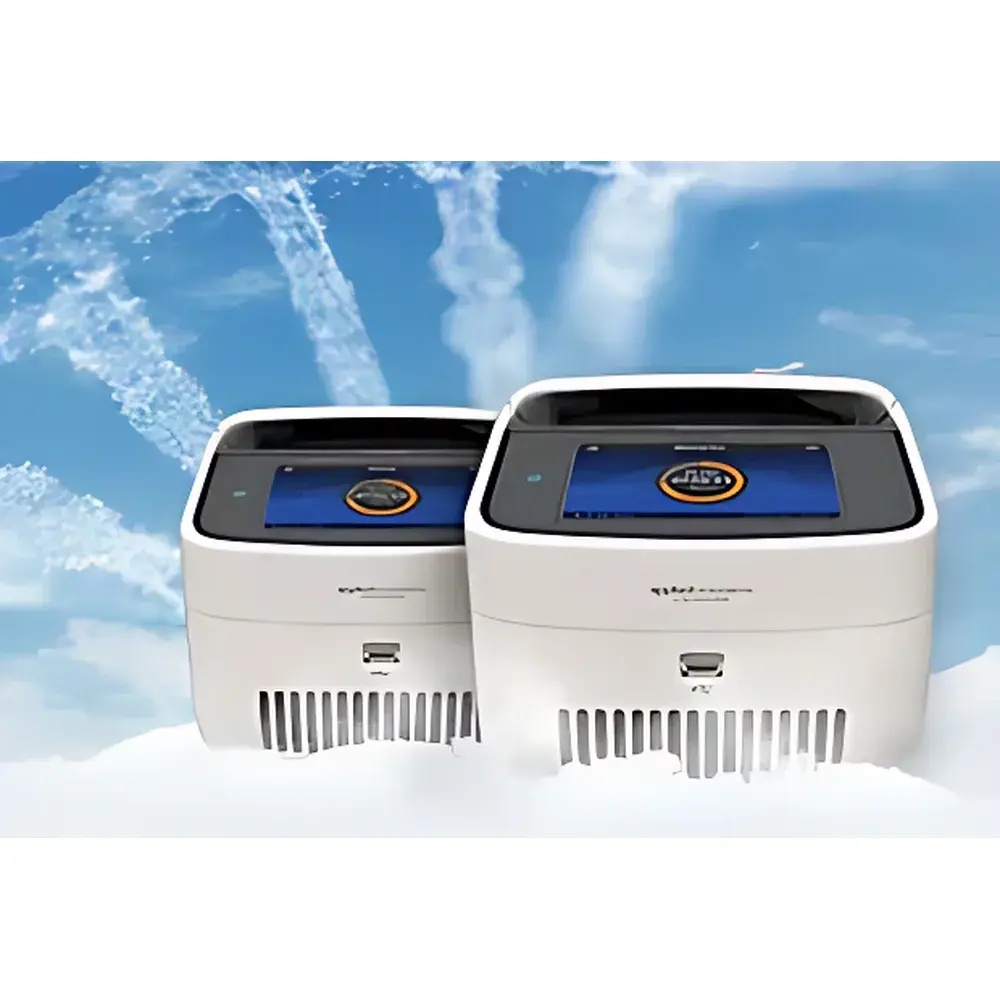

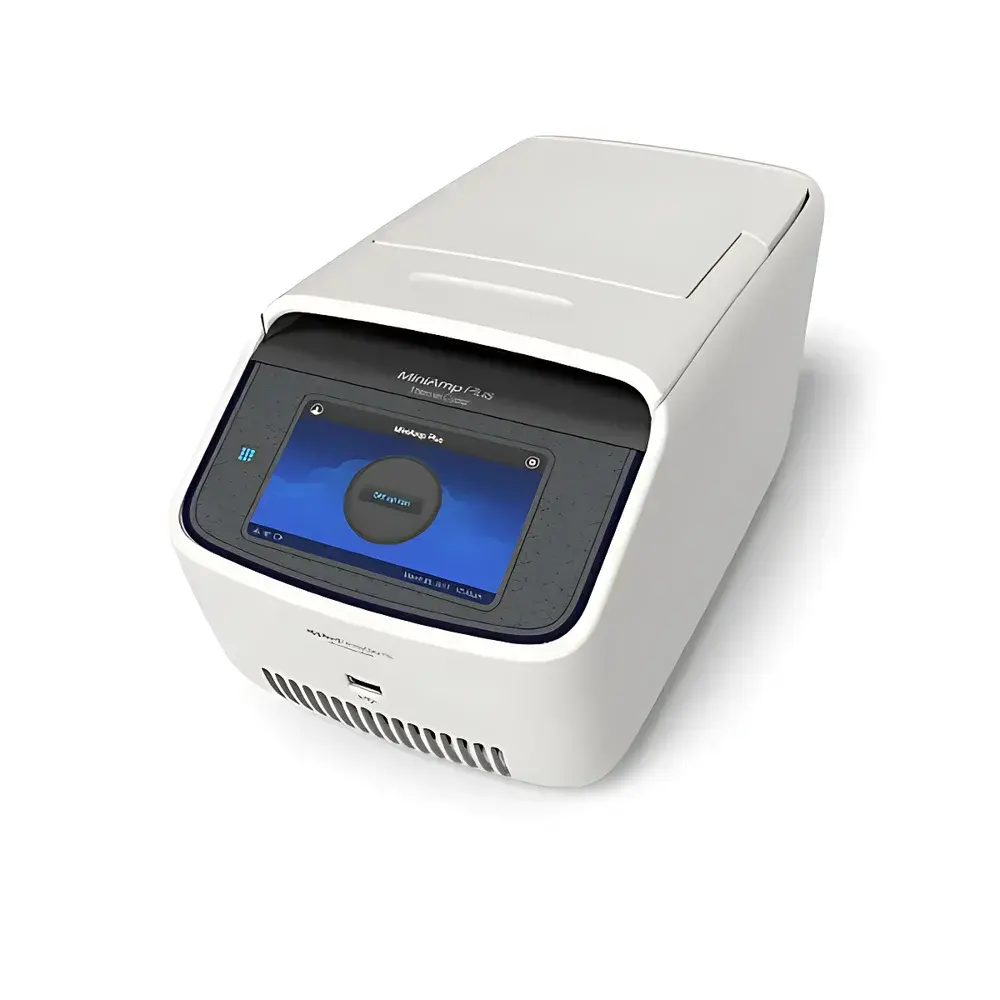

Applied Biosystems MiniAmp Plus Gradient PCR Thermal Cycler

Overview

The Applied Biosystems MiniAmp Plus Gradient PCR Thermal Cycler is a compact, high-performance endpoint thermal cycler engineered for precision DNA amplification in resource-conscious and space-constrained laboratory environments. Designed using the core thermal control architecture of the Applied Biosystems PCR platform, it implements Peltier-based thermoelectric heating and cooling with three independently controlled thermal zones—enabling true gradient functionality across a 96-well plate. This architecture supports robust optimization of annealing temperatures without requiring multiple instrument runs, significantly accelerating assay development workflows. The system operates within a calibrated temperature range of 4–100 °C and maintains strict thermal fidelity per ISO/IEC 17025-aligned validation protocols. Its compact footprint (19 cm wide) and front-to-rear airflow design allow for dense benchtop deployment in shared core facilities or QC labs adhering to GLP-compliant spatial planning guidelines.

Key Features

• Three-zone independent thermal control for programmable gradient profiles (spanning up to 30 °C across the block)
• High-fidelity thermal regulation: ±0.25 °C accuracy over 35–99.9 °C operating range, validated per ASTM E2875 standard for thermal cycling instruments
• Uniform heat distribution: < 0.5 °C well-to-well variation at 95 °C (measured 30 s post-target attainment), critical for reproducible endpoint detection in multiplex assays
• Intuitive 5-inch color capacitive touchscreen interface with gesture navigation and on-screen protocol wizard
• Configurable hot lid: adjustable temperature (up to 110 °C) or full deactivation to accommodate low-profile tube formats or oil-free sealing
• Built-in self-diagnostics: automated pre-run verification of block calibration, lid pressure, and thermal sensor integrity
• Power resilience: automatic resume from power interruption with timestamped event logging; configurable auto-shutdown and sleep mode
• Multi-tier user access: role-based account management (Administrator, Technician, Guest) supporting audit-ready workflow segregation

Sample Compatibility & Compliance

The MiniAmp Plus accepts standard 0.2 mL skirted and semi-skirted 96-well plates, as well as individual 0.2 mL thin-wall PCR tubes. It is compatible with all common polymerase formulations—including hot-start, high-fidelity, and reverse transcriptase enzymes—without modification to thermal ramping profiles. The instrument complies with IEC 61010-1:2010 safety standards for laboratory electrical equipment and meets electromagnetic compatibility requirements per EN 61326-1:2013. While not certified for clinical diagnostics under FDA 21 CFR Part 820, its firmware architecture supports ALCOA+ data integrity principles: all run logs include immutable timestamps, operator ID, parameter sets, and thermal trace metadata—exportable in CSV or PDF for internal QA review or regulatory inspection preparation (e.g., ISO 13485 or CLIA audits).

Software & Data Management

No proprietary software installation is required: method creation, execution, and log review occur entirely via the onboard interface. All run records—including cycle-by-cycle temperature traces, error flags, and user authentication events—are stored locally in encrypted non-volatile memory (retention ≥ 10 years). Logs can be exported via USB 2.0 port in timestamped, machine-readable CSV format; PDF reports include digital signature fields for manual sign-off. Audit trails comply with FDA 21 CFR Part 11 principles for electronic records: actions are attributable, legible, contemporaneous, original, accurate, complete, consistent, enduring, and available—supporting GxP-aligned documentation practices without third-party LIMS integration.

Applications

• Endpoint genotyping and presence/absence testing in agricultural biotechnology and food authenticity screening
• Pre-sequencing target enrichment and library amplification in NGS sample prep workflows
• Teaching laboratories requiring reliable, low-maintenance thermal cyclers with intuitive operation
• QC release testing of raw materials in pharmaceutical excipient manufacturing (per USP & EP monographs)
• Rapid pathogen detection assay development where gradient optimization reduces iterative protocol tuning
• Field-deployable molecular testing in mobile biosafety level-2 (BSL-2) units due to shock-resistant chassis and low power draw (≤ 450 W peak)

FAQ

Is the MiniAmp Plus validated for use in regulated environments?
Yes—while not an IVD device, its data handling, audit trail structure, and thermal performance documentation align with FDA 21 CFR Part 11 and EU Annex 11 expectations for non-clinical analytical instrumentation used in GMP-adjacent workflows.
Can I import/export protocols between MiniAmp Plus units?
Protocols are exportable as encrypted .amp files via USB and can be loaded onto other MiniAmp Plus systems; version-controlled naming is enforced to prevent configuration drift.
Does the instrument support ramp rate adjustment?
Ramp rates are fixed at 3.5 °C/s for heating and 2.5 °C/s for cooling to ensure thermal stability and reproducibility—consistent with Applied Biosystems’ platform-wide design philosophy.
What maintenance is required?
No scheduled preventive maintenance is specified; annual verification of thermal accuracy using NIST-traceable reference sensors is recommended per ISO/IEC 17025 Clause 6.4.1.
Is remote monitoring supported?
No network interface is provided; all interaction is local via touchscreen or USB export—intentionally minimizing cybersecurity attack surface per IEC 81001-5-1 risk management guidance.
