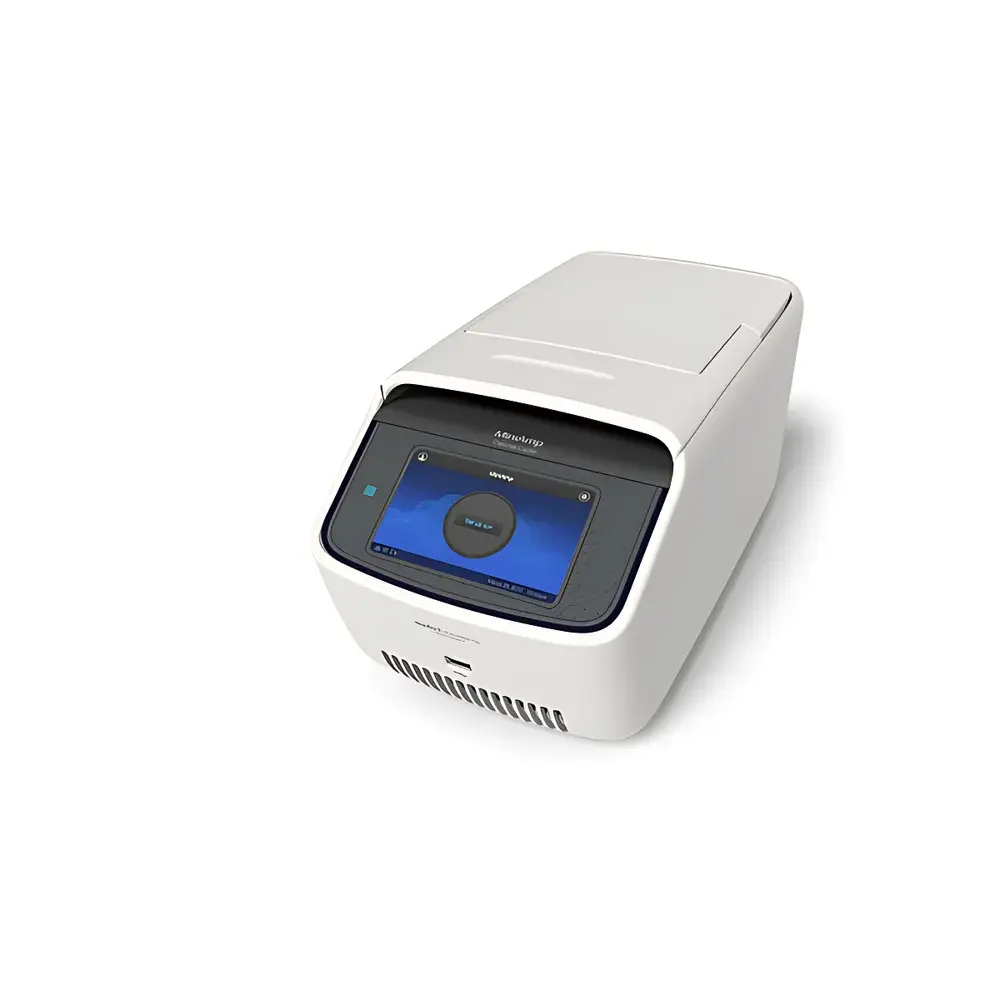

Applied Biosystems MiniAmp PCR Instrument
| Brand | Applied Biosystems |
|---|---|
| Origin | Singapore |
| Model | MiniAmp |
| Instrument Type | Standard PCR Thermal Cycler |
| Sample Capacity | 96-well format |
| Heating Rate | 3.0 °C/sec |
| Temperature Accuracy | ±0.25 °C (35–99.9 °C) |
| Well-to-Well Uniformity | <0.5 °C (measured 30 sec after reaching 95 °C) |
Overview
The Applied Biosystems MiniAmp PCR Instrument is a compact, entry-level thermal cycler engineered for reliable and reproducible amplification of DNA via the polymerase chain reaction (PCR). Based on the proven thermal control architecture of Applied Biosystems’ legacy platforms, the MiniAmp delivers precise, uniform heating and cooling across all 96 wells—without the complexity or cost associated with gradient-enabled or real-time detection systems. Its design adheres to fundamental thermocycling principles: rapid ramping (3.0 °C/sec), tight temperature accuracy (±0.25 °C over the full operational range of 35–99.9 °C), and exceptional well-to-well thermal uniformity (<0.5 °C at 95 °C, measured 30 seconds post-equilibration). This performance profile meets the technical requirements for standard endpoint PCR applications in teaching labs, quality control environments, and low-throughput research settings where robustness, ease of use, and space efficiency are prioritized.
Key Features
- Compact footprint (19 cm wide) optimized for benchtop space-constrained laboratories.
- 96-well aluminum block with integrated Peltier-based heating/cooling system ensuring high thermal stability and repeatability.
- Intuitive, menu-driven interface with physical navigation buttons—no touchscreen required, reducing maintenance complexity and enhancing long-term reliability.
- Preloaded, validated thermal profiles for common PCR protocols including Taq-based amplification, colony PCR, and restriction digest verification.
- Support for Thermo Fisher Connect cloud platform—enables secure remote instrument monitoring, protocol upload/download, and run initiation via web browser or mobile application (iOS/Android).
- Firmware upgradable via USB flash drive, supporting future enhancements in protocol management and connectivity compliance.
Sample Compatibility & Compliance
The MiniAmp accepts standard 0.2 mL PCR tubes and 96-well plates compliant with ANSI/SLAS dimensional standards. It supports both full-block and partial-block configurations without compromising thermal performance. The instrument conforms to IEC 61010-1:2010 for laboratory electrical safety and electromagnetic compatibility (EMC) per IEC 61326-1:2013. While not designed for diagnostic use under CLIA or IVDR, its thermal specifications align with ASTM E2548-21 guidelines for validation of thermal cyclers used in non-regulated molecular biology workflows. Data integrity features—including user login tracking, timestamped run logs, and exportable CSV-formatted result reports—support GLP-aligned documentation practices.
Software & Data Management
Thermo Fisher Connect serves as the central hub for instrument interaction, offering role-based access control, encrypted data transmission (TLS 1.2+), and audit-trail generation for all user-initiated actions (e.g., program edits, run starts, firmware updates). Run files include metadata such as block temperature history, cycle count, and user ID—exportable for integration into LIMS or ELN systems. Local storage retains the last 100 run records; cloud synchronization ensures persistent backup and cross-device continuity. No proprietary software installation is required—browser-based operation eliminates OS compatibility constraints and simplifies IT deployment.
Applications
- Teaching and training in molecular biology techniques, including primer design validation and gel electrophoresis preparation.
- Preparative amplification for downstream applications: Sanger sequencing template generation, cloning vector insertion, and site-directed mutagenesis.
- Quality assurance testing in biomanufacturing support labs (e.g., host cell DNA detection, plasmid integrity checks).
- Routine genotyping and SNP screening using allele-specific PCR protocols.
- Environmental microbiology screening where standardized amplification of conserved gene regions (e.g., 16S rRNA, ITS) is performed prior to sequencing.
FAQ
Is the MiniAmp PCR Instrument compatible with third-party reagents and consumables?
Yes—it operates independently of reagent chemistry and accepts any 0.2 mL tube or 96-well plate meeting ANSI/SLAS mechanical specifications.
Does the MiniAmp support gradient PCR or multi-zone temperature programming?
No—this model features a single-zone uniform-heating block. For gradient optimization, consider the MiniAmp Plus variant equipped with VeriFlex technology.
Can run data be exported in machine-readable formats for automated analysis pipelines?
Yes—CSV exports include time-stamped temperature profiles, cycle thresholds, and user metadata, facilitating integration with Python-, R-, or LabVIEW-based analysis frameworks.
What regulatory documentation is provided for laboratory accreditation purposes?
Factory calibration certificates, electrical safety test reports, and firmware version traceability logs are available upon request to support ISO/IEC 17025 or CAP inspection readiness.
Is local network configuration required to use Thermo Fisher Connect?
No—connectivity is established via HTTPS through standard Wi-Fi or Ethernet; no internal network port forwarding or firewall exceptions are needed.
