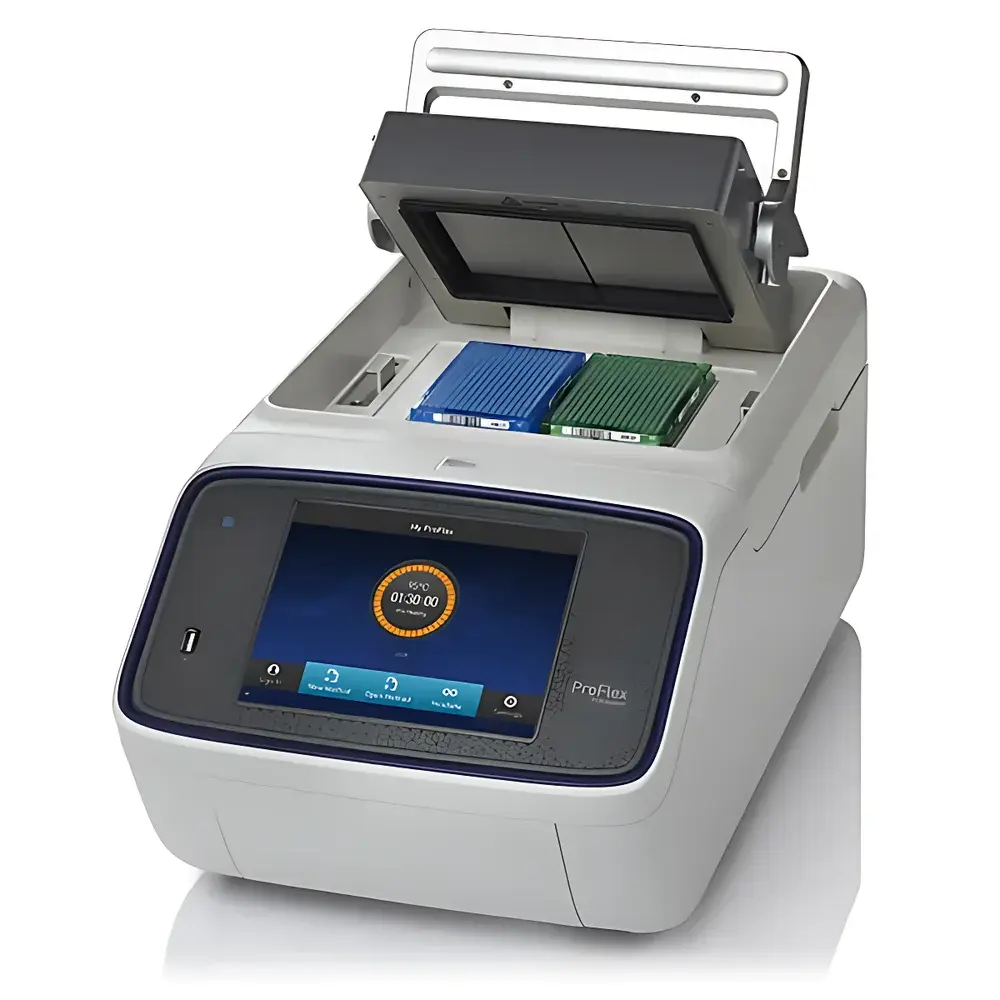

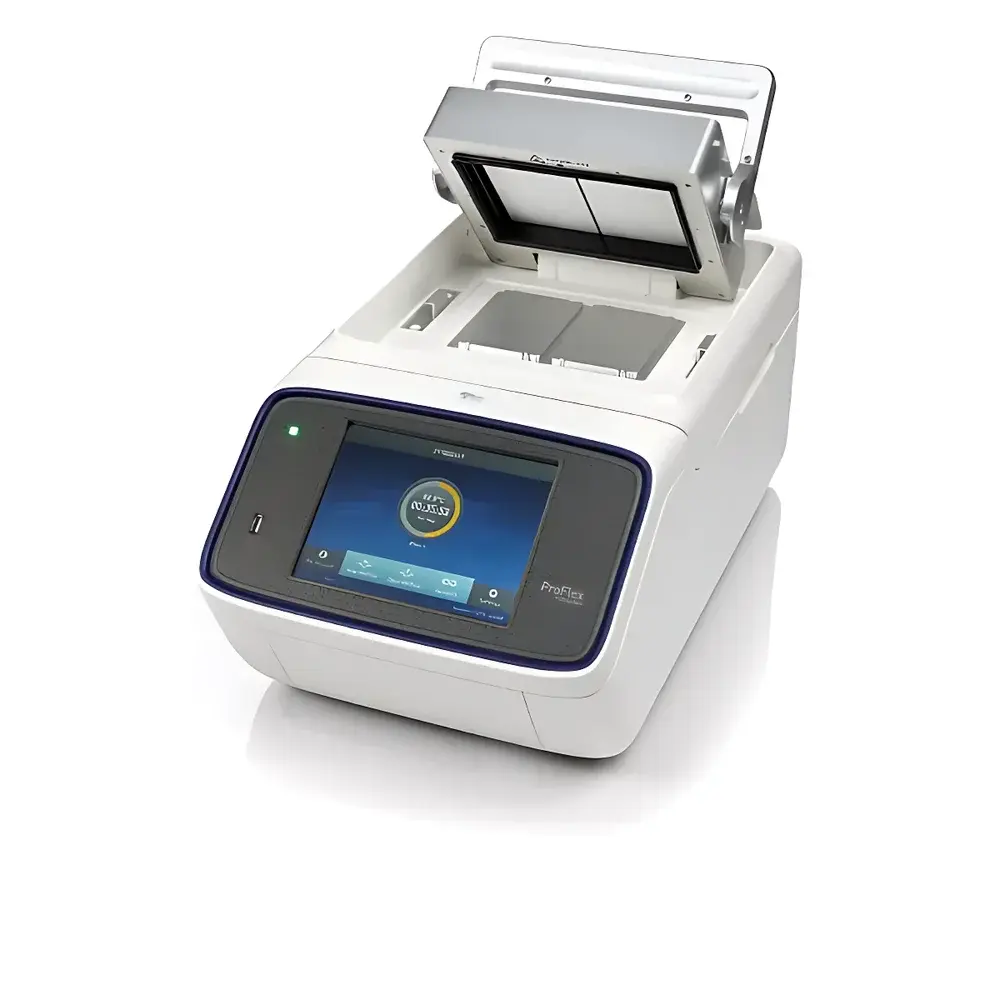

Applied Biosystems ProFlex Gradient PCR System
| Brand | Applied Biosystems |
|---|---|
| Origin | Singapore |
| Model | ProFlex |
| Instrument Type | Gradient PCR Thermal Cycler |
| Sample Capacity | 32-well, 96-well, dual 96-well, dual 384-well, and 24 × 20k Digital PCR Chip modules |
| Ramp Rate | Up to 6.0 °C/s (user-adjustable) |
| Temperature Accuracy | ±0.25 °C (35–99.9 °C) |
| Well-to-Well Uniformity | < 0.5 °C (measured 20 s after reaching 95 °C) |
Overview
The Applied Biosystems ProFlex Gradient PCR System is a high-performance, modular thermal cycler engineered for precision nucleic acid amplification across diverse research, clinical, and diagnostic workflows. Built upon the proven reliability of Applied Biosystems PCR platforms, the ProFlex integrates advanced Peltier-based thermoregulation with VeriFlex™ heating block architecture—a proprietary six-zone independent temperature control system—to deliver unmatched flexibility in gradient optimization, multiplex assay development, and parallel reaction execution. Unlike conventional single-block gradient cyclers, the ProFlex enables simultaneous operation of up to six discrete annealing temperatures within one run—critical for primer validation, melt curve analysis, and robust assay transfer from legacy instruments. Its design supports seamless integration into GLP-compliant and ISO 15189-aligned laboratories, with hardware-level traceability features compatible with FDA 21 CFR Part 11 requirements when used with Thermo Fisher Cloud-enabled audit trails.
Key Features
- VeriFlex™ Six-Zone Heating Block: Six independently controlled Peltier elements per module enable precise, user-defined temperature zoning—supporting true multi-temperature optimization without serial runs.

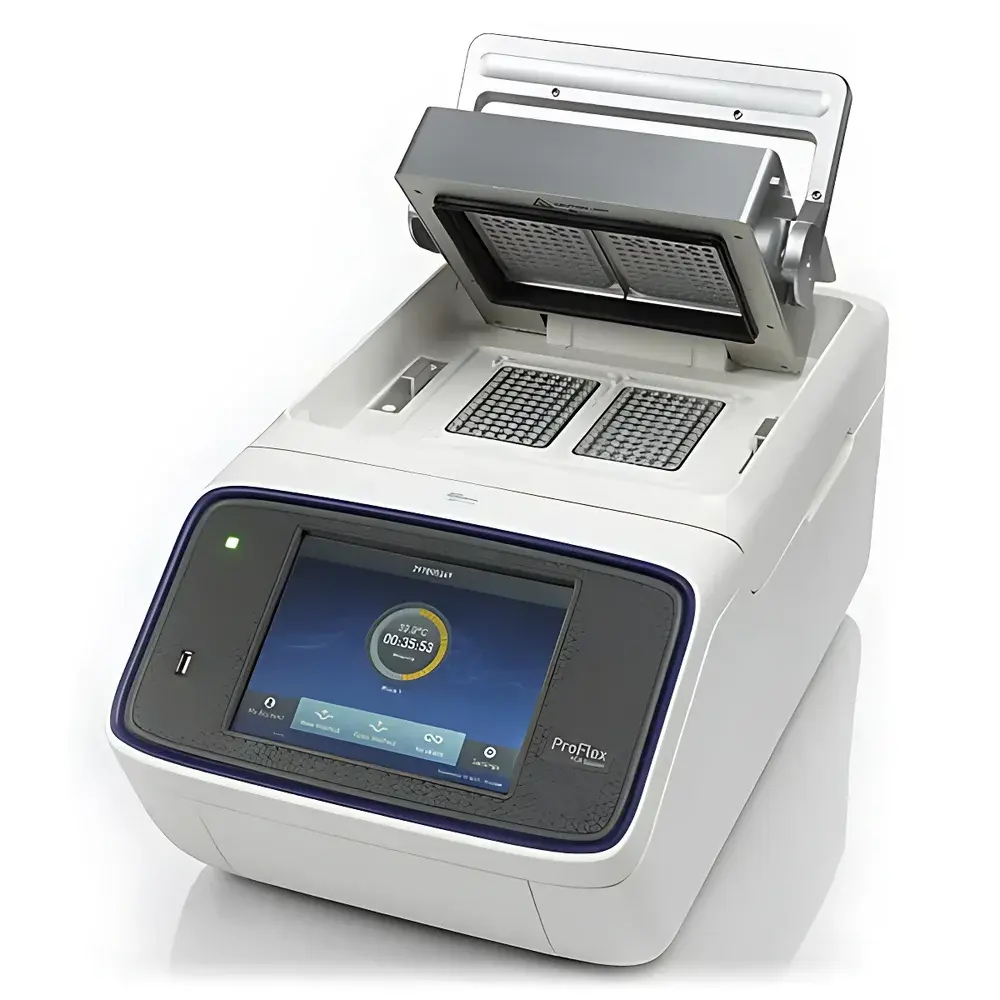

- Modular Platform Architecture: Interchangeable thermal blocks include 3×32-well (0.2 mL), standard 96-well (0.2 mL), dual 96-well, dual Flat (OpenArray™), and dual 384-well (0.02 mL) configurations—each optimized for specific throughput and volume requirements.
- High-Speed Thermal Performance: Maximum ramp rate of 6.0 °C/s (sample-dependent), ensuring rapid cycling without compromising denaturation fidelity or enzyme integrity.
- Enhanced Temperature Control: ±0.25 °C accuracy across 35–99.9 °C operating range and <0.5 °C well-to-well uniformity at 95 °C (20 s stabilization)—validated per ASTM E2757-21 guidelines for thermal cycler qualification.

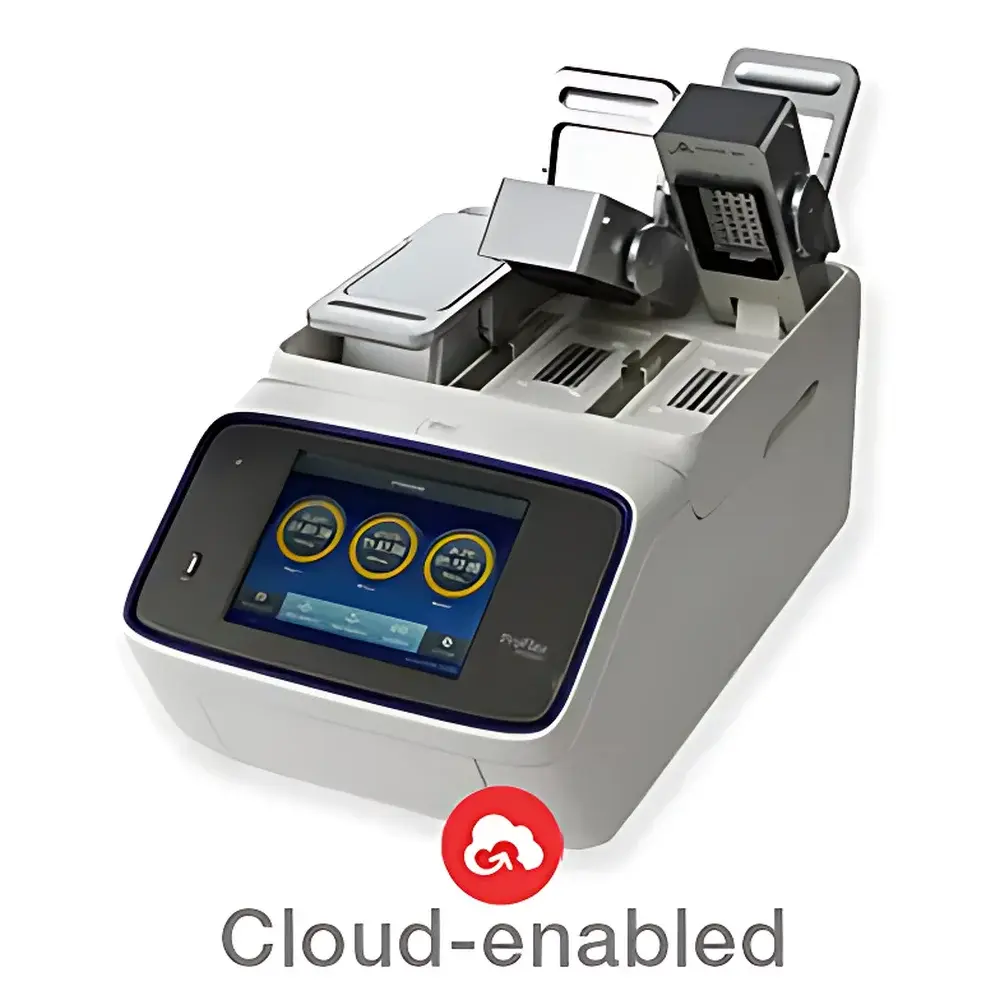

- Remote Monitoring & Control: Instrument Connect mobile application (iOS/Android) and Thermo Fisher Cloud platform enable real-time status tracking, program upload/download, and collaborative protocol sharing—fully auditable under GxP data integrity frameworks.

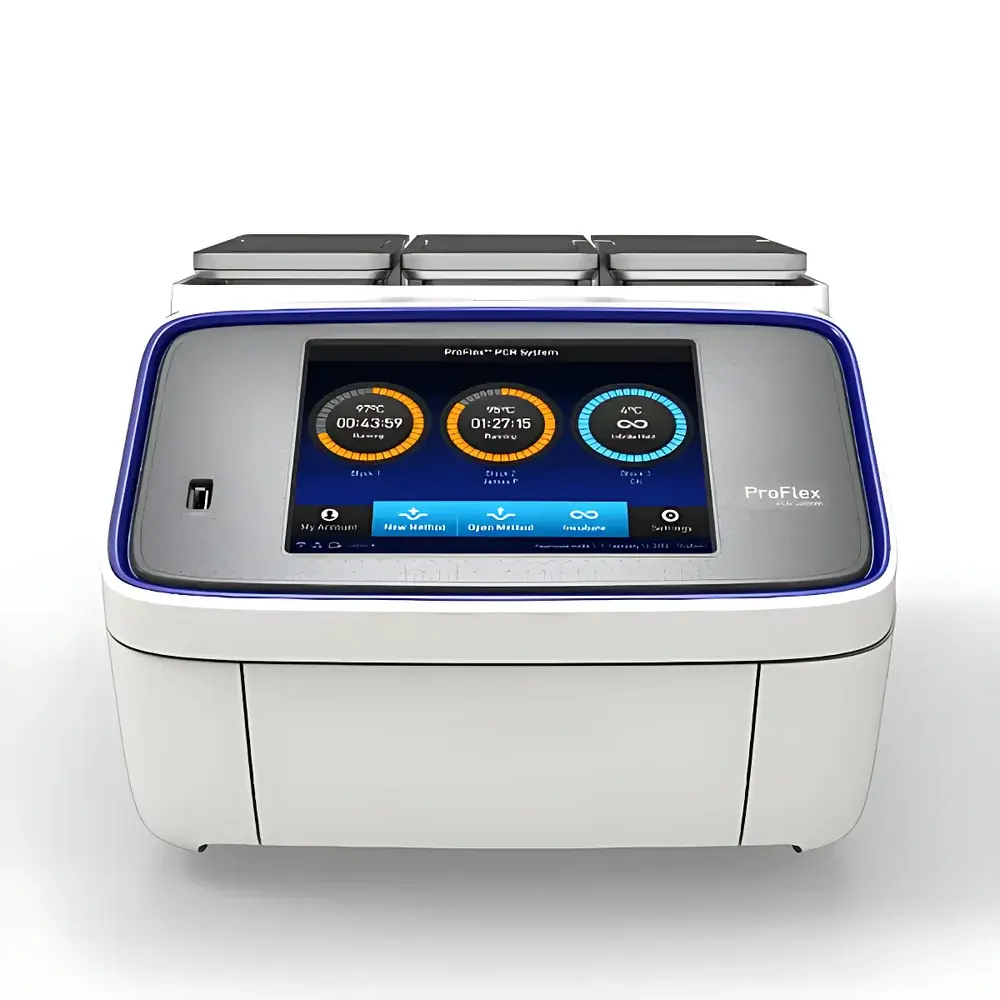

- Intuitive Local Interface: 8.4-inch color TFT LCD touchscreen with context-aware navigation simplifies method setup, calibration access, and error diagnostics—reducing operator training time and procedural variability.
Sample Compatibility & Compliance
The ProFlex accommodates standard PCR consumables including 0.2 mL tubes, 96- and 384-well plates, OpenArray™ chips (compatible with QuantStudio™ 12K Flex systems), and 20k Digital PCR chips (compatible with QuantStudio™ 3D systems). All modules support reaction volumes from 5 µL (384-well) to 100 µL (dual 96-well), with minimal evaporation due to optimized lid pressure and thermal sealing profiles. The system complies with IEC 61010-1:2012 for laboratory equipment safety and meets electromagnetic compatibility standards per CISPR 11. For regulated environments, firmware supports electronic signatures, user role-based access control, and full audit trail generation via Cloud synchronization—aligning with USP , ISO/IEC 17025, and EU Annex 11 expectations for analytical instrument qualification.
Software & Data Management
Instrument Connect provides secure, encrypted remote access to instrument status, runtime logs, and completion alerts—without requiring on-premise IT infrastructure. Protocols are authored, validated, and version-controlled using Thermo Fisher Cloud’s web-based interface, which enforces change management workflows and exportable metadata (including timestamped thermal profiles, user IDs, and environmental conditions). Raw thermal data exports comply with MIAME-compliant CSV and XML formats. When deployed with optional LIMS integration kits, the ProFlex supports automated sample ID mapping and QC flagging based on cycle threshold deviation thresholds—facilitating compliance with CLIA and CAP accreditation requirements.
Applications
- High-fidelity DNA amplification for NGS library preparation and long-range PCR
- Quantitative and digital PCR assay development and validation
- qPCR optimization including touchdown, hot-start, and multiplex protocols
- Genotyping, SNP detection, and methylation-specific amplification
- Diagnostic assay transfer and verification across instrument platforms
- Academic and core facility environments requiring shared-instrument scheduling and multi-user accountability
FAQ
Can the ProFlex run three independent programs simultaneously?
Yes—the dual 96-well and dual 384-well modules support concurrent execution of three distinct thermal profiles across physically separate blocks.
Is VeriFlex temperature zoning validated per ISO 13485 requirements?
While VeriFlex itself is not certified, the ProFlex system’s temperature performance is documented per ISO/IEC 17025-accredited IQ/OQ protocols; full validation packages are available through Thermo Fisher Scientific Field Service Engineers.
Does the system support FDA 21 CFR Part 11 compliance out-of-the-box?
The hardware includes audit trail logging capabilities; full Part 11 compliance requires deployment with Thermo Fisher Cloud’s validated e-signature and electronic record modules.
What is the minimum recommended reaction volume for the 384-well module?
5 µL is the validated lower limit for reliable thermal transfer and condensation control in the dual 384-well configuration.
Can OpenArray™ chips be processed without additional accessories?
Yes—the dual Flat module is designed for direct insertion of OpenArray™ chips; no adapter plates or thermal seals are required.
