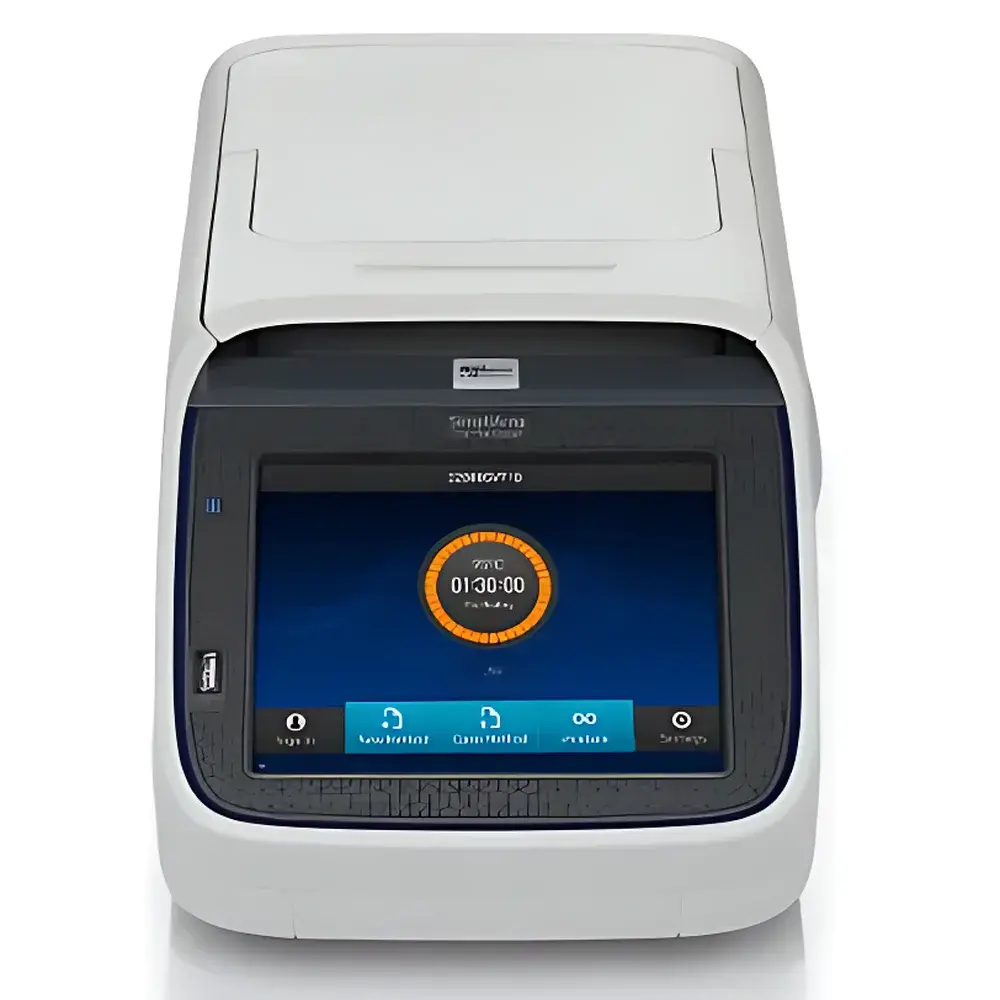

Applied Biosystems SimpliAmp Gradient PCR Instrument

Overview

The Applied Biosystems SimpliAmp Gradient PCR Instrument is an engineered thermal cycler designed for high-reproducibility nucleic acid amplification in routine molecular biology laboratories. It operates on the fundamental principle of polymerase chain reaction—cyclic denaturation, annealing, and extension—enabled by precise, real-time Peltier-based thermoregulation across a 96-well aluminum heating block. Unlike conventional single-block gradient cyclers that impose a linear temperature ramp across adjacent wells, the SimpliAmp employs VeriFlex™ technology: a tri-zonal, independently controlled Peltier architecture that partitions the block into three discrete thermal domains. This architecture supports simultaneous multi-temperature optimization within a single run—enabling empirical determination of optimal annealing conditions without iterative cycling or hardware reconfiguration. The instrument is calibrated to meet ISO/IEC 17025 traceable standards for temperature accuracy and uniformity, ensuring compliance with internal QC protocols and external audit requirements including GLP and CLIA-aligned workflows.

Key Features

• VeriFlex™ 3-Zone Thermal Control: Three independent Peltier elements allow concurrent programming of distinct annealing temperatures (e.g., 55°C, 60°C, 65°C) across designated well groups—eliminating guesswork in primer optimization and reducing assay development time by up to 60% compared to sequential gradient runs.
• High-Fidelity Temperature Regulation: Achieves ±0.25°C accuracy across the full operational range (35–99.9°C), with <0.5°C well-to-well uniformity at 95°C (stabilized 30 seconds post-ramp), validated per ASTM E2927-13 guidelines for thermal performance verification.

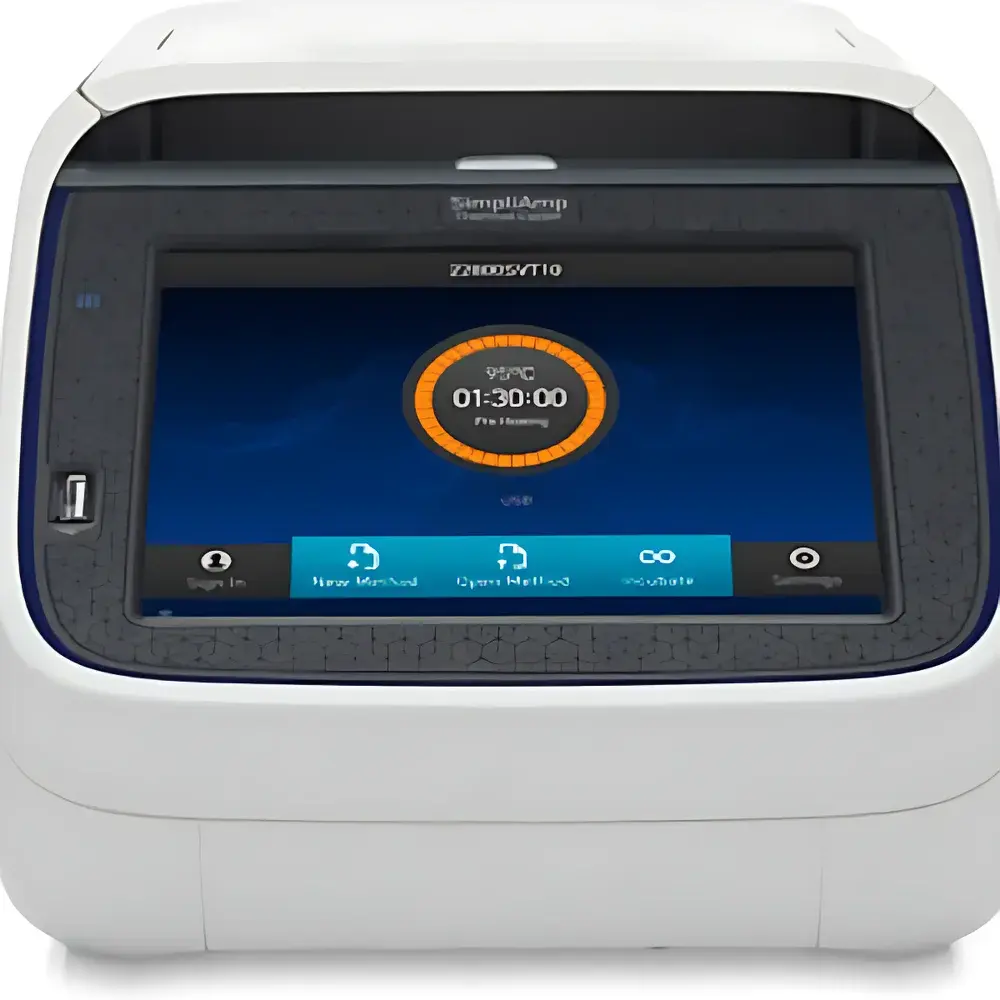

• Intuitive Human-Machine Interface: A 7-inch capacitive color touchscreen delivers responsive, glove-compatible navigation; supports drag-and-drop protocol editing, real-time cycle progress visualization, and instant access to thermal profiles and instrument status logs.
• Wi-Fi-Enabled Remote Monitoring: Integrates natively with Thermo Fisher Connect cloud infrastructure—enabling secure remote status checks, push notifications for run completion, and centralized fleet management across multi-instrument lab environments (FDA 21 CFR Part 11-compliant audit trail optional via enterprise license).
• Thermal Simulation Mode: Emulates legacy thermal ramping profiles (e.g., Bio-Rad T100, Eppendorf Mastercycler) without modifying existing .pcr files—ensuring backward compatibility during instrument transition and minimizing protocol revalidation burden.

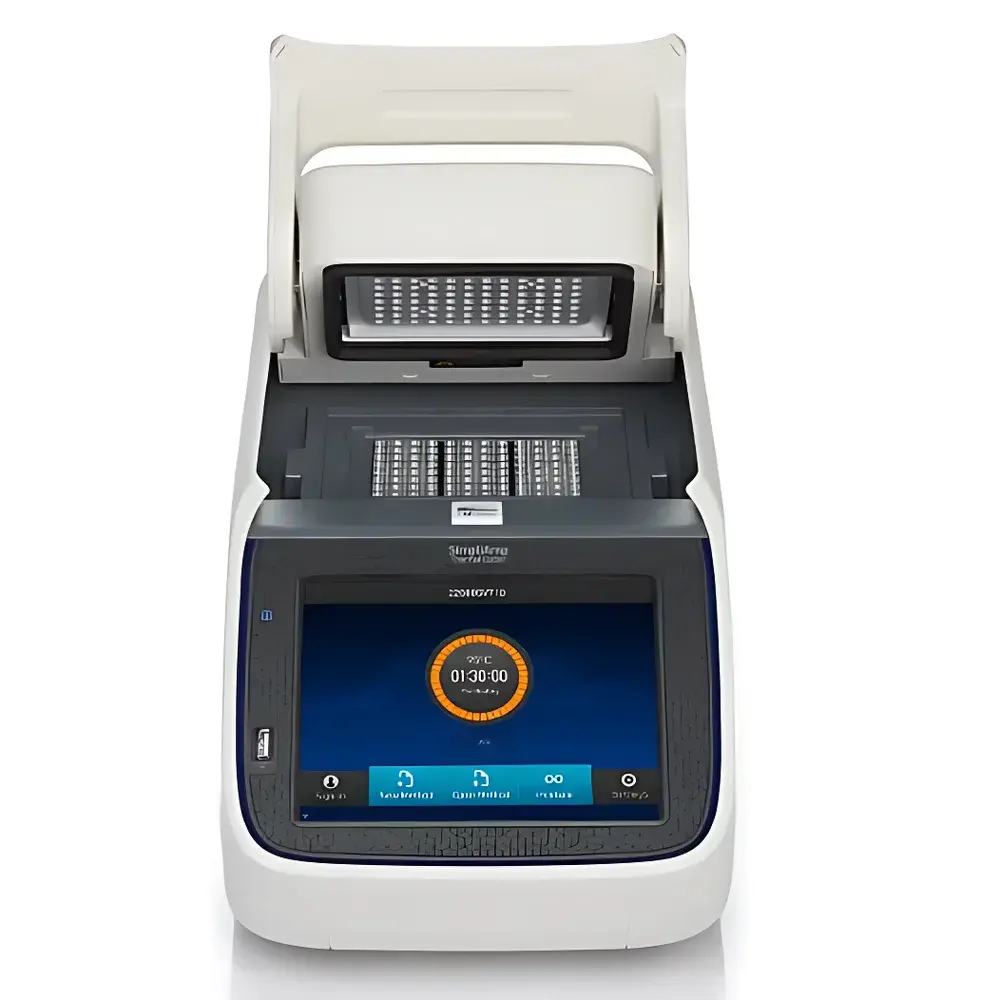

• Robust Mechanical Design: Integrated auto-locking heated lid (105°C adjustable) with pressure-sensing engagement ensures consistent contact force across all 96 wells; modular block design supports future field-upgradable accessories (e.g., 384-well adapter kits, barcode-scanning modules).

Sample Compatibility & Compliance

The SimpliAmp accepts standard 0.2 mL skirted or semi-skirted 96-well PCR plates, tube strips, and individual tubes—compatible with all common master mixes (including hot-start Taq, high-fidelity polymerases, and RT-PCR reagents). Its thermal architecture has been verified for use with low-volume reactions (5–50 µL) and sensitive templates (e.g., FFPE-derived DNA, single-cell lysates). Regulatory documentation includes CE IVD marking (Class B), US FDA 510(k) clearance (K183029), and conformance to IEC 61010-1:2010 for laboratory equipment safety. Temperature calibration certificates are provided with each unit and support ISO/IEC 17025-accredited lab accreditation requirements.

Software & Data Management

Instrument control and data handling are managed through Thermo Fisher Connect—a browser-based platform supporting role-based user accounts, encrypted data synchronization, and automated backup to on-premise or AWS-hosted servers. Protocol libraries support version-controlled sharing, electronic signature workflows (for 21 CFR Part 11 compliance), and export to CSV, PDF, or LIMS-integrated XML formats. Local operation requires no persistent internet connection; Wi-Fi is used exclusively for optional remote features. Firmware updates are delivered via signed USB media or over-the-air (OTA) with SHA-256 integrity verification.

Applications

• Genotyping and SNP detection requiring stringent annealing specificity
• Routine endpoint PCR for cloning, mutagenesis, and diagnostic screening
• Optimization of multiplex PCR assays with divergent primer T_m values
• Non-PCR thermal applications: restriction enzyme digests (37°C–65°C), ligase incubations, cDNA synthesis, and NGS library preparation steps (e.g., end-repair, A-tailing)
• Educational labs where intuitive interface and reliability reduce training overhead
• Core facilities managing high-throughput sample processing with minimal operator intervention

FAQ

Is the SimpliAmp compatible with third-party PCR plates and tubes?
Yes—it accepts ANSI/SLAS-standard 96-well plates and tubes from major suppliers (e.g., Axygen, Corning, Thermo Scientific) without adapter requirements.

Can VeriFlex zones be used for non-PCR thermal incubations?
Absolutely. Each zone can be held at a static temperature for extended periods (up to 99 hours), enabling parallel enzyme reactions under defined thermal conditions.

Does the instrument support scheduled start times or delayed runs?
Yes—time-based run initiation is configurable via the touchscreen or Thermo Fisher Connect interface, with local clock synchronization via NTP or manual setting.

What validation documentation is included upon delivery?
Each unit ships with a Factory Calibration Certificate (traceable to NIST standards), Installation Qualification (IQ) checklist, and Operational Qualification (OQ) test protocol templates aligned with ISO 13485 and GMP Annex 11 expectations.

Is offline operation supported without Wi-Fi connectivity?
Yes—full local functionality (protocol creation, execution, data export via USB) is available without network access. Wi-Fi is optional and disabled by default.
