Applitech AppliAsep Aseptic Sampling System

Overview

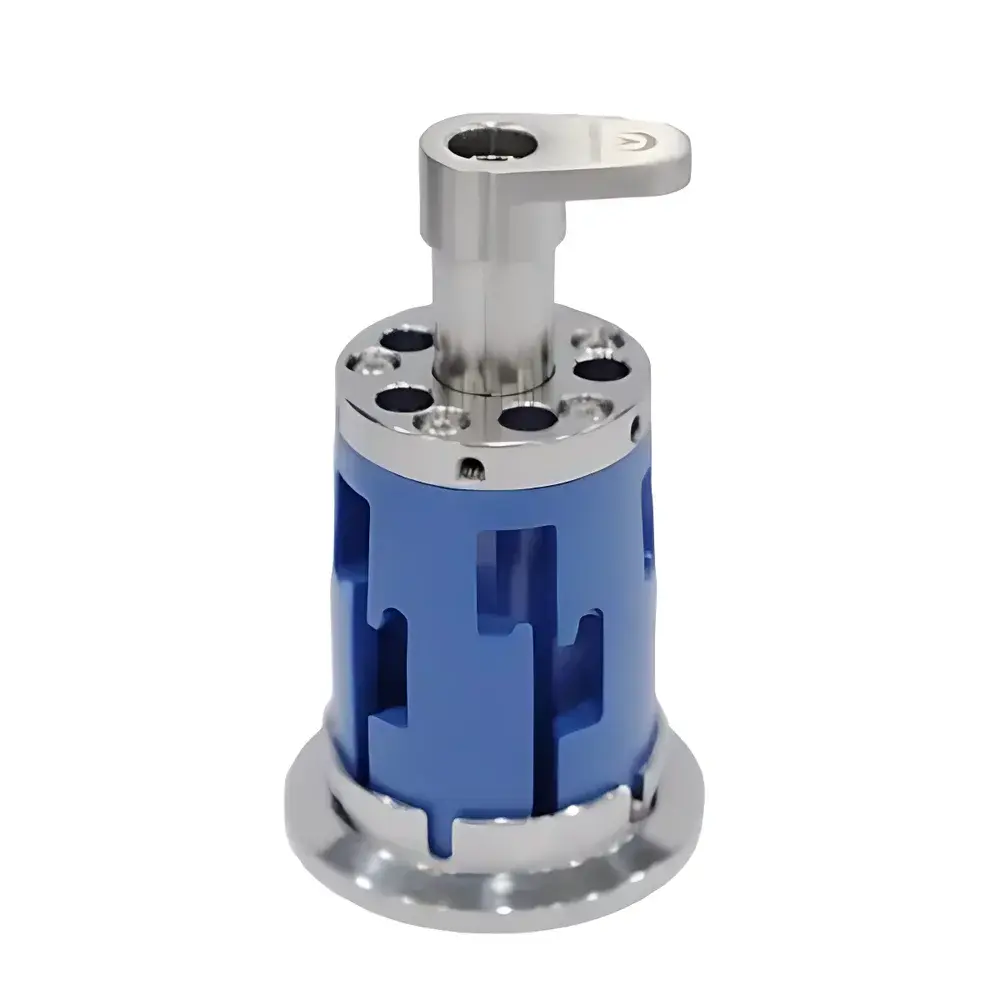

The Applitech AppliAsep Aseptic Sampling System is an engineered solution for sterile, closed-loop sampling from stainless-steel bioreactors and process vessels in biopharmaceutical manufacturing. Designed around the principle of single-point aseptic connection with multi-sample capability, the system eliminates the need for repeated vessel penetrations—thereby minimizing bioburden introduction, cross-contamination risk, and operator intervention. It operates on a true single-use, pre-assembled, pre-sterilized (gamma or E-beam) consumable architecture, where the sampling bag assembly—including tubing, needle, and septum-piercing interface—is factory-sealed and validated per ISO 11137 and USP <1229>. The reusable base station integrates mechanical alignment features and tactile feedback mechanisms to ensure repeatable, orientation-critical engagement during installation and sampling. This design supports compliance with current Good Manufacturing Practice (cGMP), FDA 21 CFR Part 11 (when paired with compliant data logging systems), and EU Annex 1 requirements for aseptic processing.

Key Features

• Pre-sterilized, fully closed, single-use sampling assemblies—validated for sterility assurance and extractables/leachables per USP <661.1> and <1663>

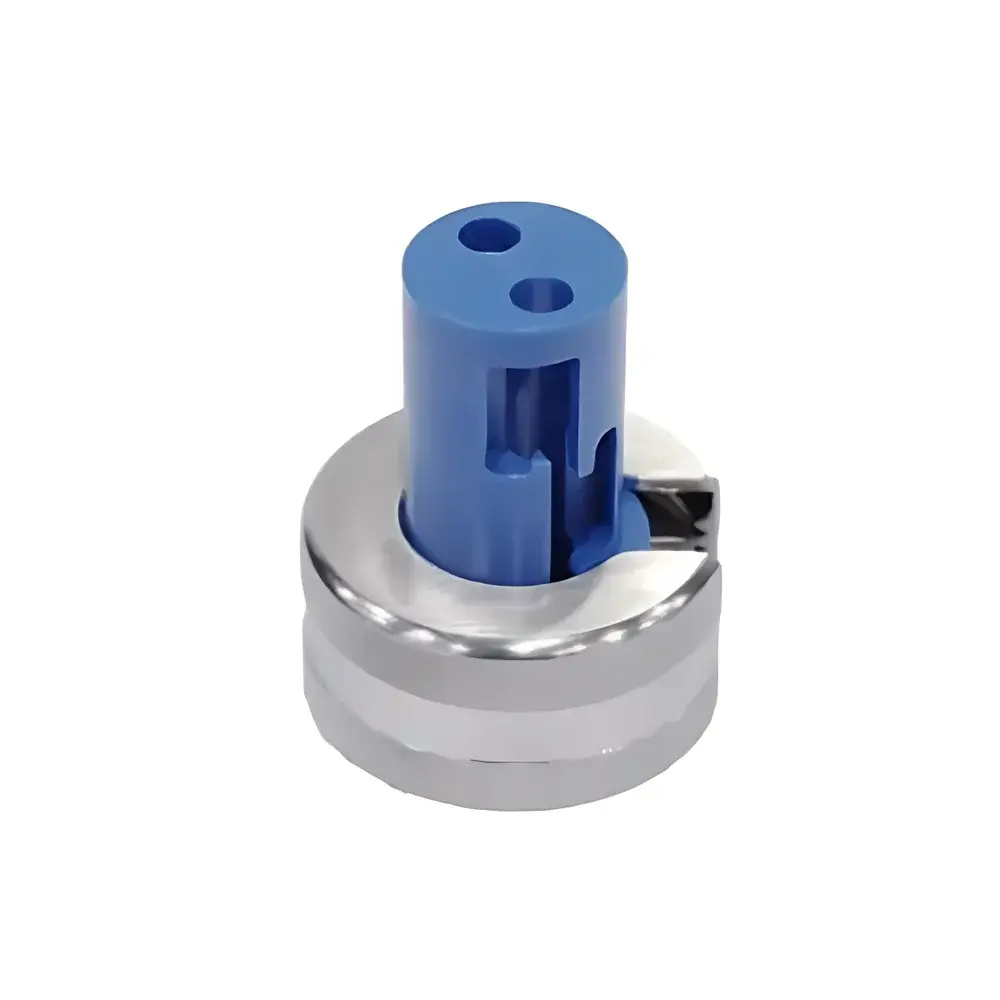

• Reusable, autoclavable or SIP-compatible base station with dual anti-slip grooves and precision-machined metal locking points for reproducible alignment
• Fail-safe mechanical interlock: sampling needle rotates only between two defined positions—“standby” (prevents accidental actuation) and “sampling” (enables controlled fluid transfer)
• No CIP/SIP integration required for the disposable components; base station withstands standard Clean-in-Place (CIP) and Steam-in-Place (SIP) cycles up to 135°C
• Modular interface design supporting multiple port configurations (e.g., 1/4″–1/2″ sanitary clamps, Tri-Clamp®, SMS, DIN 11851) and vessel wall thicknesses up to 25 mm
• Integrated tactile and visual position indicators at each operational step—supporting operator training, SOP adherence, and audit readiness

Sample Compatibility & Compliance

The AppliAsep system is compatible with mammalian cell culture harvests, microbial fermentations, viral vector preparations, and mRNA-LNP formulations across temperature ranges from −80°C to +40°C. Sampling bags are constructed from USP Class VI-certified multilayer films (e.g., ethylene vinyl acetate / polyolefin laminates) with low protein binding and minimal leachable profiles. All wetted materials comply with FDA 21 CFR 177.1520 and EU 10/2011 regulations. The system supports sampling for compendial testing including USP <71> Sterility Tests, USP <85> Bacterial Endotoxins Test, USP <788> Particulate Matter in Injections, and ASTM F88/F1921 seal integrity verification. Documentation packages include V&V reports (Installation Qualification, Operational Qualification, Performance Qualification), material traceability dossiers, and sterilization validation summaries.

Software & Data Management

While the AppliAsep hardware operates mechanically without embedded electronics, it is designed for seamless integration into digital manufacturing ecosystems. Optional accessories—including RFID-tagged sampling kits, barcode-scannable lot labels, and electronic logbooks—enable full traceability from batch ID to sample location, time stamp, operator ID, and environmental conditions (if linked to facility SCADA). When deployed alongside MES or LIMS platforms, the system supports ALCOA+ data integrity principles: Attributable, Legible, Contemporaneous, Original, Accurate, Complete, Consistent, Enduring, and Available. Audit trails meet FDA 21 CFR Part 11 requirements when used with qualified electronic signature modules.

Applications

• In-process monitoring of critical quality attributes (CQAs): pH, osmolality, glucose/glutamine, lactate, viable cell density, and metabolite profiling
• Release and stability testing: sterility, endotoxin, bioburden, subvisible particle count (per USP <788> and <789>), and container closure integrity (CCIT)
• Process characterization studies: shear stress evaluation during sampling, hold-time validation, and cold-chain compatibility assessment (e.g., −80°C storage, freeze-thaw cycling)
• Comparability protocols: bridging studies between legacy and new manufacturing processes via consistent, low-risk sampling methodology
• GMP-compliant tech transfer support: standardized sampling workflow reduces variability across sites and contract manufacturing organizations (CMOs)

FAQ

Is the AppliAsep system suitable for use with single-use bioreactors?
Yes—the system interfaces with both stainless-steel and single-use vessels via adaptable mounting flanges and pressure-rated sealing gaskets.
Can the base station be reused indefinitely?
Yes, provided it undergoes routine visual inspection, dimensional verification, and cleaning validation per your site’s SOP; typical service life exceeds 200 SIP cycles.
Does Applitech provide qualification support for GMP implementation?
Yes—Applitech offers IQ/OQ protocol templates, on-site commissioning assistance, and regulatory documentation packages aligned with ICH Q5A, Q5D, and Annex 1 expectations.
How is sample volume accuracy ensured?
Volume control is achieved through calibrated needle geometry, fixed flow-path resistance, and timed manual actuation; optional gravimetric calibration kits are available for ±1% volumetric accuracy verification.
Are custom bag configurations available for non-standard analytes or assay volumes?
Yes—custom sampling bag designs (e.g., lyophilization-ready vials, pre-filled reagent pouches, or multi-compartment formats) can be developed under NDA and manufactured under ISO 13485 quality system controls.
