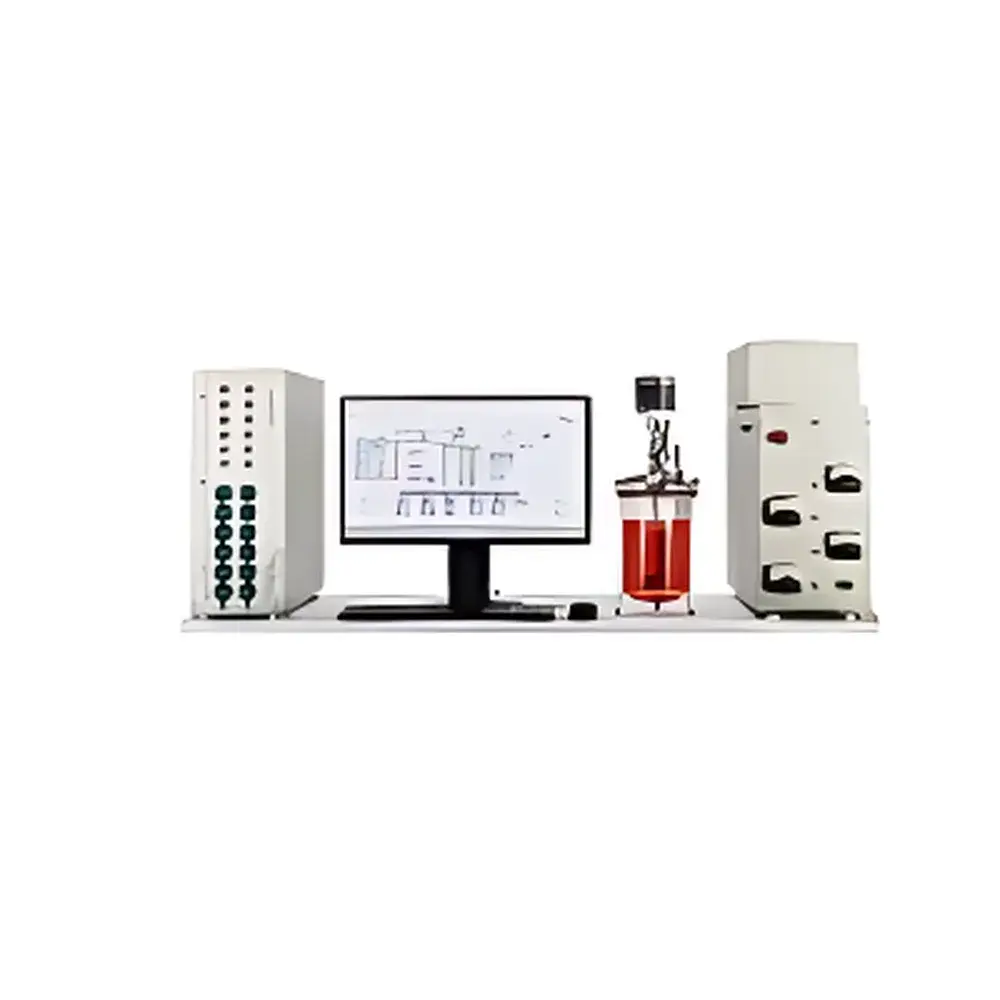

Applitech d-Control Intelligent Bioreactor Control System

Overview

The Applitech d-Control Intelligent Bioreactor Control System is an open-architecture, DeltaV™-powered automation platform engineered specifically for bioprocess development and manufacturing. Built upon Emerson’s industry-proven DeltaV Distributed Control System (DCS), d-Control integrates rigorous process control engineering with Applitech’s domain expertise in bioreactor operation, cell culture, and single-use technology. It implements a deterministic, real-time control architecture grounded in ISA-88 and ISA-95 standards, enabling consistent execution of complex bioprocess sequences—including fed-batch, perfusion, and continuous cultivation—across scale-up transitions. Unlike proprietary or embedded PLC-based controllers, d-Control leverages DeltaV’s certified safety and audit-trail capabilities, ensuring traceability, version-controlled logic, and full compliance with regulatory expectations for data integrity in GxP environments.

Key Features

• Open DeltaV™ Architecture: Utilizes Emerson DeltaV DCS software suite with native S88/S95 module definition support, enabling reusable control modules and standardized recipe management.
• Multi-Bioreactor Scalability: Configurable to manage up to 32 bioreactors simultaneously—each with independent PID loops, cascade control, and dynamic setpoint scheduling.
• Real-Time Process Database: DeltaV Historian captures time-synchronized data from sensors (pH, DO, temperature, weight, gas flow, pressure) and actuators (pumps, valves, spargers) at sub-second resolution.
• Advanced Alarm Management: Alarms are classified by priority (critical, high, medium, low), responsibility zone, acknowledgment status, and activation timestamp; SMS notifications integrate with enterprise paging systems.
• OPC-UA & Legacy Protocol Support: Native OPC Unified Architecture interface ensures secure, bidirectional communication with third-party devices (e.g., Mettler Toledo sensors, Sartorius controllers, GE ÄKTA systems) and legacy Modbus/Profibus field instruments.
• GxP-Ready Data Handling: Supports electronic signatures, audit trails, user role-based access control (RBAC), and 21 CFR Part 11-compliant electronic records when deployed with DeltaV Electronic Logbook and Vault services.

Sample Compatibility & Compliance

d-Control is validated for use with both stainless-steel and single-use bioreactors across microbial fermentation and mammalian cell culture applications. It supports standard bioprocess measurement ranges: pH (0–14), dissolved oxygen (0–100% air saturation), temperature (0–60°C), weight (±0.1% FS), and mass flow (0–100 SLPM). The system complies with ISO 13485 design controls, meets IEC 62304 software lifecycle requirements, and is architected to support validation activities per ASTM E2500, EU Annex 11, and USP Analytical Instrument Qualification. All control logic, HMI graphics, and alarm configurations are version-controlled and subject to formal change management per ALCOA+ principles.

Software & Data Management

Data acquisition, visualization, and reporting are unified within the DeltaV environment. The embedded Trend View displays multi-variable time-series plots with configurable interpolation and event-marking overlays. Historical data is exported directly to Microsoft Excel via DeltaV’s Report Generator—enabling statistical process monitoring (SPC), batch deviation analysis, and PAT-aligned multivariate modeling. DeltaV Batch Executive supports structured batch record generation, while DeltaV Sync allows synchronized deployment of control strategies from lab-scale prototypes to commercial manufacturing sites. Integration with MES (e.g., Siemens Opcenter, Rockwell FactoryTalk) and LIMS (e.g., Thermo Fisher SampleManager) occurs through certified OPC interfaces or RESTful APIs, facilitating automated data handover for quality review and regulatory submission.

Applications

• Development and transfer of fed-batch CHO cell culture processes from 2 L benchtop reactors to 2,000 L production vessels
• Perfusion-based monoclonal antibody production using disposable bioreactors with integrated cell retention systems
• Microbial fermentation (E. coli, Pichia) with dynamic feed-forward pH/DO coupling and substrate-limited growth control
• Process characterization studies requiring high-fidelity data capture for QbD (Quality by Design) submissions
• GMP batch record generation and electronic signature workflows aligned with FDA and EMA expectations
• Cross-site technology transfer with identical control logic, alarm thresholds, and trending templates

FAQ

Is d-Control qualified for use in FDA-regulated biomanufacturing facilities?
Yes—when deployed with DeltaV’s validated components and configured per Applitech’s IQ/OQ documentation package, d-Control supports compliance with 21 CFR Part 11, EU Annex 11, and ICH Q5A/Q5D requirements.
Can existing lab-scale control strategies be reused in pilot or production environments?
Yes—d-Control employs modular, object-oriented control narratives that maintain functional equivalence across scales, eliminating re-engineering of control logic during tech transfer.
Does d-Control support integration with non-Emerson hardware?
Yes—via OPC UA, Modbus TCP, and native drivers for leading bioprocess instrumentation vendors including Sartorius, Eppendorf, and Hamilton.
How is cybersecurity addressed in the d-Control architecture?
DeltaV’s segmented network design, role-based authentication, TLS 1.2 encryption for remote access, and regular security patching cycles align with IEC 62443-3-3 Level 2 requirements.
What level of validation support does Applitech provide?
Applitech delivers complete URS, FRS, and DQ/IQ/OQ documentation packages, along with on-site commissioning, protocol execution support, and 21 CFR Part 11 readiness assessments.
