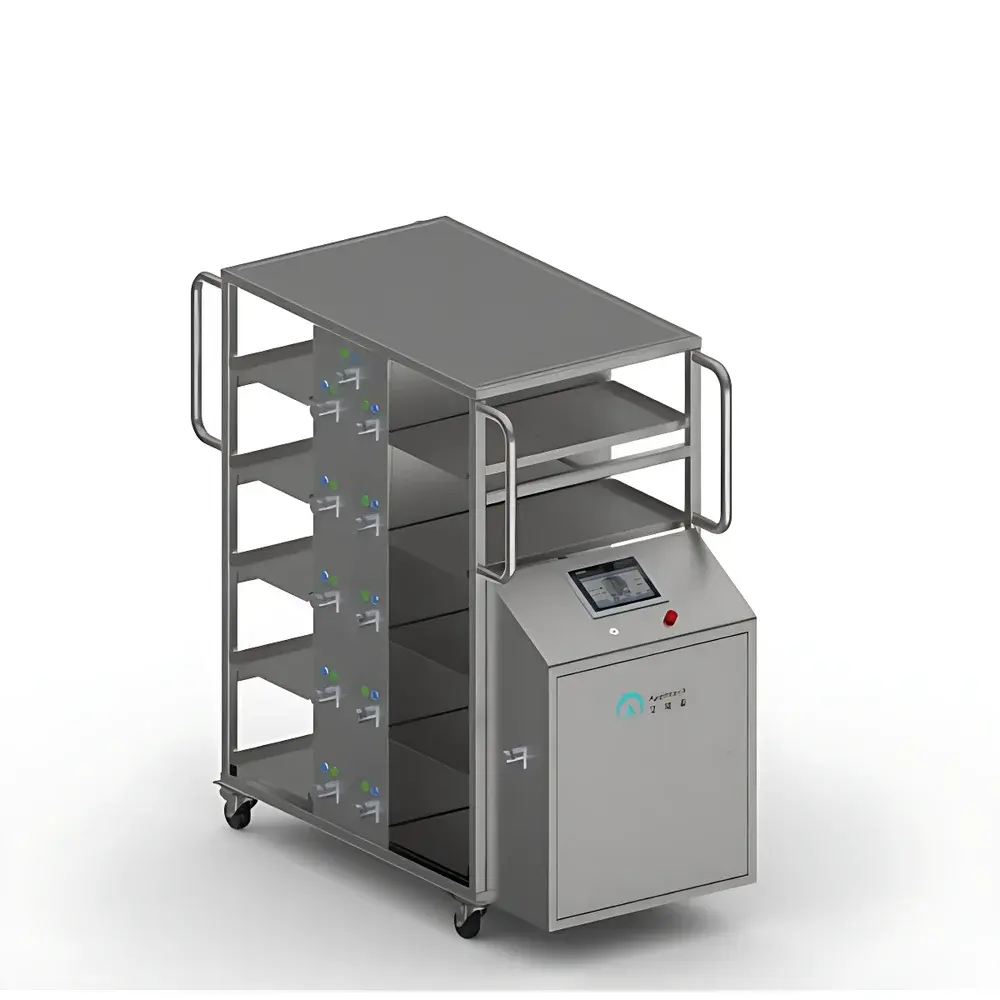

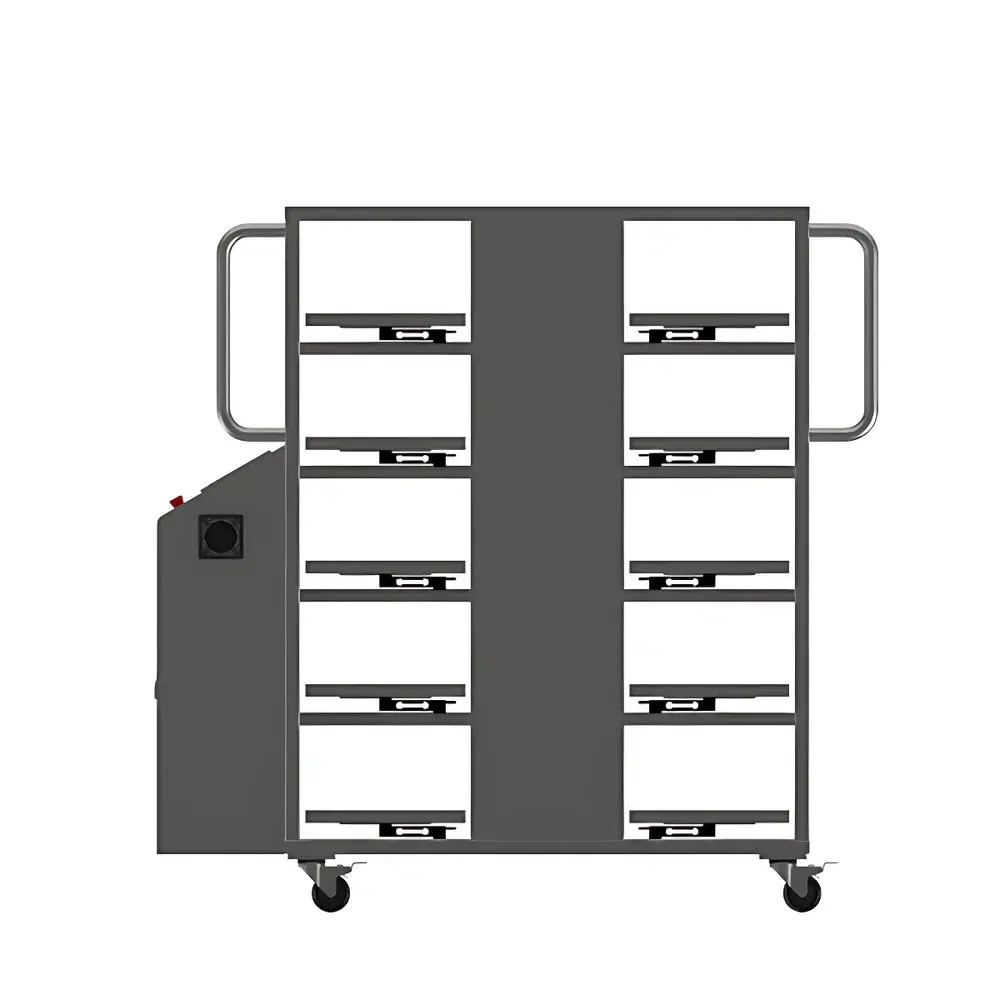

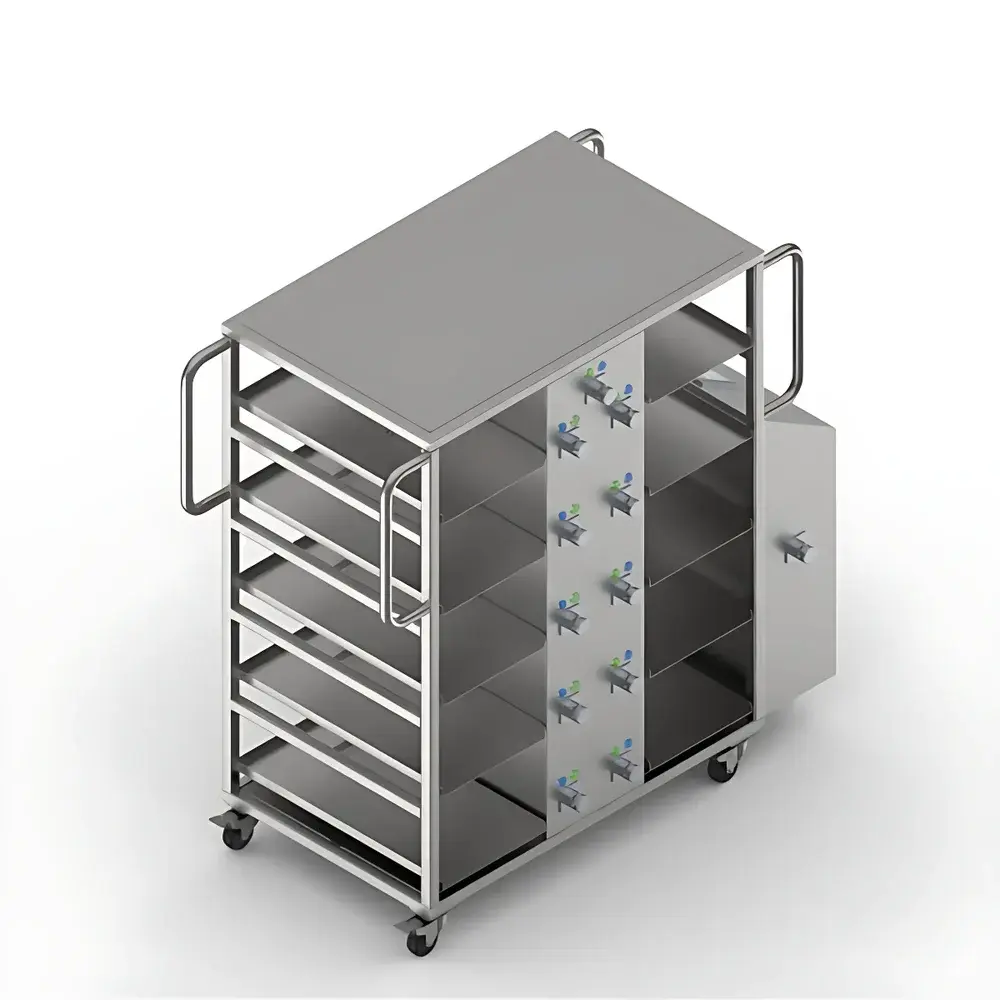

Applitech Ultra-Low Temperature Liquid Dispensing System

Overview

The Applitech Ultra-Low Temperature Liquid Dispensing System is an engineered solution for precise, scalable, and GMP-aligned bulk liquid handling in biopharmaceutical manufacturing and upstream/downstream process development. Designed specifically for temperature-sensitive biological fluids—including cell culture media, buffers, drug substance intermediates, and viral vector formulations—the system operates reliably across a controlled thermal range down to –80 °C, ensuring sample integrity during dispensing. It employs gravimetric dispensing as the primary measurement principle, utilizing multi-point high-resolution load cells integrated into the dispensing platform to deliver traceable mass-based accuracy. Unlike volumetric systems subject to density drift or thermal expansion errors, this architecture ensures consistent performance regardless of fluid viscosity, temperature fluctuation, or compositional variation—critical for QC-critical applications such as lot release testing and clinical-grade material preparation.

Key Features

• Gravimetric dispensing architecture with multi-point calibrated load cells for ±0.1% full-scale repeatability across 50 mL–50 L volume ranges
• Modular dispensing units configurable per user-defined container geometry (e.g., single-use bags, stainless-steel vessels, glass bottles, or bioreactor seed trains)
• Integrated pressure monitoring at inlet, manifold, and outlet nodes with real-time visualization and automatic shutdown upon exceeding preset thresholds
• Recovery-enabled fluid path design supporting reverse-flow purge and internal line blow-down using inert gas (N₂ or compressed air), minimizing residual hold-up volume to <0.3% of total dispensed mass
• Intuitive HMI interface with touch-enabled workflow navigation, pre-loaded SOP templates, and one-touch initiation of validated dispensing sequences
• Comprehensive data governance framework compliant with FDA 21 CFR Part 11 requirements, including electronic signatures, role-based access control, and immutable audit trails

Sample Compatibility & Compliance

The system accommodates aqueous and non-aqueous biological solutions with viscosities ranging from 1–500 cP and particulate loadings up to 5% w/v (e.g., clarified harvests, microcarrier suspensions). All wetted surfaces are constructed from USP Class VI-certified materials—including EPDM-free fluoropolymer tubing, 316L stainless steel manifolds, and silicone-free diaphragm pumps—to prevent leachables and support cleaning-in-place (CIP) validation. The platform meets ISO 13485:2016 design controls requirements and supports qualification documentation packages aligned with ASTM E2500-13 and ICH Q5A(R2) guidance for biologics handling equipment. Optional IQ/OQ protocols are available for installation and operational verification under GMP environments.

Software & Data Management

The embedded control software (v3.2+) provides recipe-driven batch execution with parameter locking, version-controlled formula management, and dynamic deviation logging. Each dispensing event records timestamped metadata—including ambient temperature, chamber humidity, load cell drift compensation values, and pressure transducer diagnostics—for full traceability. Data export supports CSV, PDF, and XML formats compatible with LIMS and MES integration. Audit trail entries comply with ALCOA+ principles: attributable, legible, contemporaneous, original, accurate, complete, consistent, enduring, and available. Backup is performed automatically to redundant on-board SSD storage and optionally to network-attached storage (NAS) via TLS 1.2–encrypted Ethernet connection.

Applications

• Dispensing of serum-free and chemically defined cell culture media into single-use bioreactors (5–2000 L scale)
• Buffer preparation and distribution for chromatography steps in mAb purification workflows
• Fill-finish of drug substance intermediates prior to ultrafiltration/diafiltration
• Preparation of master cell bank (MCB) and working cell bank (WCB) aliquots under cryogenic conditions
• High-integrity transfer of lentiviral or AAV vectors into cryovials or storage bags at –80 °C
• Automated formulation blending for Phase I–III clinical trial material production

FAQ

Does the system support integration with existing SCADA or MES platforms?
Yes—via OPC UA (v1.04) and Modbus TCP protocols, with configurable tag mapping and alarm forwarding.
What is the minimum detectable mass increment during dispensing?
The system achieves 10 mg resolution across its full 50 g–50 kg operating range, validated per ASTM E898-22 Annex A2.
Can the dispensing unit be sterilized in place (SIP)?
No—SIP is not supported; however, CIP validation is fully supported using steam or chemical agents compatible with ASME BPE-2022 surface finish standards.
Is remote monitoring and troubleshooting available?
Yes—through secure HTTPS web interface with dual-factor authentication and session timeout enforcement.
How is calibration traceability maintained?
Load cells are factory-calibrated against NIST-traceable deadweight standards; field recalibration intervals follow ISO/IEC 17025-recommended practices (typically every 6 months or after 500 cycles).
