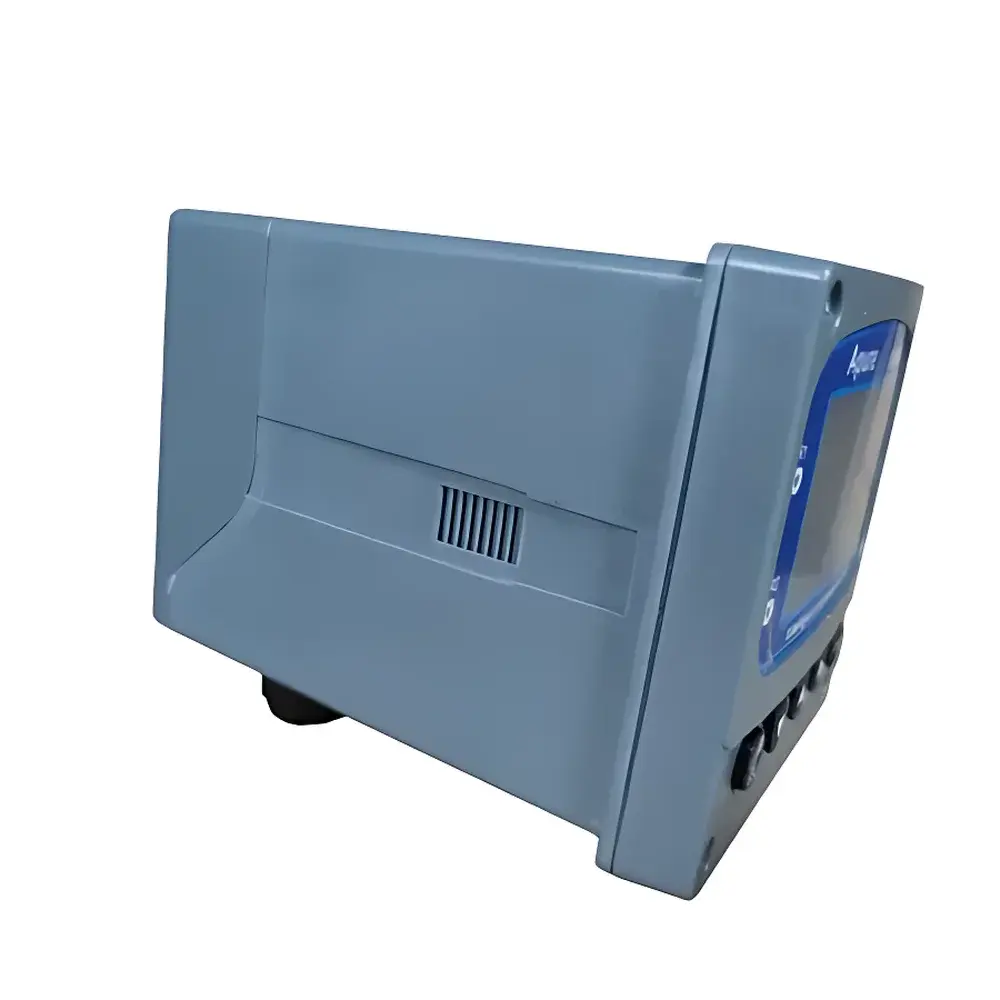

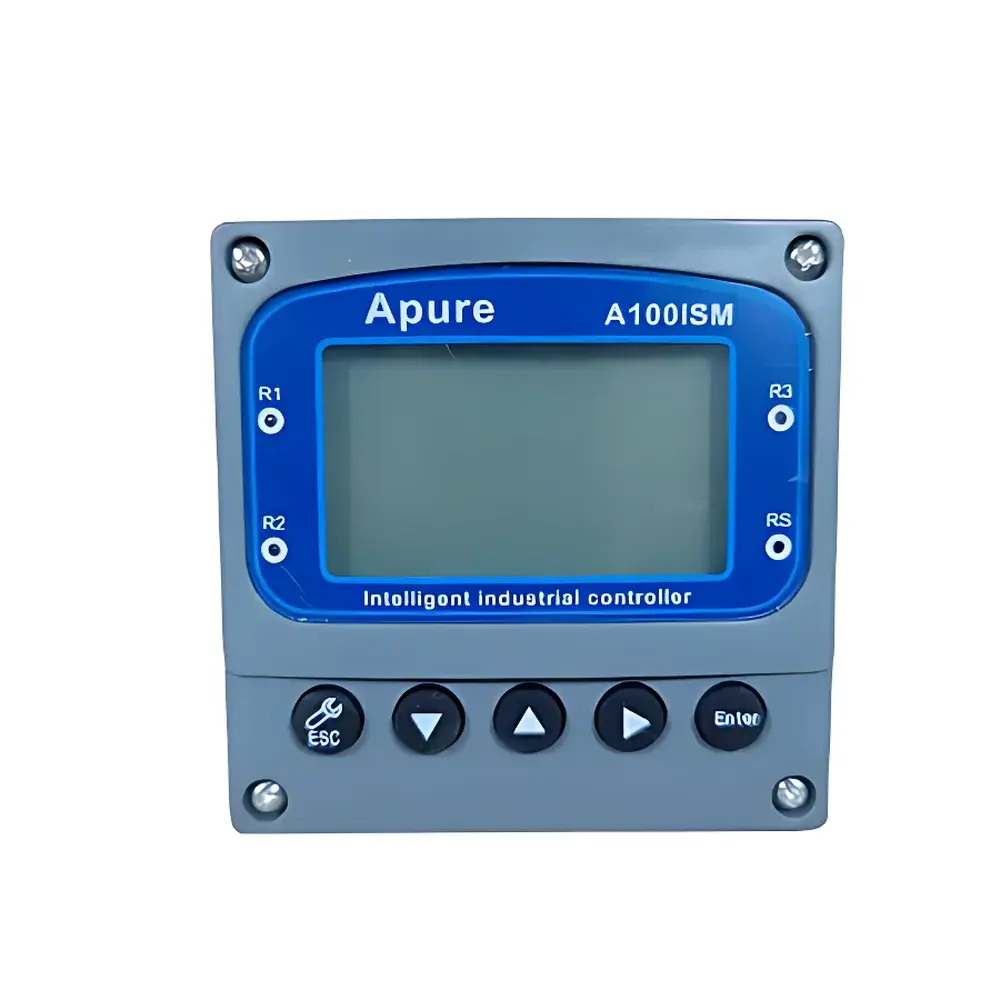

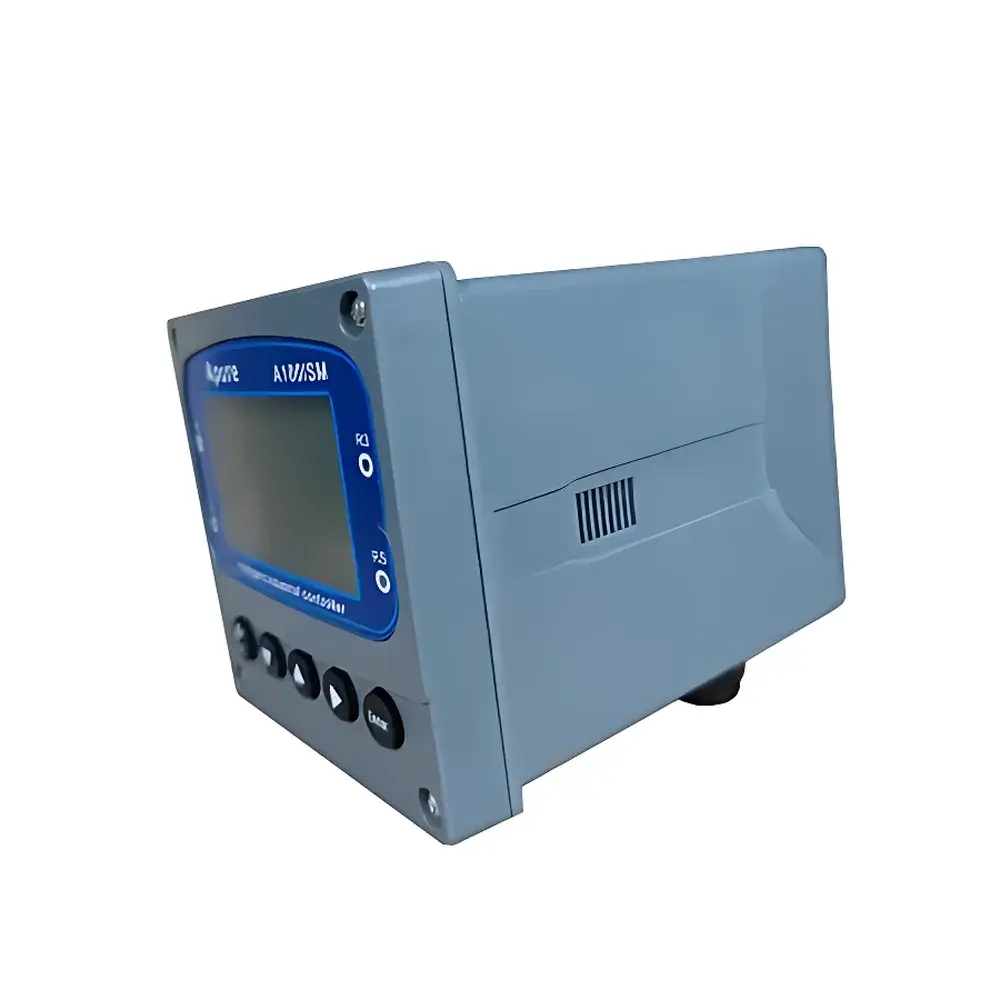

APURE A100ISM Intelligent Online Water Quality Analyzer

Overview

The APURE A100ISM Intelligent Online Water Quality Analyzer is an integrated, multi-parameter process analyzer engineered for continuous, real-time monitoring of critical water quality parameters in industrial and municipal water systems. Based on standardized electrochemical and optical sensing principles—including potentiometric pH/ORP measurement, conductometric conductivity detection, amperometric dissolved oxygen (DO) analysis, amperometric or colorimetric residual chlorine quantification, and nephelometric turbidity assessment—the A100ISM delivers stable, traceable measurements under dynamic flow conditions. Its modular sensor interface architecture supports field-replaceable probe configurations, enabling long-term operational continuity without system downtime. Designed to meet the functional requirements of continuous emission monitoring (CEM) and process control loops, the instrument operates as a stand-alone analyzer or integrates seamlessly into distributed control systems (DCS) and SCADA networks via analog output and relay logic.

Key Features

• Multi-language user interface: Factory-default Chinese display with one-touch toggle to English—fully compliant with international operator training and multilingual facility standards.
• Galvanically isolated 4–20 mA analog outputs: Three independently configurable current channels (one per parameter or temperature), each protected against ground-loop interference and electromagnetic noise—certified to IEC 61000-4-4 (EFT) and IEC 61000-4-5 (surge) immunity levels.
• Three programmable SPST relays: Configurable as high/low alarms or control interlocks; hysteresis adjustment (0.1–10% full scale) prevents chattering during setpoint transitions—supports fail-safe shutdown sequencing per IEC 61511.
• Role-based access control: Four-tier password protection (operator, technician, engineer, administrator) enforces procedural integrity and aligns with GLP/GMP documentation workflows.
• Context-sensitive menu navigation: On-screen prompts guide calibration, verification, and diagnostic routines—reducing operator dependency and minimizing procedural errors during routine maintenance.
• Flexible power architecture: Dual-input compatibility (AC 220 V ±10% / DC 24 V ±15%) ensures deployment across diverse utility infrastructures, including solar-powered remote stations and explosion-proof enclosures with intrinsically safe power supplies.

Sample Compatibility & Compliance

The A100ISM is validated for use with potable water, wastewater effluent, boiler feedwater, cooling tower circulation, pharmaceutical process water (PW/WFI), and food-grade rinse solutions. All wetted materials—including sensor housings, gaskets, and flow cells—comply with FDA 21 CFR Part 177 (indirect food additives) and EU Regulation (EC) No. 1935/2004. Measurement accuracy adheres to ISO 7888 (conductivity), ISO 5814 (DO), ISO 7027 (turbidity), and ASTM D1293 (pH). The device meets CE marking requirements under the Electromagnetic Compatibility (EMC) Directive 2014/30/EU and Low Voltage Directive 2014/35/EU. Optional NIST-traceable calibration certificates and IQ/OQ documentation packages are available for regulated environments requiring audit readiness per FDA 21 CFR Part 11 and Annex 11.

Software & Data Management

While the A100ISM operates autonomously via front-panel controls, its analog and relay outputs support integration with third-party data historians (e.g., OSIsoft PI, Emerson DeltaV, Siemens Desigo CC). Internal event logging records calibration timestamps, alarm activations, sensor diagnostics, and power interruptions—with retention for ≥30 days at 1-minute intervals. All configuration changes are time-stamped and user-identified, fulfilling electronic record requirements under ALCOA+ principles. Optional Modbus RTU (RS-485) communication module enables read-only parameter polling and remote configuration lockout—facilitating centralized asset management without compromising local operational autonomy.

Applications

• Municipal wastewater treatment: Real-time DO optimization in activated sludge basins and nitrification-denitrification control.
• Power generation: Continuous monitoring of condensate purity (conductivity), boiler feedwater pH, and turbine cycle corrosion indicators.
• Pharmaceutical water systems: USP compliance tracking for purified water (PW) and water for injection (WFI) distribution loops.
• Food & beverage processing: Sanitation validation via residual chlorine decay profiling and post-CIP turbidity verification.
• Chemical manufacturing: Effluent discharge compliance monitoring per local environmental permits (e.g., EPA NPDES, EU Urban Wastewater Treatment Directive).

FAQ

Does the A100ISM support automatic temperature compensation for all measured parameters?

Yes—each channel (pH, conductivity, DO, turbidity) applies configurable auto-compensation using either built-in Pt1000 RTD input or external temperature probe signal.
Can turbidity ranges be changed in-field without returning the unit to the factory?

Yes—range selection (0–20 NTU, 0–400 NTU, or 0–4000 NTU) is software-configurable via the setup menu and requires no hardware modification.
Is the 4–20 mA output certified for hazardous area installations?

The base unit is rated for general-purpose use (IP65 front panel); for Zone 1/21 installations, it must be mounted in an approved barrier-protected enclosure with intrinsic safety barriers per IEC 60079-11.
What calibration protocols does the A100ISM follow for regulatory audits?

It supports two-point pH calibration (NIST-traceable buffers), single-point DO zero/span, and multi-point turbidity verification using Formazin or AMCO AEPA standards—full calibration logs are exportable via USB service port.
How is firmware updated, and is version history retained?

Firmware updates are performed via micro-USB using APURE’s certified engineering tool; previous versions remain archived in non-volatile memory for rollback and audit trail reconstruction.
