Apure A11PR-AA1 Online pH/ORP Controller

Overview

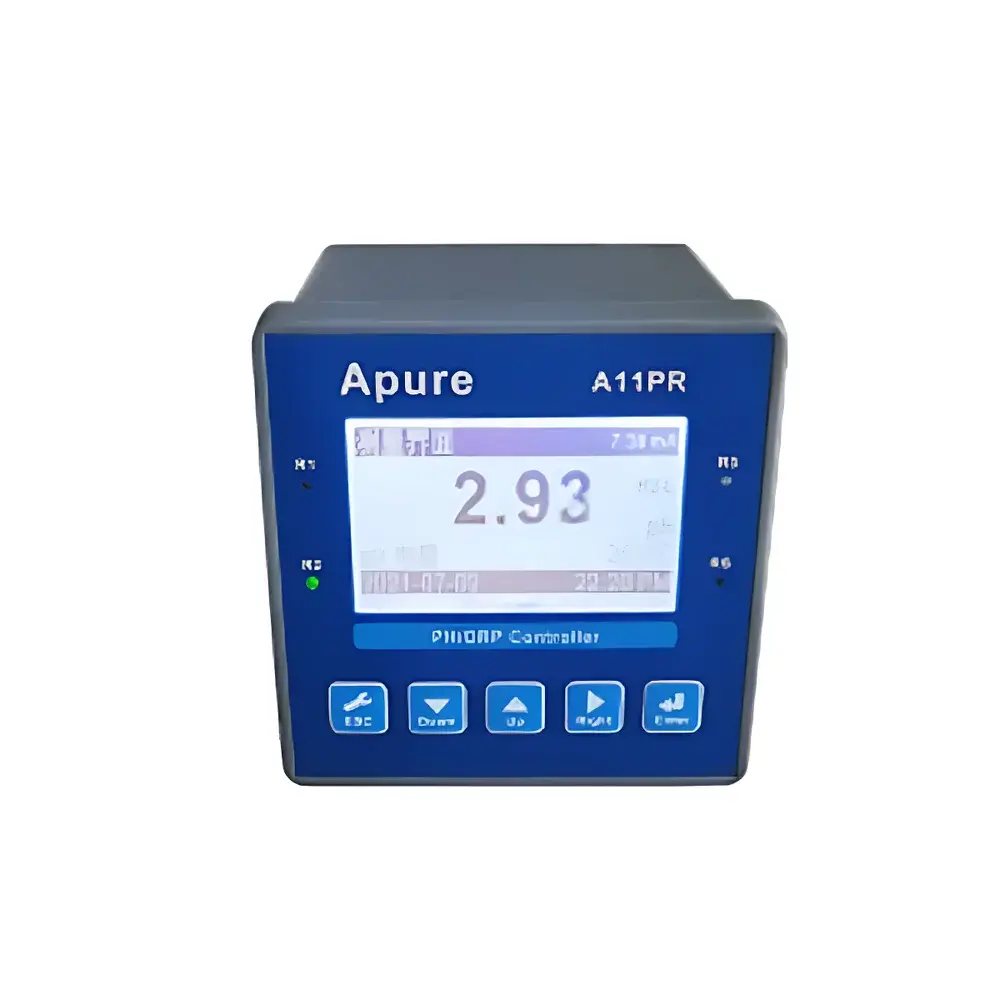

The Apure A11PR-AA1 is a DIN-rail mountable, panel-integrated online pH and ORP controller engineered for continuous, high-stability monitoring and control in industrial process environments. It operates on the principle of potentiometric measurement: pH is determined via Nernst equation-based voltage response from a glass electrode relative to a stable reference electrode, while ORP (Oxidation-Reduction Potential) is measured as the absolute millivolt potential difference between a noble metal sensing electrode (typically platinum or gold) and the same reference. Designed for 24/7 operation in chemical dosing systems, wastewater treatment basins, cooling tower control loops, and pharmaceutical water purification stages, the A11PR-AA1 delivers real-time electrochemical data with laboratory-grade repeatability under field conditions. Its compact 96×96 mm front face conforms to IEC 60751 and DIN 43700 mounting standards, enabling seamless integration into existing PLC cabinets and centralized control panels without requiring external signal conditioners.

Key Features

• Dual-channel independent measurement architecture supporting simultaneous pH and ORP monitoring with auto-ranging input circuitry
• High-impedance input stage (>10¹² Ω) optimized for low-noise signal acquisition from glass and redox electrodes
• Integrated temperature compensation using Pt1000 RTD input (0.1 °C resolution) with automatic or manual mode selection
• Configurable relay outputs (2 × SPDT) with programmable hysteresis, delay timers, and fail-safe logic for pump/valve actuation
• 4–20 mA analog output with galvanic isolation (1500 V_AC) for connection to DCS/SCADA systems, supporting linear or square-root scaling
• Backlit LCD display with dual-line, 16-character alphanumeric interface showing real-time pH, ORP, temperature, and status flags
• IP65-rated front panel enclosure with corrosion-resistant polycarbonate housing suitable for humid and chemically aggressive ambient conditions

Sample Compatibility & Compliance

The A11PR-AA1 is compatible with standard two-electrode and three-electrode pH/ORP sensor configurations, including gel-filled, refillable, and solid-state reference designs. It supports common industrial electrode types such as Apure’s own A12 series, Hamilton’s Arc, and Mettler Toledo’s InPro series—provided they comply with ISO 15255 (electrochemical sensors for process applications) and IEC 61298-2 (transmitter performance requirements). The device meets EMC directive 2014/30/EU and Low Voltage Directive 2014/35/EU. While not certified for SIL2/SIL3 applications, its design adheres to functional safety principles outlined in IEC 61508 Part 1–3 for non-safety-critical process monitoring. Calibration traceability aligns with ISO/IEC 17025 when performed using NIST-traceable buffer solutions (e.g., pH 4.01, 7.00, 10.01 at 25 °C).

Software & Data Management

Configuration and calibration are executed locally via the front-panel keypad or remotely through Modbus RTU over RS-485 (addressable up to 32 units on one bus). The unit stores up to 10 calibration records with timestamps, electrode slope (%), and offset (mV) values—enabling audit-ready documentation for GLP/GMP-regulated facilities. No proprietary PC software is required; configuration parameters can be exported/imported via ASCII text files using standard terminal emulators (e.g., PuTTY). All relay actions and analog output states are logged internally with time stamps (real-time clock with ±2 sec/month accuracy), supporting basic trend analysis over 30 days. Data export is supported via optional USB-to-RS485 adapter (not included), facilitating CSV-formatted logs for QA review or regulatory submission.

Applications

• Chemical feed control in potable water treatment (e.g., acid/base dosing for lime softening or CO₂ correction)
• pH stabilization in bioreactors and fermentation tanks where enzymatic activity is pH-sensitive
• ORP-guided disinfection control in swimming pools and municipal wastewater effluent polishing
• Monitoring of rinse bath chemistry in electroplating and PCB manufacturing lines
• Continuous verification of conductivity-pH correlation in ultrapure water (UPW) distribution loops per ASTM D5127
• Leachate pH tracking in landfill leachate collection systems compliant with EPA Method 9040C

FAQ

Does the A11PR-AA1 support automatic temperature compensation (ATC)?

Yes—it accepts Pt1000 RTD input and applies NIST-referenced Callendar-Van Dusen polynomial correction across 0–100 °C.
Can it be calibrated using a single-point method?

Yes—both one-point (offset-only) and two-point (slope + offset) calibration modes are supported, with validation prompts after each step.
Is the 4–20 mA output isolated from power supply?

Yes—galvanic isolation rated at 1500 V_AC ensures immunity from ground-loop interference in multi-device installations.
What is the maximum cable length supported for electrode connections?

Up to 30 meters with shielded twisted-pair cable (RG-174 or equivalent); beyond this, signal degradation may affect accuracy below ±0.02 pH.
Does it meet FDA 21 CFR Part 11 requirements?

No—the device does not provide electronic signatures, audit trails, or user access controls required for Part 11 compliance; however, raw calibration logs may be archived externally for ALCOA+ adherence.
