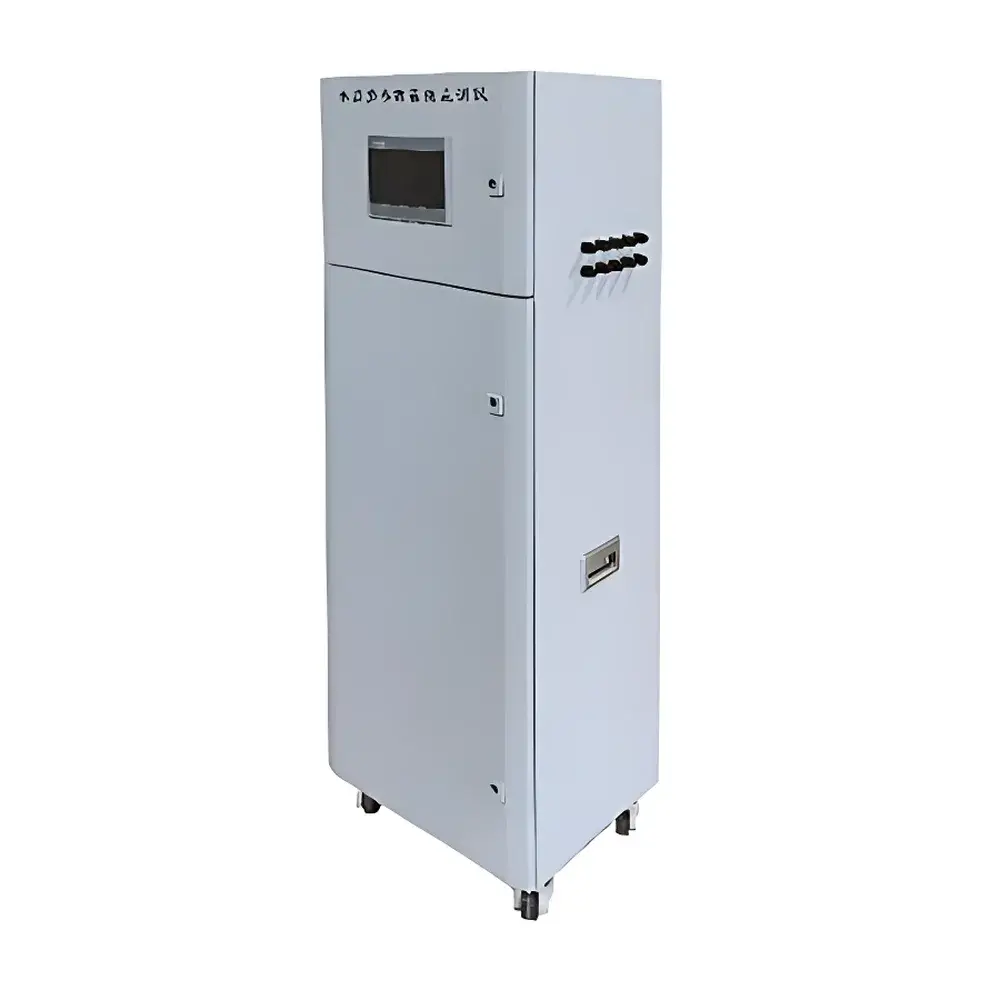

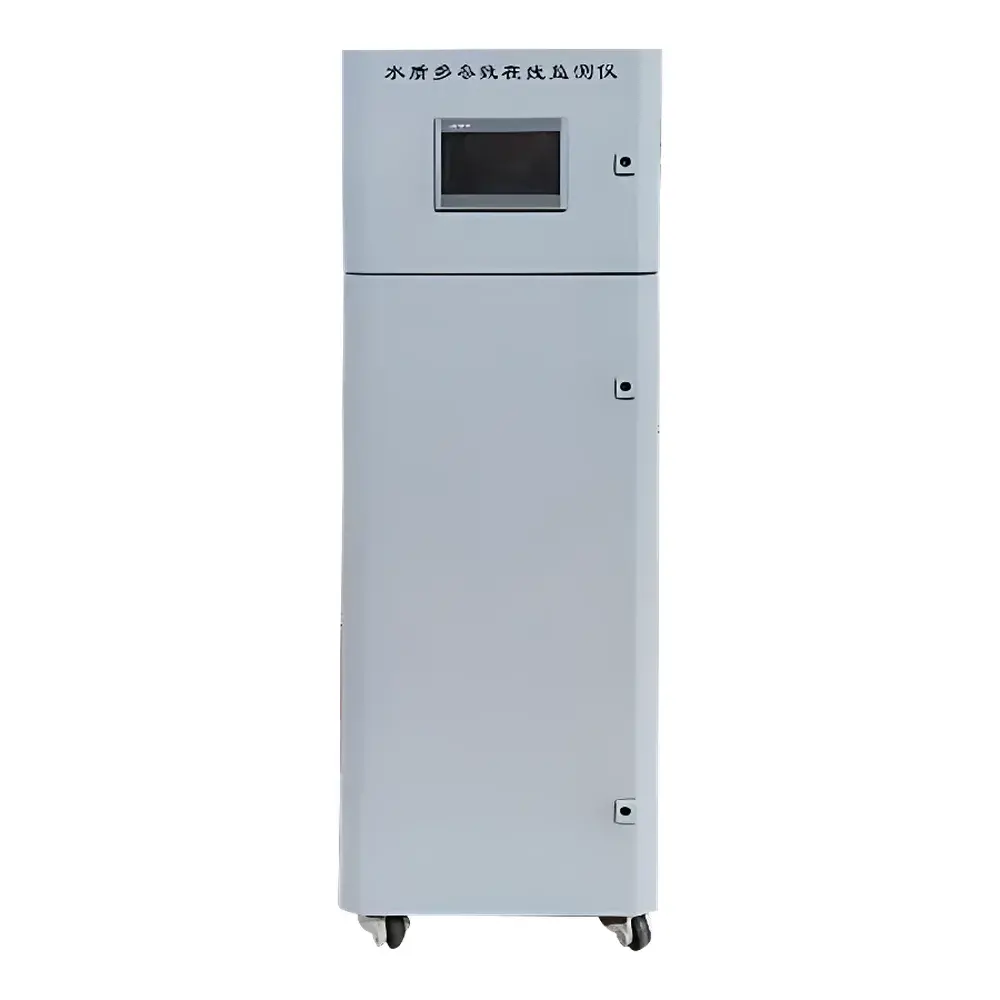

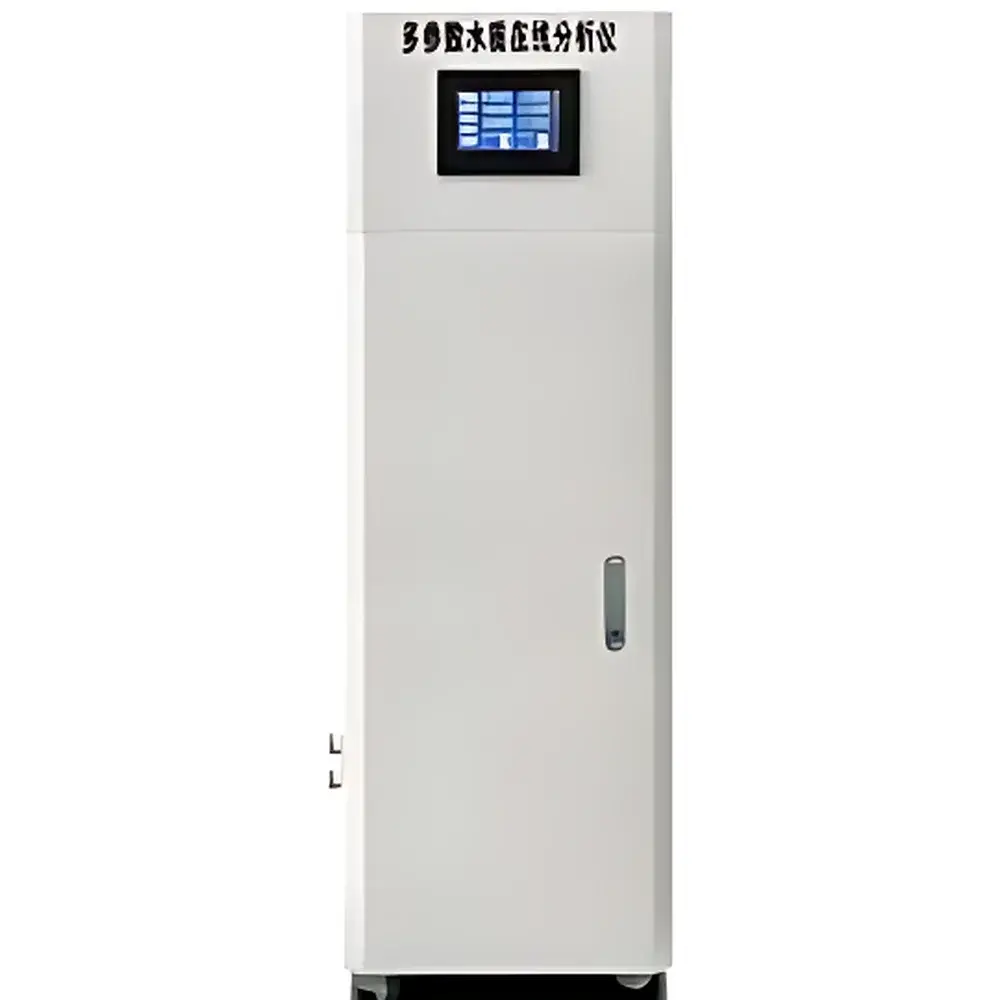

Apure KS-500 Multi-Parameter Online Water Quality Analyzer

Overview

The Apure KS-500 Multi-Parameter Online Water Quality Analyzer is an integrated, process-mounted instrumentation platform engineered for continuous, real-time monitoring of critical water quality parameters in municipal drinking water distribution systems, water treatment plant influent and effluent streams, and industrial process water networks. Utilizing industry-standard electrochemical, optical, and thermal sensing principles—potentiometric pH measurement, four-electrode conductivity detection, nephelometric turbidity analysis, galvanic or polarographic dissolved oxygen sensing, amperometric free chlorine quantification, and Pt1000-class temperature compensation—the KS-500 delivers synchronized, time-stamped data across six core parameters. Its modular sensor architecture supports field-replaceable probe assemblies, enabling maintenance without system shutdown. Designed for unattended operation in controlled indoor environments (e.g., pump station control rooms, water utility SCADA cabinets), the analyzer complies with fundamental environmental monitoring requirements under ISO 5667-2 (water sampling) and aligns with functional expectations of EPA Method 180.1 (chlorine), ASTM D1293 (pH), and ASTM D5391 (conductivity) for routine verification protocols.

Key Features

• Single-inlet, single-effluent hydraulic design minimizes plumbing complexity and cross-contamination risk—only one sample line and one waste discharge required.
• Modular sensor bays accommodate calibrated, pre-assembled probes; each parameter module features independent diagnostics, drift monitoring, and auto-zero capability where applicable (e.g., turbidity dark-current compensation).
• Embedded dual communication architecture: two isolated RS485 ports configured for MODBUS RTU protocol support daisy-chained integration into existing PLC or SCADA systems; optional RS232 or cellular DTU interface enables remote telemetry to cloud-based dashboards or centralized water management platforms.
• Ruggedized IP65-rated enclosure with corrosion-resistant stainless-steel frame and polycarbonate front panel ensures long-term reliability in humid, non-explosive indoor installations.
• Configurable alarm thresholds per parameter with relay outputs (dry contact) for local actuation of warning lights, audible alarms, or interlock signals to dosing controllers.
• Onboard data logging stores up to 30 days of 1-minute interval readings (configurable), with timestamped CSV export via USB or serial interface for audit-ready record retention.

Sample Compatibility & Compliance

The KS-500 is validated for use with potable water, surface water, groundwater, and clarified secondary effluent within specified operational limits: sample temperature 5–40 °C, suspended solids < 100 mg/L (to prevent turbidity sensor fouling), and free chlorine concentrations up to 20 mg/L. It is not intended for seawater, highly viscous fluids, or samples containing abrasive particulates or strong oxidants beyond its sensor specifications. While not certified to UL/CE for hazardous locations, the unit meets IEC 61000-6-2 (immunity) and IEC 61000-6-4 (emissions) for industrial environments. Data integrity practices—including configurable audit trails, user-level access control (admin/operator modes), and non-volatile memory—support alignment with GLP documentation workflows and internal QA/QC procedures. Though not inherently 21 CFR Part 11 compliant, its data export functionality enables traceable integration into validated LIMS or electronic lab notebook systems.

Software & Data Management

The KS-500 operates with embedded firmware supporting both local configuration via intuitive LCD menu navigation and remote setup using Apure’s Windows-based PC utility (KS-ConfigTool v3.x). This utility enables sensor calibration validation, alarm logic editing, MODBUS register mapping, and firmware updates. All measurement data adhere to standard MODBUS RTU register maps (holding registers 40001–40030), ensuring interoperability with leading SCADA vendors (Siemens Desigo, Schneider EcoStruxure, Honeywell Experion). Time-synchronized data packets include UTC timestamps generated from internal RTC (battery-backed), facilitating correlation with upstream flow or pressure events. Optional MQTT or OPC UA gateway modules are available through Apure’s system integration partners for IIoT deployment.

Applications

• Municipal drinking water: Real-time surveillance of disinfection residual (free chlorine), pH stability, and turbidity at entry points to distribution networks and critical junctions.
• Water treatment plants: Continuous feedback control for coagulant dosing (via turbidity), pH correction (acid/base feed), and chlorine contact time optimization (DO + Cl₂ synergy).
• Industrial cooling towers: Monitoring conductivity for blowdown control, pH for corrosion inhibition, and residual biocide levels to prevent Legionella proliferation.
• Food & beverage facilities: Ensuring rinse water quality compliance prior to product contact surfaces, with automated alerts on parameter excursions affecting HACCP critical limits.
• Remote booster stations: Standalone operation with solar-compatible power options and LTE telemetry for infrastructure with limited network connectivity.

FAQ

Can the KS-500 be installed outdoors?
No. The analyzer is rated IP65 and designed for indoor, climate-controlled environments only. Outdoor installation requires a NEMA 4X enclosure with active thermal management and UV shielding—neither supplied nor validated by Apure.

Is sensor calibration traceable to NIST standards?
Calibration solutions used with KS-500 sensors (e.g., pH 4.01/7.00/10.01 buffers, KCl conductivity standards) must be sourced from accredited providers (e.g., Mettler Toledo, Hanna Instruments); Apure provides certificate-of-conformance documentation for factory calibration but does not issue NIST-traceable certificates.

What is the recommended maintenance interval?
Sensor cleaning and verification every 30–90 days depending on water matrix; full system inspection (seals, tubing, grounding) every 6 months; annual firmware review and backup of configuration files.

Does the KS-500 support automatic temperature compensation for all parameters?
Yes. Integrated Pt1000 temperature sensing provides real-time compensation for pH, conductivity, DO, and turbidity measurements per ISO 7888 and ASTM D3370 methodologies.

Can additional parameters be added post-purchase?
No. The KS-500 is hardware-configured at manufacture. Expansion beyond the six standard parameters (pH, conductivity, turbidity, DO, free chlorine, temperature) requires upgrading to the KS-700 series platform.
