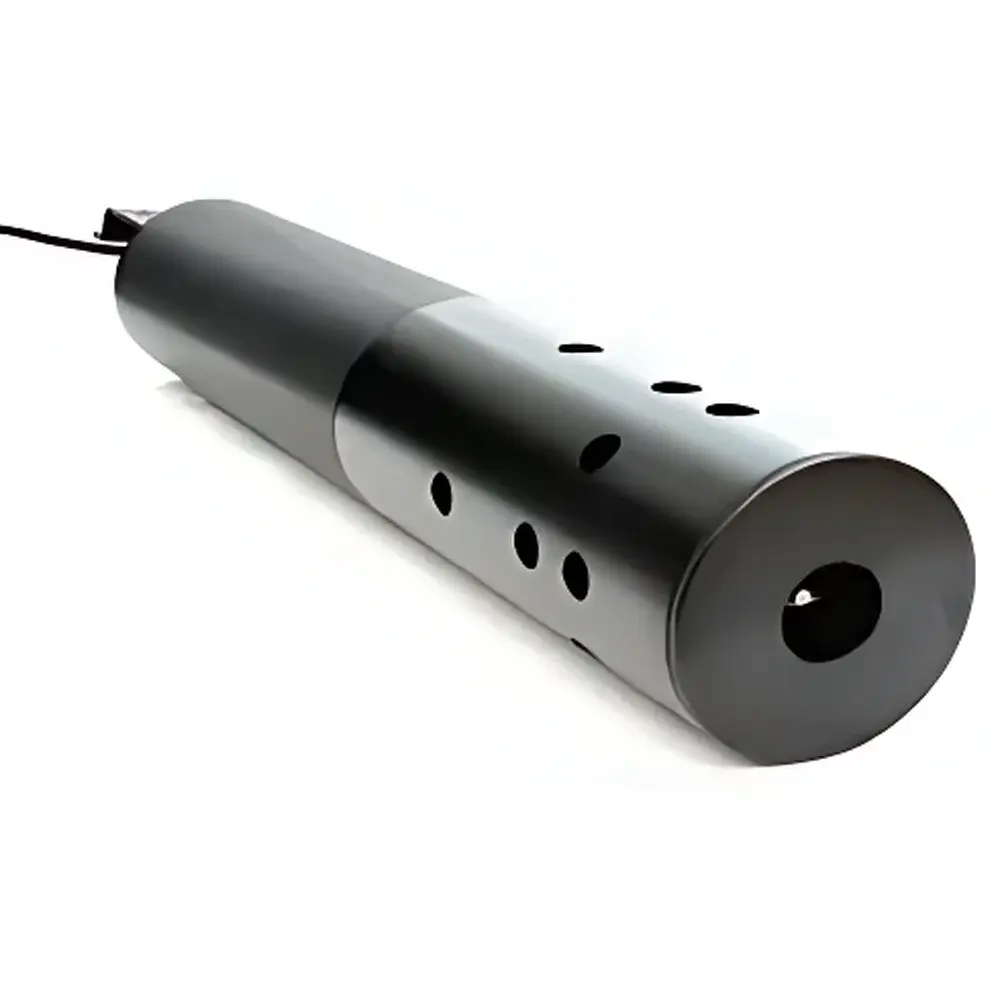

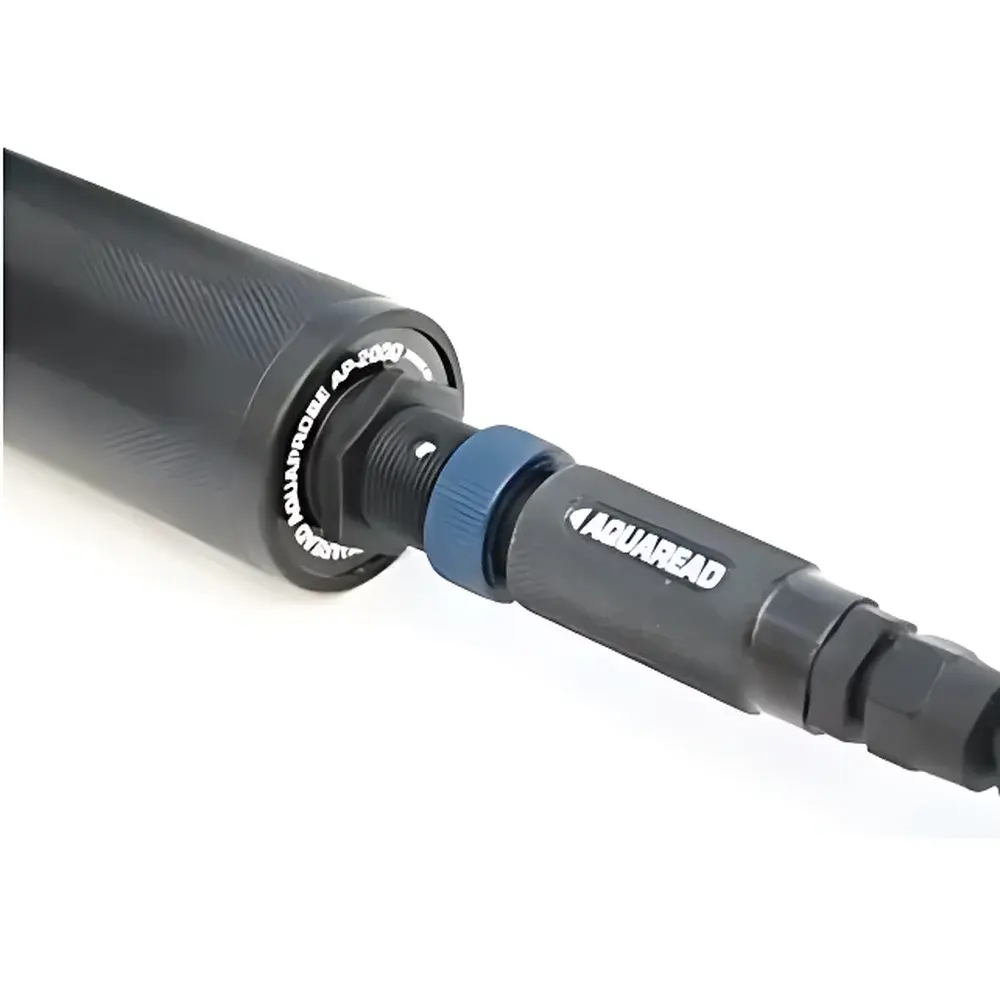

Aquaread AP-2000 Portable Multi-Parameter Water Quality Monitor with Integrated Nitrate ISE Sensor

Overview

The Aquaread AP-2000 is a field-deployable, multi-parameter water quality monitoring platform engineered for high-reproducibility in situ measurements across freshwater, estuarine, and coastal environments. At its core, nitrate quantification is performed via a solid-contact, potentiometric ion-selective electrode (ISE) based on polyvinyl chloride (PVC)-membrane technology—selectively responsive to NO₃⁻ anions in aqueous solution under Nernstian behavior (−59.2 mV/decade at 25 °C). The system integrates real-time temperature compensation (−5 °C to +50 °C) and auto-ranging analog signal conditioning to maintain measurement integrity across variable ionic strength matrices (0–100,000 mg/L TDS). Unlike laboratory-based spectrophotometric or chromatographic methods, the AP-2000 enables immediate, non-destructive field assessment without reagent consumption or sample preservation—critical for time-sensitive nutrient loading studies, regulatory compliance sampling, and early-warning systems in watershed management.

Key Features

• Modular sensor architecture: Base platform supports up to 12 simultaneous parameters—including temperature, depth, pH, ORP, DO (optical Clark-type), conductivity, TDS, salinity, resistivity, and seawater density (σ_t)—all with automatic temperature compensation.

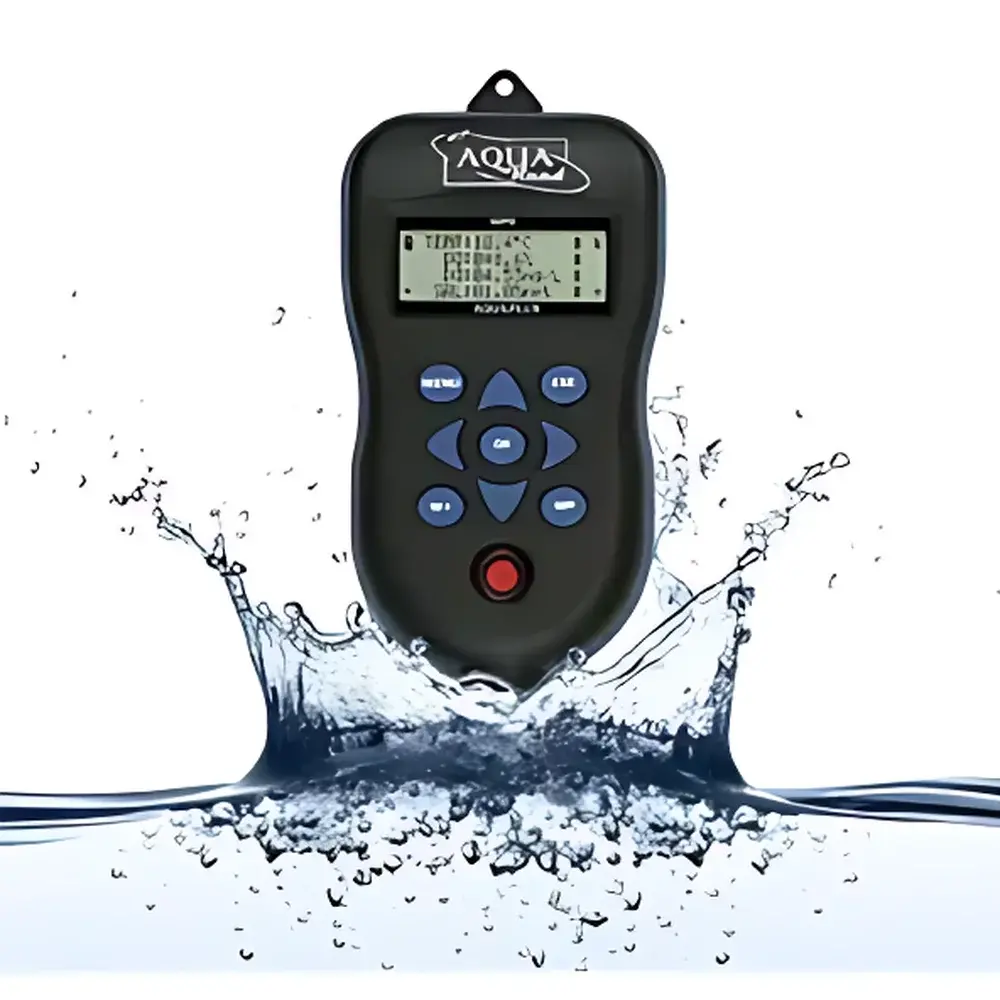

• Dual deployment options: AM-200 handheld display (IP67, −20 °C to +70 °C operating range, 1900-point internal memory, built-in 12-channel GPS ±10 m accuracy) or Aqualogger autonomous data logger (32,000-point memory, 6-month battery life on two C-cell alkalines, programmable event-triggered or time-series acquisition).
• Expandable ISE and optical probe interface: Optional nitrate-specific ISE (0–1000 mg/L NO₃⁻-N, ±10% accuracy), plus interchangeable optical modules for chlorophyll-a, phycocyanin (cyanobacteria), turbidity (ISO 7027-compliant), and hydrocarbon fluorescence.
• Ruggedized field design: Enclosure rated IP67 (submersible to 1 m for 30 min); corrosion-resistant titanium and PEEK sensor body; RS-485/RS-232 communications; compatible with third-party telemetry (e.g., LoRaWAN, cellular modems via optional gateway).
• Calibration traceability: Onboard calibration logging with user-defined timestamps, operator ID, buffer lot numbers, and drift verification—supporting GLP-aligned documentation requirements.

Sample Compatibility & Compliance

The AP-2000 is validated for use in natural waters including rivers, lakes, reservoirs, wastewater effluents, and brackish estuaries (salinity up to 70 PSU). Its nitrate ISE exhibits minimal interference from chloride (<5% signal deviation at Cl⁻:NO₃⁻ molar ratio ≤100:1) and negligible cross-sensitivity to sulfate, phosphate, or bicarbonate under typical environmental concentrations. All electrochemical sensors comply with ISO 10523 (pH), ISO 5814 (DO), and ISO 7888 (conductivity) measurement principles. Data output formats (CSV, XML) are structured to align with WQX (Water Quality Exchange) and EPA STORET metadata schemas. Firmware supports audit-trail-enabled operation per FDA 21 CFR Part 11 when paired with Aquaread’s LoggerLink software (v4.2+), enabling electronic signatures and secure user role management.

Software & Data Management

LoggerLink desktop software (Windows/macOS) provides full configuration, real-time telemetry visualization, calibration curve management, and batch export to LIMS-compatible formats. It enforces version-controlled firmware updates and generates PDF-formatted field reports containing raw sensor outputs, QA/QC flags (e.g., temperature out-of-range, electrode impedance warning), GPS geotags, and operator annotations. All data files include embedded SHA-256 checksums for integrity verification. For enterprise integration, RESTful API access enables direct ingestion into cloud platforms (e.g., AWS IoT Core, Azure IoT Hub) or SCADA systems via MQTT/HTTP protocols—eliminating manual data transcription and reducing reporting latency.

Applications

• Regulatory monitoring programs under EU Water Framework Directive (WFD) Article 5 and US Clean Water Act Section 303(d) listing criteria.
• Nutrient budgeting in agricultural catchments: High-frequency nitrate profiling to quantify subsurface tile drain contributions and evaluate riparian buffer efficacy.
• Drinking water source protection: Early detection of nitrate plume migration near wellheads or springs using Aqualogger-deployed sensor strings.
• Wastewater treatment plant (WWTP) influent/effluent surveillance: Correlation of nitrate dynamics with ammonium oxidation rates and dissolved oxygen gradients.
• Climate-resilient infrastructure assessment: Long-term trend analysis of nitrate seasonality in response to precipitation variability and land-use change.

FAQ

What is the measurement principle for nitrate on the AP-2000?
Nitrate is measured potentiometrically using a solid-contact, PVC-based ion-selective electrode calibrated against NIST-traceable standards.
Can the nitrate sensor be used in seawater?
Yes—the electrode is validated for salinities up to 70 PSU; built-in temperature and ionic strength compensation correct for activity coefficient effects.
How often does the nitrate ISE require recalibration?
Field recalibration is recommended every 7–14 days depending on matrix fouling risk; daily zero-checks with deionized water are advised for critical applications.
Is GPS data synchronized with sensor readings?
Yes—each measurement packet includes timestamped latitude, longitude, altitude, and horizontal dilution of precision (HDOP) values recorded simultaneously with sensor data.
Does the system support remote data retrieval?
When integrated with optional telemetry hardware (e.g., Aquaread Telemeter or third-party LoRa gateways), real-time data streaming and over-the-air firmware updates are fully supported.
