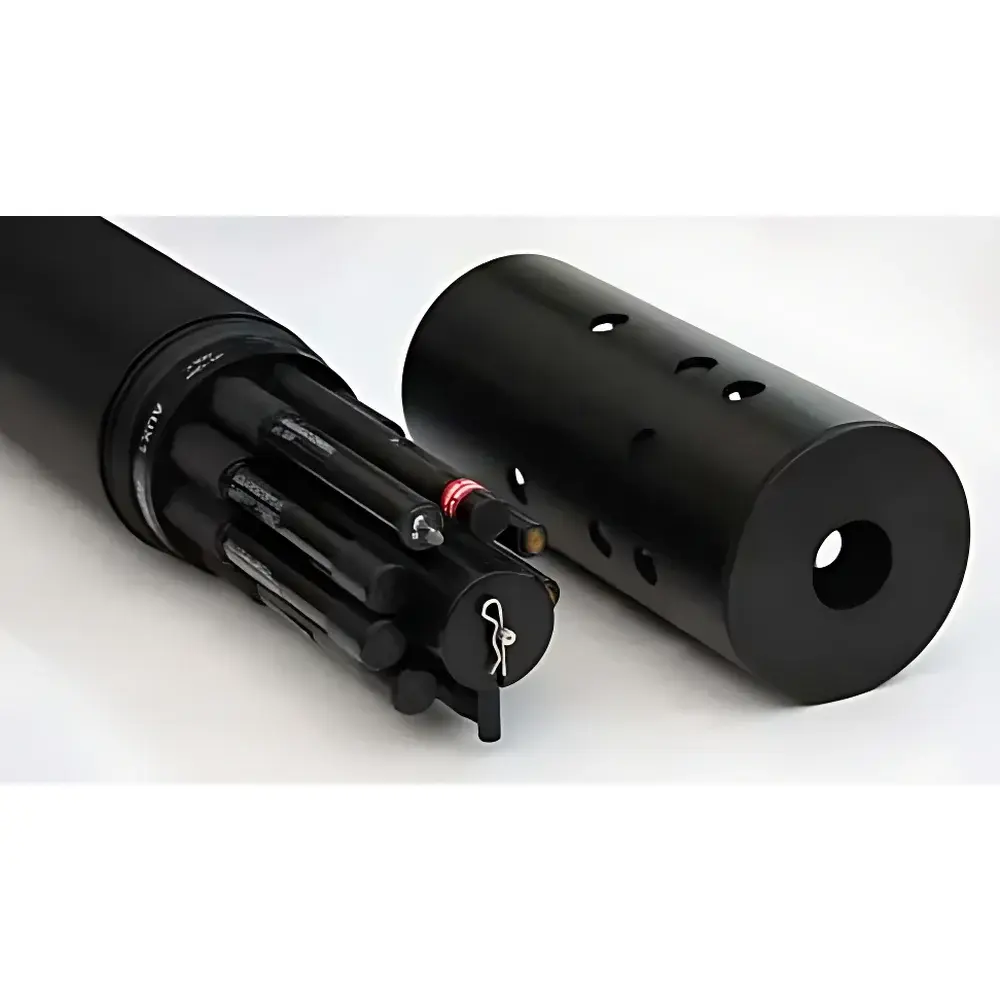

Aquaread AP-7000 Submersible Multi-Parameter Groundwater Quality Monitor
| Brand | Aquaread |
|---|---|
| Origin | United Kingdom |
| Model | AP-7000 |
| IP Rating | IP68 (submersible to 100 m) |
| Operating Temperature | −5 °C to +50 °C |
| Dimensions (L × Ø) | 450 mm × 77 mm |
| Weight (without cable) | 1350 g |
| Standard Optical Sensors | Dissolved Oxygen (optical), pH, ORP, EC, Depth, Temperature |
| Additional Sensor Capacity | 6 configurable ISE or optical sensor ports |
| Communication Interfaces | SDI-12 and Modbus RTU (RS-485) on AP-7000-SDI variant |
| Data Acquisition Modes | Real-time handheld reading (via Aquameter), autonomous logging (Aquaread Logger), and telemetry (Aquaread Telemetric System) |
Overview
The Aquaread AP-7000 is a purpose-engineered, submersible multi-parameter groundwater quality monitor designed for long-term, unattended deployment in boreholes, wells, springs, and shallow aquifer monitoring points. Built upon a robust optical and electrochemical sensing architecture, the AP-7000 employs industry-standard measurement principles—including luminescence-based optical dissolved oxygen detection, solid-state pH and ORP sensing, four-electrode conductivity measurement, and pressure-compensated depth transduction—to deliver high reproducibility and minimal drift over extended field campaigns. Its fully integrated probe design eliminates external cabling between sensors, reducing mechanical failure points and biofouling vulnerability. The system is calibrated traceable to NIST-certified standards and conforms to ISO 7888 (conductivity), ISO 5814 (DO), and ASTM D1293 (pH) methodologies—enabling data defensibility in regulatory reporting contexts such as EPA Region 3 GWPC protocols or EU WFD groundwater monitoring programs.
Key Features
- IP68-rated stainless-steel and PEEK housing rated for continuous submersion up to 100 m depth, with ingress protection validated per IEC 60529
- Integrated anti-biofouling system comprising self-cleaning wiper mechanism and UV-resistant optical windows, extending maintenance intervals beyond 90 days in eutrophic aquifers
- Seven factory-calibrated primary parameters measured simultaneously: optical DO, pH, ORP, specific conductivity (EC), temperature, depth (pressure), and turbidity (optional optical module)
- Six additional sensor expansion ports supporting interchangeable ISEs (e.g., NO₃⁻, NH₄⁺, Cl⁻, F⁻) or optical sensors (e.g., chlorophyll-a, CDOM, hydrocarbon fluorescence)
- Dual communication variants: standard AP-7000 (RS-232/USB for handheld operation) and AP-7000-SDI (SDI-12 and Modbus RTU over RS-485 for SCADA integration)
- Onboard memory stores >1 million timestamped records with microsecond-resolution real-time clock (RTC), compliant with GLP audit-trail requirements
Sample Compatibility & Compliance
The AP-7000 is validated for use in freshwater, brackish groundwater, and low-conductivity aquifer matrices (0–20 mS/cm). Its optical DO sensor exhibits negligible salinity interference, while the four-electrode EC cell maintains accuracy across wide ionic strength gradients (0.01–200 mS/cm). All electrochemical sensors utilize solid-state reference junctions resistant to sulfide poisoning and hydrogen sulfide-rich anoxic zones. Device firmware complies with IEC 62443-3-3 for industrial cybersecurity baseline; data export formats include CSV, XML, and EPA-compliant WQX 3.0 schema. Calibration certificates include uncertainty budgets per ISO/IEC 17025:2017 Annex A.3.
Software & Data Management
Aquaread’s AQ4000 software suite provides full configuration, calibration, and diagnostics via USB or Bluetooth. It supports multi-point calibration with slope/offset validation, automatic temperature compensation (ATC) profile selection (NaCl, KCl, or custom), and drift analysis over time-series datasets. Logged data are exportable with embedded metadata (GPS location, operator ID, calibration history) for chain-of-custody documentation. For enterprise deployment, the Aquaread Telemetric System enables encrypted MQTT or HTTP(S) transmission to cloud platforms (e.g., AWS IoT Core, Azure IoT Hub), with TLS 1.2 encryption and configurable payload compression. Audit logs record all configuration changes, meeting FDA 21 CFR Part 11 electronic record requirements when used with digital signature modules.
Applications
- Long-term groundwater quality trend analysis in regulatory compliance networks (e.g., USGS NGWMN, UK Environment Agency GQA)
- Landfill leachate plume tracking and attenuation zone monitoring
- Managed aquifer recharge (MAR) system performance verification
- Baseline characterization prior to site remediation (e.g., CERCLA Phase I ESA)
- Climate-resilience studies assessing redox zonation shifts under drought/flood cycles
- Academic hydrogeochemical research requiring high-frequency, multi-ion time-series in confined aquifers
FAQ
What is the maximum recommended deployment duration without servicing?
Under typical low-turbidity, aerobic groundwater conditions, the AP-7000 achieves ≥120 days of stable operation before recalibration; in high-organism or sulfidic environments, quarterly inspection is advised.
Can the AP-7000 be deployed in artesian wells with positive head pressure?
Yes—the pressure housing is rated to 10 bar absolute; however, dynamic flow velocities exceeding 1.5 m/s require optional flow-stabilizing shroud installation to prevent sensor vibration artifacts.
Is third-party SCADA integration supported beyond Modbus and SDI-12?
Via optional protocol gateway firmware, BACnet MS/TP, Profibus DP, and DNP3.0 interfaces are available under OEM licensing agreements.
How is calibration traceability documented for regulatory submissions?
Each unit ships with a NIST-traceable calibration certificate listing uncertainty values per parameter, reference standard IDs, environmental chamber conditions, and technician accreditation numbers per ISO/IEC 17025.
Does the system support remote firmware updates in-field?
Yes—over-the-air (OTA) updates are delivered via secure HTTPS endpoint with SHA-256 signature verification and rollback capability to previous stable build.
