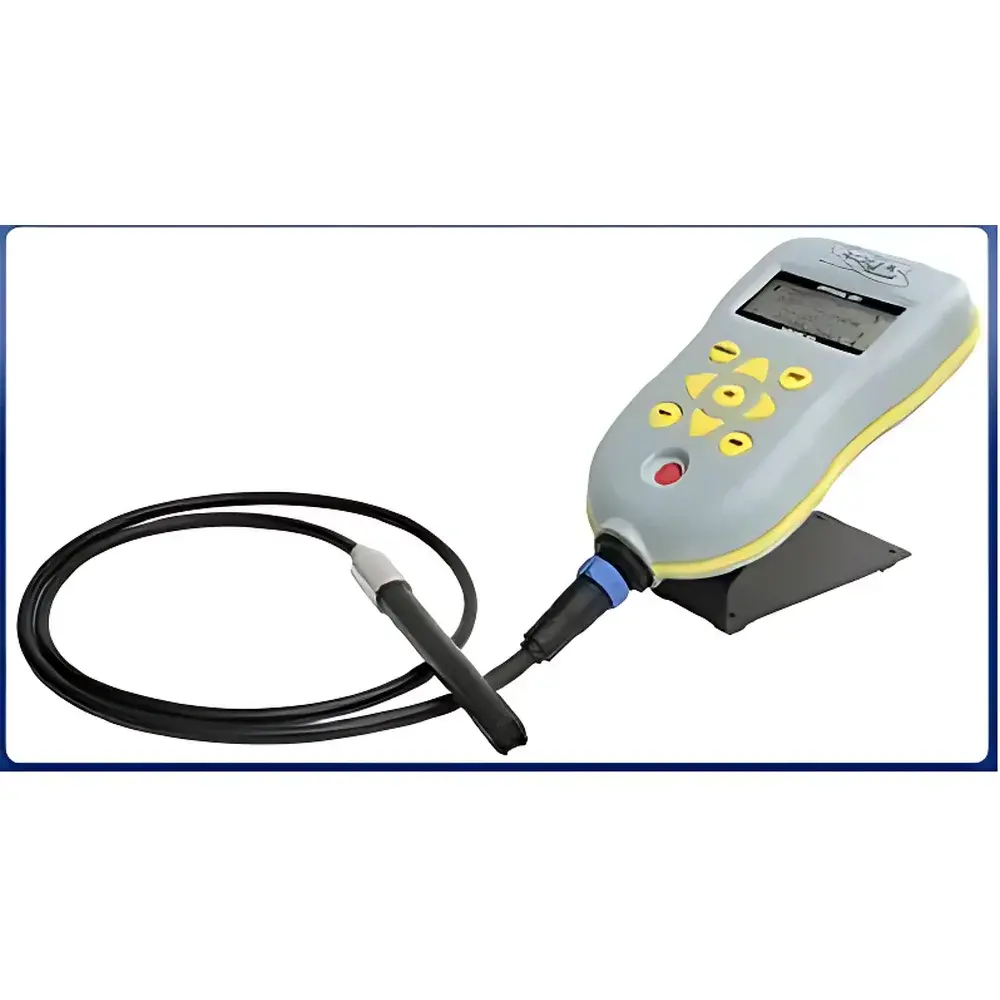

AQUAREAD AquaLab Optical Dissolved Oxygen Meter

Overview

The AQUAREAD AquaLab Optical Dissolved Oxygen Meter is a field-deployable and laboratory-grade instrument engineered for high-precision, maintenance-free measurement of dissolved oxygen (DO) concentration in aqueous environments. Unlike traditional electrochemical Clark-type sensors, the AquaLab employs solid-state luminescence quenching technology—where molecular oxygen modulates the lifetime and intensity of a ruthenium-based luminophore embedded in a gas-permeable polymer matrix. This optical principle eliminates electrode drift, membrane fouling, electrolyte depletion, and flow dependency, delivering stable, reproducible measurements across diverse water matrices including seawater, wastewater, freshwater, and BOD incubation bottles. Its integrated barometric pressure sensor and automatic salinity compensation algorithm—calculated in real time from conductivity-derived ionic strength—enable accurate DO reporting without manual salinity input or post-measurement correction. Designed for compliance with international water quality standards, the AquaLab supports methodologically rigorous monitoring aligned with ISO 5814:2012 (water quality — determination of dissolved oxygen — electrochemical probe method) and ASTM D888-22 (standard test methods for dissolved oxygen in water), while its optical architecture inherently avoids interference from sulfides, chlorides, ammonia, CO₂, and sulfate ions.

Key Features

• Luminescence-based optical sensing: No membranes, electrolytes, or polarization time required
• Real-time, automatic compensation for temperature, atmospheric pressure, and salinity—no user input needed
• Replaceable optical sensor cap: Field-swappable without recalibration or tooling
• Compact probe design (12 mm × 150 mm): Fits directly into standard 300-mL BOD bottles for regulatory-compliant biochemical oxygen demand testing
• Backlit FSTN LCD display with intuitive menu navigation and dual-unit readout (% saturation and mg/L)
• Onboard data logging: Stores up to 3,000 timestamped readings with metadata (temperature, pressure, salinity, DO)
• GLP-compliant calibration management: Supports multi-point zero and span calibration with full audit trail (date, operator ID, reference values)
• Extended battery life (>55 hours on 5 × AA alkaline cells) and low-power standby mode for extended field deployments

Sample Compatibility & Compliance

The AquaLab is validated for use across natural waters (rivers, lakes, estuaries), marine systems, drinking water distribution networks, wastewater treatment streams, aquaculture tanks, and laboratory BOD incubators. Its optical sensor exhibits no chemical interference from common aquatic constituents—including hydrogen sulfide, ammonium, chlorine residuals, carbon dioxide, nitrate, or heavy metal ions—ensuring integrity in chemically complex samples where electrochemical probes fail. The instrument conforms to Good Laboratory Practice (GLP) requirements for traceable calibration and data integrity. All logged measurements include embedded environmental metadata required for regulatory submissions under EPA Method 360.1, ISO 5814, and EU Water Framework Directive (WFD) monitoring protocols. While not certified for FDA 21 CFR Part 11 out-of-the-box, OxiLink software supports configurable electronic signatures and audit-log exports suitable for GxP-aligned validation workflows.

Software & Data Management

OxiLink is a Windows-based desktop application enabling secure configuration, firmware updates, data download, and report generation. It provides structured export options (CSV, PDF, Excel) with customizable templates compliant with ISO/IEC 17025 documentation requirements. Each downloaded dataset includes full traceability: sensor serial number, calibration history, environmental compensation parameters, and operator-defined site metadata. Audit logs record all configuration changes, calibration events, and data export actions—including timestamps and user identifiers—to support internal QA reviews and external accreditation audits. OxiLink also supports batch calibration verification reports and trend analysis across multiple sampling campaigns, facilitating long-term water quality assessment per IWA and WHO guidelines.

Applications

• Regulatory BOD₅ and BOD_u testing in accredited environmental labs
• Marine and estuarine hypoxia monitoring programs
• Wastewater treatment plant process control (aeration basin optimization, nitrification/denitrification tracking)
• Aquaculture dissolved oxygen management and alarm threshold setup
• Drinking water distribution system integrity assessment (residual oxygen mapping)
• Field-based limnological and oceanographic surveys requiring rapid, repeatable DO profiling
• Educational laboratories teaching fundamental principles of aquatic chemistry and sensor physics

FAQ

Does the AquaLab require membrane replacement or electrolyte refilling?
No. As an optical (luminescent) DO meter, it contains no membrane, cathode, anode, or liquid electrolyte—eliminating routine consumables and associated calibration drift.
Can the sensor be used in high-salinity seawater without manual salinity entry?
Yes. The instrument calculates salinity in real time using onboard conductivity data and applies automatic compensation—no user input is required for accurate mg/L reporting in marine or brackish conditions.
Is the probe compatible with standard BOD bottles?
Yes. Its 12-mm diameter and 150-mm length allow direct insertion into 300-mL BOD bottles, supporting EPA and ISO-compliant 5-day BOD incubation protocols without sample transfer or headspace disturbance.
How is calibration traceability maintained for regulatory audits?
Calibration events are stored internally with date/time stamps, operator ID (if configured), reference values, and deviation metrics. OxiLink exports fully annotated calibration reports meeting ISO/IEC 17025 clause 7.7 requirements.
What is the expected service life of the optical sensor cap?
Under typical field use, the replaceable sensor cap maintains NIST-traceable performance for ≥12 months; replacement is indicated by gradual signal decay beyond ±2% of factory baseline—monitored via built-in diagnostic routines.
