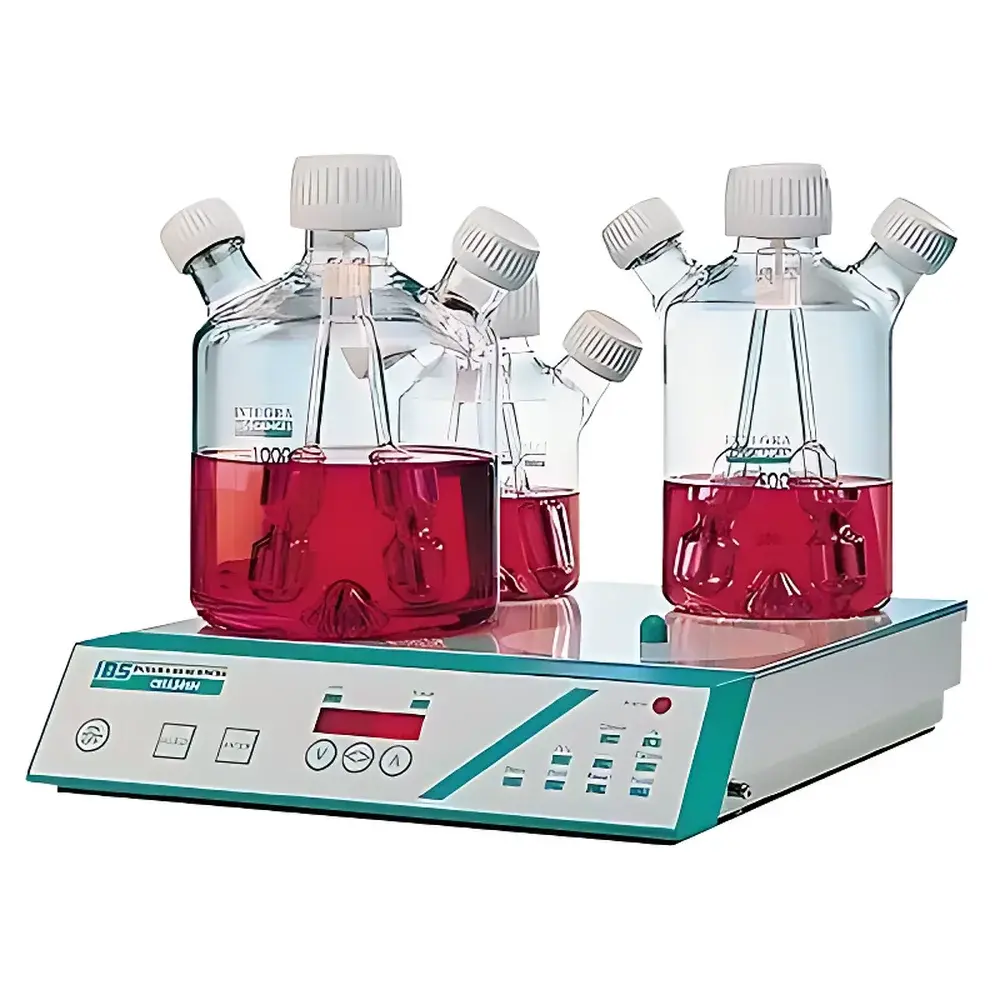

Argos Technologies CELLspin Programmable Spinner System
| Brand | Argos Technologies |
|---|---|
| Origin | USA |
| Manufacturer Type | Authorized Distributor |
| Product Origin | Imported |
| Model | CELLspin |
| Pricing | Upon Request |
Overview
The Argos Technologies CELLspin Programmable Spinner System is an engineered solution for low-shear, controlled agitation of suspension cultures in vitro—specifically designed to support sensitive mammalian, stem, and hybridoma cell lines during bioprocess development and scale-down modeling. Operating on the principle of orbital oscillation rather than rotational shear, the CELLspin generates gentle, reproducible circular motion within culture vessels via precision-machined glass impellers. Unlike conventional magnetic stirrers or overhead agitators, this system avoids turbulent flow, vortex formation, and localized high-shear zones—critical factors influencing cell viability, metabolic activity, and monoclonal antibody titer consistency. The device is optimized for use inside standard CO₂ incubators (two units fit side-by-side in a 140 L benchtop incubator), maintaining sterility, humidity, and gas equilibrium while enabling real-time process modulation without opening the incubator door.
Key Features
- Four independent spinning stations with synchronized or individually programmable control
- Adjustable oscillation amplitude (swing angle) and cycle interval—both configurable per station to match specific cell line rheological requirements
- Digital controller with LED display, supporting forward/reverse rotation, ramp-up/ramp-down profiles, and multi-step cyclic protocols
- Integrated timer with audible alarm for endpoint notification and unattended operation
- Robust, corrosion-resistant housing rated for continuous operation in humid, 5% CO₂ environments (IP54 equivalent ingress protection)
- Compact footprint: 11.625″ L × 13″ W × 2.375″ H (295 mm × 330 mm × 60 mm), facilitating integration into regulated lab spaces
- Universal power input: 100–240 VAC, 50/60 Hz, with CE-compliant safety certification
Sample Compatibility & Compliance
The CELLspin accommodates standard borosilicate glass spinner flasks ranging from 50 mL to 1000 mL volume capacity. Each station utilizes a custom-designed, chemically inert circular glass impeller that ensures non-reactive contact with culture media and eliminates leachables associated with polymer-based paddles. The system supports USP Class VI–compliant vessel configurations and is routinely validated for use in GLP- and GMP-aligned workflows involving cell banking, process characterization, and comparability studies. While not inherently 21 CFR Part 11 compliant as a standalone instrument, its digital controller logs timestamped operational parameters (speed, direction, duration) when interfaced with validated laboratory information management systems (LIMS) or electronic lab notebooks (ELN). It meets ISO 13485–aligned environmental and electrical safety requirements for medical device R&D instrumentation.
Software & Data Management
The CELLspin operates via embedded firmware—no external PC software is required for basic functionality. However, optional RS-232 or USB-to-serial adapters enable protocol upload/download and remote status monitoring using third-party terminal emulation tools. All user-defined programs (e.g., 30-min forward → 10-min pause → 20-min reverse) are stored in non-volatile memory with battery-backed retention. Audit trails—including start/stop timestamps, parameter changes, and alarm events—are accessible via serial dump and may be archived for regulatory review. For laboratories implementing ALCOA+ data integrity principles, the system supports manual entry into controlled documentation templates aligned with FDA guidance on electronic records.
Applications
- Scale-down modeling of large-scale bioreactor processes for upstream process development
- Long-term suspension culture maintenance of primary human cells and iPSC-derived lineages
- Antibody production optimization under varied agitation regimes to assess product quality attributes (e.g., aggregation, charge variant distribution)
- Toxicity screening assays requiring consistent, low-stress mixing across multi-well plate–compatible spinner formats
- Stem cell differentiation studies where mechanical perturbation must remain below mechanotransduction thresholds
- Regulatory filing support—providing traceable, repeatable agitation conditions referenced in IND/IMPD submissions
FAQ
What is the maximum recommended working volume per station?
The system is validated for reliable performance with 50–1000 mL glass spinner flasks; optimal mixing uniformity is achieved between 250–750 mL.
Can the CELLspin be used outside of a CO₂ incubator?
Yes—it operates reliably at ambient lab conditions, though incubator-rated sealing and condensation resistance make it especially suited for humidified, temperature-controlled environments.
Is calibration required prior to use?
No routine calibration is specified by Argos Technologies; however, users should verify oscillation frequency accuracy annually using a calibrated optical tachometer per internal SOPs.
Does the system support integration with SCADA or PLC networks?
Not natively—but analog output modules (0–10 V or 4–20 mA) can be added via third-party interface hardware for supervisory control in pilot-scale facilities.
Are replacement impellers and flask adapters available?
Yes—Argos offers OEM-certified glass impellers, silicone O-rings, and universal flask clamps compatible with Corning, Bellco, and Wheaton spinner vessel geometries.
