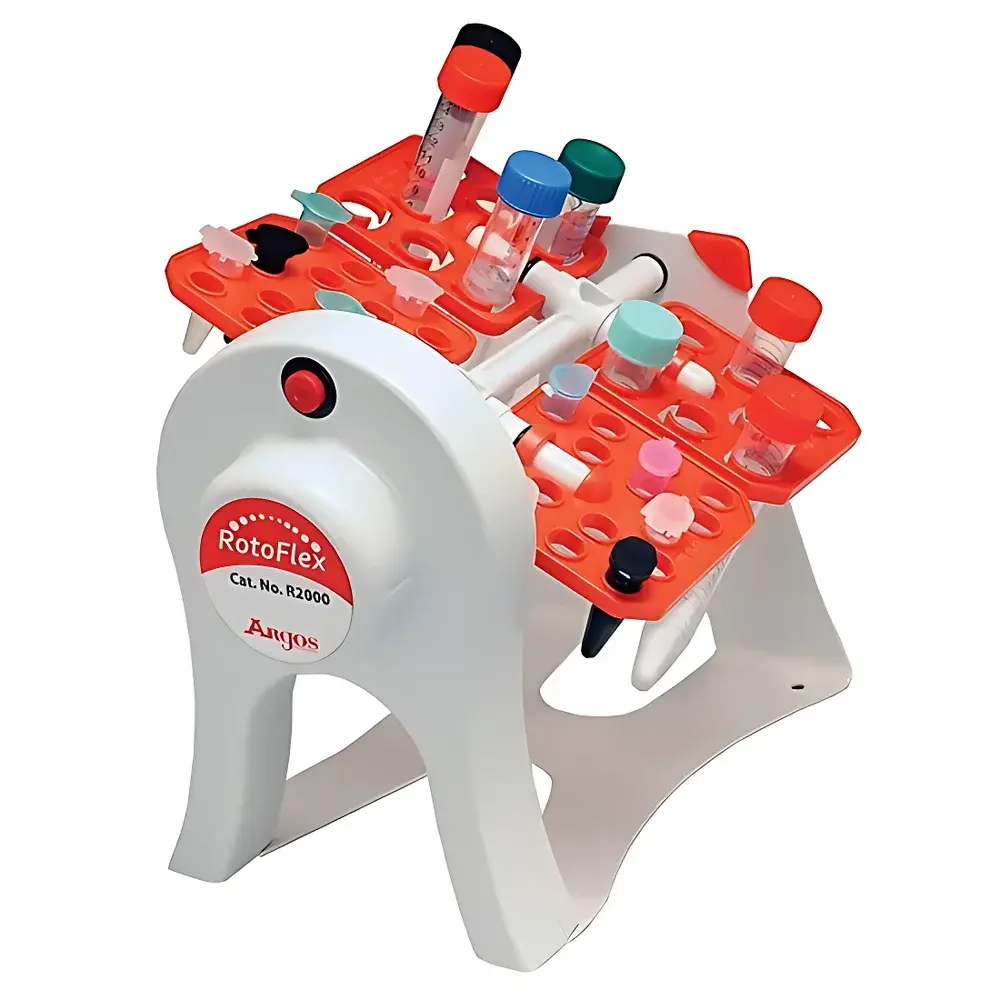

Argos Technologies RotoFlex Tube Rotator

Overview

The Argos Technologies RotoFlex Tube Rotator is an engineered solution for gentle, reproducible end-over-end mixing of liquid samples in tubes ranging from microcentrifuge (0.5 mL) to conical centrifuge formats (up to 50 mL). Designed around the principle of controlled tumbling motion—where tubes rotate continuously along their longitudinal axis while mounted on independently adjustable panels—the system ensures homogeneous suspension without foaming, phase separation, or shear-induced degradation. Unlike vortexers or orbital shakers, the RotoFlex applies low-shear, gravity-assisted mixing ideal for sensitive biological specimens including cell cultures, immunoassays, antigen-antibody complexes, and viscous reagents. Its mechanical architecture supports both fixed-speed operation (RotoFlex) and programmable speed control with oscillation capability (RotoFlex Plus), enabling method standardization across QC labs, clinical diagnostics workflows, and pre-analytical sample preparation environments.

Key Features

• Four independently adjustable mixing panels, each supporting precise angular positioning from 0° (horizontal) to 90° (vertical), allowing optimization of mixing intensity for different viscosities and sedimentation rates.
• Tool-free tube rack adaptation—compatible with standard labware holders, including microtube racks, PCR strip carriers, and custom 50-mL conical tube fixtures.
• Fixed-speed RotoFlex models operate at 22 rpm (120 V) or 18 rpm (240 V); RotoFlex Plus adds digital speed control (10–40 rpm, 1 rpm increments) and bidirectional oscillation mode for enhanced homogenization.
• Reversible rotation direction—achieved via momentary manual actuation of the rotisserie shaft—enabling empirical evaluation of directional effects on particle resuspension.
• Robust all-metal chassis with vibration-dampening feet ensures stable operation during extended incubation-integrated protocols.
• Modular design permits standalone purchase of additional rotisseries for parallel processing or platform expansion within existing laboratory infrastructure.

Sample Compatibility & Compliance

The RotoFlex accommodates a broad spectrum of tube geometries and materials—including polypropylene, polyethylene, glass, and siliconized surfaces—without requiring adapters or clamping mechanisms. Its low-RPM tumbling motion meets ISO 15197:2013 and CLSI EP15-A3 guidelines for uniformity testing in diagnostic reagent preparation. The device complies with IEC 61010-1 safety standards for laboratory electrical equipment and carries CE marking for use in EU-regulated facilities. While not classified as a medical device under FDA 21 CFR Part 820, its operational parameters support GLP-compliant documentation when integrated into validated sample handling SOPs. No firmware or software components require 21 CFR Part 11 compliance; however, optional external logging systems may interface via analog output signals for audit-trail generation.

Software & Data Management

The base RotoFlex model operates without embedded firmware or connectivity interfaces, ensuring electromagnetic compatibility in proximity to sensitive instrumentation such as mass spectrometers or NMR systems. The RotoFlex Plus variant includes a front-panel LCD display with tactile buttons for real-time speed selection, direction toggling, and oscillation activation. All operational settings are retained after power cycling. No proprietary software is required; however, time-stamped run logs can be captured externally using industrial PLCs or data acquisition modules interfaced through the device’s 0–5 V analog output (available upon request). This architecture aligns with laboratories maintaining legacy instrument integration strategies and avoids cybersecurity overhead associated with networked peripherals.

Applications

• Resuspension of lyophilized reagents and antibody conjugates prior to ELISA or lateral flow assay setup.
• Homogenization of whole blood samples for serum/plasma separation protocols requiring minimal hemolysis.
• Equilibration of calibration standards and reference materials across clinical chemistry and toxicology workflows.
• Pre-incubation mixing of enzymatic reaction mixtures where thermal stability and kinetic consistency are critical.
• Supporting ISO/IEC 17025-accredited testing laboratories in demonstrating traceable, repeatable sample agitation conditions.
• Integration into automated sample prep lines where modular rotisseries serve as discrete agitation nodes between pipetting and centrifugation stations.

FAQ

What tube sizes does the RotoFlex support?
It accommodates tubes from 0.5 mL microcentrifuge tubes up to 50 mL conical centrifuge tubes, using compatible rack inserts.
Can I adjust the mixing angle during operation?
Angle adjustment must be performed manually before initiating rotation; panels are not motorized for in-run repositioning.
Is the RotoFlex suitable for use inside incubators?
Yes—when specified with optional high-temp wiring and non-outgassing housing materials, it meets Class II incubator environmental requirements (37°C, 5% CO₂, humidity-controlled).
Does the RotoFlex Plus support timed run cycles?
No—timing functions are external; the unit maintains selected speed and mode until manually stopped.
Are replacement rotisseries available as spare parts?
Yes—individual rotisseries are sold separately, enabling maintenance scalability and configuration customization across multi-bay installations.
