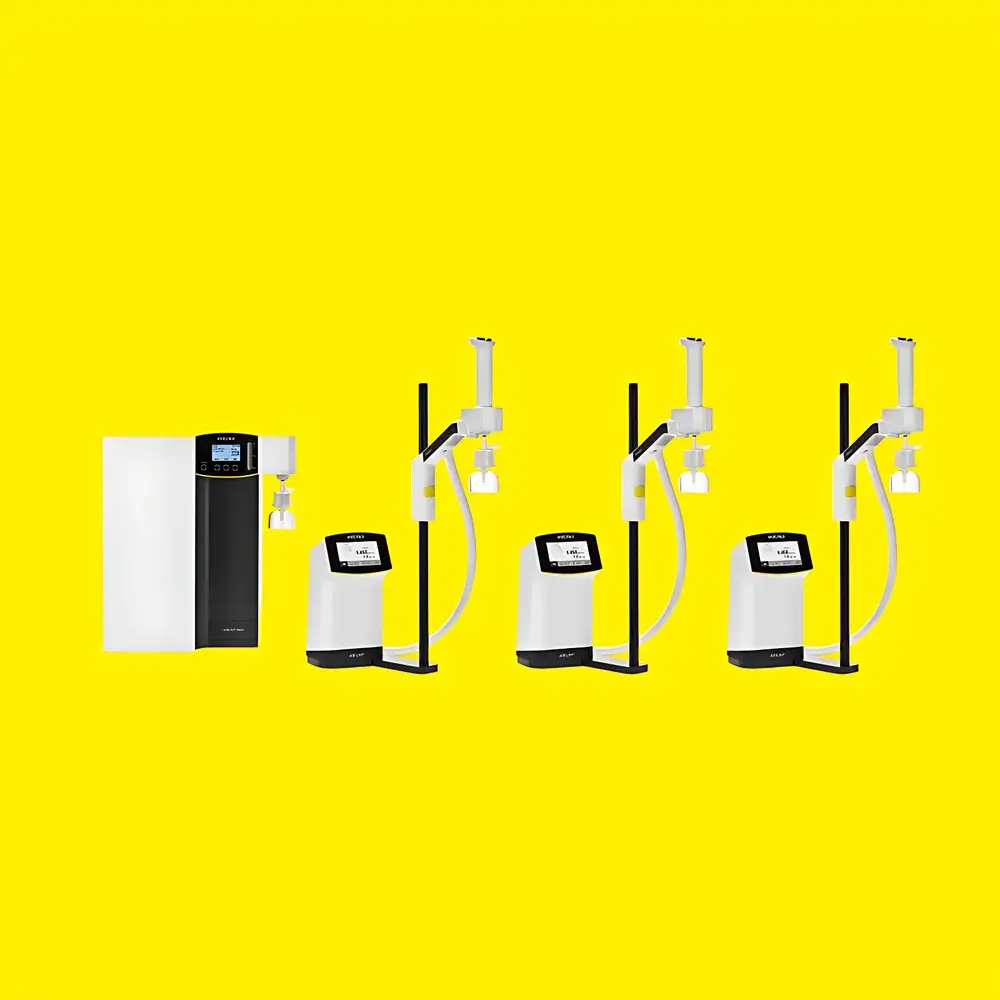

Arium® Smart Station Dispensing Arm by Sartorius

Overview

The Arium® Smart Station Dispensing Arm by Sartorius is an engineered interface module for laboratory water purification systems—specifically designed to deliver purified and ultrapure water (Type I per ASTM D1193 and Grade 1 per ISO 3696) with precision, reproducibility, and ergonomic efficiency. Unlike standalone dispensers, the Smart Station functions as a modular, intelligent endpoint for Sartorius Arium® generation systems (e.g., Arium® Comfort II, Arium® Essential), integrating real-time status feedback, user-defined dispensing protocols, and closed-loop circulation management. Its core architecture employs a dual-valve media separation system to eliminate cross-contamination between purified and ultrapure water loops, ensuring consistent resistivity (>18.2 MΩ·cm at 25 °C) and total organic carbon (TOC) levels (<5 ppb) downstream of the dispensing point. The unit operates without internal pumps—relying instead on system-generated pressure and gravity-assisted flow control—to maintain laminar, low-shear delivery suitable for sensitive applications including cell culture media preparation, HPLC mobile phase formulation, and trace elemental analysis.

Key Features

• Full-color capacitive touchscreen interface with intuitive navigation, real-time system diagnostics (including conductivity, TOC, temperature, and filter saturation status), and multilingual support (English, German, French, Spanish, Chinese)

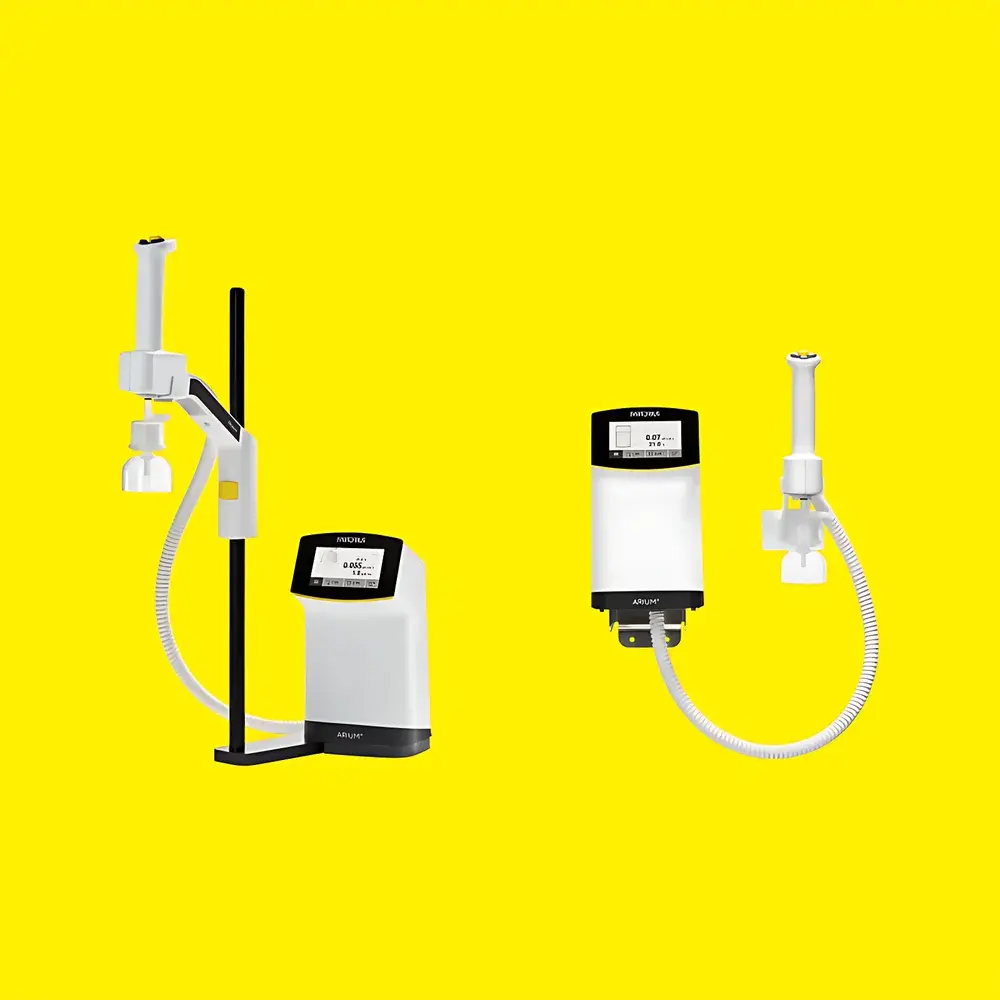

• Compact footprint (145 × 120 × 280 mm) enabling flexible integration in space-constrained environments; supports both benchtop mounting via adjustable clamping bracket and wall-mount installation using certified VESA-compatible hardware
• Ergonomically optimized dispensing arm with magnetic quick-release coupling (IP54-rated), allowing tool-free detachment for cleaning or repositioning; arm height adjustment is infinitely variable via smooth linear rail mechanism (range: 220–450 mm above mounting surface)
• 360° rotational joint with zero-backlash gearing ensures unrestricted access to vessels ranging from 1.5 mL microcentrifuge tubes to 5 L carboys—without requiring repositioning of the base unit
• Integrated drop-by-drop mode with programmable pulse duration (10–500 ms) and soft-start/soft-stop fluid acceleration profiles to minimize splashing, foaming, and static charge buildup during low-volume dispensing
• Modular filtration compatibility: accepts Sartorius-certified final polishing cartridges (e.g., VF-PAK™ for endotoxin removal, UF-PAK™ for ultrafiltration) via standardized bayonet-style connectors with RFID-enabled cartridge recognition and automatic usage tracking

Sample Compatibility & Compliance

The Arium® Smart Station is validated for use with aqueous streams meeting ISO 3696:1994 Grade 1 and ASTM D1193-20 Type I specifications. It supports direct dispensing into glass, polypropylene, polycarbonate, and fluoropolymer containers without leachables interference—fluid path components comply with USP Class VI and FDA 21 CFR Part 177 standards. All electronic modules meet IEC 61000-4 electromagnetic compatibility requirements and are CE-marked under Directive 2014/30/EU (EMC) and 2014/35/EU (LVD). The system architecture supports audit-trail-enabled operation when connected to Sartorius LabX® software, fulfilling ALCOA+ data integrity principles and facilitating GLP/GMP-compliant workflows.

Software & Data Management

When networked via Ethernet or Wi-Fi to LabX® Pure Water Software (v4.0+), the Smart Station enables centralized monitoring of dispensing events, user authentication (LDAP/Active Directory integration), and electronic record generation compliant with FDA 21 CFR Part 11. Each dispense event logs timestamp, volume, operator ID, water quality parameters at time of delivery, and cartridge lifecycle status. Optional cloud-based remote diagnostics allow proactive maintenance alerts and firmware update scheduling without local IT intervention.

Applications

• Preparation of buffers and reagents for molecular biology (e.g., PCR master mixes, electrophoresis gels)
• Filling of analytical standards and calibration solutions for ICP-MS, IC, and LC-MS applications
• Aseptic dispensing into sterile flasks and bioreactor feed bags under laminar flow hoods
• High-throughput plate filling for ELISA and drug screening assays
• Quality control sampling in pharmaceutical manufacturing environments operating under Annex 1 guidelines

FAQ

Is the Arium® Smart Station compatible with non-Sartorius water purification systems?
No—it is engineered exclusively for integration with Sartorius Arium® generation platforms and requires digital handshake communication via proprietary RS-485 protocol.
Can dispensing parameters be locked to prevent unauthorized modification?
Yes—administrator-level password protection enables role-based access control for volume limits, mode selection, and system configuration.
What maintenance intervals are recommended for the dispensing arm and valves?
Sartorius recommends quarterly visual inspection of O-rings and annual replacement of the integrated media separation valve assembly under standard usage (≤200 L/day); full service kits include calibration certificates traceable to NIST standards.
Does the unit support external footswitch or barcode-triggered dispensing?
Yes—via optional 24 V DC auxiliary I/O port supporting TTL-level signals for integration with lab automation systems or sample tracking scanners.
