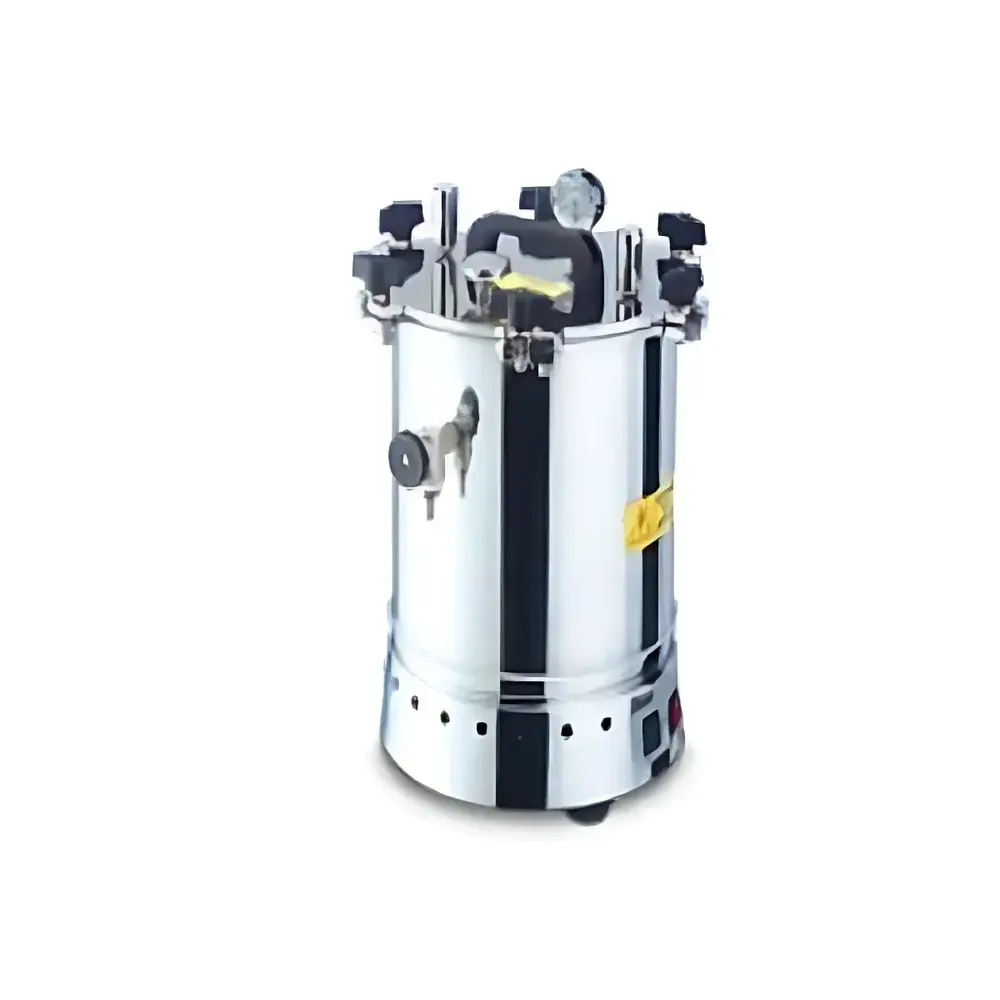

Armfield FT19 High-Pressure Sterilizer

Overview

The Armfield FT19 High-Pressure Sterilizer is a laboratory-scale, batch-type steam sterilization system engineered for controlled thermal processing of heat-sensitive liquid products packaged in sealed glass or PET bottles. It operates on the fundamental principle of saturated steam under elevated pressure to achieve microbial inactivation—primarily targeting vegetative bacteria, yeasts, molds, and selected spores—through precise time–temperature–pressure profiles. Unlike continuous-flow sterilizers, the FT19 employs a discontinuous (intermittent) cycle architecture, enabling full validation of process lethality (F₀ values) per batch. Its design complies with core thermal processing engineering principles defined in ISO 11134 and aligns with Good Manufacturing Practice (GMP) requirements for pilot-scale dairy and beverage process development. The unit is not intended for medical instrument sterilization or depyrogenation; rather, it serves as a research and quality assurance tool for validating shelf-life extension strategies, optimizing hold times, and assessing thermal impact on nutritional and sensory attributes of bottled dairy formulations.

Key Features

• Stainless steel pressure chamber rated for operation up to 3.5 bar(g) (50 psig), with integrated safety interlocks, overpressure relief valve, and redundant temperature/pressure monitoring sensors.
• Programmable digital controller supporting up to 10 user-defined sterilization cycles, each configurable with pre-heat, come-up, holding, cooling, and venting phases.
• Uniform steam distribution system with bottom-injection and top-vent configuration to ensure consistent thermal penetration across bottle arrays—critical for reproducible F₀ delivery in heterogeneous loads.
• Real-time data logging of chamber temperature, jacket temperature, internal pressure, and elapsed time at 1-second resolution, compliant with ALCOA+ data integrity principles.
• Removable stainless steel bottle rack accommodating standard 250 mL to 1 L glass or polymer containers; rack geometry optimized for convective steam flow and minimal cold-spot formation.
• Integrated water level sensor and automatic fill/drain functions to maintain consistent jacket water volume and prevent dry-firing during extended cycles.

Sample Compatibility & Compliance

The FT19 is validated for use with commercially filled or lab-filled bottles containing milk, flavored milk drinks, plant-based milks (e.g., soy, oat), fruit juices, and low-acid liquid nutritional supplements. Bottle materials must withstand sustained exposure to 121 °C saturated steam without deformation or seal failure. The system meets CE marking requirements under the Pressure Equipment Directive (PED 2014/68/EU) and conforms to EN 61000-6-2 (EMC immunity) and EN 61000-6-4 (EMC emissions). For regulatory submissions, raw log files are exportable in CSV format and support retrospective audit trails required under FDA 21 CFR Part 11 when paired with qualified electronic record systems. Process validation documentation—including D-value and z-value estimation protocols—can be generated in accordance with ISO 11137-1 for microbiological challenge studies.

Software & Data Management

The FT19 includes embedded firmware with a local LCD interface for manual operation and cycle monitoring. Optional PC connectivity via RS-232 or USB-to-serial adapter enables integration with Armfield’s proprietary LabVIEW-based control and analysis software (v3.2+). This software provides graphical real-time plotting, automated F₀ calculation using the reference temperature method (T_ref = 121.1 °C, z = 10 °C), deviation alarm thresholds, and PDF report generation with digital signature fields. All logged parameters are timestamped with UTC synchronization and stored with immutable metadata (operator ID, cycle ID, version stamp), satisfying GLP audit requirements for traceability and data permanence.

Applications

• Thermal process validation for UHT-adjacent sterilization protocols in dairy R&D labs.
• Evaluation of thermal degradation kinetics of vitamins (e.g., B12, C), enzymes (e.g., lactoperoxidase), and whey proteins under varying hold times and temperatures.
• Comparative shelf-life testing of alternative packaging formats (e.g., glass vs. multilayer PET) under identical sterilization conditions.
• Training platform for food science students on fundamentals of thermal death time, sterilization kinetics, and autoclave safety procedures.
• Supporting regulatory dossier preparation for novel dairy beverages requiring thermal process justification under EU Regulation (EC) No 2073/2005 or US FDA Pasteurized Milk Ordinance (PMO) Annex H.

FAQ

What is the maximum operating temperature and pressure of the FT19?
The chamber is designed for saturated steam operation up to 134 °C at 3.5 bar(g); typical sterilization cycles run at 121 °C (2.0 bar(g)) for microbiological efficacy validation.
Can the FT19 be used for sterilizing culture media or agar solutions?
No—this unit is specifically configured for sealed bottled liquids. Open-container or flask-based sterilization requires dedicated laboratory autoclaves with gravity displacement or vacuum-assisted air removal.
Is third-party IQ/OQ/PQ validation support available?
Yes—Armfield provides vendor-qualified protocol templates and on-site commissioning services aligned with ASTM E2500 and ISO 13485 frameworks upon request.
Does the FT19 comply with FDA 21 CFR Part 11 for electronic records?
The hardware and firmware meet technical prerequisites; full Part 11 compliance requires implementation of a validated electronic signature system and administrative controls by the end user.
What maintenance intervals are recommended for long-term reliability?
Daily visual inspection of door gasket and pressure relief valve; quarterly calibration of temperature and pressure transducers; annual verification of safety interlock timing and steam trap functionality per Armfield Maintenance Manual Rev. 4.2.
