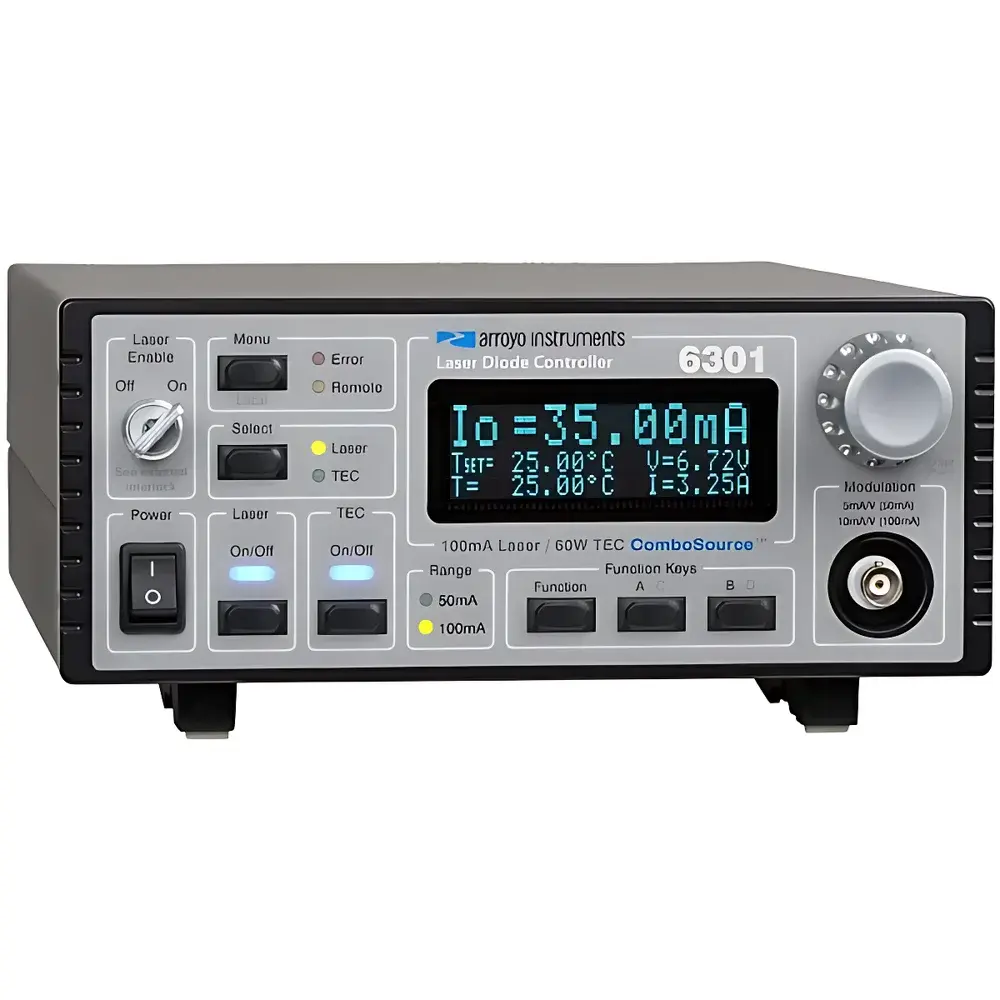

Arroyo Instruments 6301 Dual-Channel Laser Diode Driver & TEC Controller

Overview

The Arroyo Instruments 6301 is a precision dual-channel instrument integrating a low-noise laser diode current source and a high-stability thermoelectric cooler (TEC) controller in a single compact chassis. Engineered for demanding optical metrology and photonics R&D environments, the 6301 operates on closed-loop current regulation and PID-controlled temperature stabilization—enabling simultaneous, independent control of laser diode drive current and junction temperature with sub-milliamperes and millikelvin resolution. Its architecture follows established semiconductor laser control principles: constant-current sourcing with real-time voltage compliance monitoring, coupled with bidirectional TEC current control and adaptive thermal feedback. Designed for integration into automated optical test benches—including spectral analysis, interferometry, LIDAR calibration, and quantum optics setups—the 6301 delivers laboratory-grade stability without requiring external signal conditioning or isolation amplifiers.

Key Features

• High-precision laser current source: 100 mA to 4 A output range (model-dependent), with accuracy of ±(0.025% of reading + 0.03 mA) and RMS noise below 1 µA at full bandwidth (325 kHz).
• 60 W bipolar TEC controller supporting both heating and cooling modes, with fully adjustable PID parameters and auto-tuning capability for optimized thermal response.

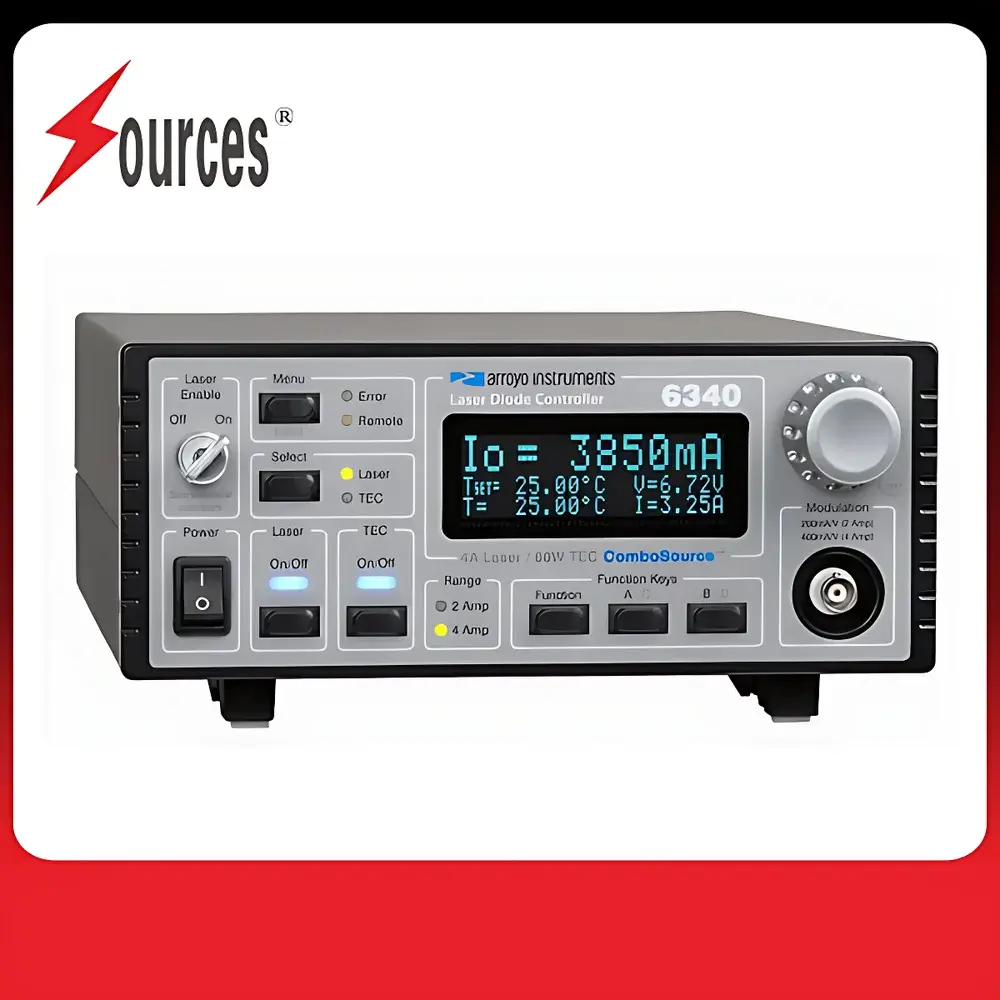

• Simultaneous real-time display of four primary parameters—laser current, compliance voltage, TEC temperature, and photodiode monitor current—on a high-contrast vacuum fluorescent display (VFD), eliminating manual mode switching.
• Electrically and optically isolated analog and digital I/O interfaces prevent ground loops and ensure signal integrity in mixed-signal test systems.

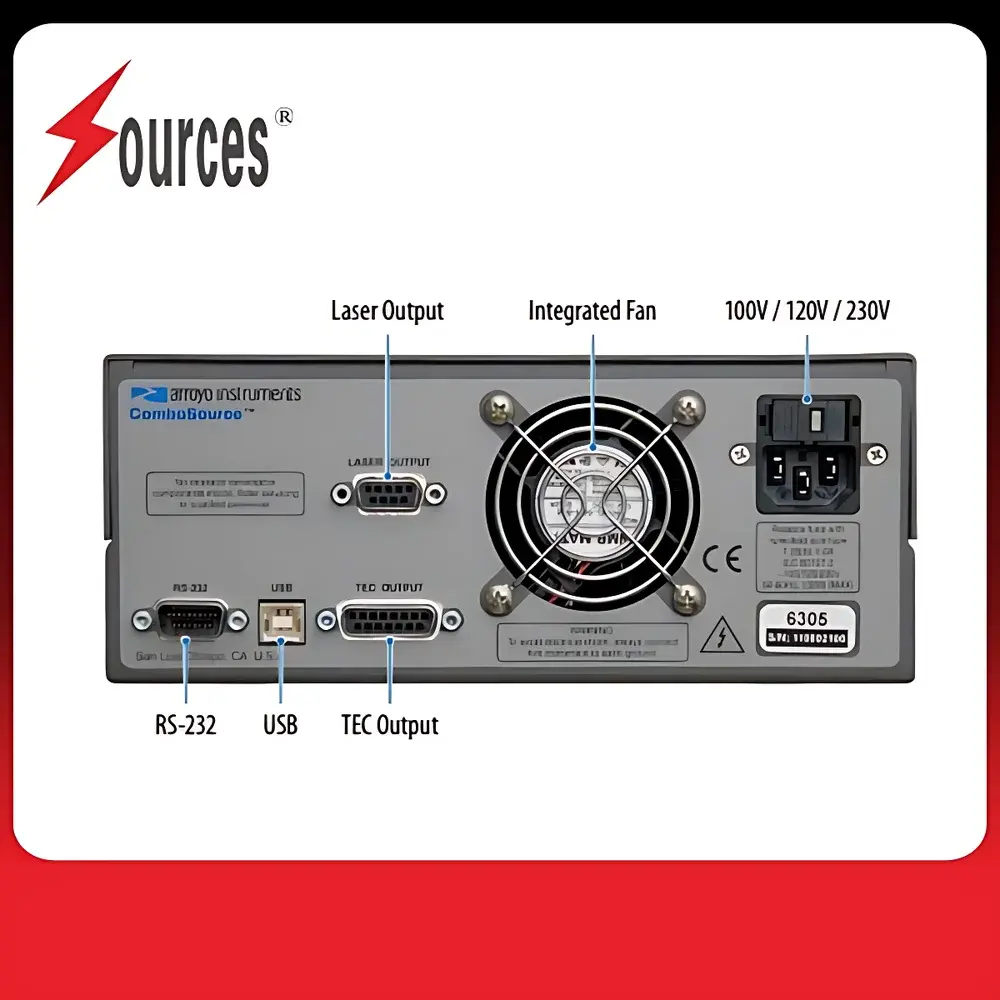

• Standard USB 2.0 and RS-232 serial interfaces support remote operation via ASCII command protocol; native drivers available for LabVIEW, MATLAB, and Python-based automation frameworks.
• Dedicated front-panel function keys allow one-touch recall of preconfigured operating states—ideal for rapid transitions between experimental conditions or routine calibration sequences.
• Hardware-enforced safety mechanisms include programmable current/voltage limits, soft-start ramping, transient overcurrent detection, and automatic fault shutdown—all implemented in analog circuitry for deterministic response times under 10 µs.

Sample Compatibility & Compliance

The 6301 supports all common laser diode packages (TO-can, butterfly, C-mount) and is compatible with industry-standard temperature sensors including NTC thermistors (10 kΩ nominal), platinum RTDs (PT100/PT1000), and analog-output IC sensors (LM335, AD590). Its isolated analog monitor outputs (0–10 V scaling) interface directly with data acquisition systems compliant with IEEE 1057 and ISO/IEC 17025 traceable measurement chains. The unit meets CE marking requirements for electromagnetic compatibility (EN 61326-1) and safety (EN 61010-1), conforms to RoHS Directive 2011/65/EU, and satisfies FCC Part 15 Class A emission limits. While not certified for medical or aerospace applications out-of-the-box, its design adheres to principles aligned with FDA 21 CFR Part 11 data integrity expectations when used with validated software configurations.

Software & Data Management

The 6301 communicates via a documented ASCII command set over USB or RS-232, enabling seamless integration into custom test executive environments. Arroyo provides open-source Python libraries and LabVIEW VIs for immediate script development, along with MATLAB instrument control toolbox examples. All configuration settings—including PID coefficients, limit thresholds, display layouts, and function key assignments—are stored non-volatilely and survive power cycles. Audit-ready logging is supported through host-side timestamped command/response capture; while the device itself does not implement internal audit trails or electronic signatures, its deterministic command-response behavior facilitates GLP/GMP-compliant validation protocols when paired with validated host software.

Applications

• Stabilized seed source control for fiber amplifiers and external cavity diode lasers (ECDLs)
• Temperature- and current-swept characterization of laser threshold, slope efficiency, and wavelength drift
• Photonic integrated circuit (PIC) testing requiring synchronized optical power and thermal biasing
• Calibration of optical power meters, spectrometers, and photodetectors under controlled irradiance conditions
• Time-resolved fluorescence and pump-probe spectroscopy setups requiring jitter-free current triggering
• Industrial laser diode burn-in and reliability testing with continuous parameter logging

FAQ

Does the 6301 support analog modulation of laser current?
Yes—the rear-panel modulation input accepts 0–10 V signals with 325 kHz bandwidth, enabling direct analog intensity modulation without interrupting digital control loops.
Can multiple 6301 units be synchronized for multi-laser experiments?
Synchronization is achievable via external TTL trigger inputs and outputs; however, phase coherence across units requires external clock distribution and is not natively supported.
Is firmware upgrade capability available?
Firmware updates are performed via USB using Arroyo’s proprietary utility; version history and release notes are published on the official support portal.
What is the maximum allowable load capacitance for stable laser current regulation?
For optimal stability, total load capacitance (including cable and diode junction) should remain below 100 pF; higher values may require external compensation networks per application note AN-6301-02.
Does the 6301 meet MIL-STD-810 environmental specifications?
No—the unit is rated for laboratory use only (operating temperature: 15–35 °C, non-condensing humidity ≤ 80%). It is not ruggedized for shock, vibration, or extended temperature operation.
