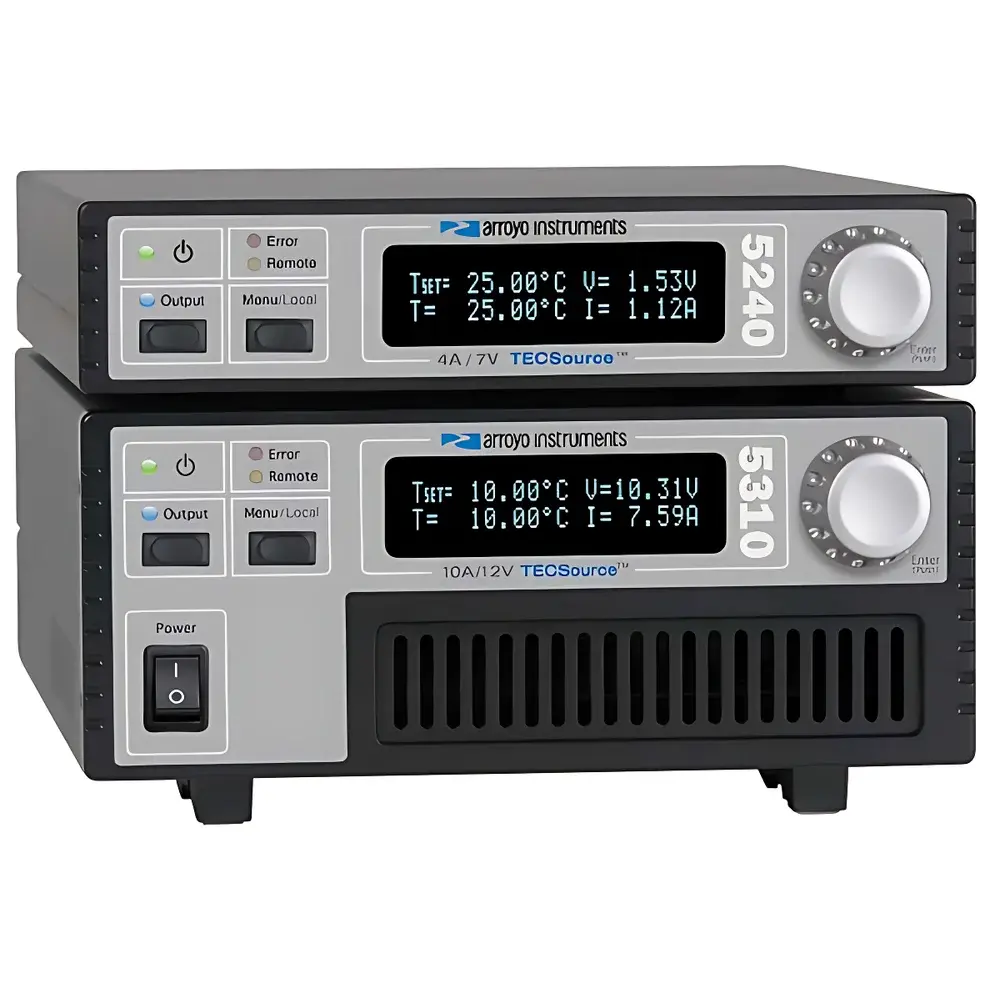

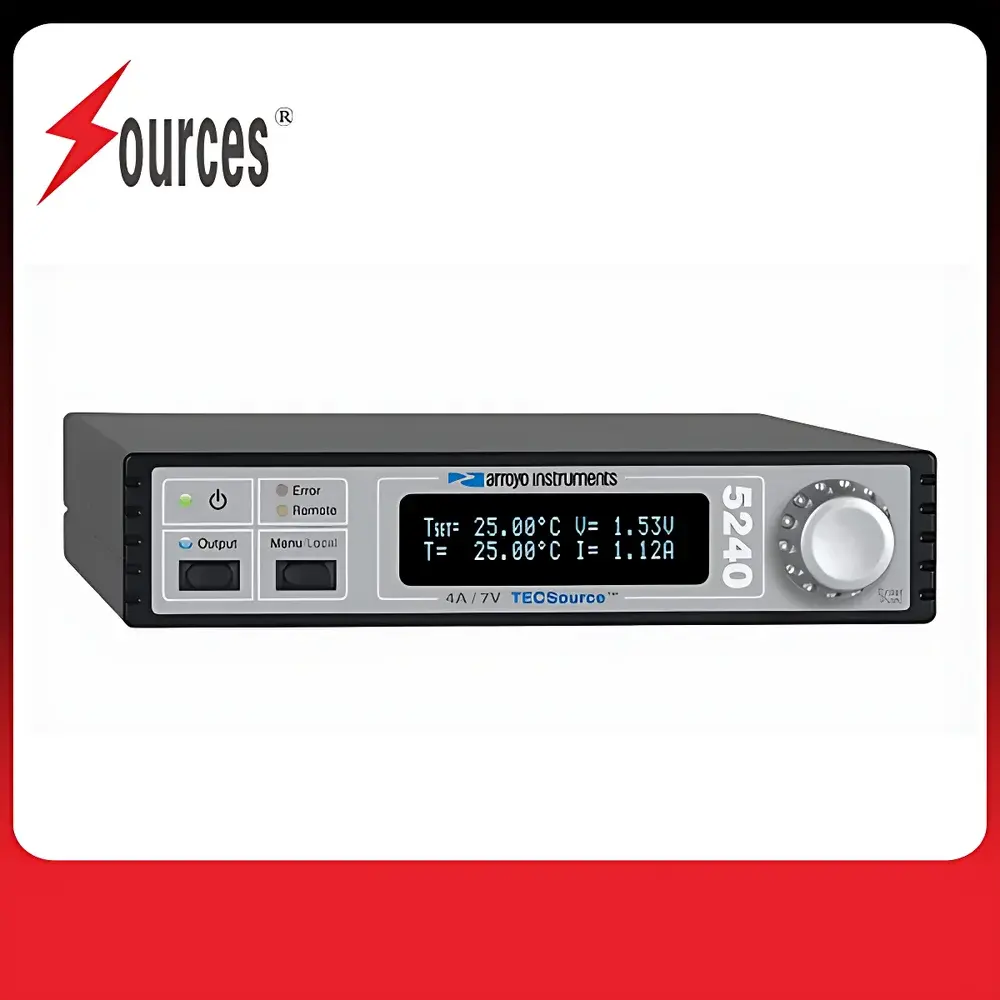

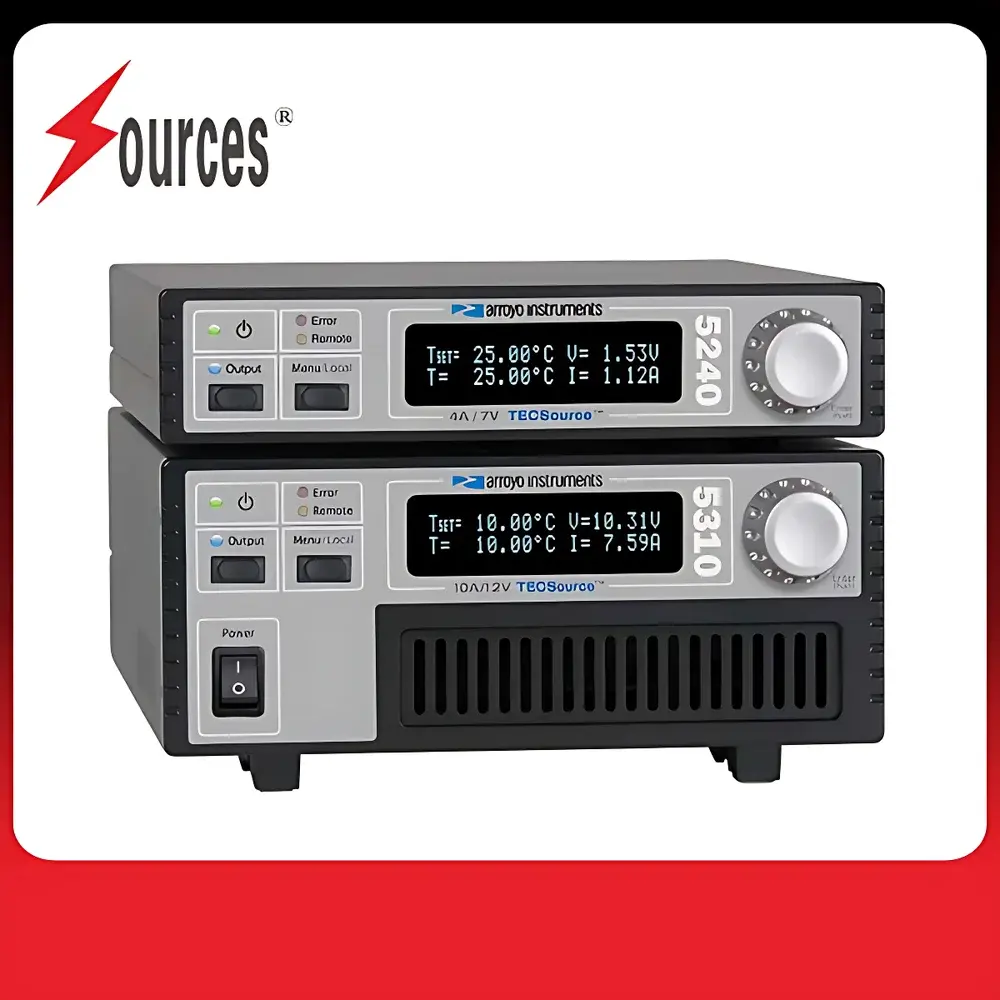

Arroyo Instruments TECSource 5240 Series Semiconductor Laser Temperature Controller

Overview

The Arroyo Instruments TECSource 5240 Series Semiconductor Laser Temperature Controller is a precision thermoelectric cooler (TEC) driver engineered for high-stability thermal management of diode lasers, optical cavities, and other temperature-sensitive photonic components. Based on closed-loop proportional-integral-derivative (PID) control architecture, the 5240 delivers exceptional thermal stability of ±0.004 °C—critical for applications requiring wavelength stability, mode-hop-free operation, or low-noise optical output. Unlike generic benchtop power supplies or simplified thermal controllers, the 5240 integrates real-time monitoring of TEC current, voltage, sensor temperature, and optional photodiode current—all simultaneously displayed on a high-contrast vacuum fluorescent display (VFD) without mode switching. Its design follows industry-standard thermal control principles rooted in Seebeck effect compensation, thermal time-constant matching, and dynamic load impedance adaptation—ensuring robust performance across varying thermal masses and ambient conditions.

Key Features

• Precision temperature regulation with ±0.004 °C stability over time and ambient fluctuations
• Full-spectrum analog sensor support: thermistor (default), RTD (4-wire configurable), AD590, and LM335—no external signal conditioning required
• Integrated fan controller for active heat sink management, synchronized with TEC duty cycle to maintain thermal equilibrium
• AutoTune function automates PID parameter optimization based on system step-response characterization—eliminating manual tuning iterations
• Manual PID gain adjustment interface for advanced users requiring fine-grained control over proportional band, integral reset time, and derivative rate
• VFD display shows simultaneous readouts of TEC current (A), voltage (V), sensor temperature (°C), and optional photodiode current (mA)—all in clear English text, no cryptic codes or blinking LEDs
• USB and RS-232 interfaces compliant with standard SCPI-like command syntax; backward-compatible with legacy software developed for common TEC controller protocols

Sample Compatibility & Compliance

The 5240 is optimized for semiconductor laser diodes (e.g., FP, DFB, VCSELs), fiber-coupled modules, and optomechanical assemblies where thermal drift directly impacts spectral purity and pointing stability. It supports direct integration into OEM optical benches and laboratory test stations. All units are manufactured in the United States under ISO 9001-certified processes. The device complies with FCC Part 15 Class B and CE electromagnetic compatibility (EMC) requirements. Firmware implements non-volatile storage of calibration coefficients and user-defined setpoints, supporting audit-ready operation in GLP- and GMP-regulated environments. While not FDA 21 CFR Part 11–certified out-of-the-box, its logging capabilities—including timestamped sensor data, error events, and configuration changes—can be configured to meet traceability requirements for instrument qualification (IQ/OQ/PQ).

Software & Data Management

Arroyo provides a native Windows-based application (TECSource Control Suite) for configuration, real-time monitoring, and data logging at up to 10 Hz sampling rate. Raw measurements—including temperature, current, voltage, and photodiode signal—are exportable in CSV format with metadata headers. Command-line access via Python, MATLAB, or LabVIEW is supported through documented ASCII serial protocol. All controllers store firmware version, serial number, and last-calibration date internally. Error logs retain timestamps and descriptive messages (e.g., “Overcurrent shutdown triggered at 4.12 A”, “Sensor open-circuit detected on RTD channel”)—enabling rapid root-cause analysis during system validation or troubleshooting. Remote scripting supports automated thermal ramping, dwell sequencing, and failure-mode stress testing per ASTM E2656 or IEC 61000-4-11 standards.

Applications

• Stabilization of single-frequency laser diodes in interferometric sensing and metrology systems
• Thermal preconditioning and aging tests for photonic integrated circuits (PICs)
• Active temperature control in Raman spectroscopy excitation sources
• Lab-scale development of tunable external cavity diode lasers (ECDLs)
• Calibration reference platforms for optical power meters and wavelength meters
• Environmental stress screening of fiber Bragg grating (FBG) sensors and planar lightwave circuit (PLC) devices

FAQ

Does the 5240 support four-wire RTD measurement?
Yes—the 5240 includes dedicated 4-wire RTD input terminals to eliminate lead resistance errors, enabling sub-millikelvin resolution when paired with Class A platinum RTDs.
Can I use my existing LabVIEW VI with the 5240?
Yes—its ASCII command set is compatible with common TEC controller syntax; minimal modification is typically required for migration from competing brands.
Is photodiode monitoring available on all models in the 5240 series?
Photodiode current input is standard on all 5240 units and configurable as either reverse-biased or zero-bias mode via front-panel menu.
What happens during an AutoTune procedure?
The controller applies controlled perturbations to the TEC drive, records the thermal response curve, and computes optimal PID gains using Ziegler–Nichols heuristic methods—outputting final Kp, Ki, and Kd values for review or override.
How is long-term calibration maintained?
Each unit ships with NIST-traceable calibration certificate; field recalibration can be performed using external reference thermometers and the built-in sensor offset adjustment function.
