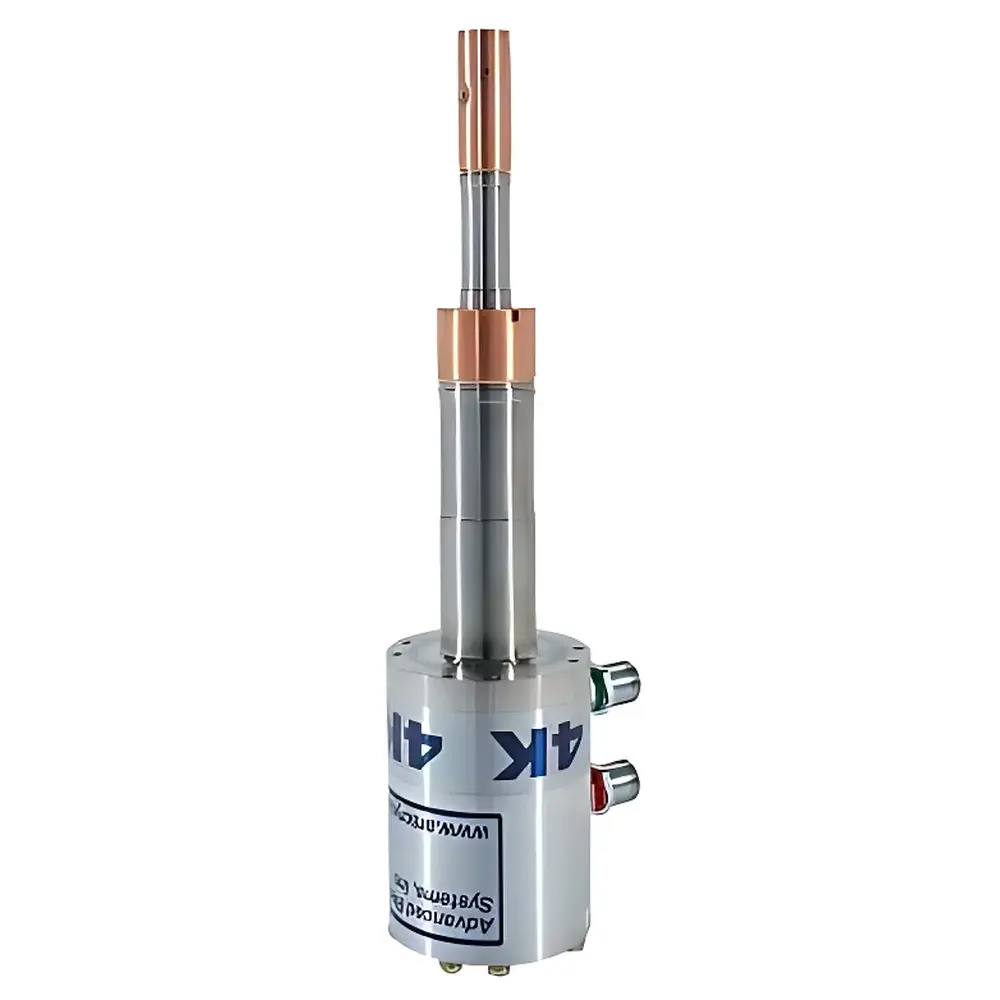

ARS DE204 Closed-Cycle Cryogenic Refrigerator
| Brand | ARS |
|---|---|
| Origin | USA |
| Model | DE204 |
| Cooling Capacity | 2.5 W @ 20 K (standard configuration) |
| Base Temperature | ≤4.2 K (with optional 4K cold head) |
| Cold Head | DE-204AF |
| Compressor | ARS-4HW |
| Helium Transfer Lines | Two flexible high-pressure lines |
| Compliance | CE, RoHS, UL-listed components |
| Operating Noise Level | <65 dB(A) |
Overview
The ARS DE204 is a closed-cycle cryogenic refrigerator engineered for stable, helium-free operation in advanced laboratory and research environments. Utilizing Gifford-McMahon (GM) cryocooler technology, the DE204 achieves continuous cooling without liquid cryogens—eliminating boil-off losses, logistical constraints, and safety hazards associated with liquid helium handling. Its robust two-stage cold head design delivers reliable base temperatures down to ≤4.2 K when equipped with the optional 4K cold head, while maintaining 2.5 W of cooling power at 20 K under standard configuration. The system is optimized for integration with complex experimental setups—including optical cryostats, quantum device test platforms, and low-temperature spectroscopy systems—particularly those requiring multiple optical access ports, extensive wiring harnesses, or high thermal load management. Designed and manufactured in the United States, the DE204 adheres to stringent mechanical and thermal stability criteria essential for precision measurements in condensed matter physics, superconductivity research, and quantum computing development.
Key Features
- Helium-free operation: Eliminates dependency on liquid helium supply chains and associated infrastructure.
- Low-vibration architecture: Precision-machined suspension and active vibration damping reduce mechanical perturbations to <5 µm peak-to-peak at the cold flange—critical for interferometric, scanning probe, and single-photon detection applications.
- High reliability and uptime: Proven GM cycle design with >20,000 hours mean time between failures (MTBF) under continuous operation; compressor and cold head share common maintenance intervals.
- Modular serviceability: Field-replaceable cold head and compressor units enable rapid component swaps without system evacuation or re-bakeout.
- Acoustically optimized: Integrated sound-dampening enclosure and low-RPM compressor drive maintain ambient noise below 65 dB(A) at 1 m distance—suitable for shared lab spaces and quiet-room installations.
- Scalable cooling performance: Standard DE-204AF cold head supports up to 2.5 W @ 20 K; optional upgrade paths include a 0.2 W @ 4.2 K 4K cold head or a 3 W @ 10 K 5.5K cold head for hybrid multi-stage configurations.
Sample Compatibility & Compliance
The DE204 accommodates custom sample stages, radiation shields, and multi-port vacuum chambers with flange diameters up to DN200 (CF-200). Its compact footprint and vertically oriented cold head facilitate integration into existing cryostat housings or bespoke vacuum systems. All electrical, pneumatic, and thermal interfaces comply with ISO-KF, CF, and ANSI/ASME B16.5 standards. The system meets CE marking requirements for electromagnetic compatibility (EMC Directive 2014/30/EU) and low-voltage safety (LVD Directive 2014/35/EU). Component-level UL recognition applies to the ARS-4HW compressor unit. While not certified as a medical or industrial process device, the DE204 is routinely deployed in GLP-compliant laboratories where traceable calibration records and documented maintenance logs are maintained per ISO/IEC 17025 guidelines.
Software & Data Management
The DE204 operates via an embedded microcontroller with RS-485 and Ethernet (TCP/IP) communication interfaces. Optional ARS CryoControl™ software provides real-time monitoring of cold head temperature (via calibrated Cernox® or RuO₂ sensors), compressor discharge pressure, helium circuit integrity, and cooldown rate diagnostics. Data logging is timestamped and exportable in CSV format for integration with LabVIEW, Python-based analysis pipelines, or LIMS platforms. Audit trails—including parameter changes, alarm events, and firmware updates—are retained onboard for ≥30 days and support FDA 21 CFR Part 11–compliant electronic record archiving when paired with validated third-party data acquisition systems.
Applications
- Quantum device characterization: Dilution refrigerator precooling, qubit readout electronics thermal management, and Josephson junction testing.
- Low-temperature spectroscopy: FTIR, Raman, and photoluminescence measurements requiring stable sub-10 K sample environments.
- Materials science: Resistivity, magnetotransport, and specific heat measurements on novel superconductors and topological insulators.
- Optical cryogenics: High-NA microscope objectives, single-photon avalanche diode (SPAD) arrays, and quantum dot emission studies.
- Standards metrology: Primary thermometer calibration and ITS-90 fixed-point verification at 4.2 K and 24.5561 K (triple point of neon).
FAQ
What is the typical cooldown time from 300 K to 4.2 K?
Approximately 3.5–4.5 hours, depending on thermal mass, vacuum quality (<1×10⁻⁵ mbar recommended), and radiation shield configuration.
Can the DE204 be operated in a vertical or horizontal orientation?
The DE-204AF cold head must be mounted vertically (cold tip downward); the ARS-4HW compressor is rated for floor-standing operation only.
Is remote monitoring supported over standard lab networks?
Yes—Ethernet-enabled controllers support Modbus TCP and ASCII command protocols for integration into facility-wide SCADA or building management systems.
Does ARS provide factory calibration certificates with NIST-traceable references?
Calibration certificates with uncertainty budgets and NIST-traceable sensor calibrations are available as a value-added service upon request.
What vacuum specifications are required for optimal performance?
A base pressure ≤1×10⁻⁵ mbar is recommended; acceptable operation extends to ≤5×10⁻⁵ mbar with minor reduction in cooling efficiency and increased cooldown time.
