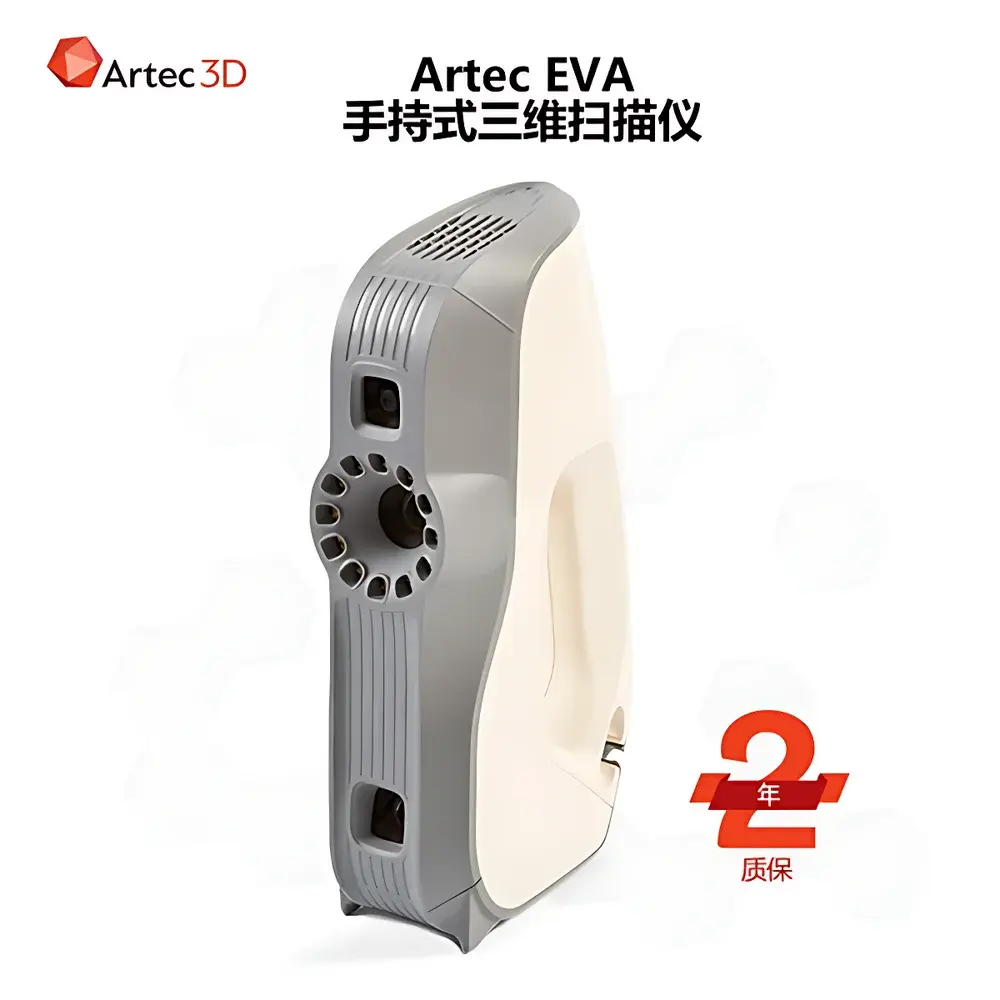

Artec Eva Handheld 3D Scanner
| Brand | Artec |
|---|---|
| Origin | Imported (Non-China) |
| Manufacturer Type | Authorized Distributor |
| Instrument Category | Structured Light 3D Scanner |
| Model | Artec Eva |
| Measurement Speed | 18 Mpts/sec |
| Accuracy | 0.1 mm |
| Maximum Scanning Range | 5 m |
| Operating System | Windows 11 |
| Weight | 0.9 kg |
Overview
The Artec Eva Handheld 3D Scanner is an industrial-grade structured light 3D imaging system engineered for high-fidelity, non-contact geometric digitization of medium-sized objects. Operating on the principle of multi-frequency fringe projection and stereo triangulation, Eva projects calibrated sinusoidal light patterns onto surfaces and reconstructs 3D geometry by analyzing phase shifts and disparity between synchronized camera views. This optical measurement architecture ensures robust performance on challenging surface finishes—including glossy, dark, or low-reflectivity materials—without requiring spray-based surface enhancement. Designed for metrology-grade field deployment, Eva delivers real-time point cloud streaming at up to 18 million points per second, with spatial accuracy certified to ±0.1 mm across its full 5-meter operational envelope. Its lightweight (0.9 kg), ergonomic form factor and integrated inertial measurement unit (IMU) enable stable handheld operation without external tracking systems or calibration targets.
Key Features
- Structured light scanning technology optimized for high-speed, high-accuracy surface capture without contact or surface preparation
- Real-time 3D reconstruction at 18 million points per second, enabling rapid acquisition of complex organic and mechanical geometries
- Sub-millimeter volumetric accuracy (±0.1 mm) traceable to NIST-traceable calibration protocols
- Integrated dual-camera system with global shutter sensors and adjustable LED illumination for consistent texture mapping
- Onboard IMU and visual-inertial odometry (VIO) for drift-resistant pose estimation during freehand motion
- Native Windows 11 compatibility with low-latency USB 3.0 interface and plug-and-play driver support
- IP52-rated enclosure for resistance to dust ingress and incidental moisture in laboratory and workshop environments
Sample Compatibility & Compliance

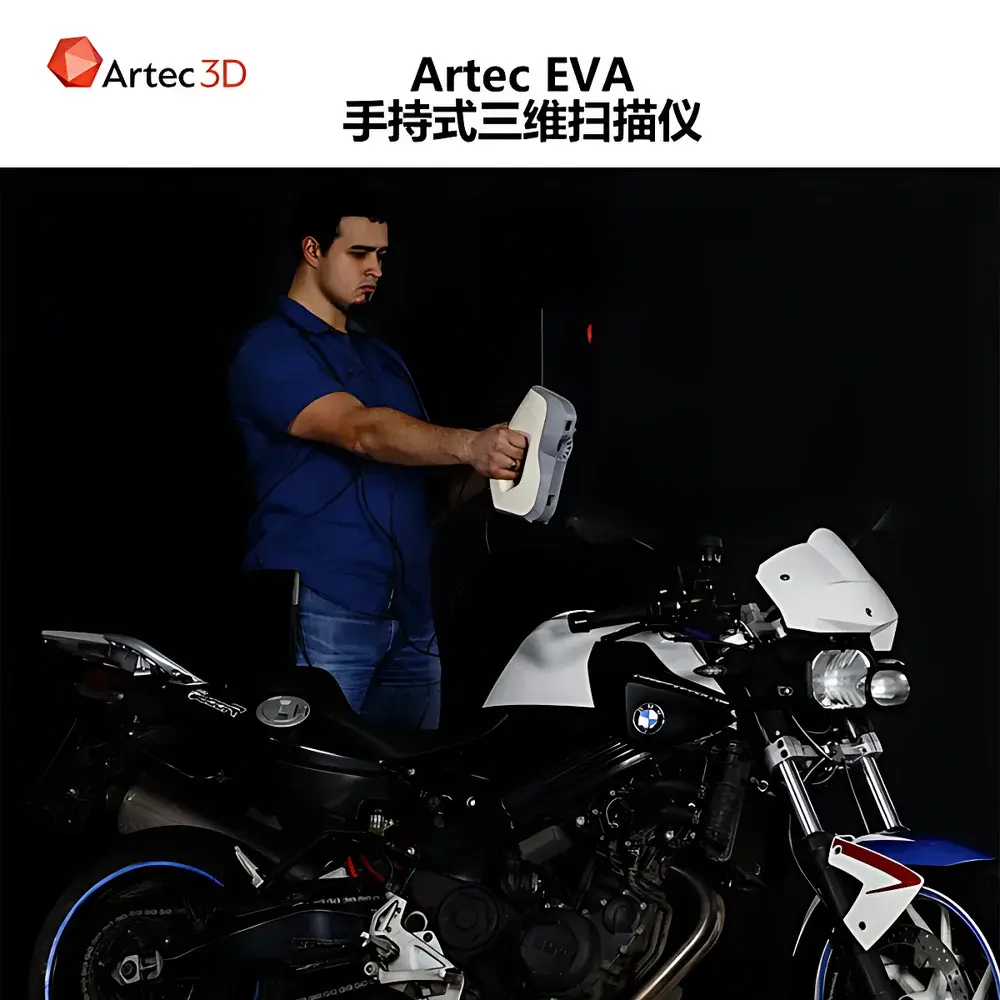

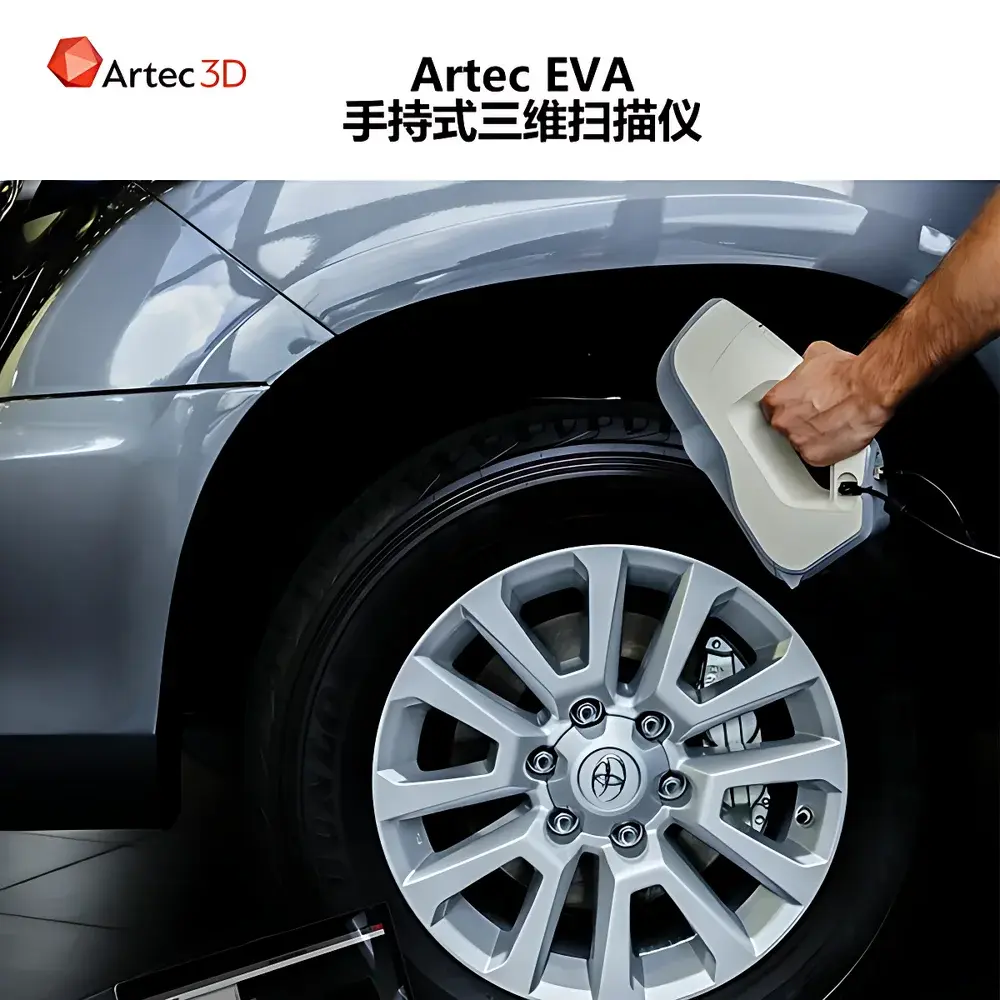

Eva is validated for scanning a broad spectrum of physical specimens including human anatomy (e.g., busts, limbs), automotive components (alloy wheels, exhaust manifolds), cultural heritage artifacts, orthopedic prostheses, and aerospace subassemblies. Its wavelength-tuned visible-light projection (630–680 nm) complies with IEC 62471:2006 Photobiological Safety standards for Class 1 LED devices—ensuring operator safety during prolonged use. The system supports ISO/IEC 17025-aligned measurement uncertainty reporting when used with Artec Studio’s built-in calibration verification routines. While not certified as medical device hardware under FDA 21 CFR Part 820 or EU MDR, Eva-generated data may be incorporated into GLP-compliant workflows for reverse engineering, dimensional inspection, and digital archiving where traceability is maintained via audit-log-enabled software.
Software & Data Management
Artec Studio 19 serves as the native processing platform, providing a complete pipeline from raw scan alignment and fusion to mesh optimization, hole filling, and export in industry-standard formats (OBJ, STL, PLY, AOP, STEP). The software implements ISO 10360-compliant registration algorithms and supports GD&T annotation via optional Geomagic Control X integration. All processing sessions maintain immutable audit trails—including user identity, timestamp, parameter settings, and version-controlled firmware/software metadata—to satisfy requirements for ISO 9001 quality records and internal QA documentation. Data encryption at rest (AES-256) and role-based access control are available in enterprise deployment configurations.
Applications
- Rapid prototyping and design validation in automotive and consumer electronics R&D labs
- Dimensional inspection and first-article approval in precision manufacturing (ISO 2768-mK compliance)

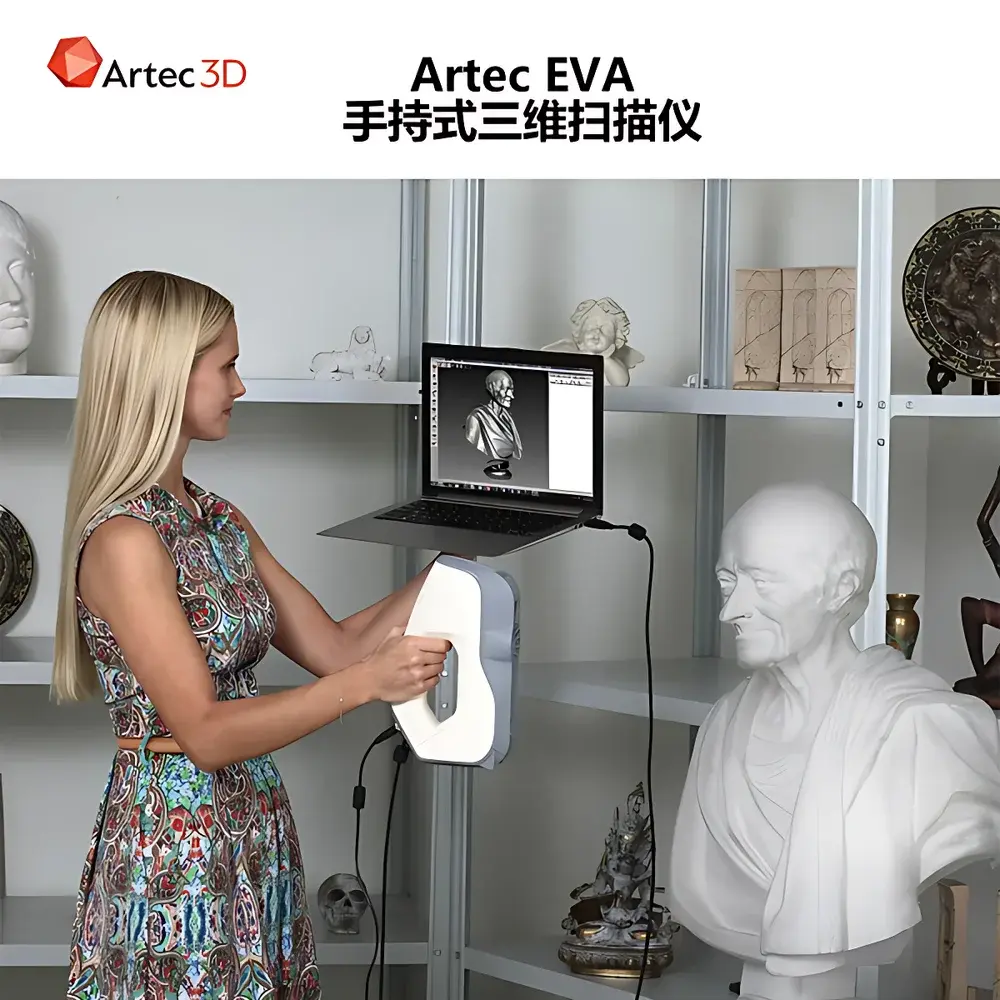

- Digital preservation of museum artifacts and archaeological finds under UNESCO-recommended digitization guidelines
- Forensic documentation of crime scenes and evidence items per ASTM E2823-22 standards for 3D scene reconstruction

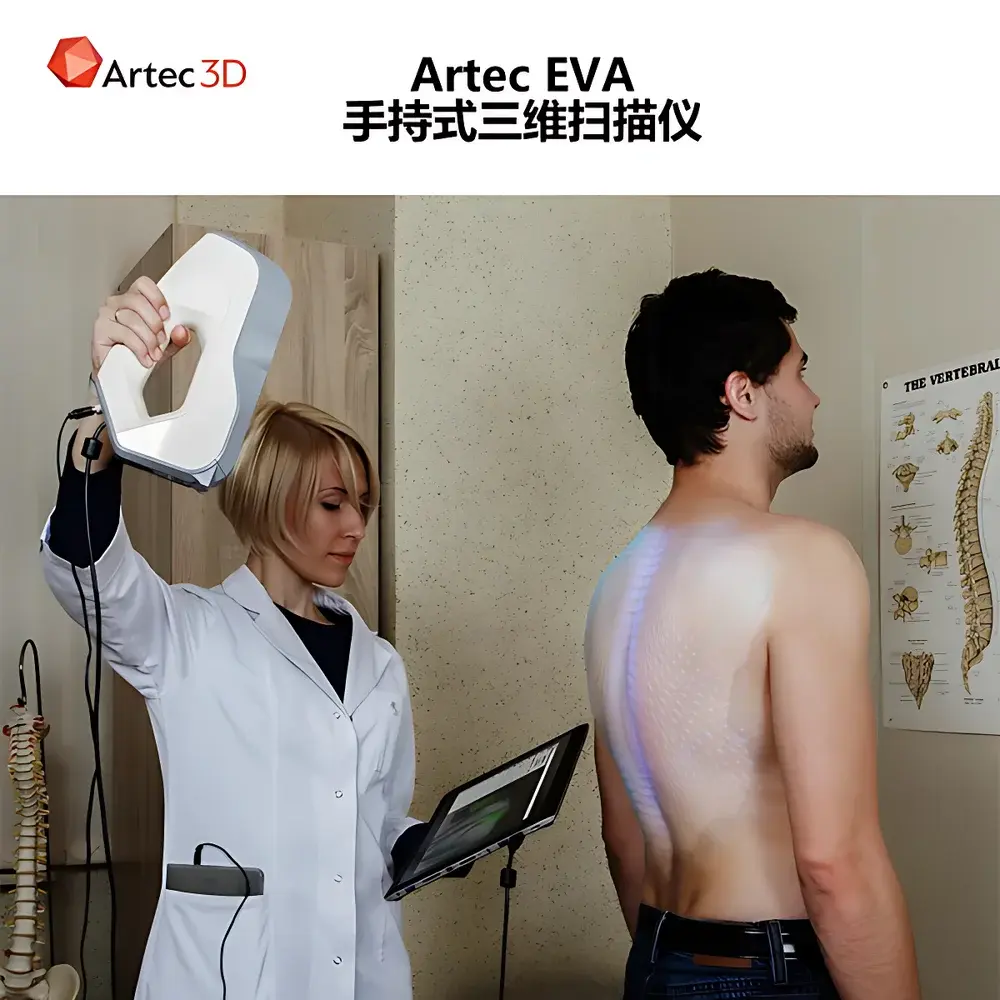

- Clinical modeling for custom orthotics, craniofacial prosthetics, and pre-surgical planning support
- Reverse engineering of legacy parts lacking CAD documentation in aerospace MRO operations
FAQ
Does the Artec Eva require external tracking or markers for operation?
No. Eva uses onboard visual-inertial odometry and automatic feature matching to maintain spatial coherence without external trackers, targets, or turntables.
Can Eva scan reflective or black surfaces without surface treatment?
Yes. Its adaptive exposure control and multi-phase fringe projection enable reliable capture of low-diffuse and specular surfaces without matting sprays.
Is the scanner compatible with metrology-grade inspection workflows?
Yes—when paired with Artec Studio’s calibration verification tools and traceable reference artifacts, Eva supports repeatability testing per ISO 15530-3 and uncertainty budgeting per GUM (JCGM 100:2008).
What export formats are supported for downstream CAD/CAM integration?
STL, OBJ, PLY, AOP, and STEP (via optional Geomagic for SOLIDWORKS or Fusion 360 plugins) with preserved topology and UV-mapped textures.
How is firmware and software updated?
Updates are delivered through Artec’s secure customer portal with SHA-256 signature verification and rollback capability for validated production environments.
