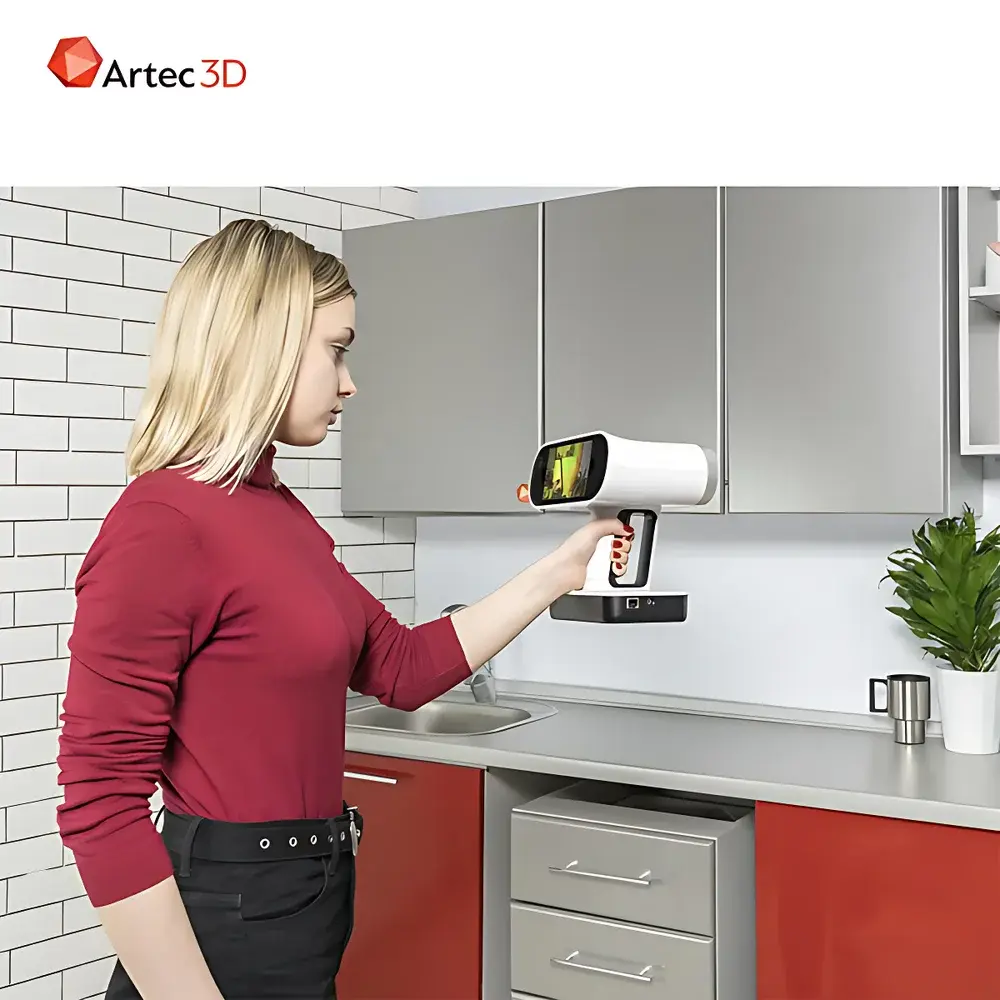

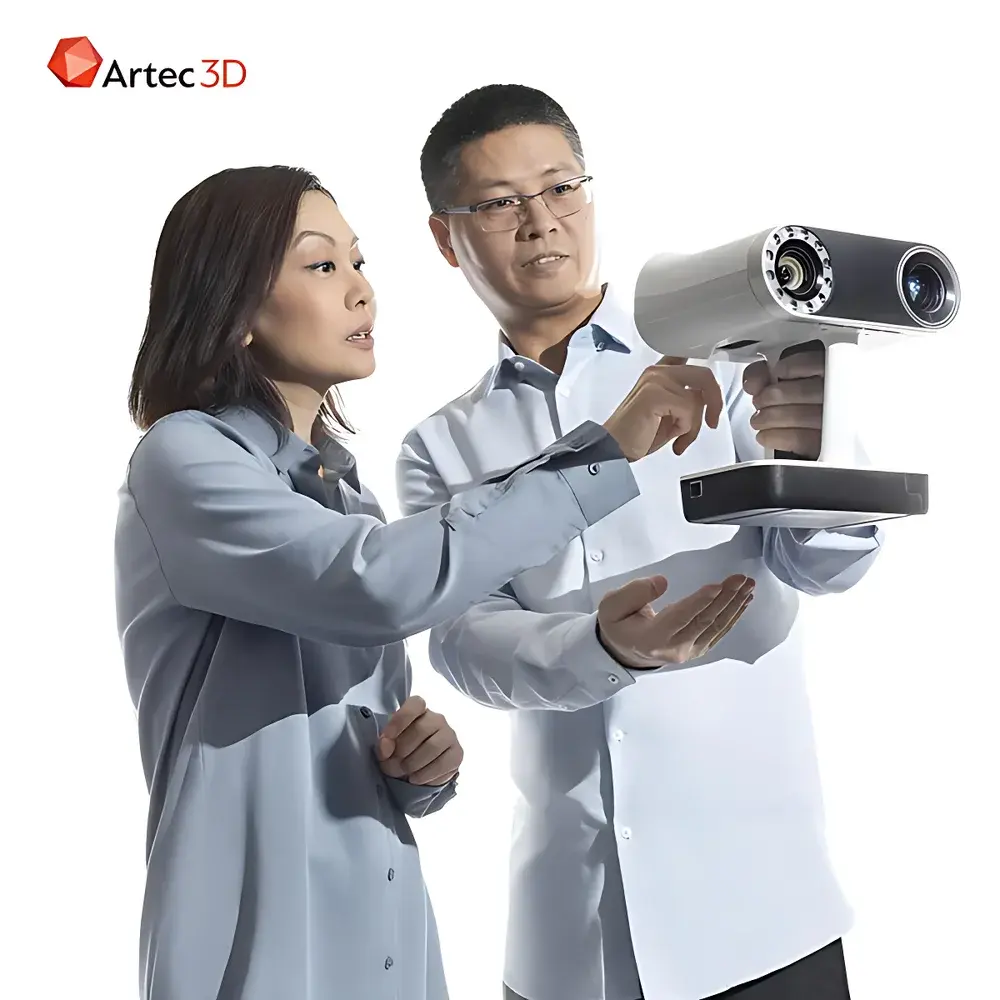

Artec Leo Handheld 3D Scanner

Overview

The Artec Leo is a professional-grade, fully autonomous handheld 3D scanner engineered for high-fidelity geometric digitization in dynamic, real-world environments. Unlike tethered or laptop-dependent systems, the Leo integrates a self-contained computing platform—featuring an NVIDIA Tegra mobile processor, FPGA-accelerated geometry reconstruction, and dual-core CPU/GPU architecture—to perform real-time surface triangulation, texture mapping, and mesh optimization onboard. Its measurement principle is based on structured light triangulation with active stereo vision, enhanced by a proprietary 9-degree-of-freedom inertial measurement unit (IMU) comprising accelerometers, gyroscopes, and magnetometers. This enables robust motion tracking, eliminating reliance on external markers or reference frames. Designed for precision geometric measurement applications compliant with ISO/IEC 17025 traceability frameworks, the Leo delivers certified accuracy of ±0.1 mm and point resolution of 0.2 mm at working distances up to 8 meters—making it suitable for dimensional validation, reverse engineering, and as-built documentation across regulated and non-regulated sectors.

Key Features

• Fully wireless, battery-powered operation with up to 4 hours of continuous scanning per charge—enabling unrestricted mobility in field, factory, or forensic settings

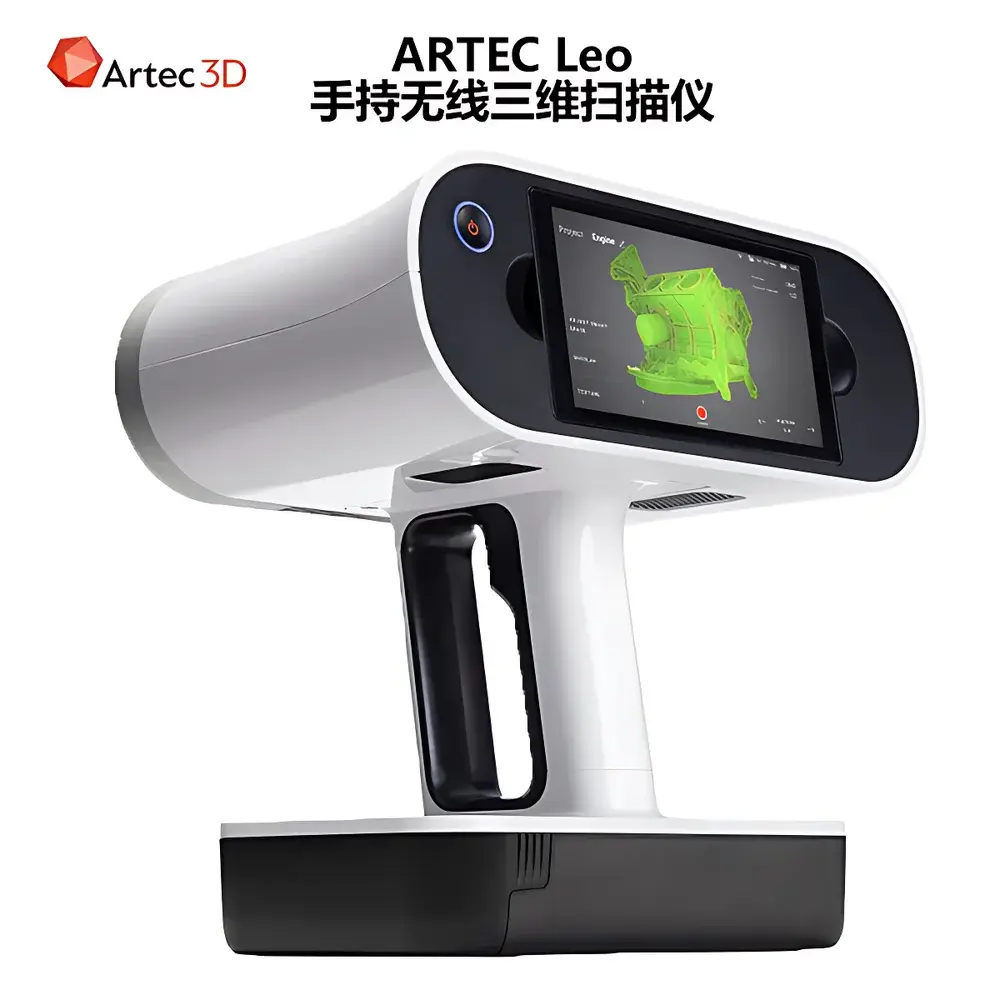

• Integrated 5.5-inch HD touchscreen interface for real-time 3D model visualization, intuitive gesture-based navigation, and on-device parameter adjustment
• Onboard processing eliminates dependency on external PCs; all alignment, fusion, hole-filling, and smoothing occur in real time without latency
• Dual optical system combining high-resolution structured light projection and synchronized stereo imaging for consistent geometric fidelity across reflective, dark, or low-texture surfaces

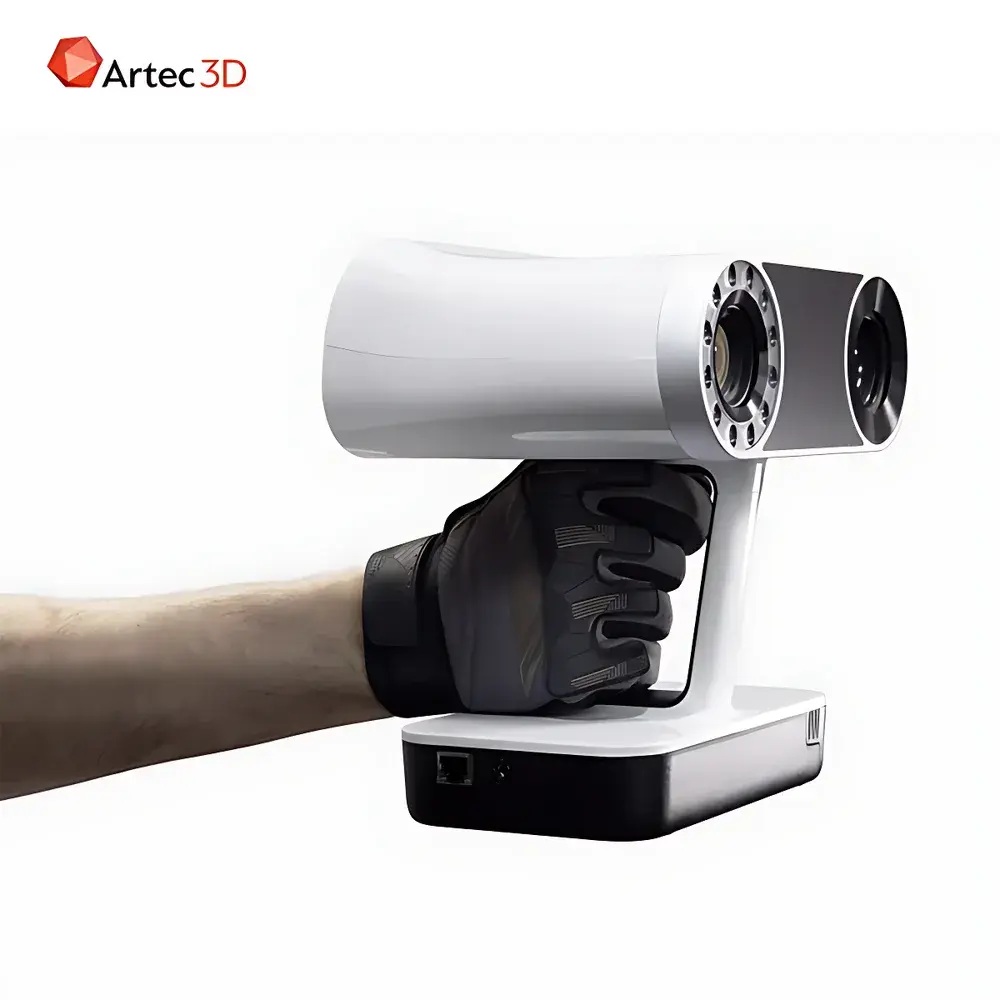

• Ergonomic, single-hand operable design (2.5 kg total mass) optimized for extended use; supports optional hot-swappable battery modules for uninterrupted deployment
• Native support for Wi-Fi 5 (802.11ac) and Bluetooth 5.0—enabling remote monitoring, cloud synchronization, and integration into enterprise data workflows

Sample Compatibility & Compliance

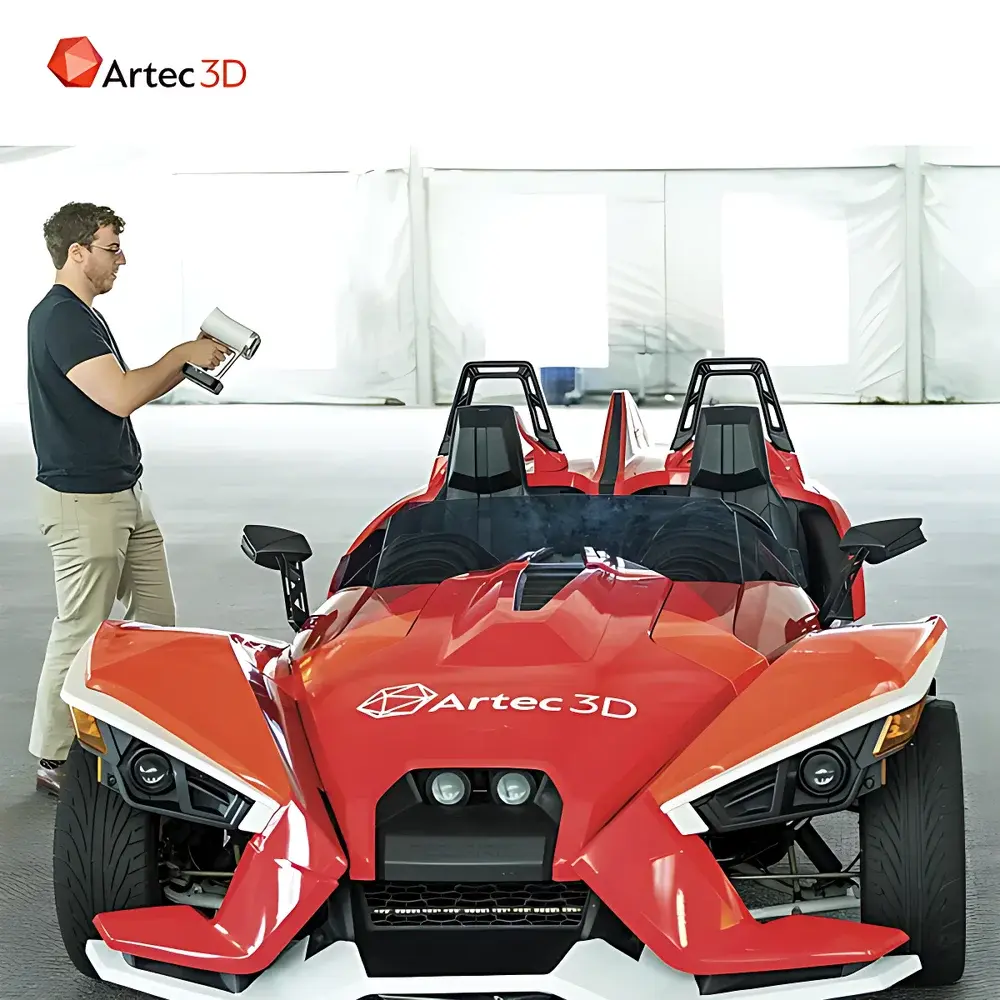

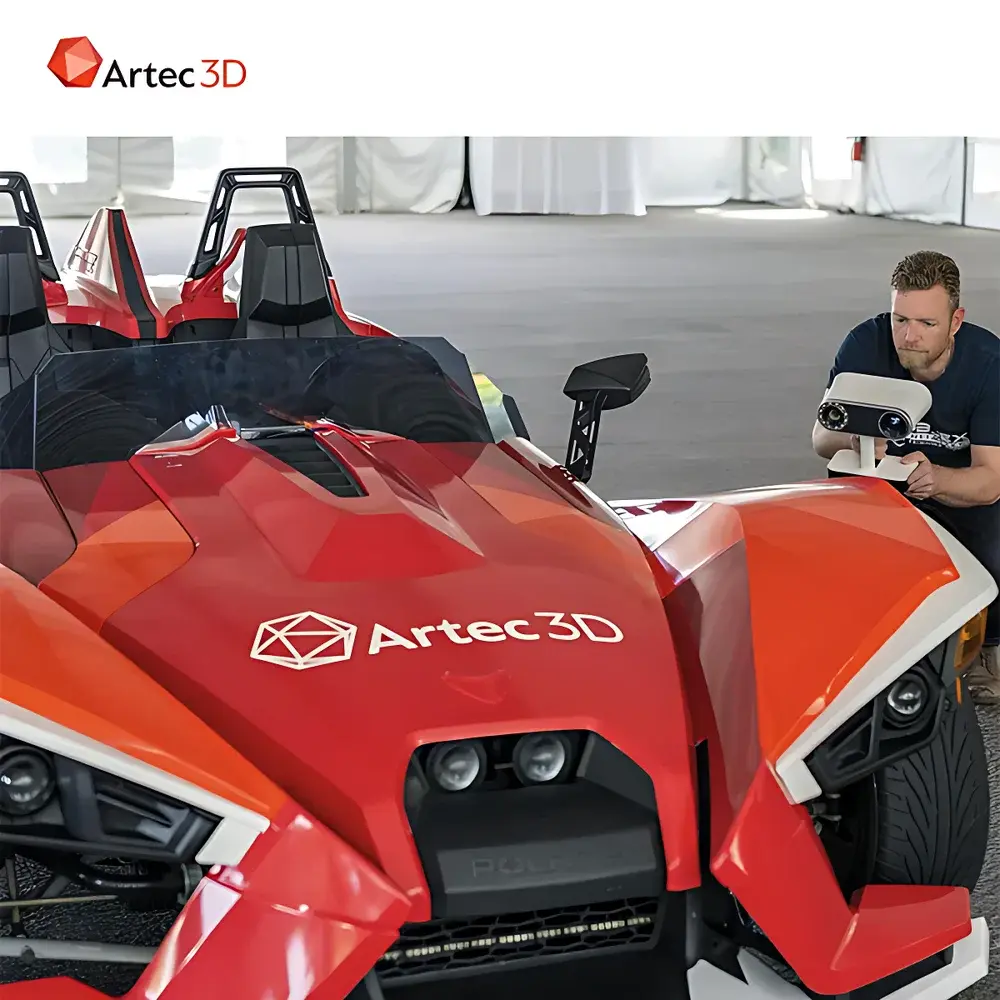

The Artec Leo accommodates a broad spectrum of physical objects—from sub-centimeter mechanical components and orthopedic prostheses to full-scale automotive bodies, marine vessels, architectural interiors, and crime scene reconstructions. Its adaptive exposure control and multi-frequency light pattern modulation ensure reliable capture of challenging surfaces including polished metals, black elastomers, human skin, and weathered concrete. The system complies with CE, FCC, and RoHS directives. While not inherently FDA-cleared or ISO 13485-certified as a medical device, its output data meets ASTM E2924-22 requirements for 3D scanning in forensic documentation and supports GLP-aligned metadata logging (timestamp, IMU pose, ambient lighting index) when used within validated laboratory procedures.

Software & Data Management

Scanned data is processed using Artec Studio 19 software (Windows 11 compatible), which provides full audit trail functionality—including user login timestamps, parameter change logs, and version-controlled project history—supporting 21 CFR Part 11 compliance when deployed in GxP environments with appropriate IT validation. Export formats include STL, OBJ, PLY, AOP, and PTX, with native integration into metrology platforms such as PolyWorks, Geomagic Control X, and FARO SCENE. Encrypted local storage (AES-256) and configurable cloud backup options (via AWS S3 or Azure Blob) ensure data integrity and long-term archival readiness. All firmware updates are digitally signed and delivered over secure HTTPS channels.

Applications

• Industrial metrology: First-article inspection, tool wear analysis, CAD-to-part deviation reporting
• Quality assurance: In-line verification of composite layup conformity, casting porosity assessment, weld seam profiling
• Forensic science: Ballistics trajectory modeling, footwear impression digitization, accident reconstruction with georeferenced point clouds
• Healthcare: Custom orthotic/diagnostic brace design, preoperative anatomical modeling, burn wound surface area quantification
• Cultural heritage: Non-contact digitization of fragile artifacts, museum cataloging with photorealistic texture preservation
• Education & research: Teaching spatial reasoning in mechanical engineering curricula, validating CFD mesh generation inputs, supporting digital twin development pipelines

FAQ

Does the Artec Leo require connection to a computer during scanning?
No. It operates autonomously with embedded processing and internal storage—no cables, laptops, or power outlets are needed during acquisition.
Can scan data be exported directly to metrology software?
Yes. Native export to industry-standard formats (STL, OBJ, PLY) ensures seamless import into PolyWorks, GOM Inspect, and other GD&T-capable platforms.
Is the system suitable for outdoor use?
It is rated IP54 for dust and splash resistance and features adaptive brightness and ambient light rejection algorithms—enabling reliable operation under shaded outdoor conditions.
How is calibration maintained over time?
The Leo performs automatic self-calibration at startup using internal reference targets; annual verification against NIST-traceable step gauges is recommended for metrological continuity.
What security protocols govern data transmission?
All wireless communication uses WPA3 encryption; firmware updates are cryptographically signed and verified prior to installation.
