Artec Leo Wireless AI-Powered 3D Scanner

Overview

The Artec Leo is a fully wireless, self-contained AI-powered 3D scanner engineered for high-fidelity, real-time geometric and textural data acquisition in industrial metrology, reverse engineering, forensic documentation, cultural heritage digitization, and quality assurance applications. Unlike tethered or PC-dependent scanning systems, the Leo integrates an NVIDIA Jetson TX2 embedded computing platform, a 5-inch HD touchscreen display, and rechargeable battery pack into a single ergonomic handheld unit—enabling autonomous operation without external power or computing hardware. Its core measurement principle relies on structured light triangulation combined with VCSEL (Vertical-Cavity Surface-Emitting Laser) illumination and a dual-optical-path imaging system, delivering sub-millimeter geometric accuracy and photorealistic texture mapping under variable ambient lighting conditions. The 2022 hardware revision doubles real-time processing throughput and enhances thermal stability to maintain consistent calibration integrity across extended field deployments.

Key Features

• Wireless standalone architecture: No cables, no laptop, no external power source required during operation
• Onboard NVIDIA Jetson TX2 processor enabling real-time mesh reconstruction and AI-assisted surface tracking

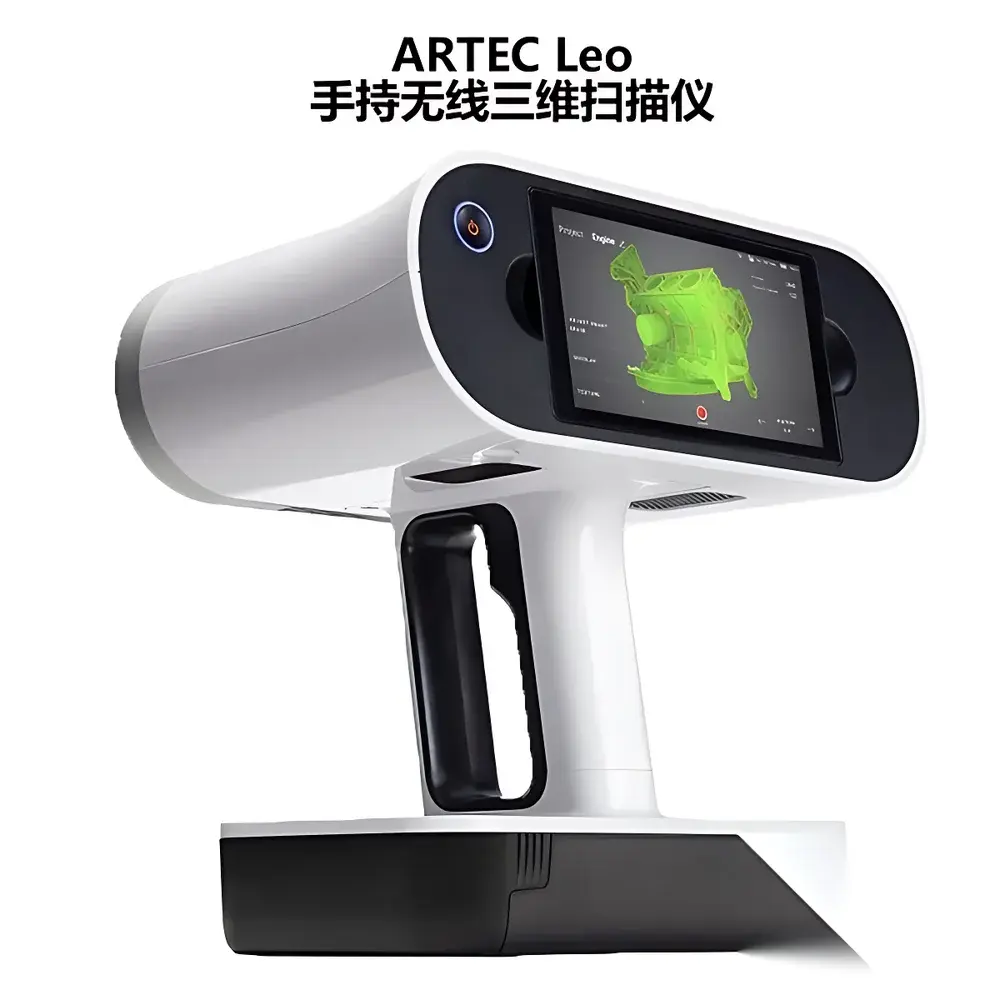

• 5-inch interactive HD touchscreen with color-coded live feedback for immediate visual validation of scan coverage and quality
• Markerless hybrid tracking system leveraging 9-axis IMU fusion, optical flow, and geometric consistency algorithms
• Dual-path optical system with adaptive VCSEL intensity control for optimal contrast on low-reflectivity, dark, or highly textured surfaces
• HD Mode: Doubled spatial resolution (up to 0.2 mm point spacing), advanced noise suppression, and enhanced edge curvature recovery for fine features such as threads, sharp corners, and thin-walled geometries
• Integrated thermal stabilization subsystem ensuring consistent volumetric accuracy over prolonged scanning sessions
• Cloud-ready connectivity via Wi-Fi and Artec Cloud API for remote device management, firmware updates, and distributed workflow integration

Sample Compatibility & Compliance

The Artec Leo accommodates a broad spectrum of physical objects—from small mechanical components (20–50 cm) and medium-scale assemblies (50–200 cm) to large-scale environments including vehicle interiors, crime scenes, architectural façades, and industrial infrastructure (exceeding 200 cm). Its non-contact optical design ensures safe scanning of fragile, temperature-sensitive, or historically significant artifacts. While not certified to ISO/IEC 17025 for accredited metrology labs, the system supports traceable calibration through included calibration certificates and optional calibration boxes compliant with internal QA protocols. Data integrity aligns with GLP-aligned documentation practices when used with Artec Studio’s audit-trail-enabled project logs.

Software & Data Management

Artec Studio 18+ serves as the primary desktop processing environment, offering automated alignment, global registration, noise filtering, hole filling, mesh simplification, and direct export to CAD-native formats (STEP, IGES, X_T) and industry-standard mesh formats (OBJ, STL, PLY, AOP). Integration with Artec Cloud enables secure cloud storage, collaborative review, API-driven automation (via RESTful endpoints and Python SDK), and over-the-air firmware updates. All raw frame data, reconstructed meshes, and texture maps are stored with full metadata—including timestamp, sensor pose, exposure settings, and calibration ID—ensuring full reproducibility and version control per ISO 9001 documentation requirements.

Applications

• Reverse engineering of legacy parts lacking CAD documentation
• First-article inspection and dimensional validation against nominal geometry
• Forensic scene documentation with georeferenced, metrically accurate 3D models
• Digital archiving of museum artifacts, sculptures, and archaeological finds
• Medical orthotics and prosthetics fitting workflows

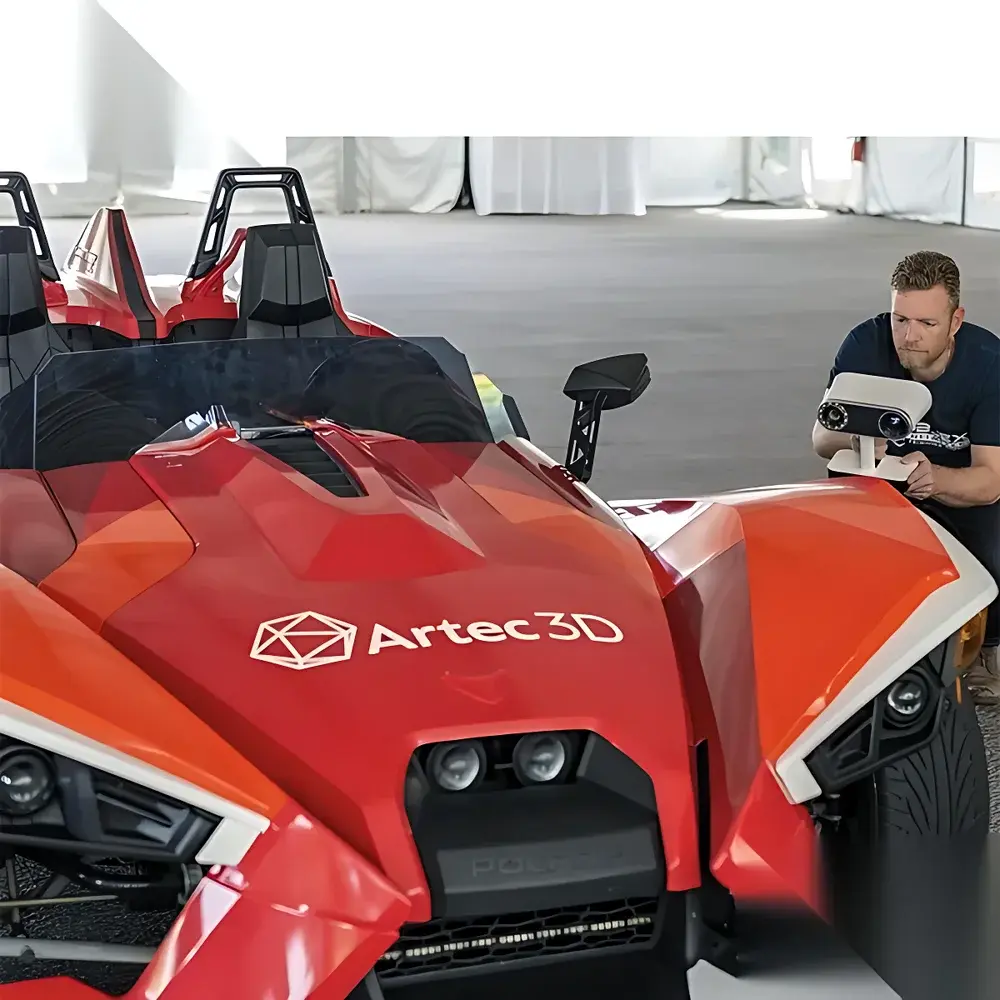

• Automotive interior prototyping and ergonomics assessment
• CGI-grade photogrammetry augmentation via synchronized camera image fusion in Artec Studio
• Education and research labs requiring portable, classroom-deployable 3D capture solutions

FAQ

Does the Artec Leo require target markers or spray coating for scanning?
No. Its markerless hybrid tracking system eliminates the need for adhesive targets or surface preparation.
Can the Artec Leo operate without internet access?
Yes. All core scanning and onboard processing functions operate offline; cloud connectivity is optional for remote management and backup.
What is the maximum working distance and volume capture capability?
Effective working distance ranges from 0.35 m to 1.2 m; total capture volume exceeds 160,000 cm³, supporting full-room scans when combined with multi-position acquisition.
Is the Artec Leo compatible with third-party CAD or inspection software?
Yes. Export formats include STEP, IGES, X_T, OBJ, STL, and PLY—ensuring interoperability with PolyWorks, Geomagic Control X, SolidWorks, Fusion 360, and Metrolog X4.
How frequently are firmware and software updates released?
Artec releases quarterly firmware updates and biannual major Artec Studio versions, all delivered automatically via Artec Cloud or manual download.
