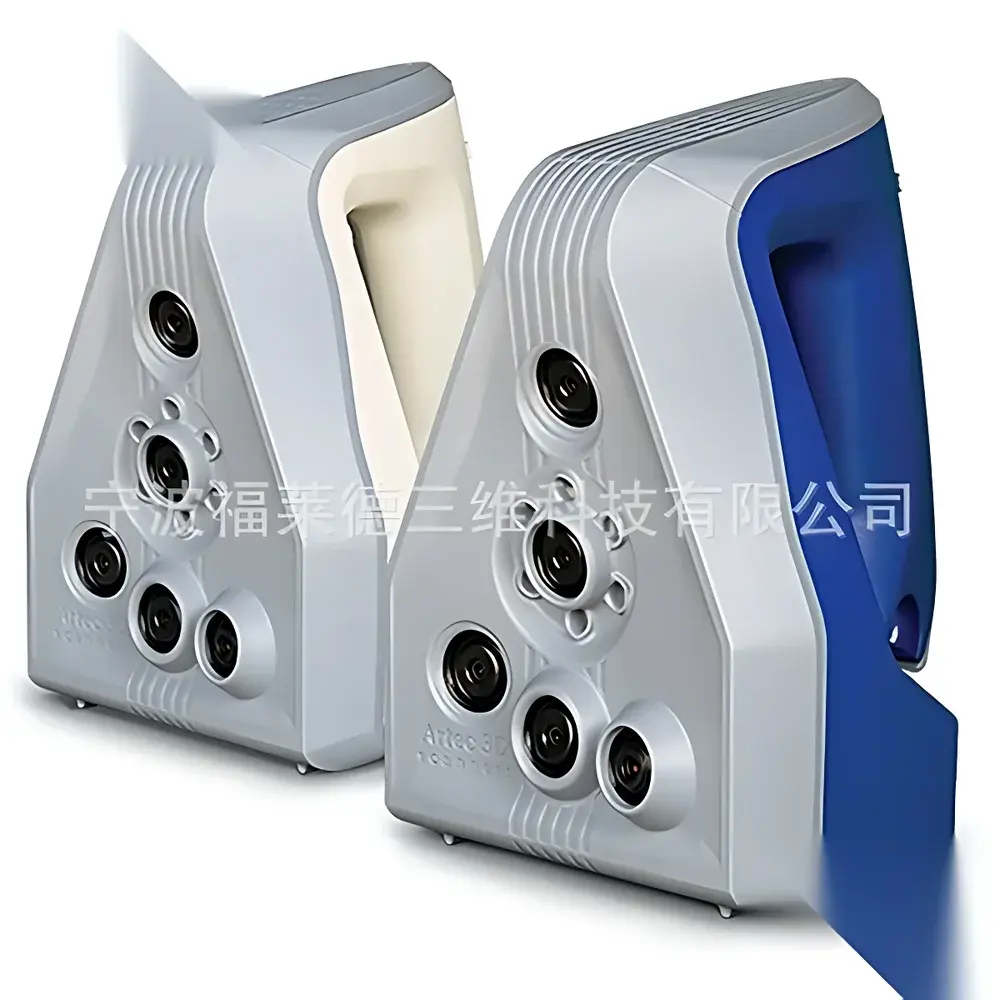

Artec Space Spider Industrial-Grade Blue-Light 3D Scanner

Overview

The Artec Space Spider is a metrology-grade, handheld blue-light 3D scanner engineered for precision engineering applications where sub-millimeter accuracy, geometric fidelity, and thermal stability are non-negotiable. Built upon advanced structured light triangulation with narrow-band blue LED illumination, the device delivers high-resolution surface capture without reliance on reflective targets or spray-based preparation—enabling direct digitization of complex freeform surfaces, sharp edges, thin-walled features, and fine-threaded components. Its optical architecture incorporates temperature-stabilized sensors and aerospace-grade electronics, originally developed under ESA specifications for use aboard the International Space Station (ISS). This heritage ensures exceptional repeatability across ambient fluctuations—from laboratory environments to factory floors—making it suitable for first-article inspection, GD&T validation, and closed-loop manufacturing feedback.

Key Features

• Metrology-class accuracy of up to 0.05 mm and resolution down to 0.1 mm—validated per ISO/IEC 17025-accredited calibration protocols.
• Blue-light structured illumination system optimized for high-contrast capture of dark, shiny, or low-texture surfaces without photogrammetric markers or developer sprays.
• Real-time fusion engine enabling live mesh reconstruction at 7.5 frames per second, with automatic alignment and noise suppression algorithms embedded in firmware.
• Thermally compensated internal reference system that achieves operational stability within three minutes of power-on, maintaining consistent volumetric accuracy across 10–35 °C ambient range.
• Ergonomic, lightweight (0.85 kg) carbon-fiber housing designed for extended handheld operation and integration with CMM arms or robotic scanning cells.
• Native support for industry-standard data export formats including STL, OBJ, PLY, and ASCII point clouds (ASC, XYZ), with optional STEP and IGES export via certified CAD interoperability modules.

Sample Compatibility & Compliance

The Space Spider excels in capturing objects ranging from miniature mechanical assemblies (e.g., watch gears, PCBs, medical implants) to medium-sized industrial parts (e.g., turbine blades, injection-molded housings, legacy tooling). It reliably digitizes materials including anodized aluminum, electroplated metals, matte plastics, and human tissue—without requiring surface treatment. All hardware and software comply with CE, FCC, and RoHS directives. Calibration documentation adheres to ISO/IEC 17025 requirements, supporting traceability for ISO 9001, AS9100, and IATF 16949 quality management systems. Optional audit-ready reporting modules enable compliance with FDA 21 CFR Part 11 electronic record and signature requirements when integrated into GLP/GMP workflows.

Software & Data Management

Artec Studio 19+ provides full pipeline control—from real-time scanning and automatic outlier rejection to polygonal mesh optimization, deviation analysis against CAD references, and GD&T-compliant reporting. The software supports batch processing, scripting via Python API, and integration with Metrology Software Platforms (e.g., PolyWorks, GOM Inspect, Geomagic Control X) through standardized import/export interfaces. Encrypted project files include full metadata logging (timestamp, operator ID, environmental conditions, calibration status), satisfying traceability needs for regulated industries. Cloud-based collaboration tools allow secure sharing of annotated 3D models and measurement reports across global engineering teams.

Applications

• Reverse engineering of legacy components lacking CAD documentation—especially where tight tolerances govern fit, form, or function.
• In-process quality assurance for additive manufacturing, CNC machining, and die-casting—supporting rapid comparison of as-built vs. nominal geometry.
• Tooling and mold verification, including cavity surface integrity assessment and wear pattern analysis over production cycles.
• Biomedical prototyping and anatomical modeling, such as custom orthotic design, hearing aid shell digitization, and dental implant planning.
• Archival digitization of precision artifacts, museum specimens, and forensic evidence with metrological confidence.

FAQ

What certification standards does the Space Spider meet for metrological traceability?
It ships with an ISO/IEC 17025-accredited calibration certificate issued by Artec’s in-house metrology lab, ensuring traceability to national standards (NIST, PTB, NPL).
Can the Space Spider be used in controlled cleanroom environments?
Yes—the device operates fanlessly, emits no particulates, and complies with ISO Class 5 (Class 100) cleanroom compatibility guidelines when handled with appropriate ESD protocols.
Is thermal drift compensated during long-duration scans?
Yes—its internal thermal reference system continuously monitors sensor baseline shifts and applies real-time correction, preserving accuracy over multi-hour sessions.
Does Artec Studio support automated GD&T evaluation?
Yes—through dedicated “Inspection Mode”, users can define datums, tolerances, and feature controls per ASME Y14.5 and ISO 1101, generating ANSI-compliant deviation reports.
How is data security managed in regulated manufacturing settings?
Artec Studio supports role-based access control, encrypted local storage, and electronic audit trails compliant with FDA 21 CFR Part 11 and EU Annex 11 requirements.
