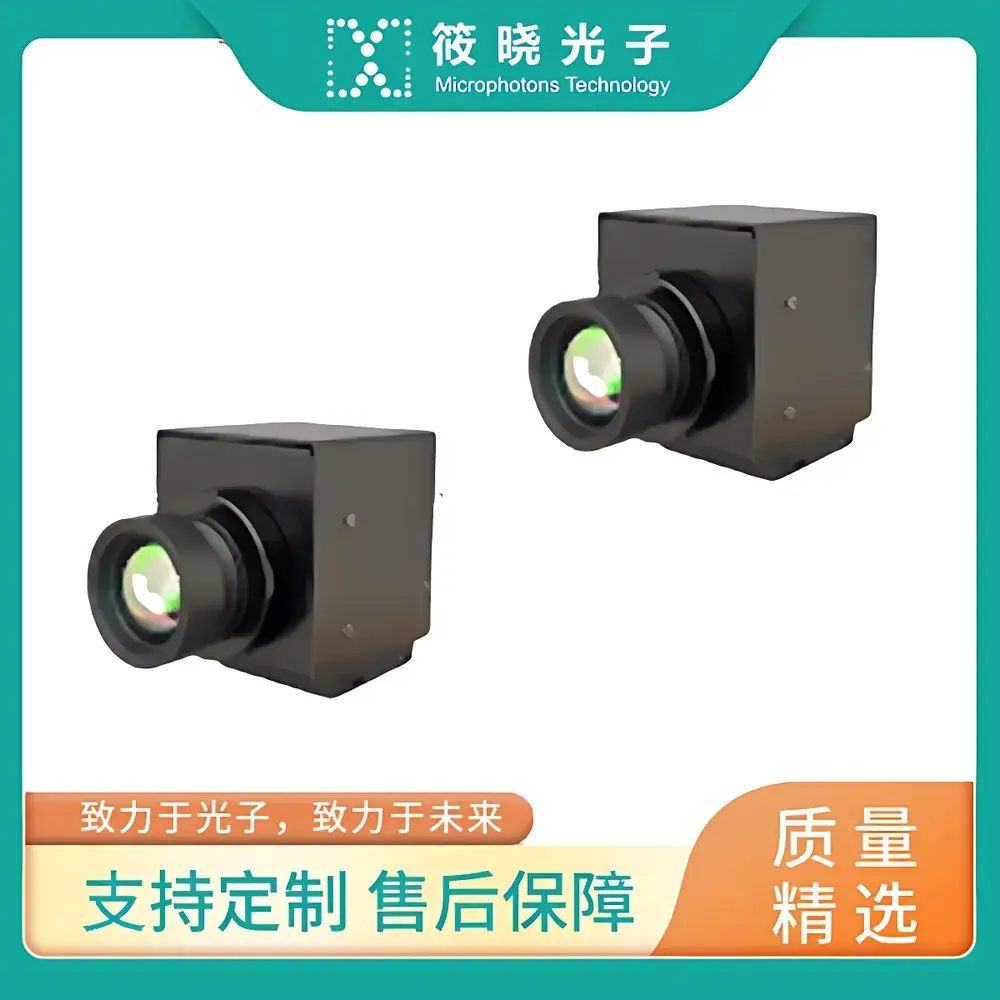

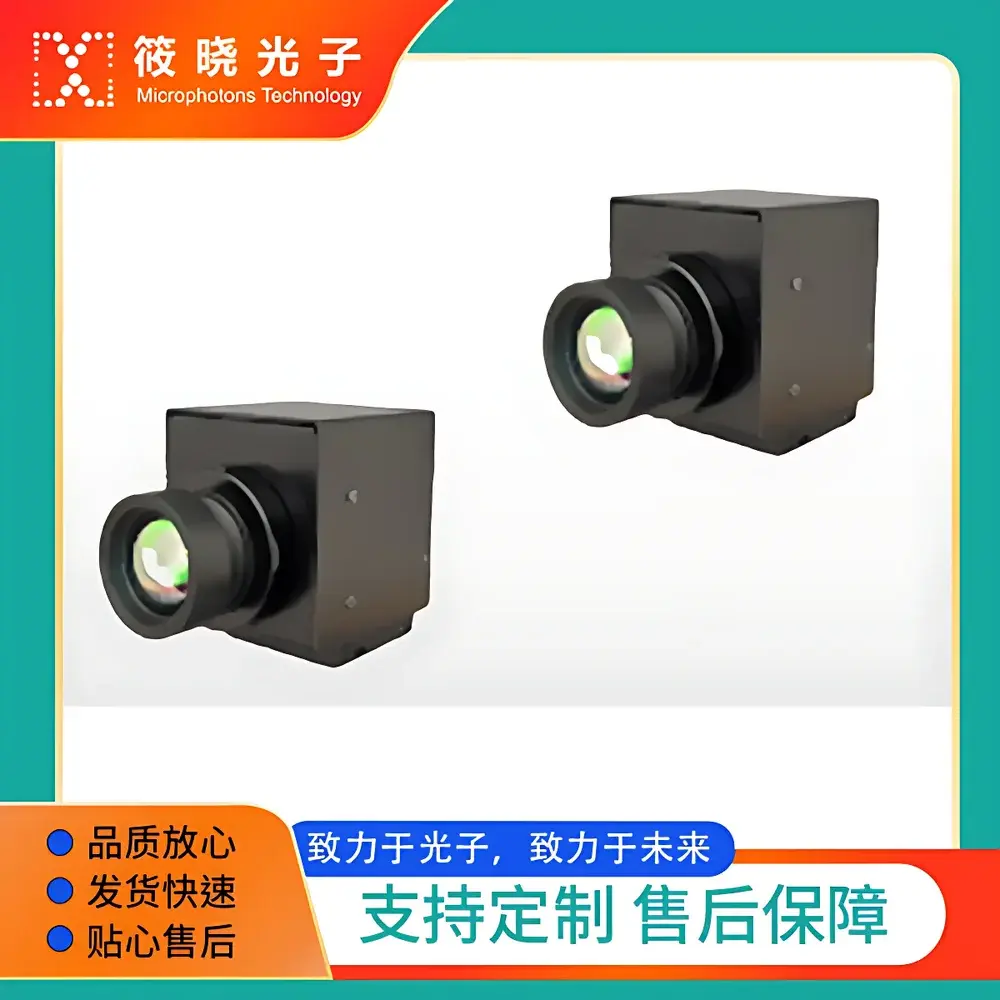

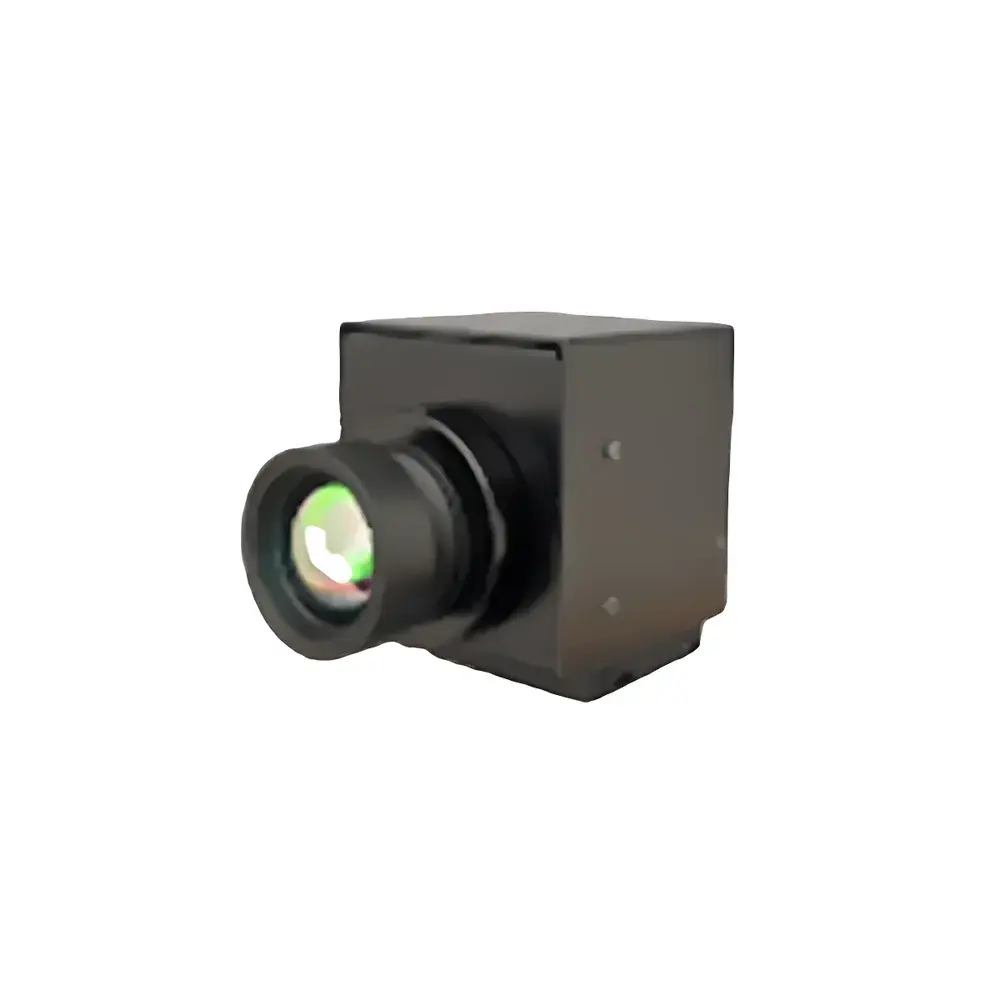

Artray ARTCAM-640P2-THERMO Thermal Infrared Camera (8–14 µm, 640 × 480 Resolution)
| Brand | Artray |
|---|---|
| Origin | Japan |
| Model | ARTCAM-640P2-THERMO |
| Spectral Range | 8–14 µm |
| Resolution | 640 × 480 pixels |
| Type | Cooled or Uncooled Microbolometer (Inferred from Class & Spec) |
| Compliance | CE, RoHS, JIS C 1609-1 (Thermal Imaging Equipment Standard) |
Overview
The Artray ARTCAM-640P2-THERMO is a high-sensitivity thermal infrared imaging camera engineered for precision non-contact temperature measurement and thermographic analysis in industrial R&D, predictive maintenance, electronics inspection, and materials characterization. Operating within the long-wave infrared (LWIR) atmospheric transmission window of 8–14 µm, this camera leverages microbolometer detector technology to capture thermal radiation emitted by objects at ambient and elevated temperatures—without requiring external illumination. Its native spatial resolution of 640 × 480 pixels delivers enhanced detail over standard VGA thermal sensors, enabling reliable detection of sub-degree temperature gradients across complex geometries. Designed for integration into automated test benches, laboratory imaging systems, and field-deployable diagnostic platforms, the ARTCAM-640P2-THERMO adheres to fundamental radiometric principles defined in ISO 18434-1 (Condition monitoring — Thermography) and supports traceable calibration protocols aligned with NIST-traceable blackbody reference sources.
Key Features
- True LWIR spectral response (8–14 µm) optimized for maximum emissivity-based accuracy across common industrial materials (metals, polymers, ceramics, composites)
- 640 × 480 uncooled microbolometer focal plane array (FPA) with pixel pitch ≤ 17 µm, delivering improved spatial sampling and reduced pixelation artifacts
- Real-time digital output via GigE Vision or USB3.0 interface—compatible with GenICam-compliant software environments
- Onboard non-uniformity correction (NUC), temporal noise reduction, and dynamic range optimization for stable image quality across varying scene temperatures
- Ruggedized aluminum housing rated IP54 for operation in controlled industrial and laboratory environments
- Factory-calibrated radiometric mode supporting quantitative temperature measurement with ±2 °C or ±2% reading accuracy (whichever is greater) under standard conditions
Sample Compatibility & Compliance
The ARTCAM-640P2-THERMO is suitable for static and dynamic thermal profiling of solid-state samples—including PCB assemblies, heat sinks, battery cells, composite laminates, and mechanical components—without contact or perturbation. It complies with international safety and electromagnetic compatibility standards including IEC 61000-6-2 (immunity) and IEC 61000-6-4 (emissions), as well as RoHS Directive 2011/65/EU and CE marking requirements. For regulated environments, the system supports audit-ready metadata logging (timestamp, lens ID, integration time, ambient reference temperature) required under GLP and ISO/IEC 17025-accredited testing workflows. While not intrinsically rated for hazardous locations, optional mounting kits and environmental enclosures are available for extended deployment in HVAC, energy auditing, and building envelope diagnostics.
Software & Data Management
The camera ships with Artray’s proprietary SDK (Windows/Linux/macOS) and GUI application, enabling full control of exposure parameters, palette selection, region-of-interest (ROI) analysis, isotherm mapping, and emissivity compensation. Raw thermal data is exported in 16-bit TIFF or CSV format for post-processing in MATLAB, Python (via OpenCV or scikit-image), or third-party thermography platforms such as FLIR Tools or ThermaCAM Researcher. All firmware updates and calibration certificates are digitally signed and version-controlled; software logs include timestamped operator actions and configuration changes—supporting FDA 21 CFR Part 11 compliance when deployed with validated IT infrastructure and user access controls.
Applications
- Electronics reliability testing: Identification of hotspots in power modules, LED arrays, and IC packages during functional burn-in
- Non-destructive evaluation (NDE): Detection of delamination, voids, and disbonds in aerospace composites using active thermography (lock-in or pulse excitation)
- Energy efficiency assessment: Quantitative thermal leakage mapping of windows, insulation joints, and façade systems per ASTM C1060 and ISO 6781-3
- Materials science research: Real-time monitoring of phase transitions, curing kinetics, and thermal diffusivity in polymer and ceramic systems
- Quality assurance in additive manufacturing: In-situ melt pool and residual stress distribution analysis during laser powder bed fusion
FAQ
What is the typical NETD specification for this model?
Typical Noise-Equivalent Temperature Difference (NETD) is ≤ 50 mK at 30 °C scene temperature and f/1.0 optics—measured per ISO 16509:2017.
Does the camera support radiometric video recording?
Yes—full-resolution 16-bit radiometric video is supported at up to 30 Hz frame rate with embedded temperature metadata per frame.
Can the ARTCAM-640P2-THERMO be calibrated for custom emissivity tables?
Yes—the SDK allows user-defined emissivity look-up tables (LUTs) mapped to material type, surface finish, and wavelength band.
Is factory recalibration required annually?
Artray recommends annual radiometric recalibration using NIST-traceable blackbody sources to maintain measurement integrity per ISO/IEC 17025 guidelines.
What lens options are available?
Standard 25 mm f/1.0 germanium lens included; optional wide-angle (9 mm), telephoto (50 mm), and macro (focal length < 5 mm) lenses are available with AR-coated germanium elements.
