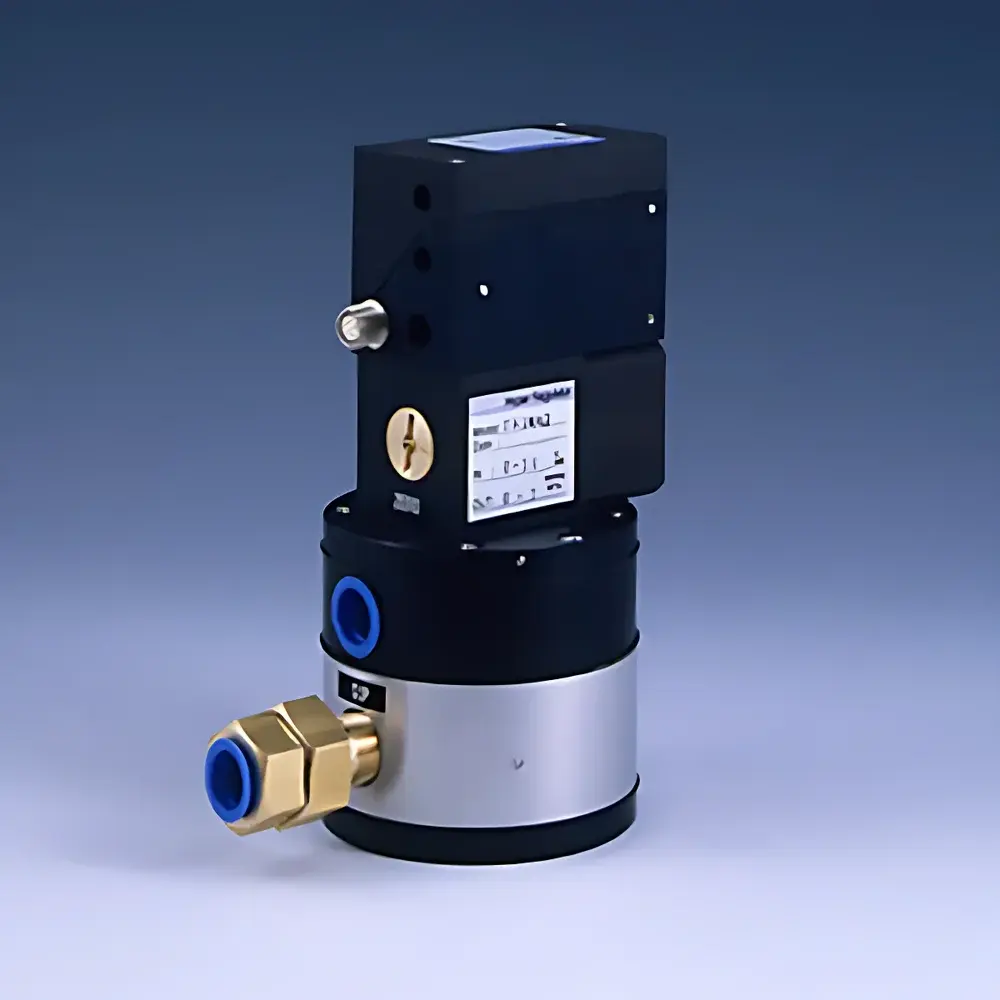

ASAHI 752AC1 / 752BC1 High-Precision Vacuum-Coupled Pressure Regulator
| Brand | AND/A&D |
|---|---|
| Origin | Japan |
| Model | 752AC1 / 752BC1 |
| Set Pressure Range | –0.06 to 0.3 MPa |
| Input Signal | 0–10 V / 4–20 mA (standard 10–5 V configurable) |
| Supply Pressure | Max. Output Range + 0.1 MPa |
| Power Supply | 24 VDC |
| Connection Port | 3/8″ |
| Compatible Fluid | Compressed Air (non-air media require external pilot type) |
| Sensor Type | Internal piezoresistive pressure sensor (752AC1) / External sensor interface (752BC1) |
| Input Impedance | ≥10 kΩ (voltage) / ≤300 Ω (current) |
| Mounting Orientation | Omnidirectional (no orientation-induced drift) |
| Control Algorithm | Force-Balance + Adaptive PID |
| Air Consumption | ≤1.5 L/min (low-flow variant) to ≤5 L/min (standard) |
| Weight | 1.8 kg |
| Insulation Resistance | ≥1 MΩ |
| Hysteresis | ≤±0.1% FS |
| Linearity | ≤±0.5% FS (sensor-dependent) |
| Response Time | <0.05 s (no-load) |
| Orifice Diameter | 11 mm |
| Body Material | ADC12 aluminum alloy (A2017 equivalent) |
| Diaphragm & Seal Material | NBR |
Overview
The ASAHI 752AC1 and 752BC1 are high-precision, vacuum-coupled electro-pneumatic pressure regulators engineered for stable, repeatable pressure control in demanding analytical, semiconductor, and laboratory automation environments. Unlike conventional proportional solenoid regulators, these units employ a dual-stage force-balance architecture combined with adaptive PID feedback—leveraging real-time pressure sensing to dynamically compensate for supply pressure fluctuations, temperature drift, and flow transients. The 752AC1 integrates a calibrated internal piezoresistive pressure transducer, enabling closed-loop regulation without external instrumentation; the 752BC1 provides a dedicated analog input interface for integration with third-party sensors or distributed control systems (DCS), supporting configuration flexibility across OEM and custom process setups. Designed for operation across a wide differential range—from deep vacuum (–0.06 MPa gauge) to moderate positive pressure (0.3 MPa gauge)—the regulator maintains metrological integrity under varying load conditions, making it suitable for applications requiring traceable, GLP-compliant pressure staging in gas chromatography sample introduction, vacuum chamber backfilling, and microfluidic actuation control.
Key Features
- Force-balance + adaptive PID control architecture ensures high stability and minimal overshoot during setpoint transitions
- Omnidirectional mounting capability eliminates orientation-dependent zero shift—critical for integration into compact or vertically constrained instrument enclosures
- Low air consumption variants (<1.5 L/min) reduce operational cost and heat generation in continuous-duty applications
- Robust mechanical design: ADC12 die-cast aluminum body offers high thermal conductivity and dimensional stability; NBR diaphragm and seals provide compatibility with dry compressed air and resistance to aging under cyclic loading
- Wide analog input compatibility: supports 0–10 V, 4–20 mA, and user-specified signal ranges via factory configuration—enabling seamless integration with PLCs, DAQ systems, and SCADA platforms
- Fast dynamic response (<0.05 s no-load settling time) validated per ISO 554 and JIS B 8392 test protocols for pneumatic control elements
Sample Compatibility & Compliance
The 752AC1/752BC1 is certified for use with clean, dry, oil-free compressed air per ISO 8573-1:2010 Class 4.1.1 specifications. Use with aggressive gases (e.g., Cl₂, NH₃, H₂S), corrosive vapors, or high-humidity streams requires selection of the external pilot configuration (752BC1 with compatible pilot valve) and optional fluorocarbon-sealed variants. The unit complies with IEC 61000-6-2 (immunity) and IEC 61000-6-4 (emission) standards for industrial environments. Electrical isolation meets IEC 61010-1 requirements for measurement/control equipment. While not intrinsically safe, the 24 VDC supply enables safe integration into Class 1 Div 2 hazardous area systems when installed behind approved barriers.
Software & Data Management
No embedded firmware interface is provided; the regulator operates as an analog field device. However, when paired with compliant data acquisition hardware (e.g., National Instruments cDAQ, Keysight 34972A), it supports full audit-trail logging per FDA 21 CFR Part 11 requirements—including timestamped setpoint history, actual pressure traces, and alarm events. Calibration records—including as-found/as-left data, linearity/hysteresis verification reports, and sensor traceability to JCSS-certified standards—can be archived within LIMS or ELN platforms using standard CSV or OPC UA export workflows.
Applications
- Precision pressure staging in GC carrier gas control and purge-and-trap systems
- Backpressure regulation in vacuum deposition chambers and leak testing manifolds
- Flow rate stabilization for mass flow controllers (MFCs) in semiconductor ALD/CVD tooling
- Reference pressure generation in metrology labs performing deadweight tester cross-checks
- Automated sample handling systems requiring programmable vacuum-to-pressure sequencing
FAQ
What is the difference between the 752AC1 and 752BC1 models?
The 752AC1 includes an integrated, factory-calibrated pressure sensor and operates as a fully self-contained closed-loop regulator. The 752BC1 omits the internal sensor and instead provides a high-impedance analog input for connection to an external transducer—offering greater flexibility in sensor selection, calibration interval alignment, and multi-point system synchronization.
Can this regulator be used with nitrogen or argon?
Yes—provided the gas is dry, particle-free, and within the specified dew point and particulate limits (ISO 8573-1 Class 4). For inert gases, verify NBR compatibility at operating temperature; extended exposure above 60 °C may accelerate elastomer compression set.
Is field recalibration supported?
No. Calibration is performed at the factory using NIST-traceable deadweight testers and must be repeated by an accredited calibration laboratory per ISO/IEC 17025. End users may perform functional verification using a certified reference manometer but cannot adjust internal gain or offset parameters.
Does the unit support digital communication protocols such as RS-485 or EtherNet/IP?
No. It is an analog-only device. Digital integration requires an external analog-to-digital converter or a compatible I/O module with configurable scaling and linearization.
