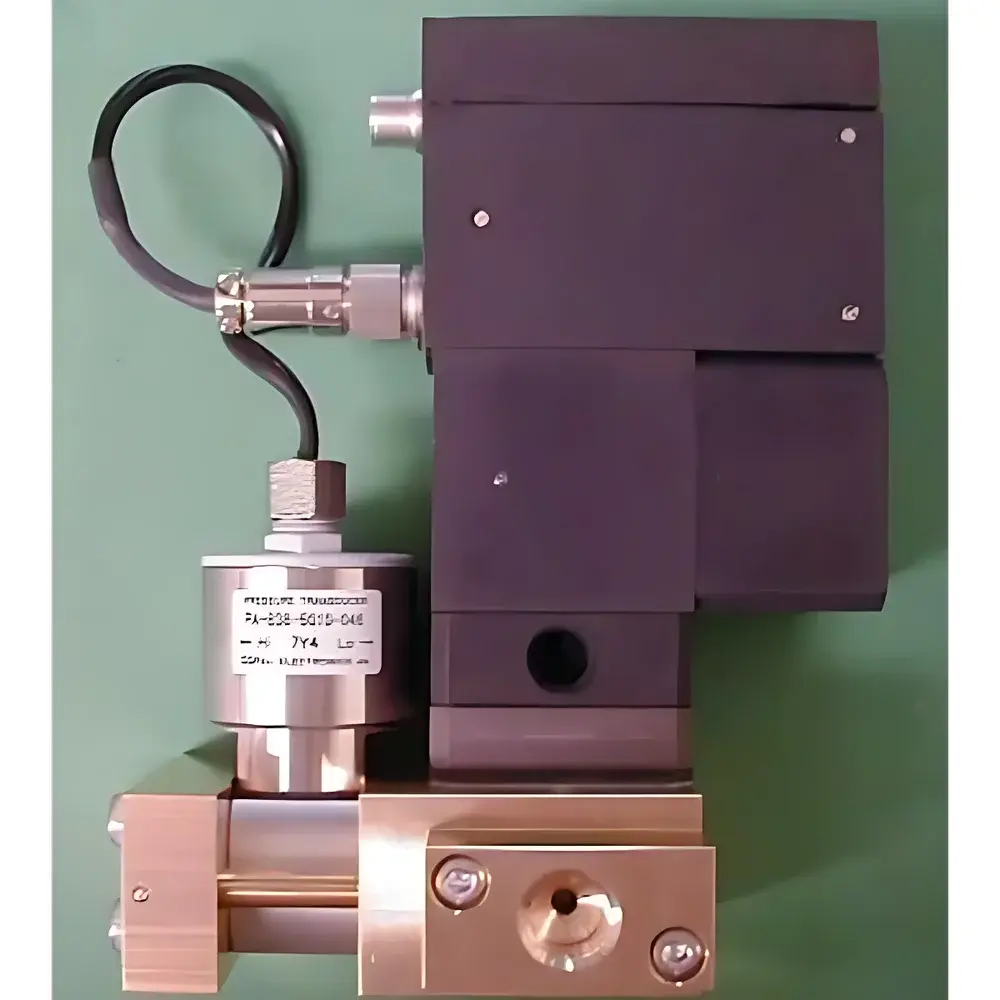

ASAHI Precision 601D-D05 Differential Pressure Flow Transmitter

Overview

The ASAHI Precision 601D-D05 is a high-speed, high-resolution differential pressure (ΔP)-based flow transmitter engineered for precision liquid flow measurement in demanding industrial and pharmaceutical process environments. Unlike inferential or thermal mass flow technologies, the 601D-D05 employs a primary ΔP sensing principle—measuring the pressure drop across a calibrated flow restriction (e.g., laminar flow element or orifice)—and computes volumetric flow rate using Bernoulli-derived relationships and real-time linearization algorithms. Its sub-millisecond computational latency (<1 ms) enables stable integration into fast-cycling closed-loop control systems, particularly where dynamic response and repeatability are critical—such as in purified water (PW) distribution loops, solvent delivery in analytical instrumentation, or buffer preparation skids compliant with ISO 21501-4 and USP . The wetted sensing element is constructed entirely from electropolished SUS316L stainless steel, ensuring compatibility with high-purity aqueous media, low-conductivity solvents, and mild caustic or acidic solutions typical of CIP/SIP protocols.

Key Features

• Ultra-fast signal processing: Real-time flow calculation and analog output generation completed within <1 millisecond—optimized for PID controller synchronization and transient event capture.
• SUS316L wetted path: Fully traceable material certification available; surface roughness Ra ≤ 0.4 µm per ASME BPE-2022 for pharmaceutical-grade fluid contact surfaces.
• Wide dynamic range: 20:1 turndown ratio (5–100 mL/min) with linearity error ≤ ±1.0% FS over the specified operating pressure window (100–300 kPa).
• Stable analog output: Isolated 0–5 V DC output referenced to system ground; output impedance <100 Ω; load capacity ≥ 10 kΩ.
• Robust mechanical design: Compact aluminum alloy housing (IP65-rated); G¼ BSPP process connection; R03-R5F conduit port for cable entry.
• No moving parts or thermal elements: Eliminates drift associated with viscosity- or temperature-dependent sensing mechanisms; suitable for long-term unattended operation.

Sample Compatibility & Compliance

The 601D-D05 is validated for use with liquids chemically compatible with austenitic stainless steel (SUS316L), including purified water (PW), water-for-injection (WFI), ethanol/water mixtures, phosphate-buffered saline (PBS), and dilute sodium hydroxide (≤1% w/w). It is not rated for steam, gases, slurries, or highly viscous fluids (>50 cP at operating temperature). While the device itself carries no intrinsic regulatory certification (e.g., CE, UKCA, or FDA 510(k)), its construction and performance characteristics align with key requirements of ISO 9001:2015 (design control), ISO 13485:2016 (medical device QMS), and Annex 1 (EU GMP) for critical process monitoring. When integrated into validated systems, it supports audit trails under 21 CFR Part 11 when paired with compliant data acquisition software.

Software & Data Management

The 601D-D05 operates as a stand-alone analog transmitter and does not require embedded firmware or host software for basic functionality. However, for system-level validation and trending, its 0–5 V output is compatible with industry-standard PLCs (e.g., Siemens S7-1200/1500, Rockwell ControlLogix), SCADA platforms (Ignition, WinCC), and LIMS-integrated DAQ systems. Optional third-party calibration reports—including as-found/as-left data, hysteresis testing, and temperature coefficient verification—can be provided upon request and archived in accordance with GLP/GMP documentation standards. No onboard memory or digital communication interface (e.g., HART, Modbus) is included in the base D05 configuration.

Applications

• Purified Water (PW) and Water-for-Injection (WFI) loop monitoring in pharmaceutical manufacturing facilities.
• Low-flow solvent metering in HPLC mobile phase delivery systems and automated sample preparation workstations.
• Critical rinse cycle verification during CIP/SIP sequences in bioreactor and filling line utilities.
• Flow verification in laboratory-scale continuous manufacturing modules (e.g., microreactors, nanofiltration test rigs).
• Calibration reference for secondary flow meters in metrology labs adhering to ISO/IEC 17025.

FAQ

Is the 601D-D05 suitable for sanitary applications requiring ASME BPE compliance?
Yes—the wetted components meet ASME BPE-2022 surface finish and material traceability requirements when supplied with optional electropolish certification and material test reports (MTRs).
Does the transmitter require zero calibration in-situ?
No—factory-calibrated for fixed geometry and fluid density assumptions; zero drift is negligible (<0.02% FS/year) due to solid-state MEMS ΔP sensor architecture.
Can it be mounted in any orientation?
Yes—no gravitational sensitivity; mounting orientation has no effect on accuracy or long-term stability.
What is the maximum allowable upstream/downstream straight pipe requirement?
For optimal accuracy, 10× and 5× nominal pipe diameters upstream and downstream of the flow element are recommended per ISO 5167-2; consult application engineering for custom flow conditioning solutions.
Is explosion-proof or intrinsically safe certification available?
Not standard; the 601D-D05 is rated for general-purpose industrial environments only (non-hazardous area classification).
