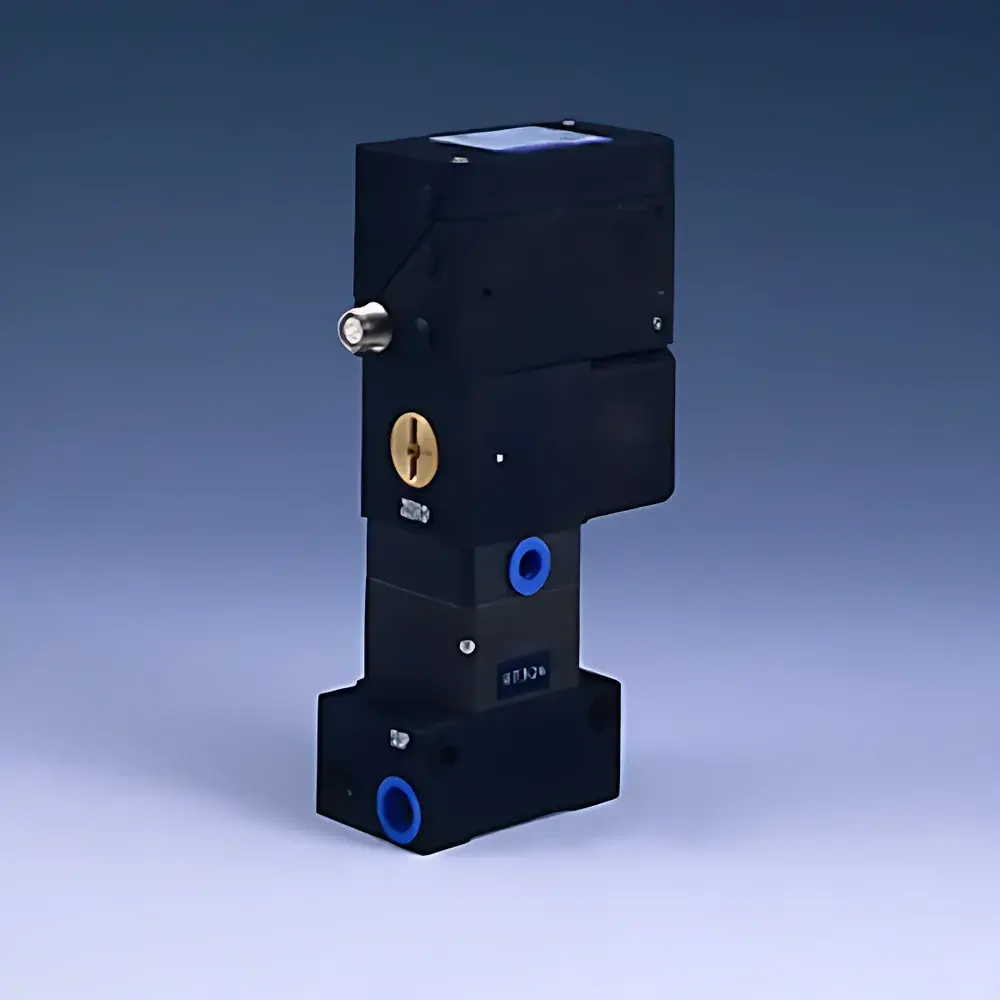

ASAHI Precision 6640AA1 / 6640AB1 High-Accuracy Pneumatic Pressure Regulator with Secondary Pressure Control and Integrated PID Compensation
| Brand | ASAHI Precision |
|---|---|
| Origin | Japan |
| Model | 6640AA1 |
| Supply Pressure Range | Up to 0.85 MPa (max input = set range + 0.05 MPa) |
| Output Pressure Range (Selectable) | 0–0.8 MPa (AA1), 0–0.3 MPa (AB1), 0–0.1 MPa (AD1), 0–1.0 MPa (AH1) |
| Input Signal | 0–5 V DC (optional: 0–10 V DC or 4–20 mA, specify at order) |
| Power Supply | 24 V DC ±10% |
| Sensor Type | Built-in pressure sensor (A-series) or external analog sensor interface (B-series, supports pressure/flow/position sensors) |
| Input Impedance | ≥10 kΩ (voltage), ≤300 Ω (current) |
| Hysteresis | ≤±0.05% FS |
| Linearity | ≤±0.3% FS (sensor-dependent) |
| Response Time (no-load) | <0.05 s |
| Flow Consumption | ≤1.5 L/min (standard), ≤5 L/min (high-speed variant) |
| Orifice Diameter | 4 mm |
| Weight | 0.8 kg |
| Housing Material | ADC12 aluminum die-cast |
| Internal Components | A2017 aluminum alloy, SUS304 stainless steel |
| Diaphragm | NBR or Viton® |
| Seals | Viton® |
| Insulation Resistance | >1 MΩ |
| Mounting Orientation | Omnidirectional (no orientation-induced drift) |
| Fluid Compatibility | Compressed air (non-air media require externally piloted configuration) |
Overview
The ASAHI Precision 6640AA1 and 6640AB1 are high-accuracy, electronically controlled pneumatic pressure regulators engineered for stable secondary pressure regulation in precision industrial automation, analytical instrumentation, and laboratory gas delivery systems. Operating on a force-balanced control principle combined with adaptive PID compensation, these regulators actively suppress output pressure drift caused by supply pressure fluctuations, temperature variation, and flow demand changes. Unlike conventional mechanical regulators, the 6640 series integrates real-time feedback from either an internal piezoresistive pressure sensor (model AA1) or an externally connected analog sensor (model AB1), enabling closed-loop correction of static and dynamic deviations. The device functions as a two-stage pressure management system: it accepts a variable primary (inlet) pressure—up to 0.85 MPa—and delivers a highly stable, user-defined secondary (output) pressure within one of four calibrated ranges (0–0.1, 0–0.3, 0–0.8, or 0–1.0 MPa). Its design conforms to ISO 8573-1 Class 4 purity requirements when used with filtered, dry compressed air, making it suitable for applications demanding repeatable actuation, low hysteresis, and minimal dead-volume effects.
Key Features
- Force-balance + digital PID control architecture ensures long-term stability and eliminates manual recalibration under varying load conditions
- Omnidirectional mounting capability with no performance degradation—validated across all spatial orientations per JIS B 8391 test protocols
- Low hysteresis (≤±0.05% FS) and high linearity (≤±0.3% FS) certified per ISO 5747 and JIS B 8360 standards
- Sub-50-ms dynamic response (no-load condition), optimized for fast-cycling pneumatic actuators and microfluidic control loops
- B-series (6640AB1) supports multi-sensor integration: analog inputs accept 0–5 V, 0–10 V, or 4–20 mA signals from pressure, mass flow, or linear position transducers
- Corrosion-resistant wetted materials: Viton® diaphragms and seals, SUS304 valve internals, and ADC12 aluminum housing rated for IP65 environmental protection
- Low power consumption (24 V DC, <1.2 W typical) and minimal air bleed (<1.5 L/min standard mode) support energy-efficient system integration
Sample Compatibility & Compliance
The 6640 regulator is validated for use with clean, dry, oil-free compressed air meeting ISO 8573-1:2010 Class 4 (solid particles ≤1 µm, dew point ≤3 °C, oil content ≤0.1 mg/m³). For non-air media—including nitrogen, argon, CO₂, or inert process gases—external pilot configuration is required to prevent diaphragm chemical degradation and ensure compliance with ASME B31.3 process piping guidelines. All models comply with EMC Directive 2014/30/EU (EN 61326-1), Low Voltage Directive 2014/35/EU (EN 61000-6-2/-6-3), and RoHS 2011/65/EU. The AB1 variant’s analog input circuitry meets IEC 61000-4-4 (EFT) and IEC 61000-4-5 (surge) immunity requirements. Device firmware and calibration records support GLP/GMP audit readiness when deployed in regulated environments (e.g., pharmaceutical filling lines or semiconductor tool gas boxes).
Software & Data Management
While the 6640 series operates as a standalone analog-regulated device without embedded firmware or network interfaces, its analog I/O architecture enables seamless integration into supervisory control systems. The 0–5 V output signal (configurable as 0–10 V or 4–20 mA upon request) provides traceable, linear representation of actual outlet pressure for SCADA/HMI logging. When paired with PLCs supporting analog I/O modules (e.g., Siemens S7-1200, Rockwell CompactLogix), the regulator supports full data acquisition, trend analysis, and alarm triggering via programmable logic. Optional third-party DAQ systems (e.g., National Instruments USB-6009) can record pressure stability over time for ISO/IEC 17025-compliant uncertainty budgets. Calibration certificates (traceable to JCSS-accredited laboratories) and sensor linearity reports are supplied with each unit.
Applications
- Precision gas pressure control in GC carrier gas delivery, FTIR purge systems, and laser cavity purging
- Secondary pressure stabilization for pneumatic test fixtures, leak testers, and automated valve actuation in automotive EOL testing
- Flow-sensitive processes requiring constant ΔP across orifices, such as MEMS sensor calibration benches and cleanroom air shower controls
- Research-grade microfluidic platforms where sub-kPa pressure resolution and repeatability (<0.1% RSD over 8 h) are critical
- Medical device manufacturing: pressure regulation for surgical instrument sterilization cycles and breathing circuit validation rigs
FAQ
What is the maximum allowable inlet pressure for the 6640AA1?
The maximum supply pressure is defined as the selected output range upper limit plus 0.05 MPa—for example, 0.85 MPa when configured for 0–0.8 MPa output.
Can the 6640AB1 accept analog signals from third-party flow meters?
Yes—the AB1 model features a configurable analog input channel compatible with standard industrial voltage/current outputs (0–5 V, 0–10 V, 4–20 mA) from certified flow, pressure, or position sensors.
Is this regulator suitable for vacuum applications?
No—the 6640 series is designed exclusively for positive-pressure regulation; it does not function as a vacuum breaker or back-pressure regulator.
Does the device include factory calibration documentation?
Each unit ships with a JCSS-traceable calibration certificate covering zero/span accuracy, hysteresis, and linearity across its specified output range.
What maintenance intervals are recommended?
Under normal clean-air operation, no scheduled maintenance is required; periodic inspection of inlet filtration (5 µm minimum) and verification of output stability every 6 months is advised per ISO 5598 maintenance guidelines.
